Description

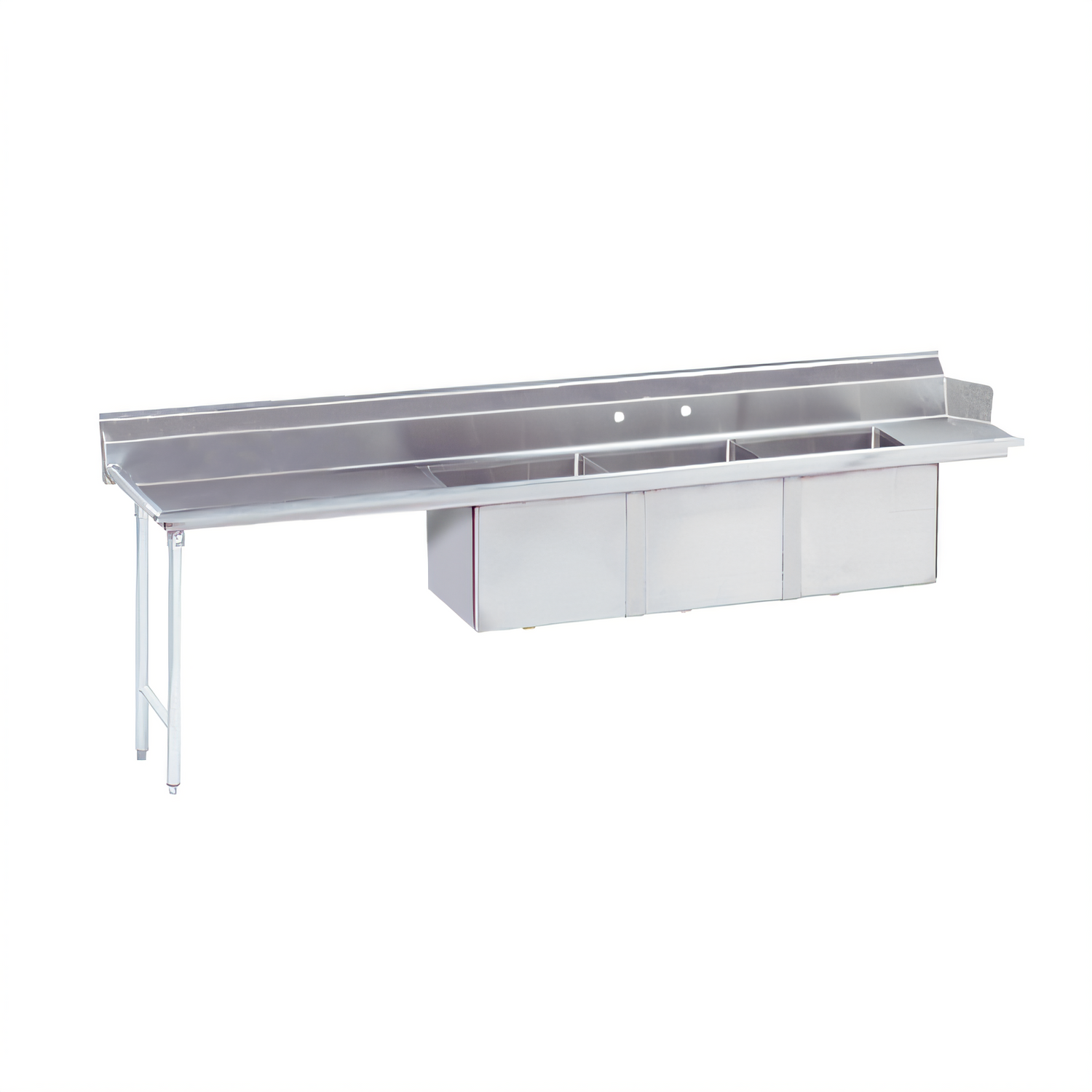

Advance Tabco DTC-3-1620-144L 3-Compartment Soil Dishtable

143" W • 83" Left Drainboard • Attaches to Left of Dish Machine Operator

Bring maximum productivity – and stainless steel staying power – to your dish room with Advance Tabco’s extra-long DTC-3-1620-144L dishtable. Its fully welded, 143-inch work surface integrates three fabricated sink bowls and an 83-inch drainboard, giving your team the space they need to scrap, soak and stage ware before it enters the dish machine.

Why You’ll Love It

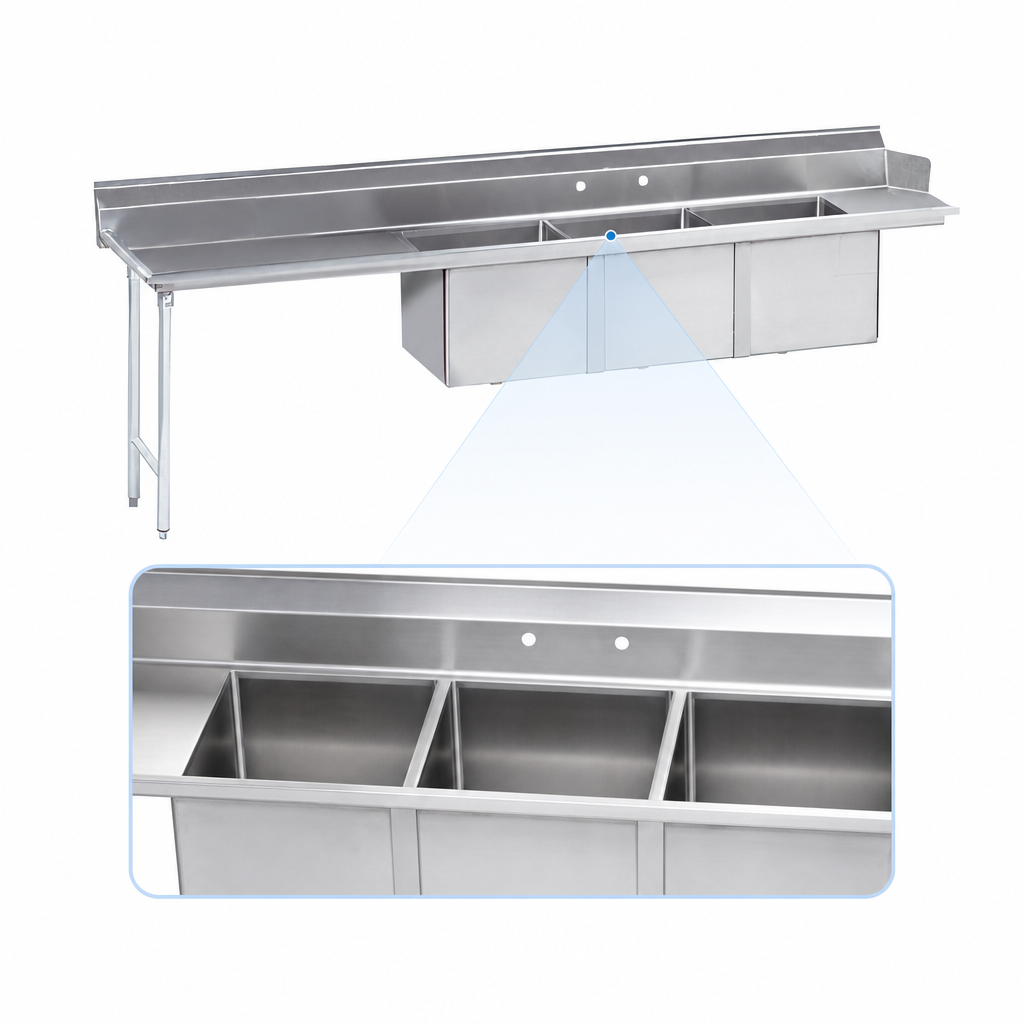

  • Three 16" x 20" x 14" deep bowls positioned 12" from the machine for optimal workflow.
  • 16 ga type 304 stainless steel top – the industry standard for corrosion resistance.
  • 10-1/2" high backsplash with 2" return & tile edge speeds installation and protects walls.
  • Stainless steel 1 5/8" dia. legs with front-to-back crossrails for rock-solid stability.
  • Adjustable stainless steel bullet feet level the table on uneven floors.
  • 83" left-side drainboard lets water sheet directly to the sink bowls.
  • All TIG-welded construction; welds are blended to a satin finish for a seamless look.
  • Pre-punched 8" O.C. faucet holes (faucets sold separately).
  • 1-1/2" IPS waste drains included; ready for plumbing hook-up.
  • NSF listed for open-food service applications.

Technical Specifications

Model DTC-3-1620-144L
Overall Width 143" (363 cm)
Front-to-Back Depth 30"
Working Height 34" (to work surface) / 37" (to backsplash top)
Sink Bowls (3) 16" W × 20" L × 14" D
Drainboard Length 83" (left side)
Bowl Offset 12" from dish machine opening
Material – Top 16 ga 304 stainless steel
Material – Legs/Crossrails Stainless steel, 1 5/8" Ø tubing
Feet Adjustable stainless steel bullet feet
Waste Outlets 1-1/2" IPS drains (included)
Faucet Holes 8" centers, 1-1/8" dia. (faucets not included)
Approx. Shipping Weight 290 lbs.
Certifications NSF

Popular Add-Ons (Sold Separately)

  • DTA-125 pre-rinse basket for 16" × 20" bowls
  • DTA-64 slide bar for pre-rinse baskets
  • DTA-49 14 ga top upgrade for heavy-duty applications
  • K-5 twist-handle drain with overflow
Important: Before ordering, confirm your dish machine’s control box or drive unit will not interfere with the sink bowls. Refer to Advance Tabco’s Dish Machine Compatibility Chart or call 1-800-645-3166 for assistance.

Need a different bowl size, drainboard length, or gauge? Ask us about Smart Fabrication™ custom modifications for a perfect fit.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

44.5in

Width

143.0in

Depth

30.0in

Shipping Weight

290.0lbs

Width (side - side) OA

133" - 144"

Dishtable Splash

10-1/2"

Compartment (side - side)

16"

Gauge

16 ga

Type Stainless Steel Top

300 series

Dishtable Legs

stainless steel

Compartment (front - back)

20"

Dishtable Shape

straight

Dish Machine Location

right side

Specifications

Dishtable with 3-compartment Sink, 143”W, (3) 16" x 20" x 14" bowls, 16 gauge 304 stainless steel top, stainless steel legs & front-to-back crossrails, attaches to left of dish machine operator, stainless steel bullet feet, 83" left drainboard, bowls are located 12" from machine, NSF (must verify machine to make sure the control box does not interfere)
