Advance Tabco  |  SKU: DTC-3-1620-120R  |  UPC: 747545207272

Advance Tabco DTC-3-1620-120R Compartment Sinks

$4,202.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Compatibility chart
Related Searches
Commercial Work Tables Restaurant Equipment Sink Tables Specialty Work Tables

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

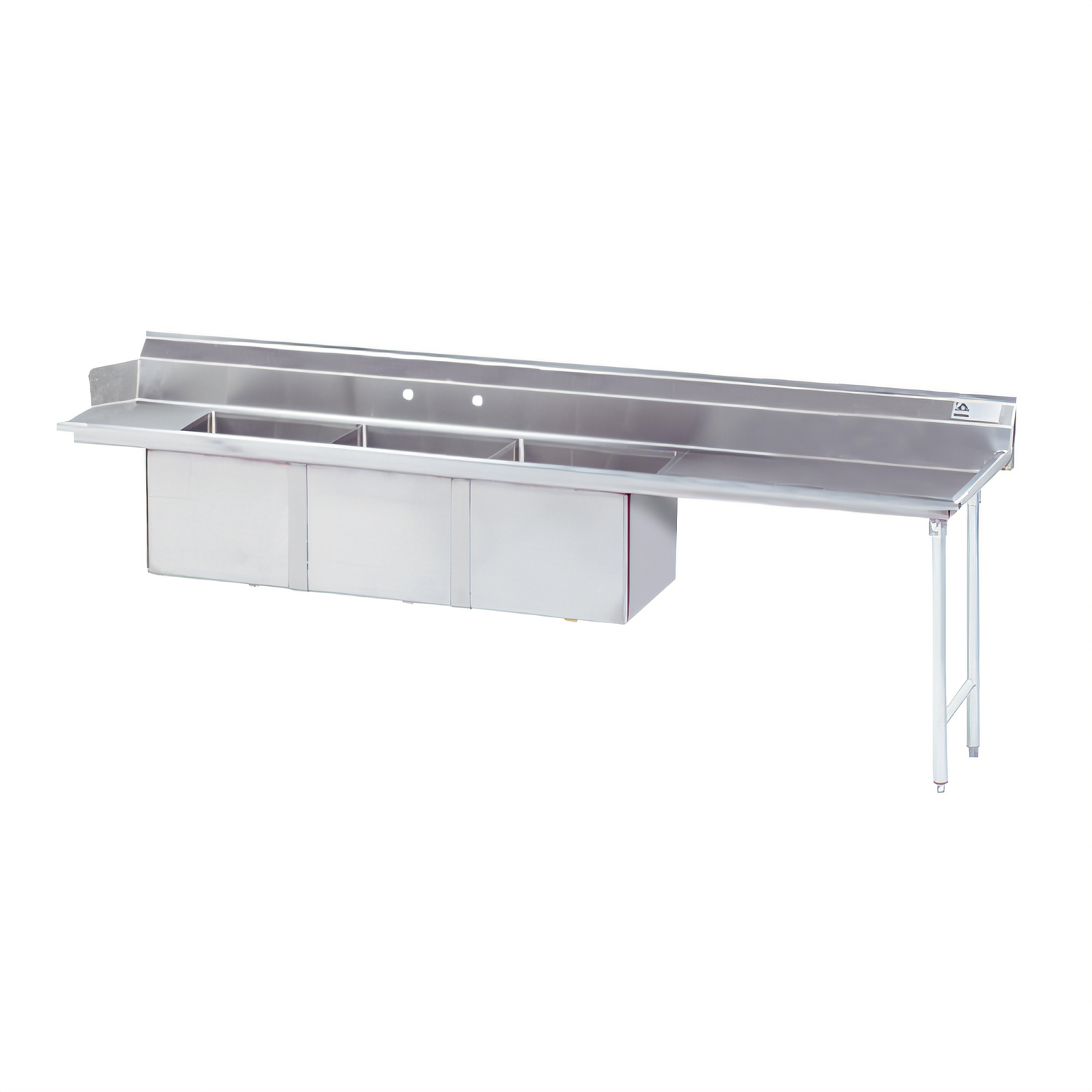

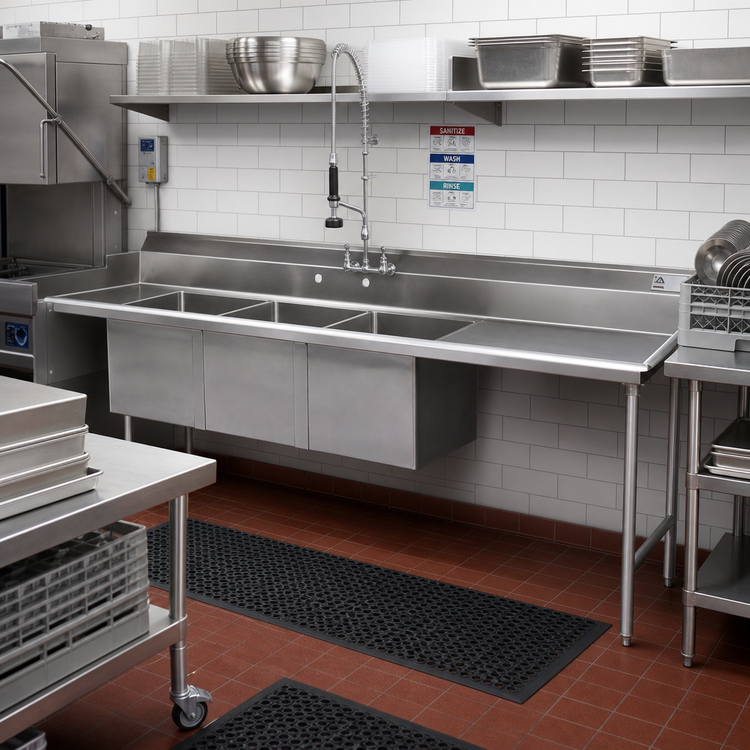

Advance Tabco 119" Right-Side Dishtable with 3-Compartment Sink

Model DTC-3-1620-120R | 59" Right Drainboard | NSF

Upgrade the efficiency of your warewashing station with this rugged all-in-one dishtable from Advance Tabco. Built from heavy-gauge 304 stainless steel, it combines a generous 59-inch drainboard and a fully fabricated three-compartment sink—perfect for presoak, wash and rinse—while attaching directly to the right side of your door-type or conveyor dish machine.

Key Features

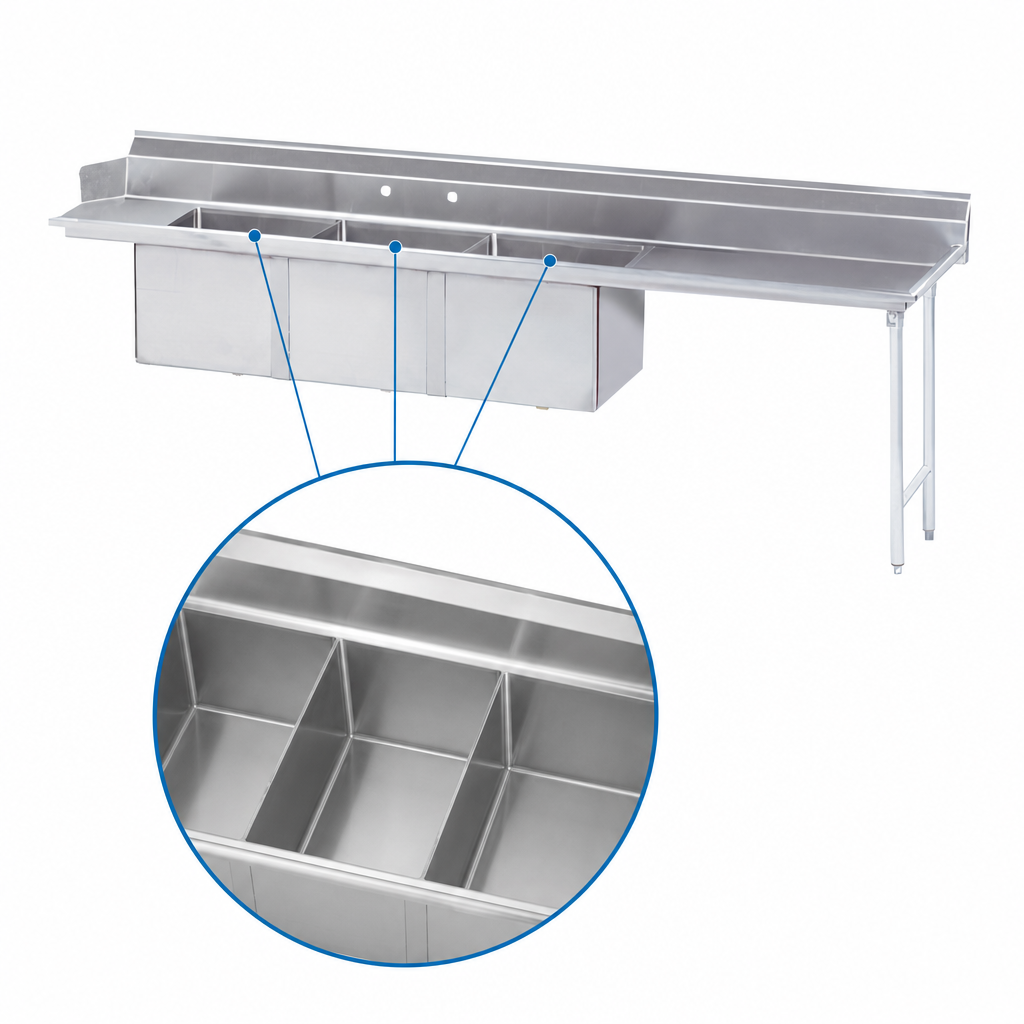

  • (3) 16" × 20" × 14" deep fabricated bowls positioned 12" from the dish machine to clear most control boxes.
  • 16-gauge type 304 stainless steel top with satin finish—tough, easy to clean and corrosion-resistant.
  • Spacious 59" right-hand drainboard handles multiple racks, sheet pans and more.
  • 10-1/2" high backsplash with 2" return and tile edge for quick, sanitary wall installation.
  • All TIG-welded construction; welds are blended for a smooth, professional appearance.
  • 1-5/8" Ø stainless steel legs with front-to-back crossrails and adjustable stainless bullet feet for maximum stability.
  • Pre-punched 8" center faucet holes (faucet sold separately).
  • 1-1/2" IPS waste drains supplied for each bowl.
  • NSF certified for safe, sanitary operation.
At-a-Glance Specifications
Overall length 119" (3023 mm)
Orientation Right – mounts to operator’s right side of dish machine
Sink bowls (3) 16" × 20" × 14" deep
Drainboard size 59" L × 20" W usable surface
Top material / gauge 16-gauge type 304 stainless steel
Legs & bracing 1-5/8" Ø stainless steel legs with stainless crossrails
Backsplash height 10-1/2" with 2" return
Plumbing (3) 1-1/2" IPS drains, 8" faucet centers (faucet not included)
Approx. weight 265 lb
Certifications NSF
Important: Confirm your dish machine’s model and control-box location before ordering. Although the bowls sit 12" from the machine opening, some models may still require additional clearance or a Smart Fabrication™ kit (e.g., DTA-76). Consult the Dish Machine Compatibility Chart or call 1-800-645-3166 for assistance.

Looking for a left-hand layout, larger bowls or 14-gauge construction? Ask us about custom Smart Fabrication™ options.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

44.5in

Width

119.0in

Depth

30.0in

Shipping Weight

265.0lbs

Compartment (side - side)

16"

Dishtable Shape

straight

Dish Machine Location

left side

Dishtable Splash

10-1/2"

Width (side - side) OA

109" - 120"

Gauge

16 ga

Type Stainless Steel Top

300 series

Dishtable Legs

stainless steel

Compartment (front - back)

20"

Specifications

Dishtable with 3-compartment Sink, 119”W, (3) 16" x 20" x 14" bowls, 16 gauge 304 stainless steel top, stainless steel legs & front-to-back crossrails, attaches to right of dish machine operator, stainless steel bullet feet, 59" right drainboard, bowls are located 12" from machine, NSF (must verify machine to make sure the control box does not interfere)
