Advance Tabco  |  SKU: DTC-3-1620-120L  |  UPC: 747545207265

Advance Tabco DTC-3-1620-120L Compartment Sinks

$4,202.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Compatibility chart
Related Searches
Commercial Work Tables Restaurant Equipment Sink Tables Specialty Work Tables

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

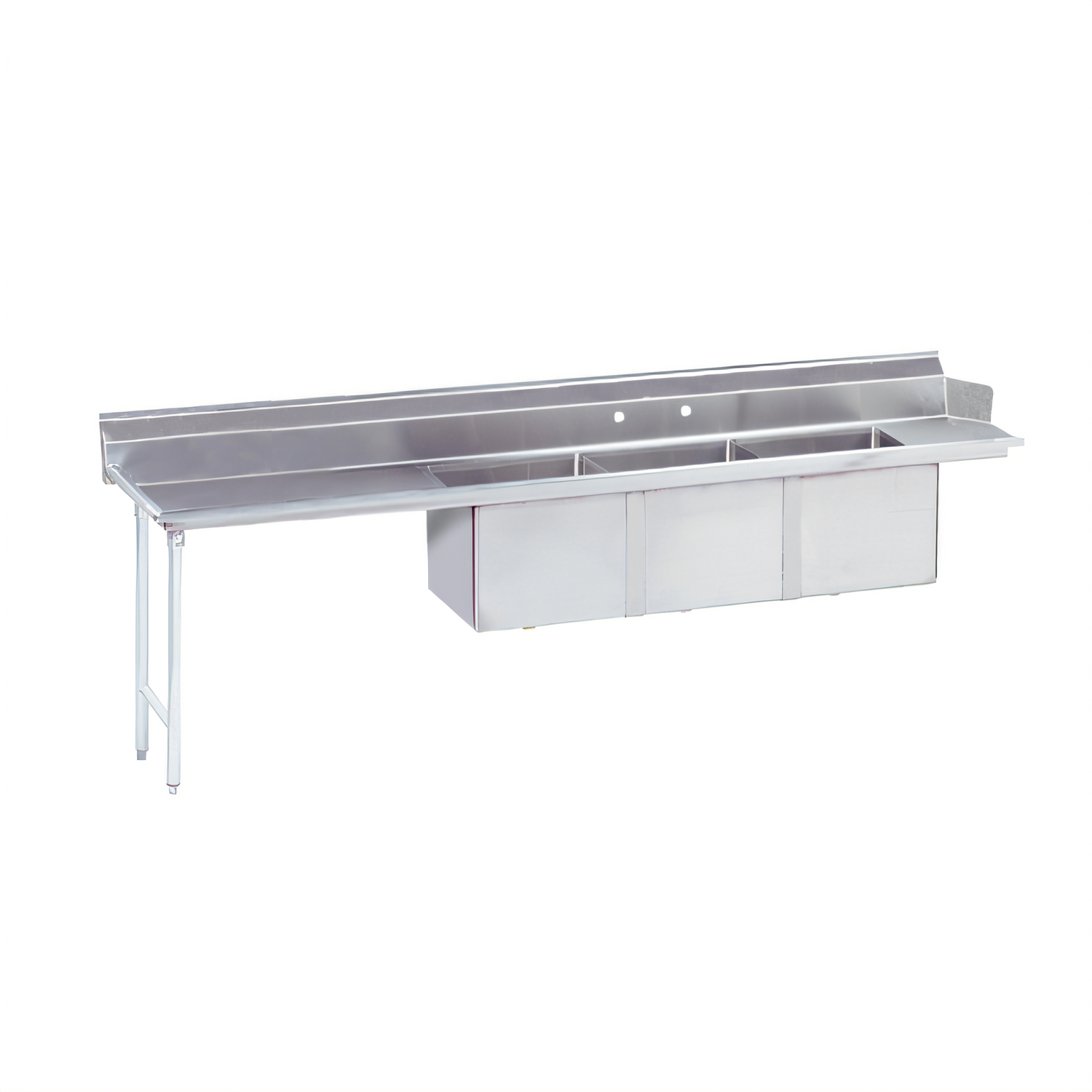

Advance Tabco DTC-3-1620-120L Left-Hand Soiled Dishtable with 3-Compartment Sink – 119"W

16 ga Type 304 Stainless Steel · (3) 16" × 20" × 14" Bowls · 59" Left Drainboard · NSF Listed

Streamline your dish room with a single, heavy-duty workstation. Designed to mount on the left side of your dish machine, the Advance Tabco DTC-3-1620-120L combines a rugged 16-gauge stainless top, a full 3-compartment sink, and an extra-long drainboard to move ware from scrape to wash in one continuous flow.

Key Features

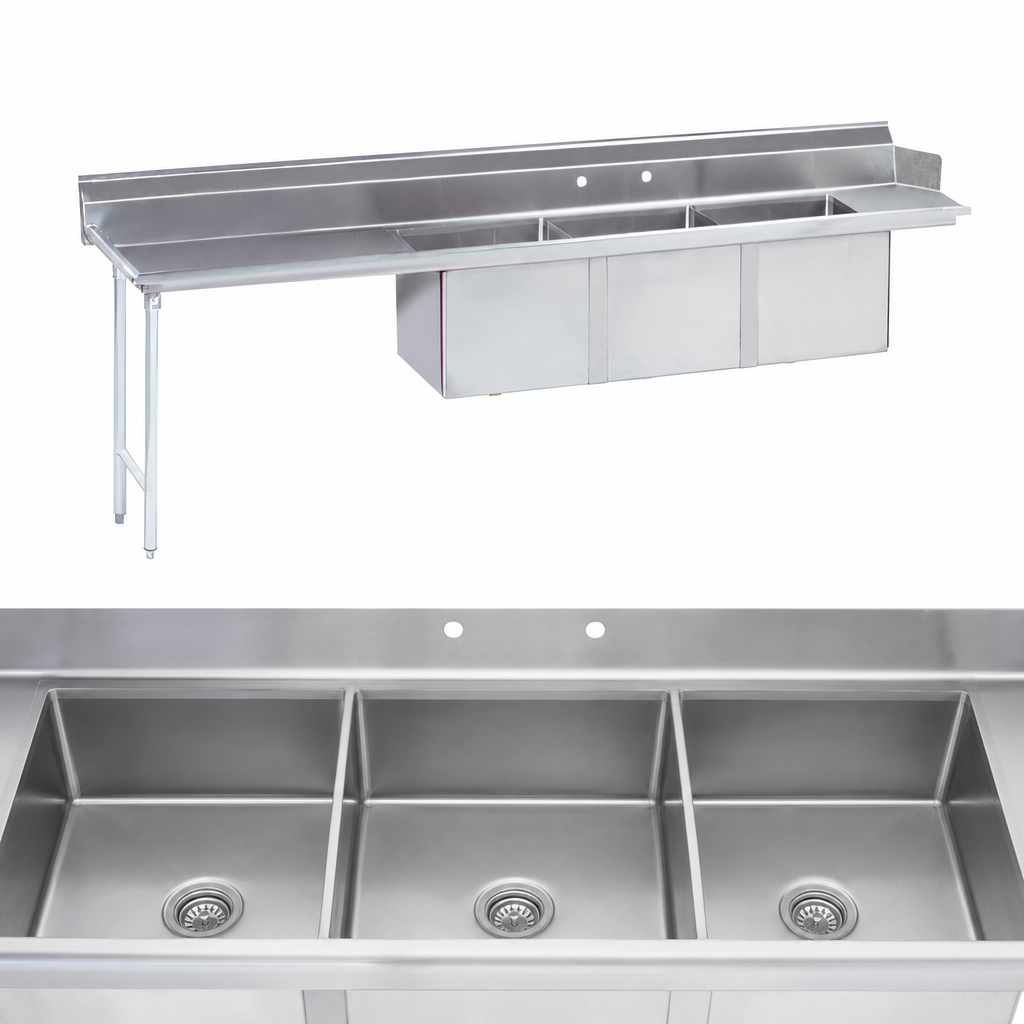

  • (3) fabricated sink bowls — 16" W × 20" L × 14" D — ideal for pre-rinse, wash, and rinse steps.
  • 59" left drainboard offers abundant landing area for incoming racks or sheet pans.
  • Bowls set 12" from dish machine opening to clear most control boxes (verify before ordering).
  • 16 ga Type 304 stainless steel top with tile edge and 10-1/2" backsplash (2" return) keeps water contained.
  • All TIG-welded construction; welds are blended to a smooth satin finish for easy cleanup.
  • 1-5/8" Ø stainless legs with welded gussets and front-to-back crossrails for rock-solid stability.
  • Adjustable stainless bullet feet level the unit up to 1" on uneven floors.
  • 8" O.C. faucet holes pre-punched in backsplash; 1-1/2" IPS waste drains supplied (faucets not included).
  • NSF certified for safe, sanitary operation in commercial kitchens.

At-a-Glance Specifications

Manufacturer / Model Advance Tabco DTC-3-1620-120L
Overall Length 119" (3023 mm)
Overall Depth 30"
Sink Compartments (3) 16" × 20" × 14"
Drainboard Length 59" (left side)
Top Material 16 ga 304 stainless steel
Legs & Bracing 1-5/8" Ø stainless tube legs with stainless crossrails & welded gussets
Backsplash Height 10-1/2" with 2" return
Faucet Centers 8" on-center (faucet not included)
Drain Size 1-1/2" IPS
Orientation Soil Left – attaches to left of dish machine operator
Approx. Shipping Weight 265 lb
Certification NSF
Compatibility Notice: Dish machines with side-mounted control boxes or drive units may require additional clearance or Advance Tabco kit DTA-76. Always confirm your specific machine model before ordering.

Looking for a different gauge, bowl size, or layout? Advance Tabco Smart Fabrication™ can customize a dishtable to your exact workflow.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

44.5in

Width

119.0in

Depth

30.0in

Shipping Weight

265.0lbs

Dishtable Splash

10-1/2"

Compartment (side - side)

16"

Type Stainless Steel Top

300 series

Width (side - side) OA

109" - 120"

Gauge

16 ga

Compartment (front - back)

20"

Dishtable Legs

stainless steel

Dishtable Shape

straight

Dish Machine Location

right side

Specifications

Dishtable with 3-compartment Sink, 119”W, (3) 16" x 20" x 14" bowls, 16 gauge 304 stainless steel top, stainless steel legs & front-to-back crossrails, attaches to left of dish machine operator, stainless steel bullet feet, 59" left drainboard, bowls are located 12" from machine, NSF (must verify machine to make sure the control box does not interfere)
