Advance Tabco  |  SKU: DT21-4  |  UPC: 747545208330

Advance Tabco DT21-4 Wall-Mounted Shelving

$2,426.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

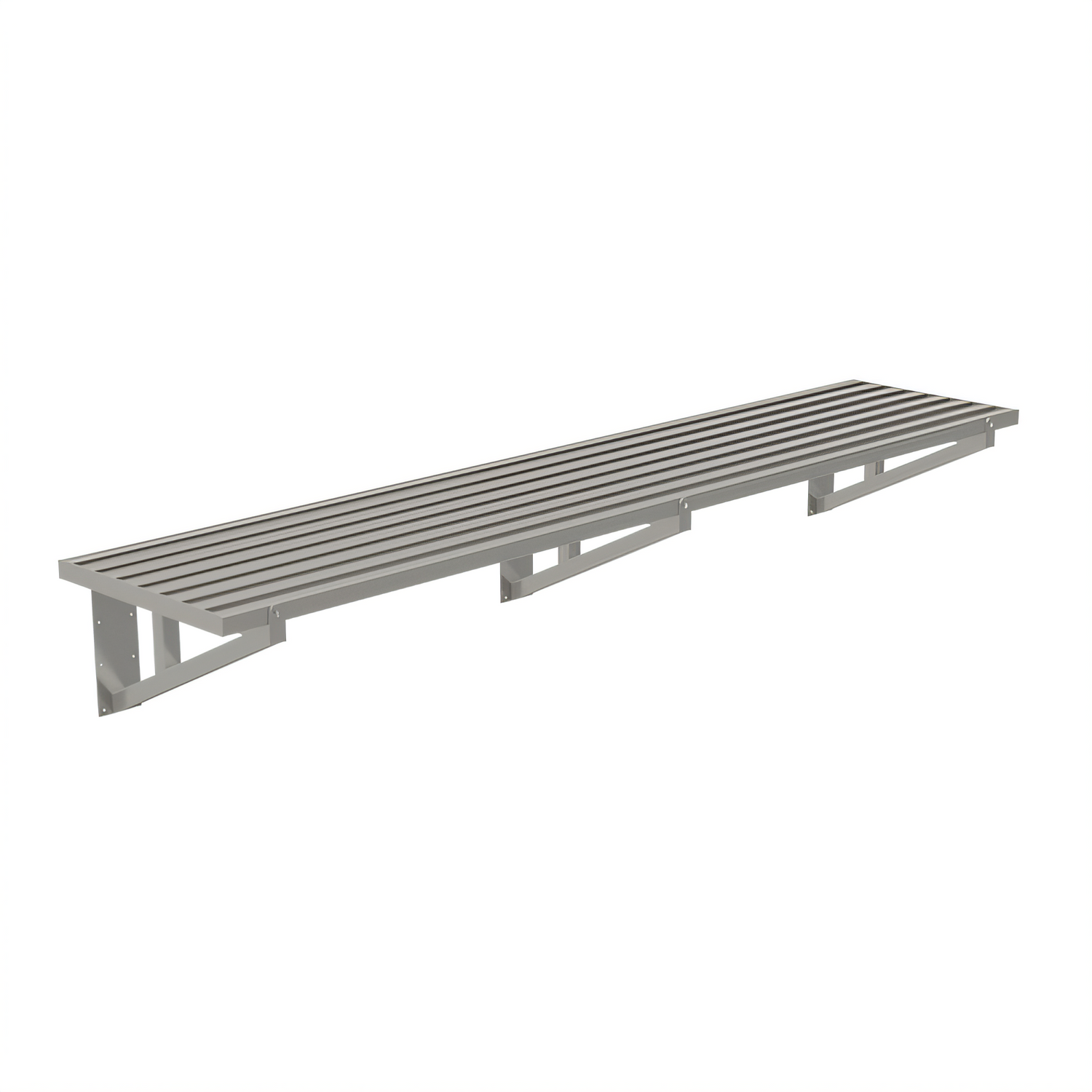

Advance Tabco DT21-4 Heavy-Duty Slotted Wall Shelf – 48"W x 21"D

Cook-line rated | 18-gauge 304 stainless steel | (2) loose wall brackets included

Built for the demanding heat and humidity of commercial cook lines, the DT21-4 slotted wall shelf delivers rock-solid storage, quick drainage and years of corrosion-proof performance in a compact 48 inch length.

Key benefits

  • 21 inch extra-deep shelf easily holds hotel pans, sheet pans or small countertop equipment.

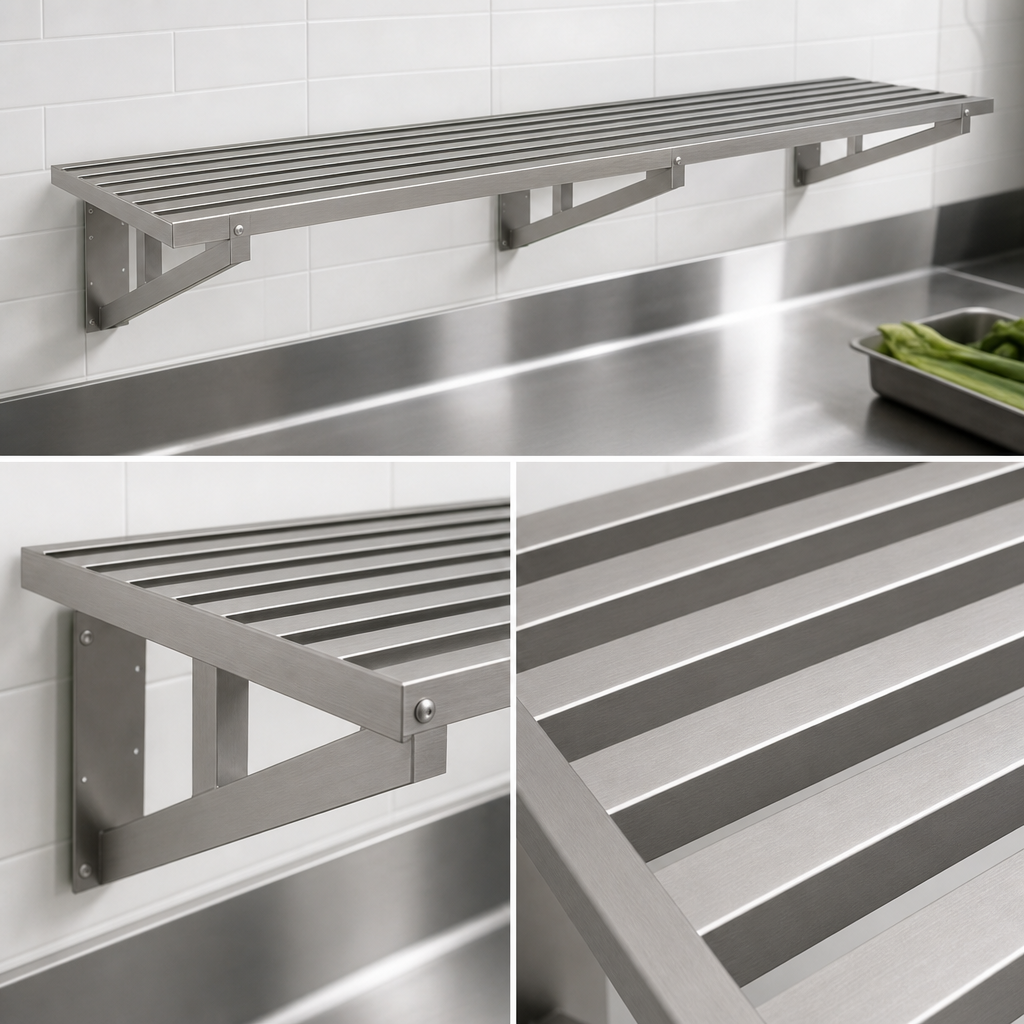

  • Open-slot design with 1 ¾" spacing promotes air flow, faster cooling and less grease build-up.
  • Constructed from 1 ½" square, 18-gauge 304 stainless steel tubing for maximum rigidity and rust resistance.
  • Satin-blended finish cleans up quickly and matches existing stainless equipment.
  • Includes (2) heavy-duty 304 SS tubular wall brackets  – ship loose to align with wall studs.
  • 3⁄16" thick stainless wall plates distribute weight and simplify bolt-through mounting.
  • Load capacity: 22 lbs per sq. ft. when weight is evenly distributed.
  • Made in the USA by Advance Tabco, a trusted name in commercial fabrication.

Specifications

Model # DT21-4
Shelf length 48" (1219 mm)
Shelf depth 21" (533 mm)
Tubing size / gauge 1 ½" square  / 18 ga 304 SS
Slot spacing 1 ¾" on center
Included brackets (2) loose, tubular 304 SS wall brackets
Bracket wall plate 3⁄16" thick stainless steel
Finish Satin-blended stainless
Load rating 22 lbs / sq. ft. (evenly distributed)
Shipping weight 90 lbs  | 6 cu ft
Installation note: Advance Tabco recommends field-welding the two wall brackets to the underside of the shelf for maximum stability in high-heat cook-line environments. A factory-welded option (kit TA-26-21) is available by special order.

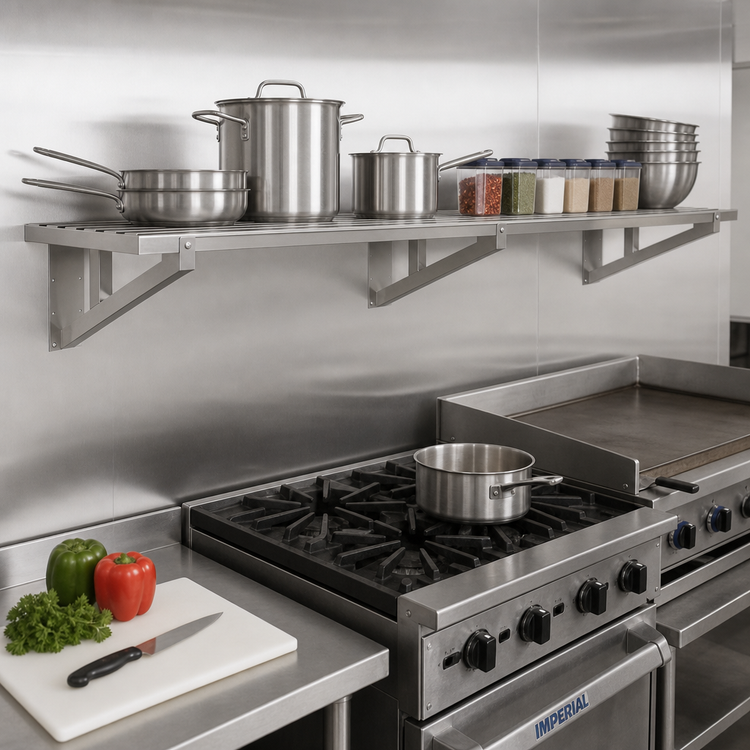

Images may show longer shelves for illustrative purposes. This listing is for the 48" model only. Mounting hardware (lag bolts/anchors) is user supplied to match wall construction.

Features & Specs

Manufacturer

Advance Tabco

Height

13.0in

Width

48.0in

Depth

21.0in

Shipping Weight

90.0lbs

Type

300 series

Construction

stainless steel

Depth (front - back)

21"

Gauge

18 gauge

Finish

satin

Width (side - side)

48"

Specifications

Slotted Wall Shelf, 48"W x 21"D, 1-1/2" square stainless steel tubing with 1-3/4" spacing, includes: (2) wall brackets (shipped loose, field-welding to shelf recommended)
