Advance Tabco
Advance Tabco 18 Inch Underbar Stainless Steel Bar Drink Rail with Removable Grate
SKU: DRKR-18
$223.00
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?

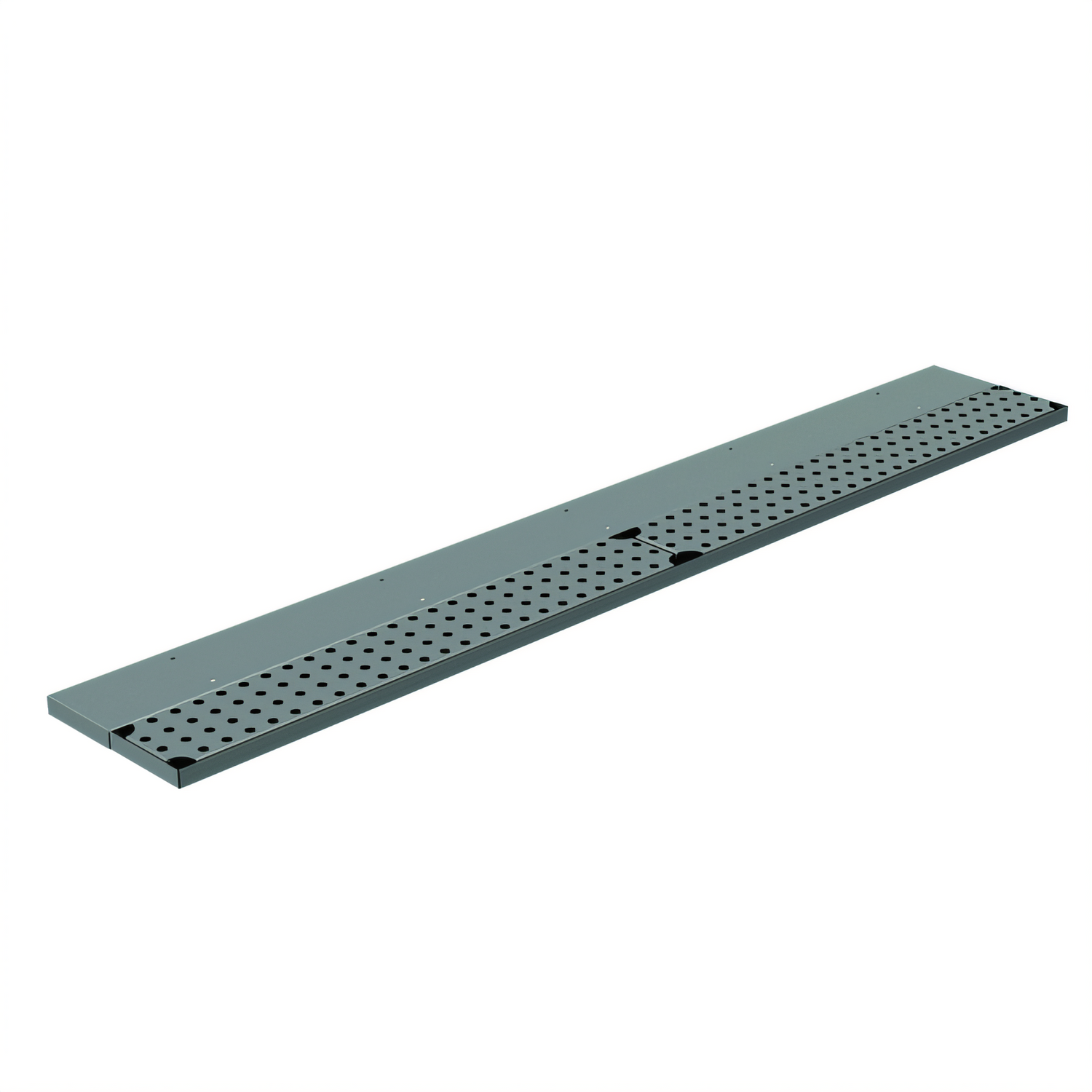

Advance Tabco 18 Inch Underbar Stainless Steel Bar Drink Rail with Removable Grate
Right-Side Drain, 3/4-Inch Profile, Mounts Under a Wood Substrate
Keep bar tops cleaner with a compact stainless steel drink rail that captures runoff in a removable perforated grate and drains it from the right side.
- 18-inch wide drink rail designed for bar and beverage service applications.
- Perforated removable grate helps simplify cleaning and maintenance.
- Right-side drain outlet helps direct liquid away from the bar surface.
- Made from 18-gauge Type 300 stainless steel for durable, commercial use.
- Installs to the underside of a wood substrate with wood screws.
- Optional corner pieces are available separately for custom layouts.
Overall Dimensions:
18.0"W x 8.0"D x 0.75"HProduct Weight:

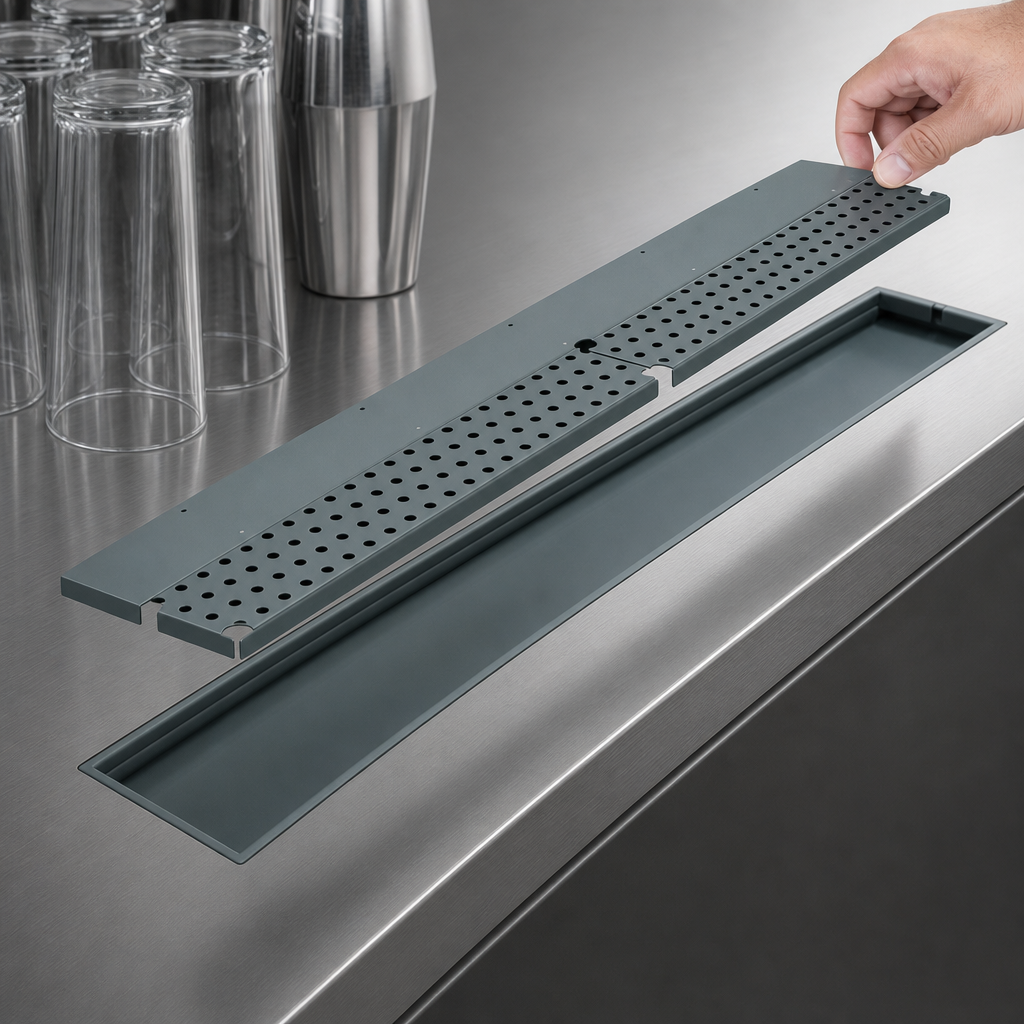

15.0 lbPerforated Removable Grate
The top grate lifts out for easier cleaning and maintenance.

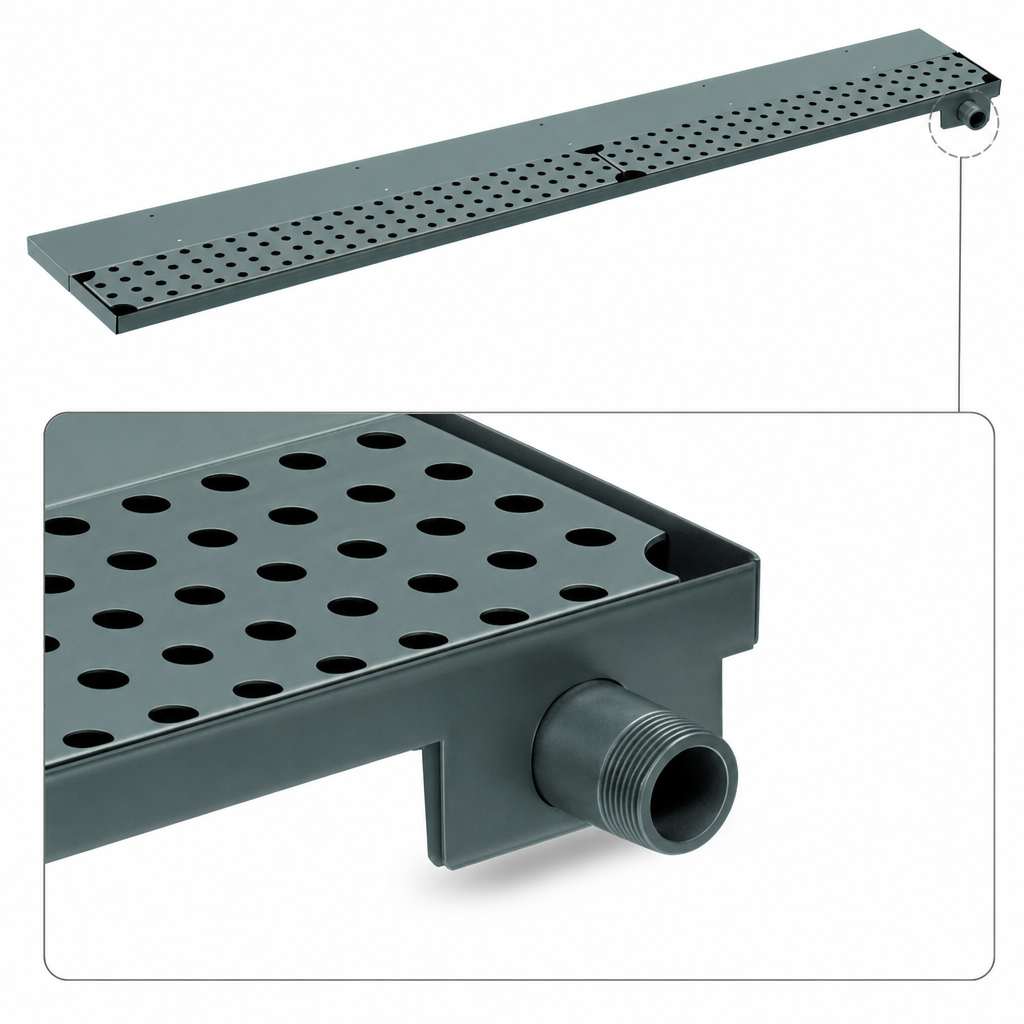

Right-Side Drain Outlet
Built with a drain on the right end; the outlet uses 1/4 inch NPT outside thread and 1/8 inch FPT inside thread.
18-Gauge Type 300 Stainless Steel
Durable stainless steel construction designed for commercial bar environments.
Underside Wood Substrate Mounting
Designed to secure to the underside of a wood bar top using wood screws.
Compact Drink Rail Profile
Measures 18 inches wide, 8 inches front-to-back, and 3/4 inch deep.
Type
Drink Rail
Style
Underbar
Installation Type
Built-In
Material
Stainless Steel
Drain Connection Size
1/4 Inch NPT Outside Thread, 1/8 Inch FPT Inside Thread
Selling Unit
Each
Units Per Case
1
Shipping Width
18 Inches
Shipping Depth
8 Inches
Shipping Height
1 Inch
Shipping Weight
15 lb.
Documents
Frequently Asked Questions
It measures 18 inches wide by 8 inches deep and 3/4 inch high.
Yes. It includes a perforated removable top grate for easier cleaning.
The drain is located on the right end and uses 1/4 inch NPT outside thread with 1/8 inch FPT inside thread.
It is designed to secure to the underside of a wood substrate and installs with wood screws.
Yes. Optional 90-degree and 45-degree inside and outside corner pieces are listed separately.
