Advance Tabco
Advance Tabco Stainless Steel 45° Outside Corner Filler for DRKR Series Bar Drink Rails
SKU: DRKC-45-OC
$374.00
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?

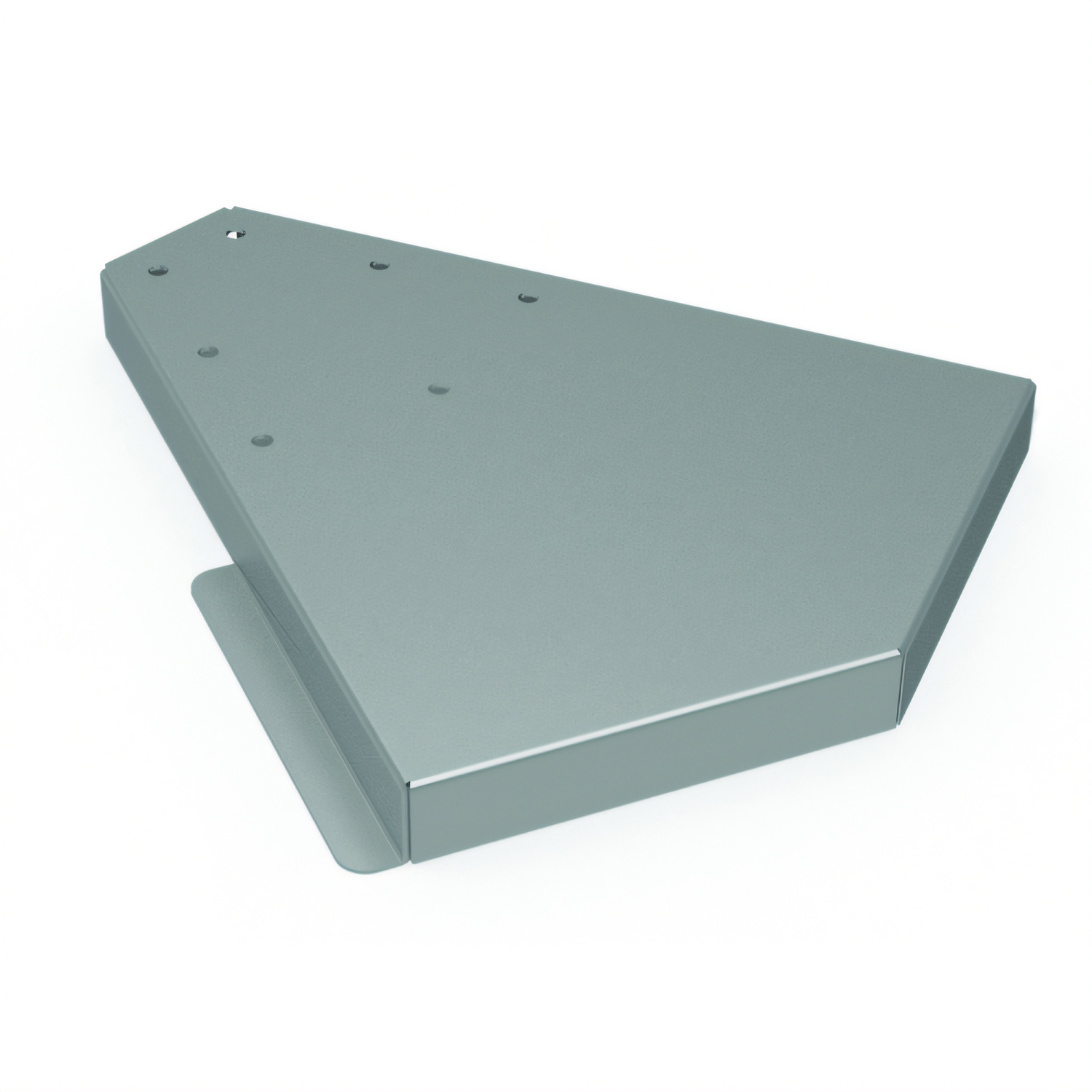

Advance Tabco Stainless Steel 45° Outside Corner Filler for DRKR Series Bar Drink Rails
For 135° corners; requires two separate DRKR rails
Create a clean, durable outside-corner connection between two DRKR series drink rails.
- 45° mirror-image outside corner filler for 135° bar layouts.
- Allows two DRKR series drink rails to meet neatly at a corner.
- Must be used with two separate DRKR rails; not designed to convert a single rail.
- Built from Type 300 stainless steel for durability in commercial bar service.
- Compact 8-inch by 8-inch corner section with a 3/4-inch profile.
Overall Dimensions:
8.0"W x 8.0"D x 0.75"HProduct Weight:

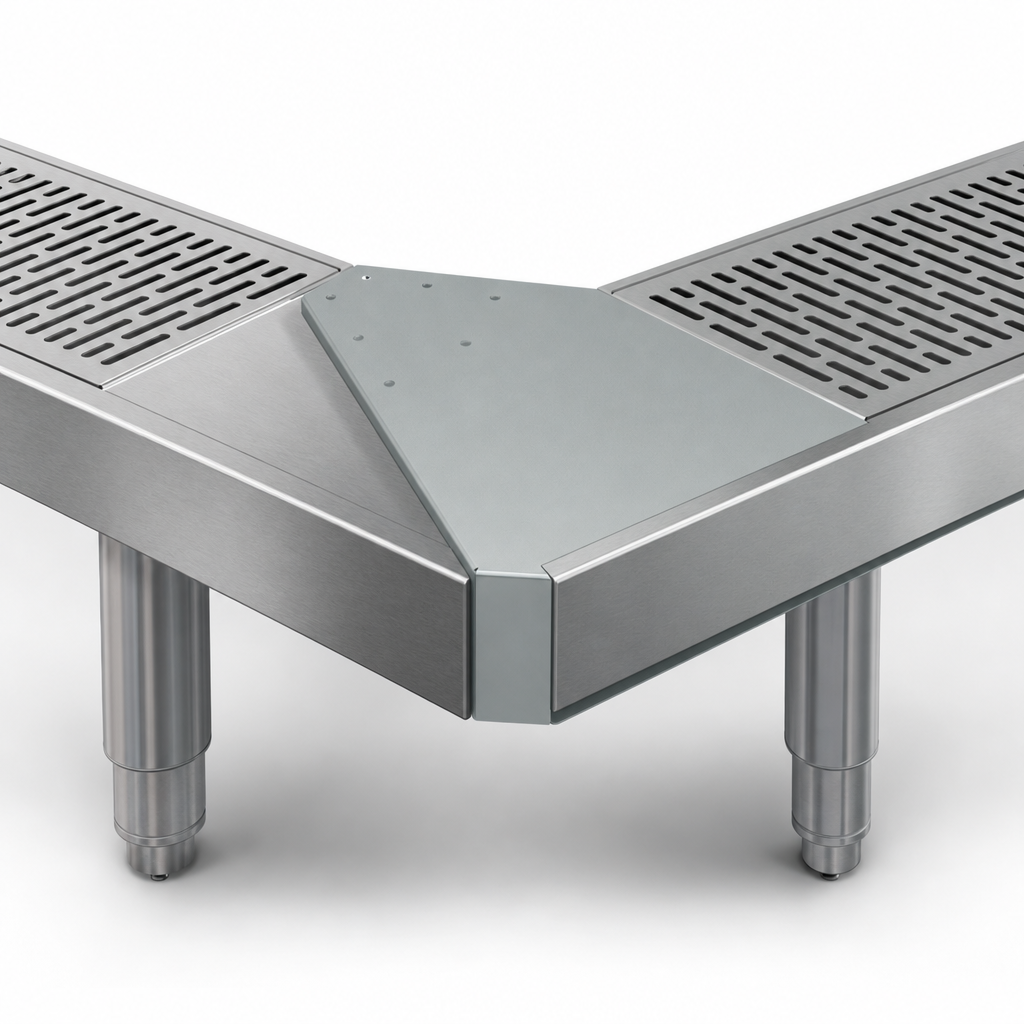

3.0 lb45° Outside Corner Design
Forms a 135° outside corner connection between two DRKR series drink rails.

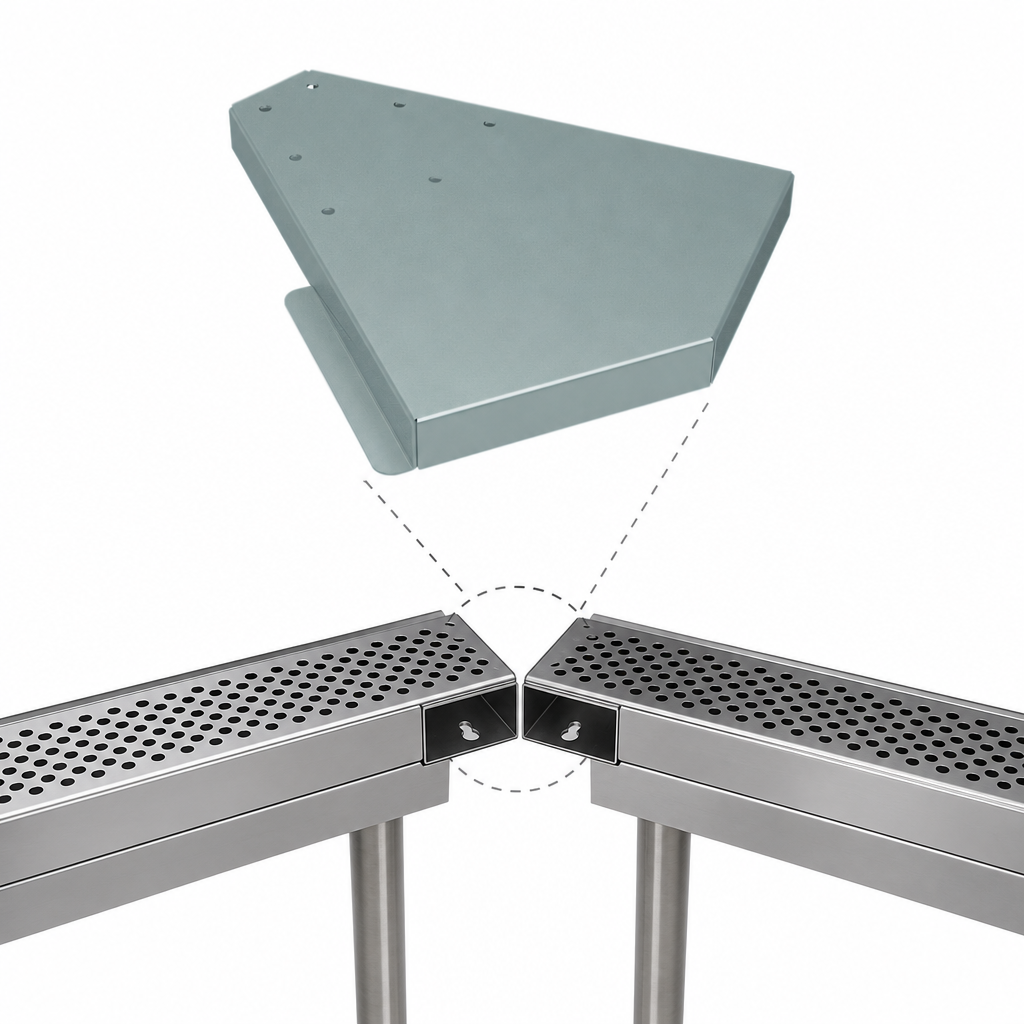

Requires Two Separate Rails
This corner option does not convert a single rail; two separate DRKR rails must be ordered.
Stainless Steel Construction
Made from Type 300, 18-gauge stainless steel for long-lasting use.
Compact Corner Section
Overall footprint is 8 inches by 8 inches with a 3/4-inch profile.
Drain Connection
Includes a 1/4-inch drain connection with 1/4-inch NPT outside thread and 1/8-inch FPT inside thread.
Underside Mounting
Designed to secure to the underside of a wood substrate using wood screws.
Material
300 Stainless Steel
Type
Outside Corner Filler
Style
45 Degree Mirror Image
Drain Connection Size
1/4 Inch NPT Outside Thread / 1/8 Inch FPT Inside Thread
Shipping Width
8 Inches
Shipping Depth
8 Inches
Shipping Height
1 Inch
Shipping Weight
3 Pounds
Selling Unit
Each
Units Per Case
1
Documents
Frequently Asked Questions
It is a 45° outside corner filler that lets two DRKR series drink rails meet at a 135° corner.
No. The document says you must order two separate DRKR drink rails; this option does not add a corner to a single rail.
It is made from Type 300 stainless steel, 18 gauge.
It is designed to secure to the underside of a wood substrate and is installed with wood screws.
The drain connection is 1/4-inch NPT outside thread and 1/8-inch FPT inside thread.
