Advance Tabco  |  Triumph (Supreme)  |  SKU: DISW-6-240  |  UPC: 747545182739

Advance Tabco DISW-6-240 Triumph (Supreme) Steam Tables & Food Wells

$4,662.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Parts list Diagram
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

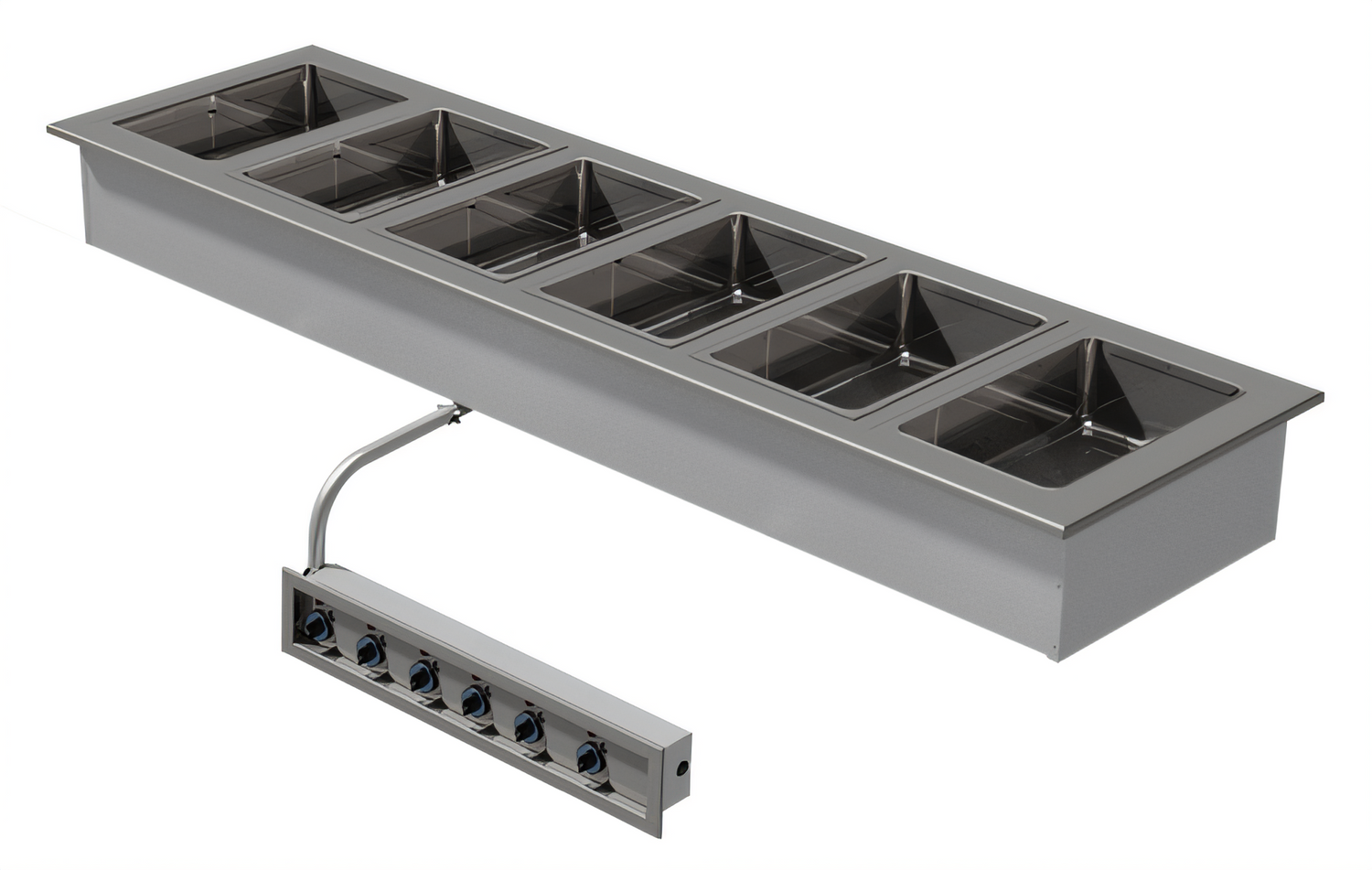

Advance Tabco Triumph (Supreme) 6-Well Sealed Drop-In Hot Food Unit

Model DISW-6-240 | 86 ½" W × 24 ½" D | 208/240 V Electric

Designed for high-volume cafeterias, buffets and catering lines, the Triumph (Supreme) keeps six full-size pans of menu items at perfect serving temperature while freeing up counter space. A self-rimmed 304 stainless steel top drops cleanly into your counter, and a single remote control panel gives staff intuitive, individual control over each well.

Key Features

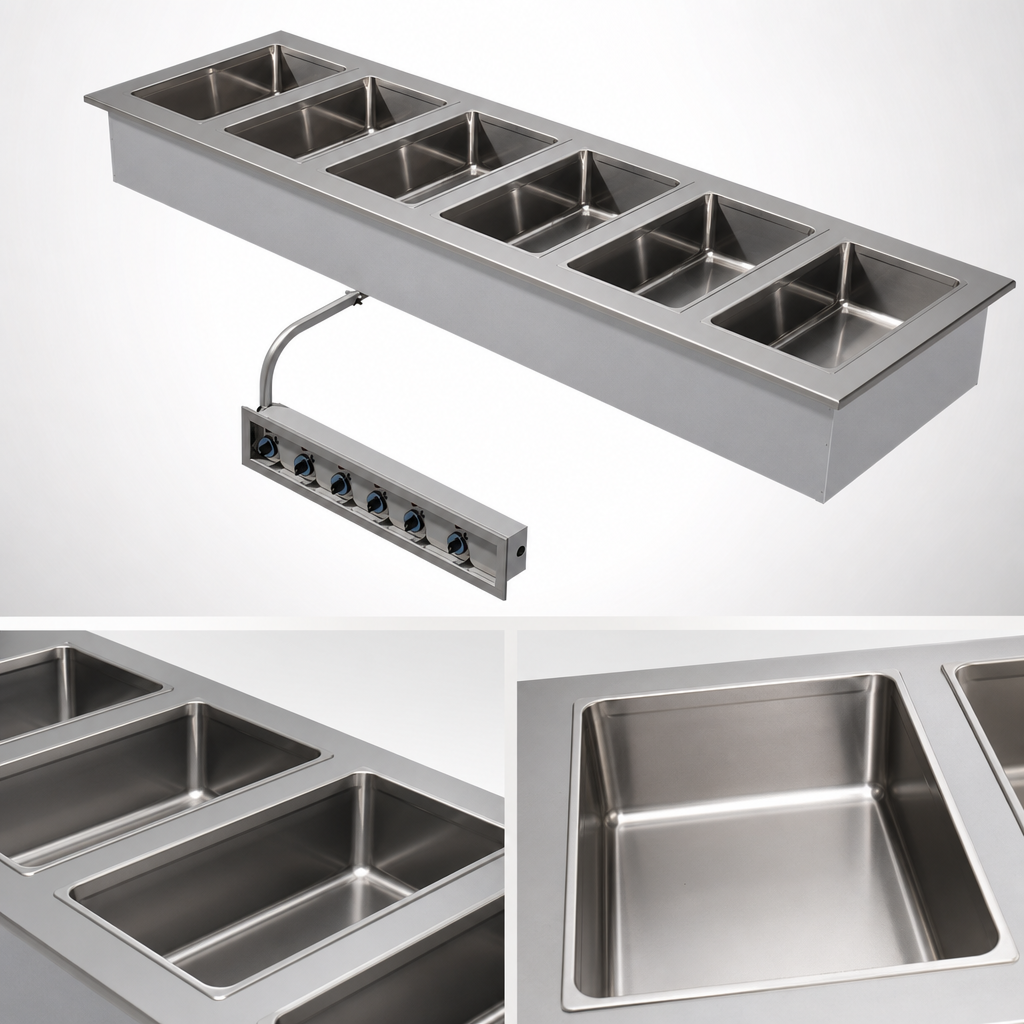

  • (6) 12" × 20" sealed wells – accommodate pan inserts up to 6 ¼" deep
  • Wet operation with individual drains and ½" I.P.S. gate valve for fast, hygienic cleanup
  • Remote control panel with six infinite-switch thermostats & indicator lights
  • High-density fiberglass insulation between wells to reduce heat loss and energy use
  • 18 ga 304 stainless steel top with self-rimmed, die-stamped openings for a flush, finished look
  • 20 ga galvanized steel body stands up to everyday back-of-house abuse
  • Dual-voltage elements: 4 950 W @ 208 V or 6 600 W @ 240 V (23.82 / 27.48 A)
  • NSF & UL listed for food-service compliance

Specifications

Overall dimensions (W × D × H) 86 ½" × 24 ½" × 15 7⁄16"
Counter cut-out size 85 5⁄8" × 23 ½"
Well configuration Six sealed 12" × 20" wells with drains
Pan depth capacity Up to 6 ¼"
Operation Wet (water bath) holding – maintains, not cooks, food
Controls Remote panel, (6) infinite switches, indicator lights
Voltage & phase 208/240 V, 1-ph (3-ph upgrade available)
Total wattage / amperage 4 950 W / 23.82 A @ 208 V • 6 600 W / 27.48 A @ 240 V
Drain connection ½" I.P.S. per well, manifold option available
Ship weight Approx. 275 lb
Certifications NSF, UL

Popular Accessories (sold separately)

  • SU-P-232 or SU-P-233 8' cord sets with NEMA L6-20P / L6-30P plug
  • SU-45A stainless steel 12" adapter bars for fractional pans
  • -M suffix: Manifold drain assembly for single-point drainage
  • -T suffix: Thermostatic controls for precise temperature holding
  • SU-72: 3-phase wiring upgrade (240 V models)

Unit ships ready for hard-wire installation. Optional cord & plug kits are available.

Holding only: This equipment is not intended to cook or reheat cold/frozen foods. Load the wells with pre-heated products to ensure proper serving temperatures.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Triumph (Supreme)

Certifications

NSF, UL

Height

15.44in

Width

86.5in

Depth

24.5in

Shipping Weight

275.0lbs

Controls

infinite controls

Style

individual pans

Insulated or Non-Insulated

insulated

Pan Capacity

(6) full size (12" x 20")

Construction

stainless steel construction

Drain

with drain

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, drop-in, electric, 86-1/2”W x 24-1/2"D x 15-7/16"H (overall), 85-5/8”W x 23-1/2”D (cut out size), (6) 12" x 20" sealed hot food wells with drains (accommodates pan inserts up to 6-1/4" deep), wet operation, (1) remote control panel with individual infinite controls, indicator lights, 18 gauge 304 stainless steel self rimmed top, 20 gauge galvanized body, NSF, UL
