Description

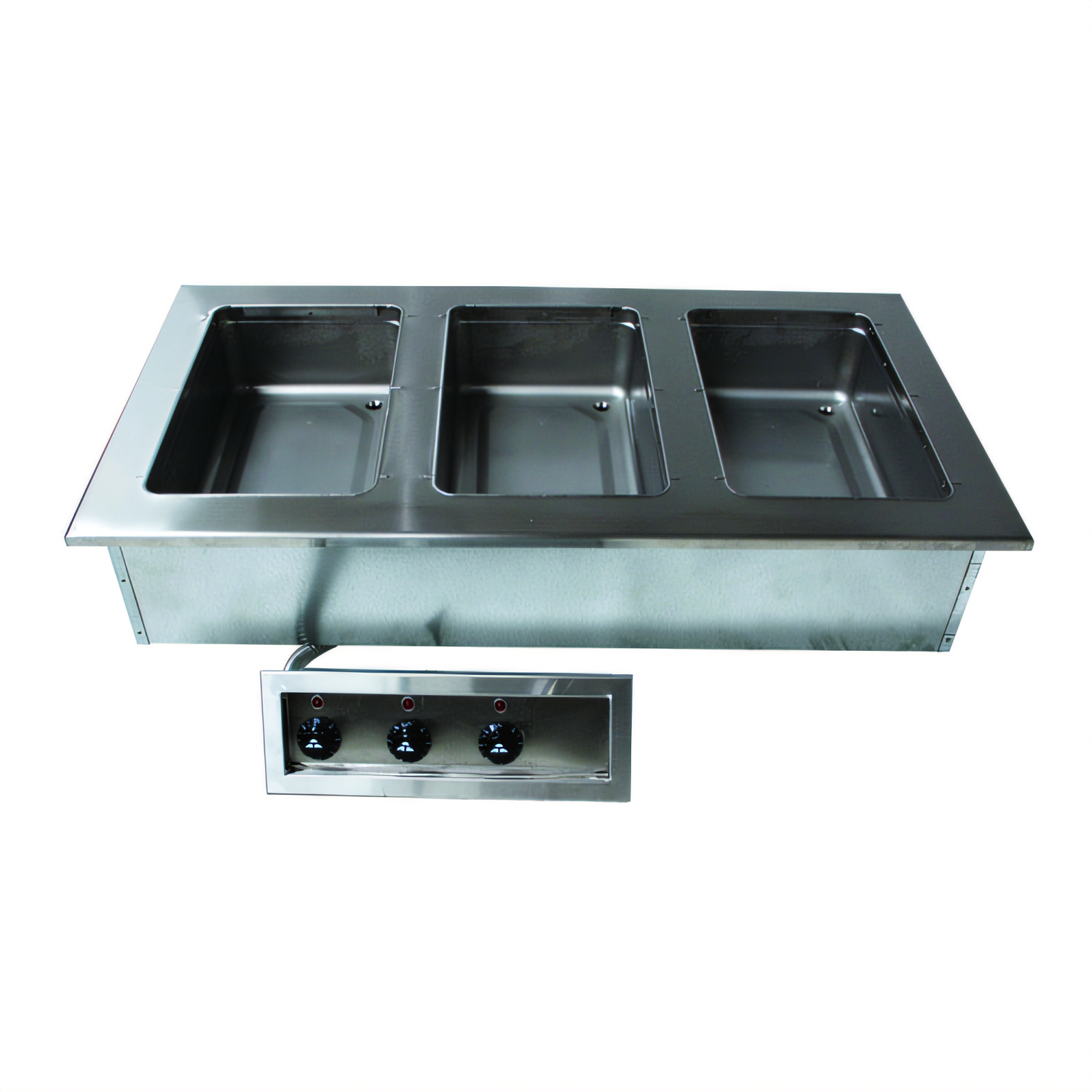

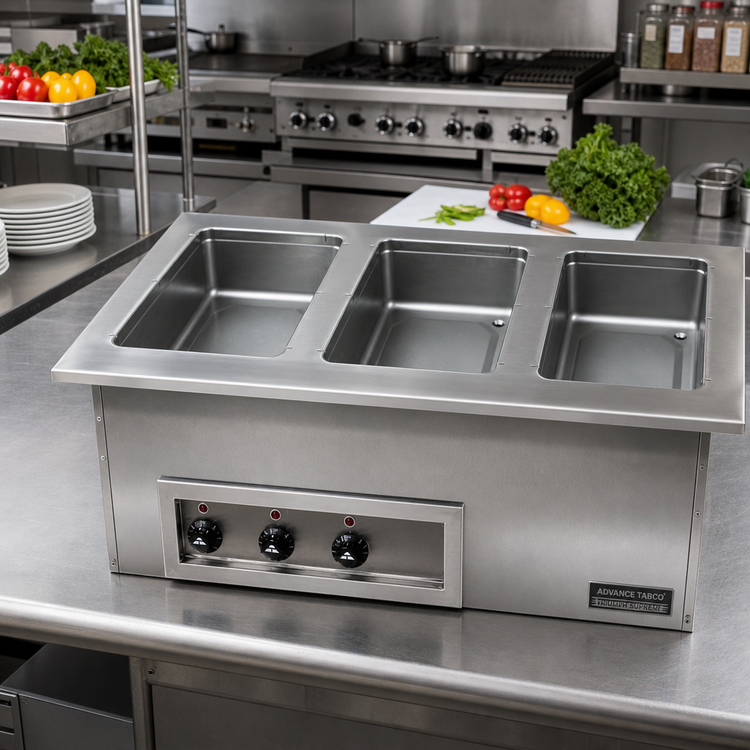

Advance Tabco DISW-3 Sealed Well Drop-In Hot Food Unit
3-Well • 208/240 V Electric • Self-Rimmed Stainless TopEngineered for busy commercial kitchens, the Advance Tabco DISW-3 delivers consistent holding temperatures, easy wet-well cleanup and rock-solid stainless construction—all in a convenient 44 ½" drop-in footprint. Simply drop the unit into your counter cut-out, hard-wire to power, and start serving hot entrées, sides and sauces with confidence.
Key Features

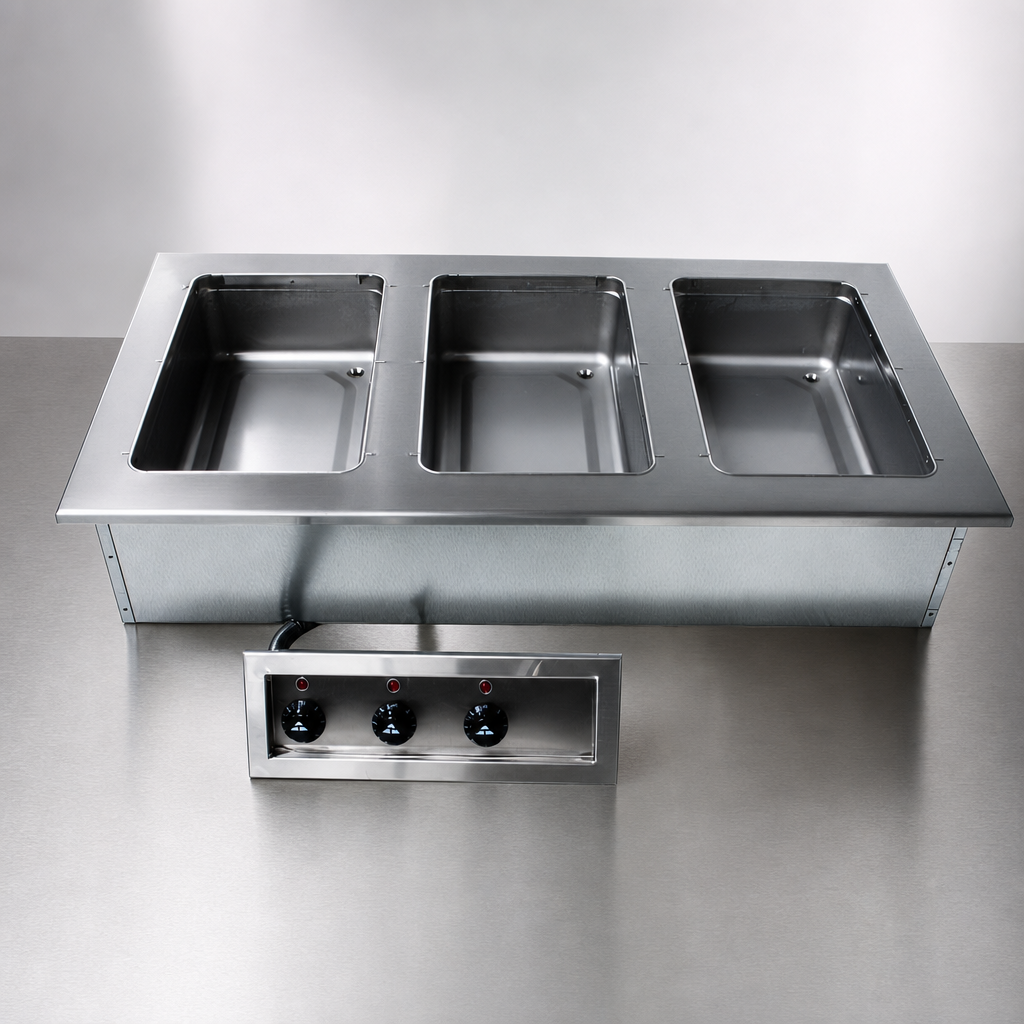

- (3) 12" × 20" sealed wells—each accepts pans up to 6 ¼" deep
- Wet operation with individual ½" I.P.S. drains & gate valves for fast emptying
- Remote control panel with infinite heat knobs & indicator lights—one set per well
- 18 ga 304 stainless steel self-rimmed top for a clean, flush counter finish
- 20 ga galvanized steel body, fully insulated with fiberglass between wells
- Dual-voltage elements: 2 475 W @208 V or 3 300 W @240 V (hard-wire installation)
- NSF & UL listed for sanitation and electrical safety
At-a-Glance Specifications
| Overall Dimensions (WxDxH) | 44 ½" × 24 ½" × 15 7⁄16" |
|---|---|
| Counter Cut-Out Size | 43 5⁄8" × 23 ½" |
| Number / Size of Wells | 3 wells • 12" × 20" pans (standard steam-table size) |
| Well Depth Capacity | Up to 6 ¼" pan depth |
| Voltage / Phase | 208/240 V, 1-Ph (field wired) |
| Total Wattage / Amps | 2 475 W @208 V (11.9 A) 3 300 W @240 V (13.7 A) |
| Controls | Remote panel, infinite switches & pilot lights |
| Drain Connection | ½" I.P.S. per well (gate valves included) |
| Construction | 18 ga 304 SS top, 20 ga galvanized body |
| Listings | NSF, UL |
Optional Accessories (sold separately)
- 8' cord sets with NEMA 6-20P or L6-30P plug
- Manifold drain kit for single point plumbing
- SU-90 automatic water autofill system
- Thermostatic control upgrade (add suffix "-T")
- 3-phase wiring upgrade (model SU-72)
- 12" × 1" adapter bars for fractional pan layouts
Need a different size or well count? Explore the full Advance Tabco DISW series for 1–6 well configurations.
