Advance Tabco

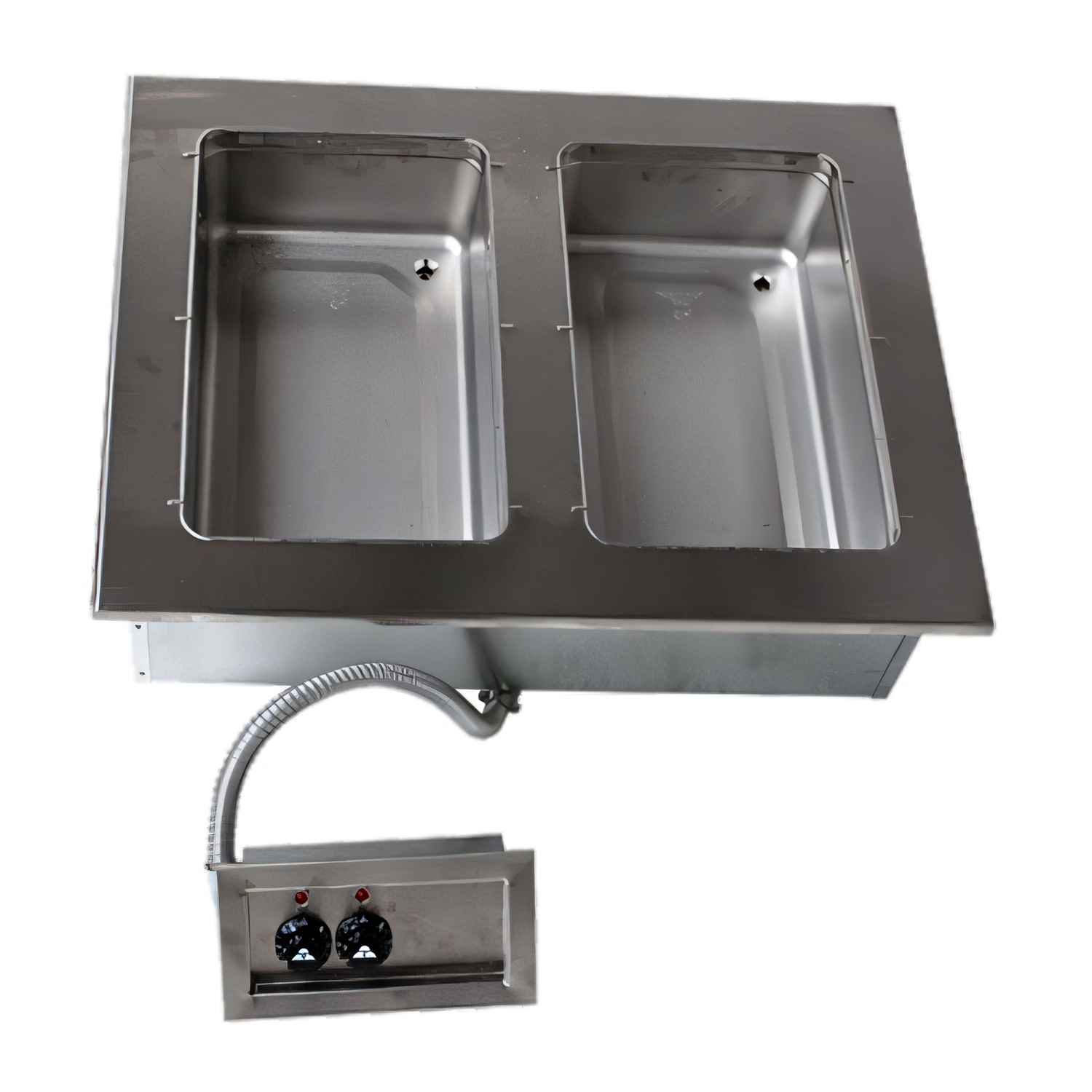

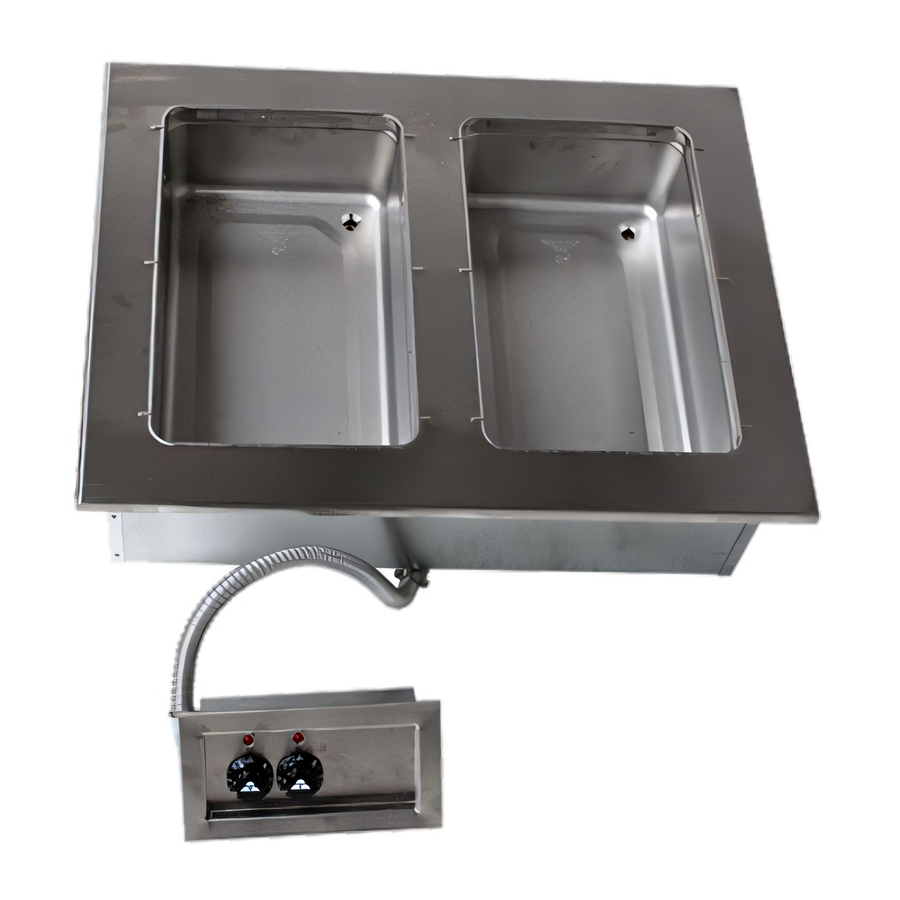

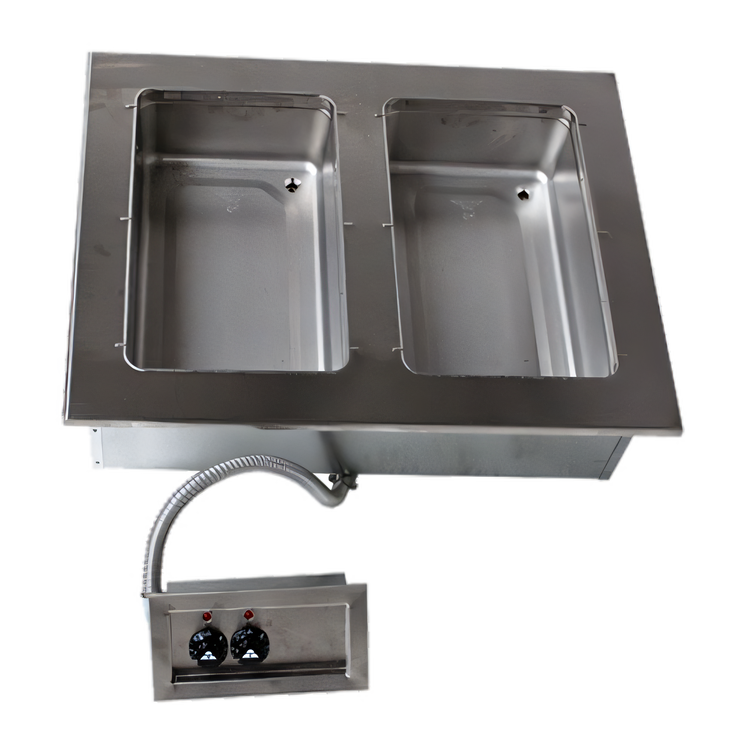

Advance Tabco Triumph (Supreme) 2-Well Drop-In Electric Sealed Hot Food Well for 12" x 20" Pans, 208/240V

SKU: DISW-2-240
GTIN: 747545182531
$2,211.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Advance Tabco Best Sellers Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines Hot Well New Arrivals Restaurant Equipment Steam Tables & Food Wells

Advance Tabco Triumph (Supreme) 2-Well Drop-In Electric Sealed Hot Food Well for 12" x 20" Pans, 208/240V

Wet or dry application, remote control panel, fiberglass-insulated wells

A durable two-well drop-in hot food well with wet/dry flexibility, individual infinite controls, and insulated stainless-steel construction for dependable buffet holding.

  • Holds (2) full-size 12" x 20" pans with openings up to 6-1/4" deep.
  • Designed for wet operation and supplied with drains for wet or dry application.
  • Remote control panel with individual infinite controls and indicator lights for simple temperature management.
  • Fiberglass insulation between compartments helps retain heat during service.
  • 18-gauge #304 stainless steel self-rimmed top with a durable galvanized body.
  • 208/240V dual-voltage electric unit that must be hardwired in the field; optional cords are available.

Overall Dimensions:

30.5"W x 24.5"D x 15.44"H

Product Weight:

110.0 lb
Note: Conforms to NSF 61/9 lead free requirements. Notice for use or sale in California: Proposition 65 this faucet may expose you to chemicals, including lead, that are known to the State of California to cause cancer, or birth defects or other reproductive harm. For more information visit www.p65warnings.ca.gov.

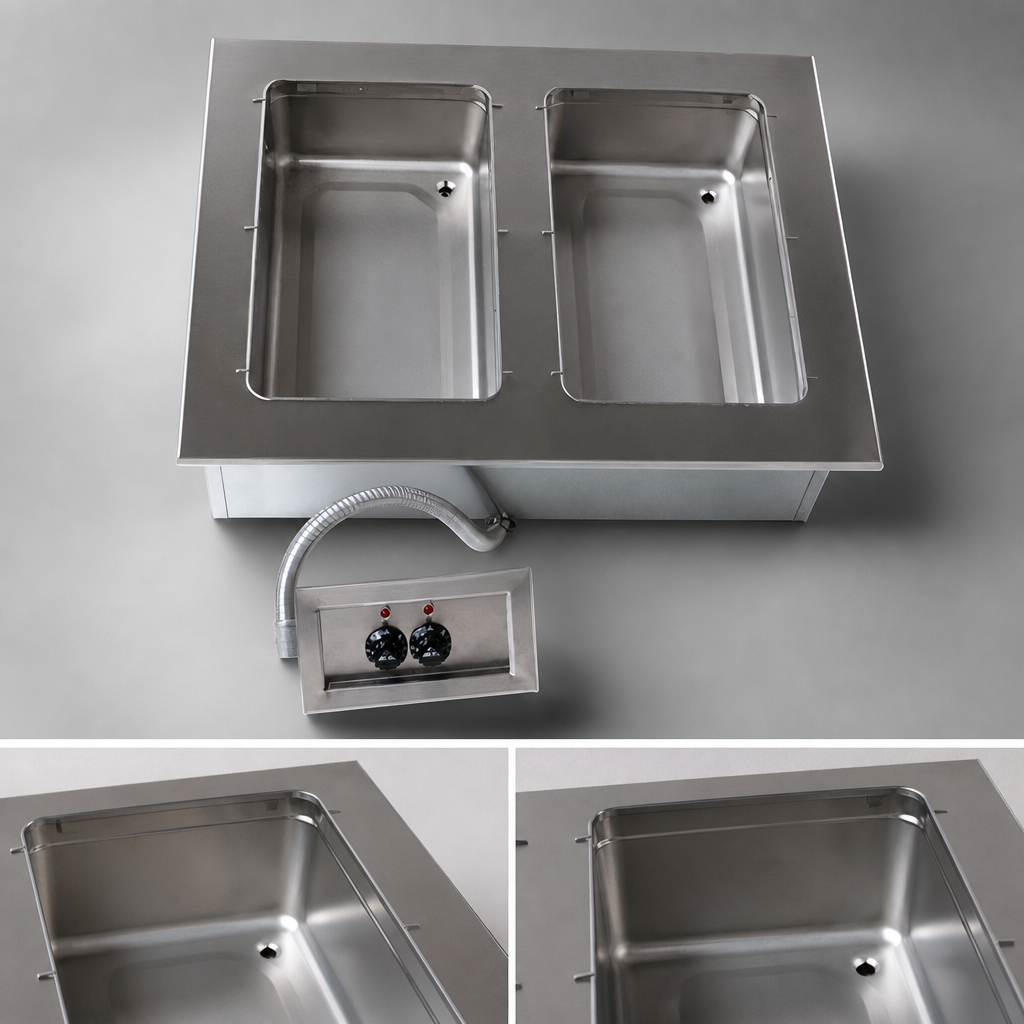

Two Sealed Wells

Accommodates (2) 12" x 20" pan inserts and allows inserts up to 6-1/4" deep.

Wet or Dry Application

Supplied with drains and gate valve for wet use, while also supporting dry application.

Remote Infinite Controls

Individual infinite control knobs and indicator lights provide easy, independent temperature adjustment.

Fiberglass Insulation

Insulation between each compartment helps retain heat and support holding performance.

Stainless Steel Top

18-gauge #304 stainless steel self-rimmed top with die-stamped 12" x 20" openings.

Galvanized Body

20-gauge galvanized body adds durability to the recessed drop-in design.

Hard-Wired Electric Connection

208/240V dual-voltage unit is field hardwired; optional cord sets are available.

Type Hot Food Well
Style Individual Pans
Installation Type Drop-In
Pan Capacity 2 Full-Size Pans
Pan Size 12 x 20 Inches
Controls Individual Infinite Controls
Insulation Fiberglass
Cut-Out Size 29-5/8 x 23-1/2 Inches
Voltage 208/240 Volts
Amps 7.94/9.16 Amps
Watts 1.65/2.2 kW
Shipping Width 31 Inches
Shipping Depth 25 Inches
Shipping Height 16 Inches
Shipping Weight 110 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Parts list PDF Download PDF Diagram PDF Download

Frequently Asked Questions

It has (2) 12" x 20" die-stamped openings and accommodates pan inserts up to 6-1/4" deep.
It is supplied with drains for wet or dry application and is described as a wet operation unit.
This model is a 208/240V dual-voltage electric unit and must be hardwired in the field.
Yes. It includes a remote control panel with individual infinite control knobs and indicator lights.
No. The unit is designed to hold food that is already hot and maintain serving temperature, not cook or reheat frozen or refrigerated foods.
Optional items mentioned include cord sets, SU-90 water-fill control, SU-45A adapter bars, SU-72 3-phase upgrade, manifold drains, and thermostatic controls.
