Advance Tabco DISW-2-120 Triumph (Supreme) Steam Tables & Food Wells
Advance Tabco DISW-2-120 Triumph (Supreme) Steam Tables & Food Wells is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Advance Tabco DISW-2-120 Triumph (Supreme) Steam Tables & Food ...
Description

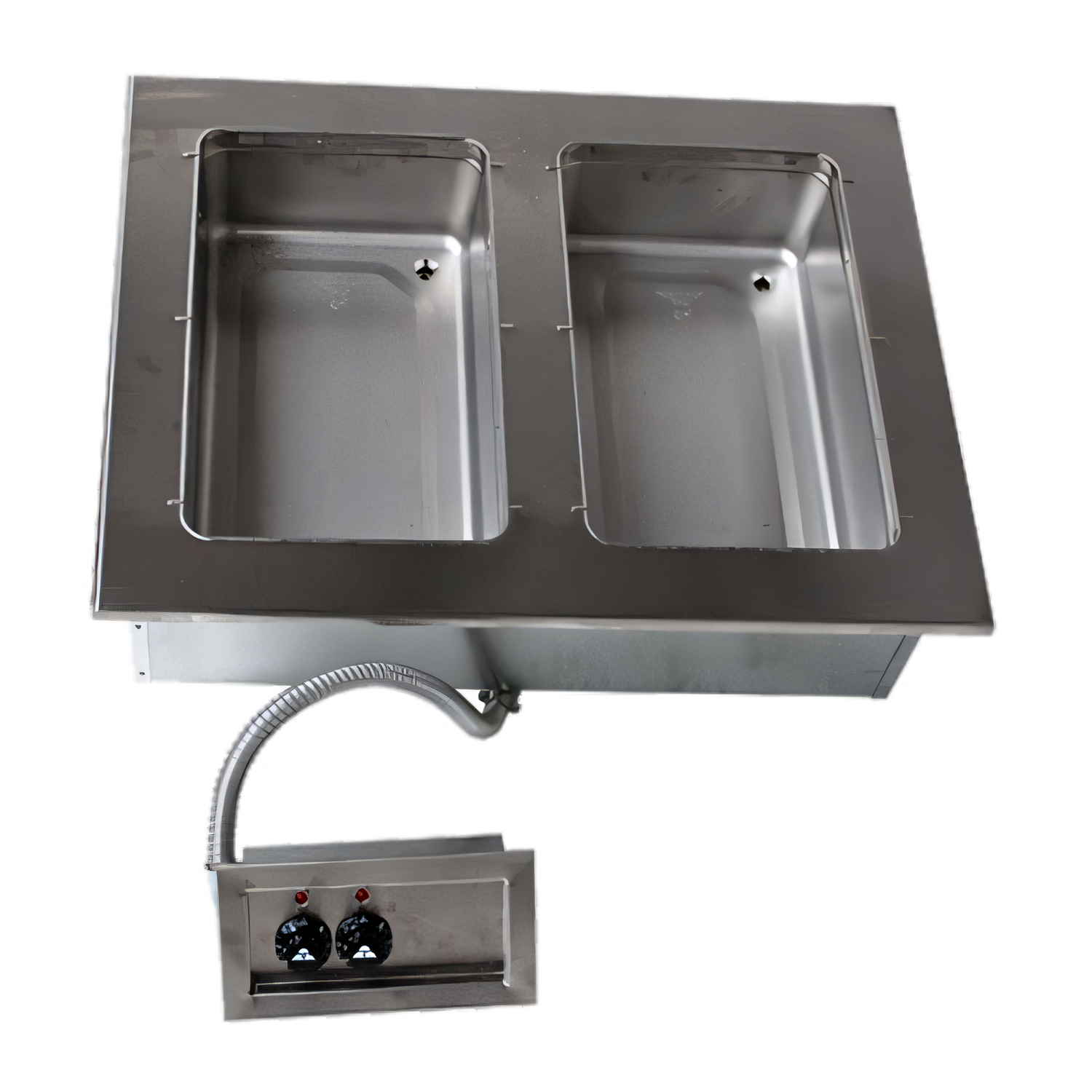

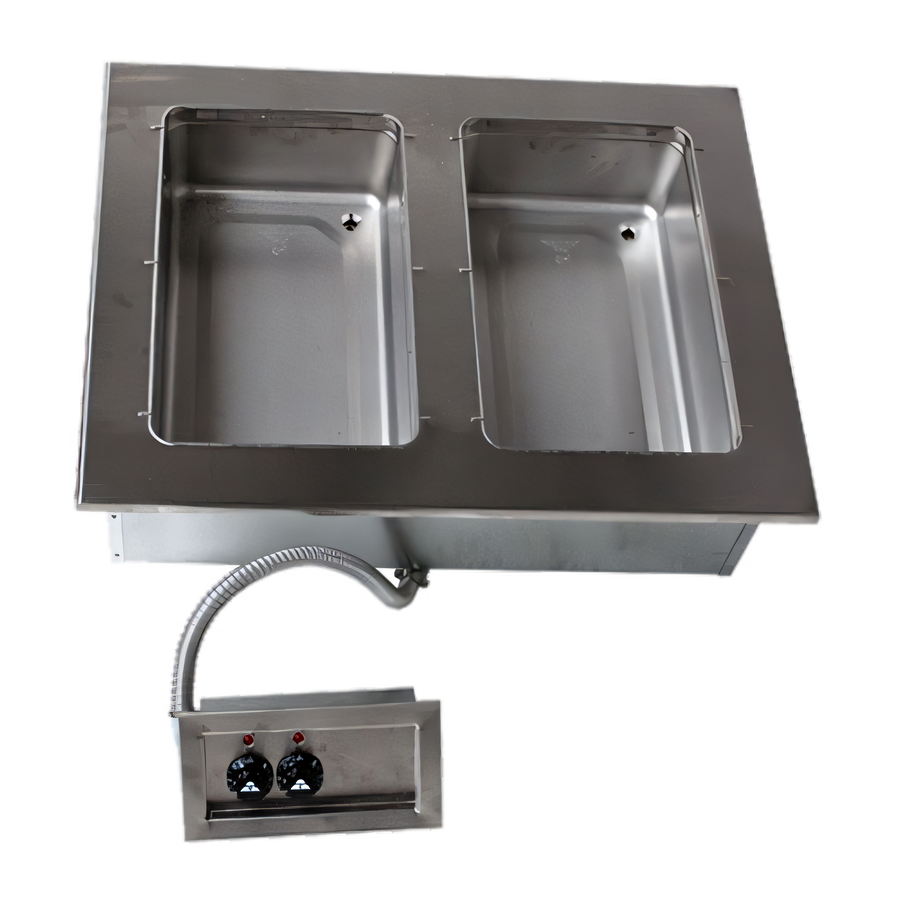

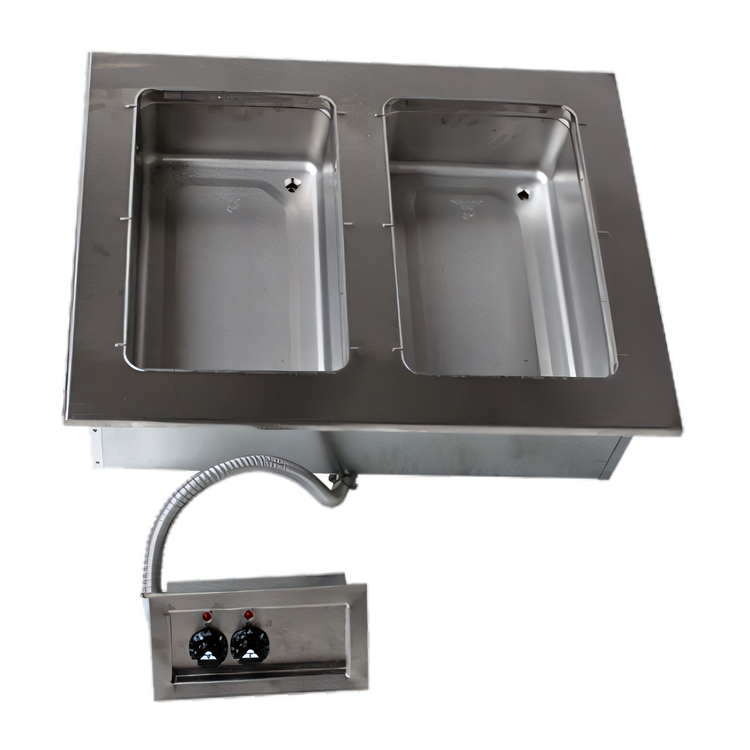

Advance Tabco Triumph (Supreme) Drop-In Hot Food Well – 2 Wells
Model DISW-2 | Sealed-Well, Wet Operation, ElectricBuilt for demanding commercial kitchens, the Triumph (Supreme) 2-well drop-in keeps entrées and sides hot, fresh and food-safe while blending seamlessly into your serving line. A sealed-well, wet-heat design and remote infinite controls deliver the precision you need, shift after shift.
Stand-Out Features

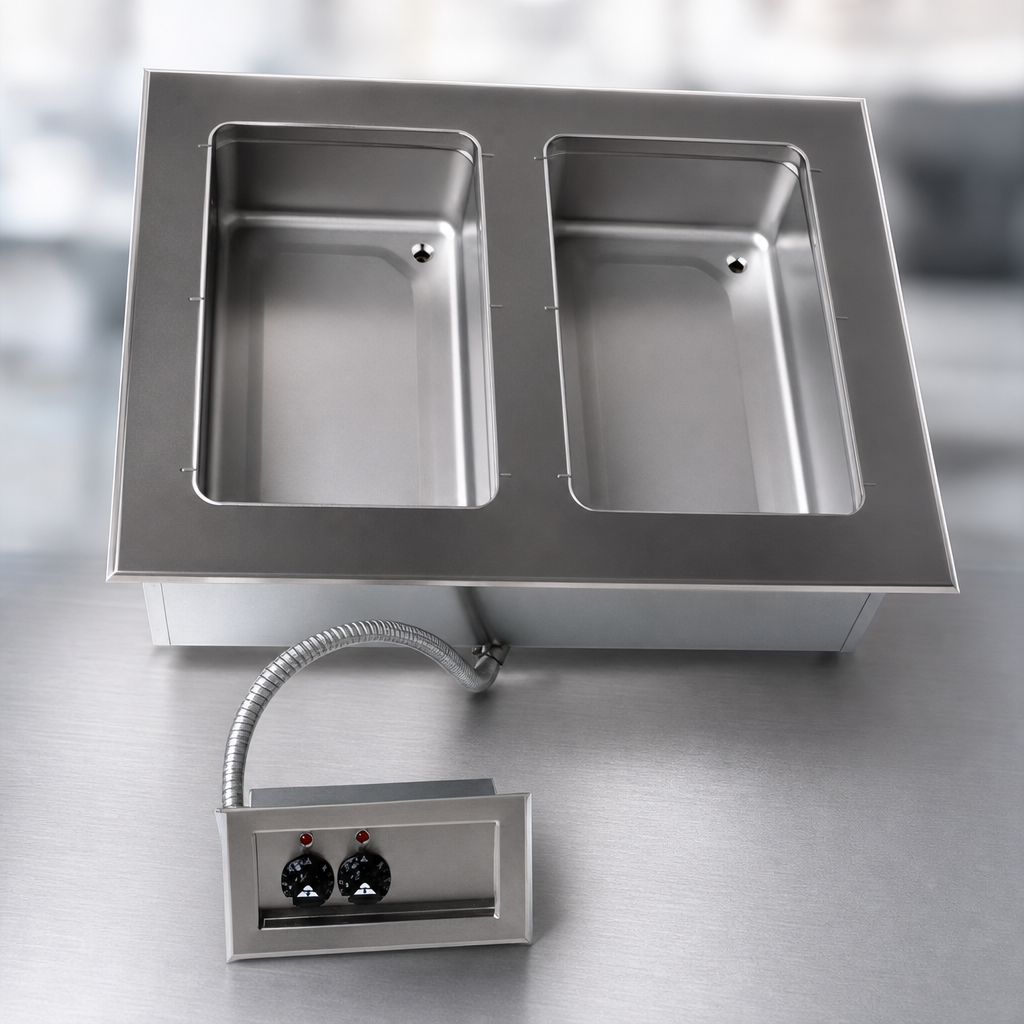

- (2) 12 × 20 in sealed hot wells with 1/2″ I.P.S. drains; accepts pans up to 6-1/4″ deep.
- Wet operation distributes gentle, even heat and prevents scorching.
- Remote stainless control panel with individual infinite switches & indicator lights.
- 18 ga. 304 stainless self-rim top with die-stamped openings for a clean, built-in look.
- Full 20 ga. galvanized body—durable, corrosion-resistant, fully enclosed.
- Fiberglass insulation between wells reduces heat loss and protects counters.
- NSF certified for food safety and UL Listed for electrical compliance.
Why Operators Love It
- Sealed wells = fast clean-up; no exposed elements to scrub.
- Run one well or two—independent controls help manage energy costs.
- Self-rim top eliminates costly trim kits and hides counter cut edges.
- Gate-valve drains speed water changes during service.
Technical Specifications
| Overall size (W × D × H) | 30-1/2″ × 24-1/2″ × 15-7/16″ |
|---|---|
| Counter cut-out | 29-5/8″ W × 23-1/2″ D |
| Number of wells | 2 (sealed, wet only) |
| Pan capacity | 12″ × 20″ pans up to 6-1/4″ deep |
| Voltage / phase | 120 V 1 ph or 208/240 V 1 ph (dual-voltage) |
| Total amperage | 18.33 A @ 120 V | 7.94 A @ 208 V | 9.16 A @ 240 V |
| Total wattage | 2200 W @ 120 V | 1650 W @ 208 V | 2200 W @ 240 V |
| Drain size | 1/2″ I.P.S. (per well, gate valve included) |
| Shipping weight | ≈ 110 lb / 6 cu. ft. |
| Construction – top | 18 ga. type 304 stainless steel, self-rimmed |
| Construction – body | 20 ga. galvanized steel |
| Certifications | NSF, UL |
Control-panel cut-out (for remote mounting): 12-3/8″ L × 4-1/2″ H; front panel length 13-1/2″.
Popular Accessories (Sold Separately)
- Factory cord sets with NEMA 5-15P, L5-30P, 6-20P or L6-30P plugs.
- SU-45A 12″ adapter bars for fractional GN pans.
- Manifold drain assembly for single-point water discharge.
- SU-90 automatic water-fill kit (requires manifold drain).
Designed for holding hot food only. Load wells with product already at serving temperature.
