Advance Tabco DISW-1-240 Triumph (Supreme) Steam Tables & Food ...
Description

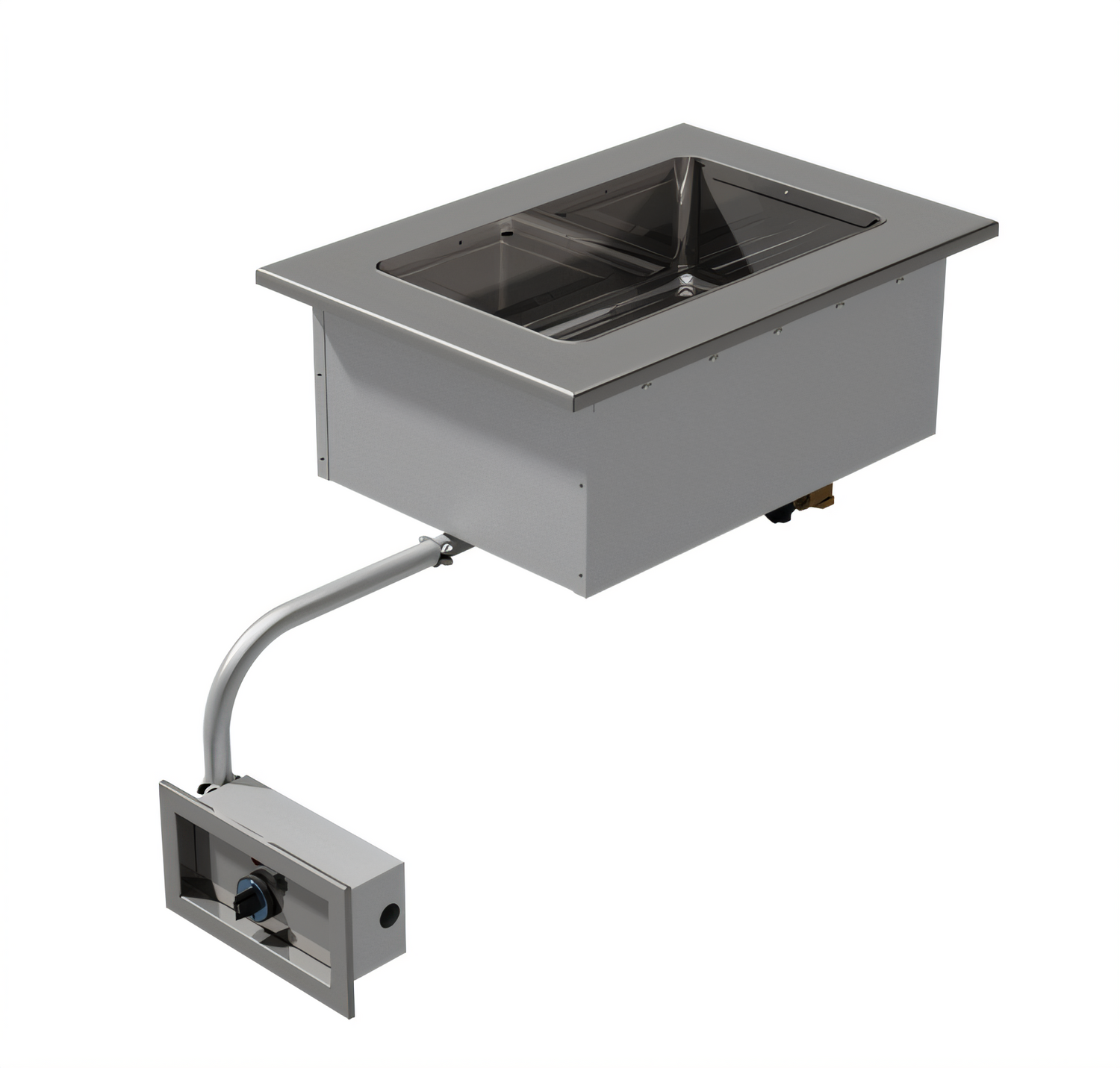

Advance Tabco Triumph (Supreme) Drop-In Hot Food Well
Model DISW-1 • 1-Pan Sealed Well • ElectricKeep entrées at a safe, appetizing temperature without sacrificing counter space. The Triumph (Supreme) single-well module drops neatly into almost any worktop and delivers reliable, operator-friendly holding power for 12" × 20" steam table pans.
Why you’ll love it
- Sealed 12" × 20" hot well with built-in drain & gate valve – fast change-outs, effortless cleanup.
- Remote control panel mounts where you want it; infinite switch & indicator light make dial-in holding simple.
- 18 ga. 304 stainless self-rimmed top withstands daily abuse and drops flush for a polished look.
- Foamed-in fiberglass insulation around the well minimizes energy loss and keeps surrounding surfaces cool.
- Wet operation standard – add water for gentle, humid heat that preserves food quality (dry use also permitted).
- NSF listed & UL approved for front-of-house or back-of-house installation.
Technical specifications
| Capacity | (1) 12" × 20" pan, up to 6-1/4" deep |
|---|---|
| Overall size | 16-1/2" W × 24-1/2" D × 15-7/16" H |
| Counter cut-out | 15-5/8" W × 23-1/2" D |
| Operation | Wet (standard) / Dry (permitted) |
| Control type | Remote infinite switch with pilot light |
| Construction – top | 18 ga. Type 304 stainless, die-stamped, self-rimmed |
| Construction – body | 20 ga. galvanized steel |
| Drain | 1/2" I.P.S. drain with gate valve |
| Electrical (120 V) | 1,100 W • 9.2 A • hard-wire (cord kit SU-P-234 optional) |
| Electrical (208 / 240 V) | 825 W @ 208 V • 1,100 W @ 240 V • 4.0/4.6 A • hard-wire (cord kit SU-P-232 optional) |
| Listings | NSF • UL |
| Shipping weight | Approx. 73 lb |
Popular accessories (sold separately)
- SU-P-234 8' cord set with NEMA 5-15P plug (120 V hard-wire alternative)
- SU-P-232 8' cord set with NEMA 6-20P plug (240 V hard-wire alternative)
- SU-90 Auto-Fill kit – automatically maintains water level (requires manifold drain)
- Adapter bar SU-45A to hold fractional pans
- –T option: Thermostatic control upgrade for set-it-and-forget-it accuracy
This unit is designed to hold pre-heated food. Always bring product to safe serving temperature before placing it in the well.
