Advance Tabco  |  SKU: DISLSW-4-240  |  UPC: 747545201584

Advance Tabco DISLSW-4-240 Steam Tables & Food Wells

$3,924.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list Diagram Owner's manual
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Advance Tabco Slimline Drop-In Sealed Hot Food Well – 4 Wells, 208/240V

Model DISLSW-4-240 | 90-1/2" W x 16-1/2" D x 10-3/16" H

Keep up to four full-size pans of entrées, sides or sauces at perfect serving temperature without crowding your counter. Advance Tabco’s Slimline sealed hot food well delivers commercial-grade holding power in a space-saving 16-1/2" deep footprint, backed by the strength of 18-gauge 304 stainless steel and the precision of independent remote controls.

Key Features
  • Slim 16-1/2" front-to-back design frees up valuable floor and aisle space.

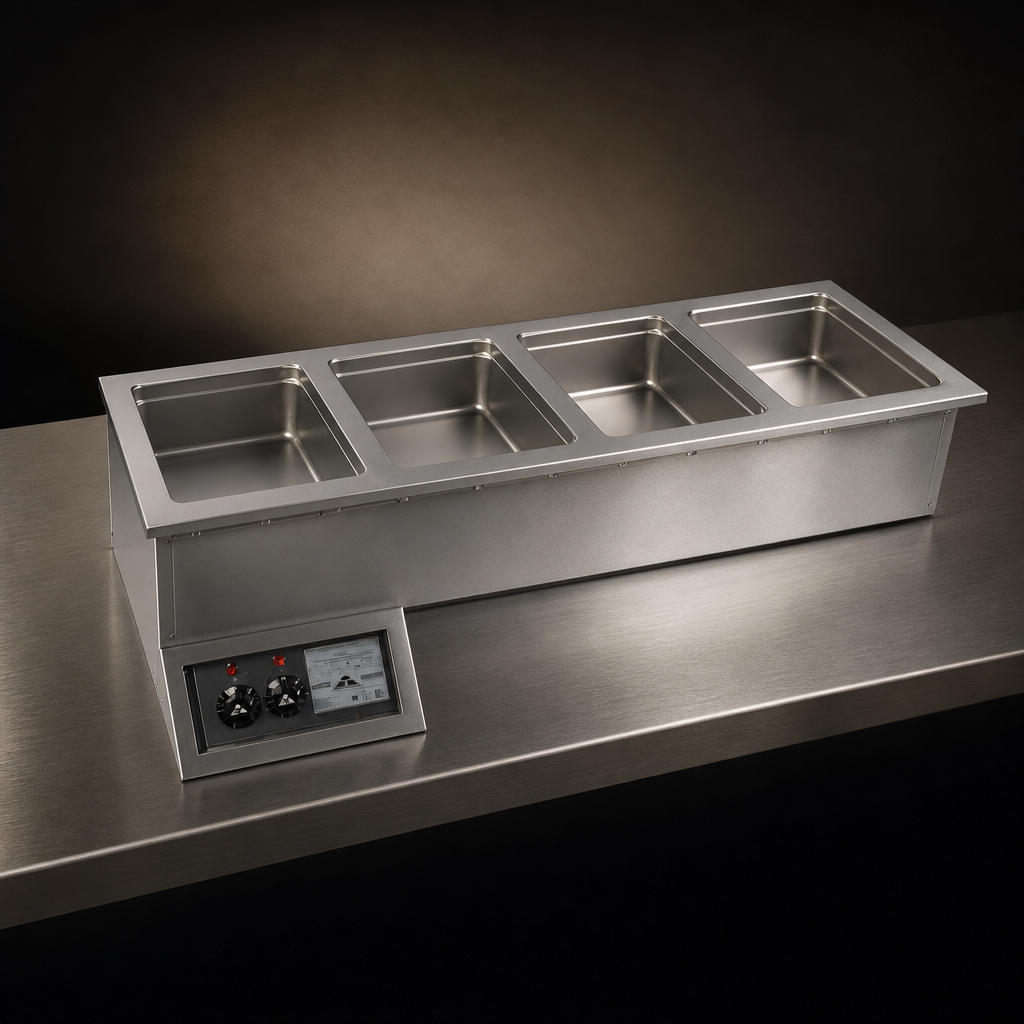

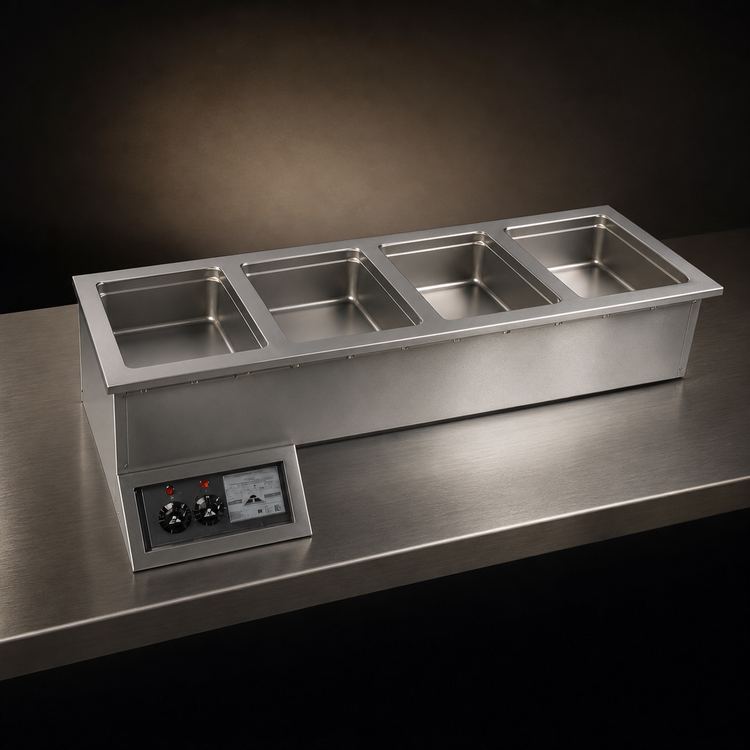

  • (4) 12" x 20" sealed wells with 1" IPS gate-valve drains for effortless water changes and cleaning.
  • Wet operation; fiberglass insulation between wells promotes even heat and reduced energy use.
  • Remote stainless control panel with:
    • Individual infinite (Low-High) controls for each well
    • Bright indicator lights that show element activity at a glance
  • 18-ga 304 stainless self-rimmed top is die-stamped for a snug pan fit and quick wipe-downs.
  • Durable 20-ga galvanized body built for years of drop-in use.
  • NSF and UL listed for sanitation and electrical safety.
Specifications
Model DISLSW-4-240
Number of Wells 4 (accepts pans up to 6-1/4" deep)
Overall Dimensions 90-1/2" W × 16-1/2" D × 10-3/16" H
Counter Cut-Out 89-1/4" W × 15-1/4" D
Well Opening 12" x 20" die-stamped, self-rimmed
Electrical 208/240 V, 1-Phase, 15.9 A @ 208 V / 18.3 A @ 240 V, 3,300 W @ 208 V / 4,400 W @ 240 V (hard-wire connection)
Controls Remote panel, (4) infinite switches with indicator lights
Drain (4) 1" IPS drains with gate valves
Construction 18-ga 304 stainless top; 20-ga galvanized body
Insulation Fiberglass between compartments
Shipping Weight Approx. 174 lb • 24.5 cu ft
Certifications NSF, UL
Popular Accessories (sold separately)
  • SU-P-233 – 8' cord set with NEMA L6-30P plug (240 V)
  • SU-90 Auto-Fill Kit – automatic water level maintenance (requires manifold drain)
  • Manifold Drain Assembly – single-point drain hookup (suffix “-M”)
  • Thermostatic Control Upgrade (suffix “-T”)
  • SU-45A Adapter Bars – convert wells for fractional pans
  • SU-72 Three-Phase Wiring Upgrade
Important: This unit is designed to hold pre-heated food. Do not use it to cook or re-heat cold, refrigerated or frozen products.

Looking for a matching refrigerated well or additional serving line components? Contact us and we’ll configure a custom solution to fit your space.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF, UL

Height

10.19in

Width

90.5in

Depth

16.5in

Shipping Weight

174.0lbs

Controls

infinite controls

Style

individual pans

Insulated or Non-Insulated

insulated

Construction

stainless steel top, corrosion resistant steel exterior

Pan Capacity

(4) full size (12" x 20")

Drain

with drain

Wet or Dry operation

wet

Specifications

Slim Series Hot Food Well Unit, drop-in, electric, 90-1/2”W x 16-1/2"D x 10-3/16"H (overall), 89-1/4”W x 15-1/4”D (cut out size), (4) 12" x 20" sealed hot food wells with drains (accommodates pan inserts up to 6-1/4" deep), wet operation, remote control panel with individual infinite controls, indicator lights, 18 gauge 304 stainless steel self rimmed top, 20 gauge galvanized body, NSF, UL
