Advance Tabco DISLSW-3-120 Steam Tables & Food Wells
Description

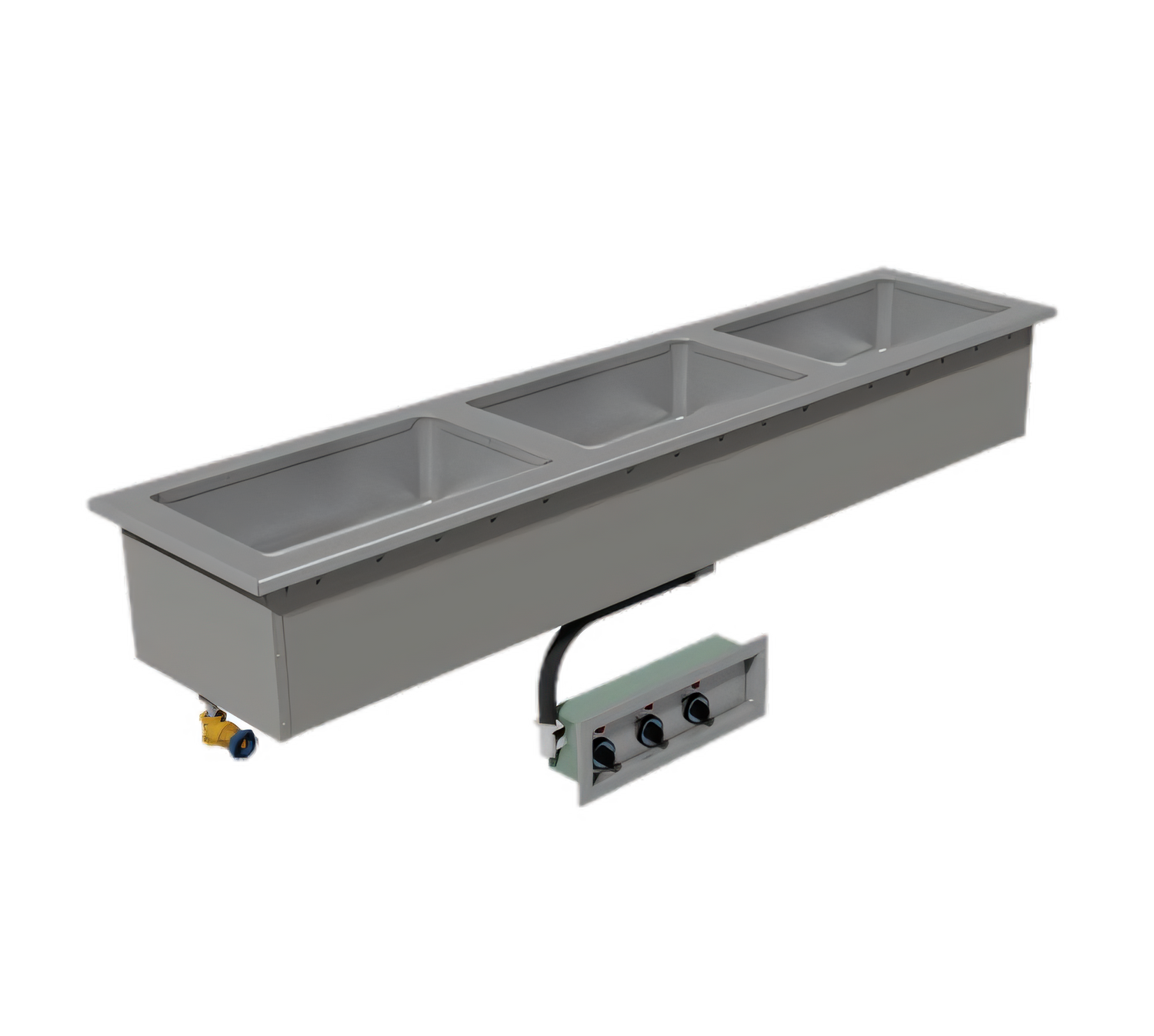

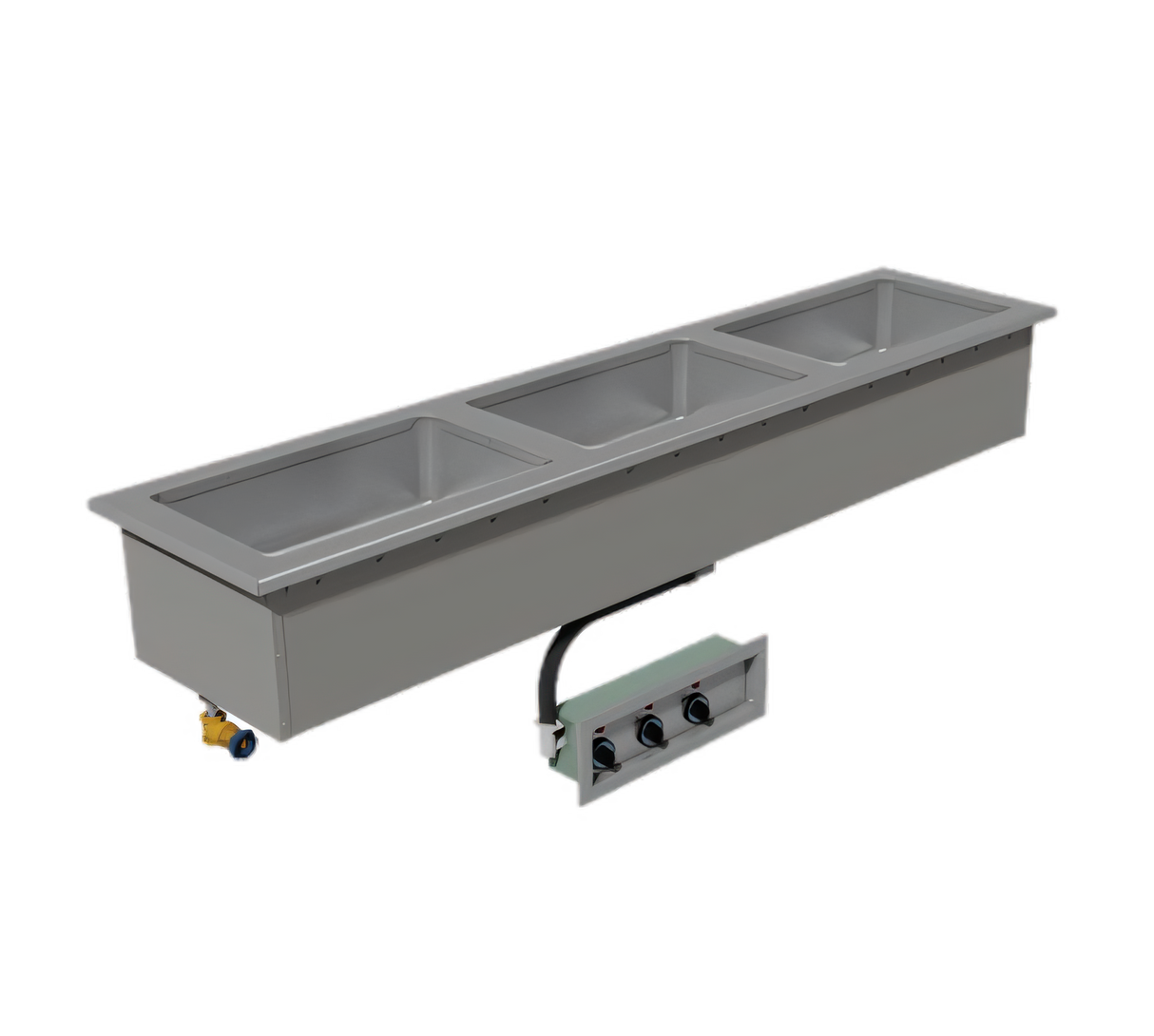

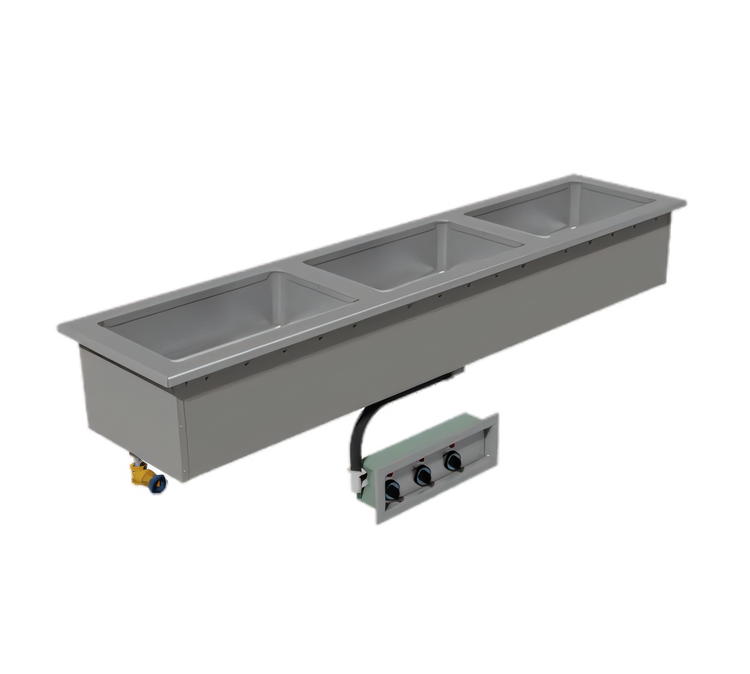

Advance Tabco DISLSW-3 Slimline Sealed Hot Food Drop-In – 3 Wells
Electric | 68-1/2" W x 16-1/2" D | Remote Infinite Controls | NSF & UL ListedPerfect for tight countertops that still demand full-size performance, the DISLSW-3 Slimline Hot Food Well Unit delivers reliable wet-operation holding for three 12" x 20" pans— all in a sleek, self-rimmed drop-in design built entirely from food-service-grade stainless steel.
Why You’ll Love It
- Space-saving 16-1/2" front-to-back footprint frees up valuable counter depth.

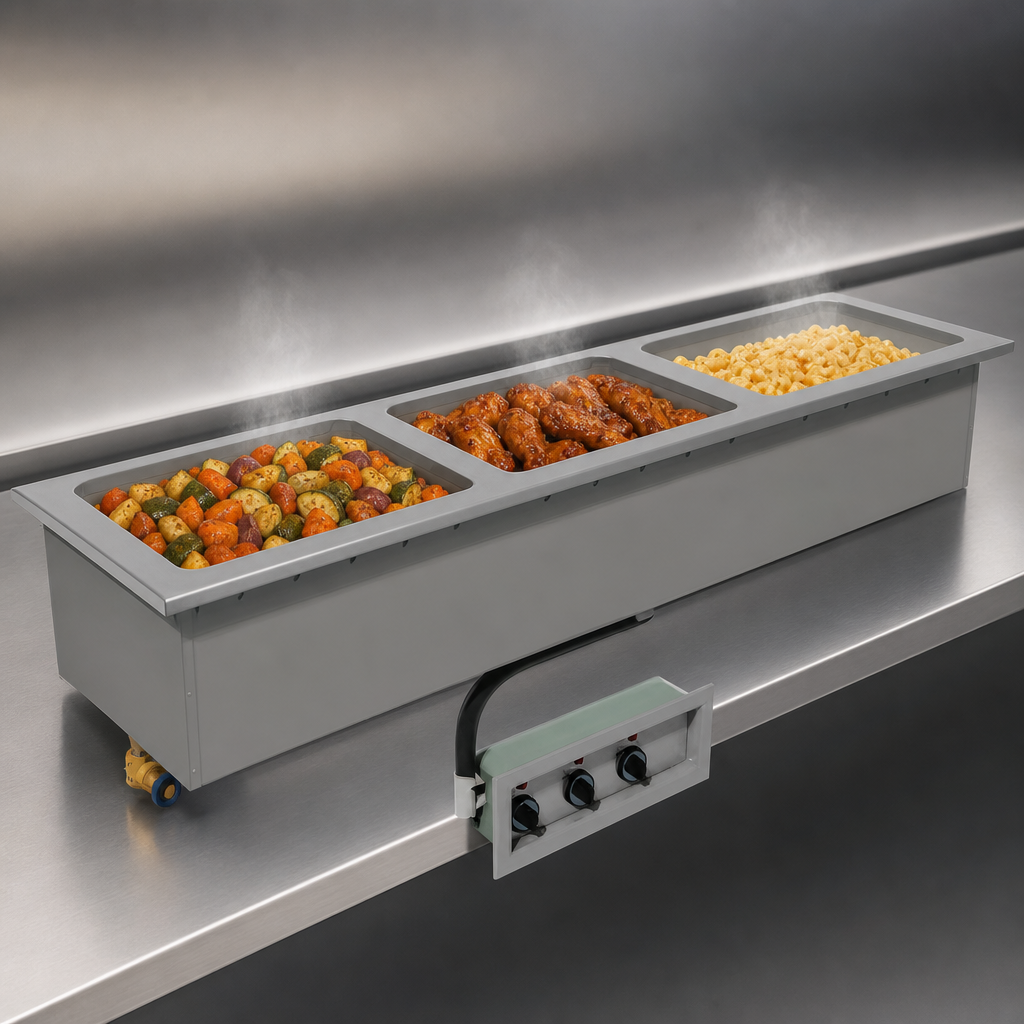

- (3) 12" x 20" sealed hot wells—each supplied with its own drain & gate valve for quick cleanup.
- Wet bath operation maintains even, gentle humidity to prevent food from drying out.
- Remote-mounted control panel keeps heat away from the serving area and includes:
• Individual infinite control knobs
• “Power On” indicator lights for every well - 18 ga 304 stainless steel self-rimmed top resists corrosion and wipes clean fast.
- Fiberglass insulation between wells maximizes efficiency and prevents heat transfer.
- 20 ga galvanized steel body for long-lasting structural strength below the counter line.
- NSF certified for food safety & UL listed for electrical safety.
Technical Specifications
| Model | DISLSW-3-120 / DISLSW-3-240* |
|---|---|
| Overall Dimensions | 68-1/2" W × 16-1/2" D × 10-3/16" H |
| Counter Cut-Out | 67-1/4" W × 15-1/4" D |
| Well Opening (each) | 12" × 20" – accepts pans up to 6-1/4" deep |
| Wells / Capacity | 3 sealed wells, wet operation |
| Electrical |
• 120 V, 27.5 A, 3300 W • Dual-voltage 208/240 V option: 11.9 A/13.3 A, 2475 W/3300 W |
| Drain Size | 1" I.P.S. with factory-installed gate valve (one per well) |
| Control Panel Cut-Out | 12-3/8" L × 4-1/2" H (front panel length 13-1/2") |
| Shipping Weight | ≈ 150 lb |
| Listings | NSF, UL |
*Select voltage when ordering. Unit ships ready for hard-wire connection.
Optional Accessories (sold separately)
- Factory cord sets with NEMA plugs (SU-P-231 for 120 V; SU-P-232 for 240 V).
- Manifold drain assembly for single-point drainage (add suffix “-M”).
- Automatic water autofill kit SU-90 to maintain proper water level.
- 12" × 1" adapter bars (SU-45A) to create fractional pan layouts.
Ideal Applications
- Quick-service or fast-casual lines
- Convenience stores & delis
- Buffets & cafeterias
- Catering build-outs where counter depth is limited
Choose Advance Tabco’s DISLSW-3 Slimline Hot Food Well for a professional drop-in solution that saves space, simplifies service, and safeguards food quality all day long.
