Advance Tabco  |  SKU: DIRCP-2  |  UPC: 747545182357

Advance Tabco DIRCP-2 Steam Tables & Food Wells

$3,493.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Installation manual
Related Searches
Advance Tabco Cold Well Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines Restaurant Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

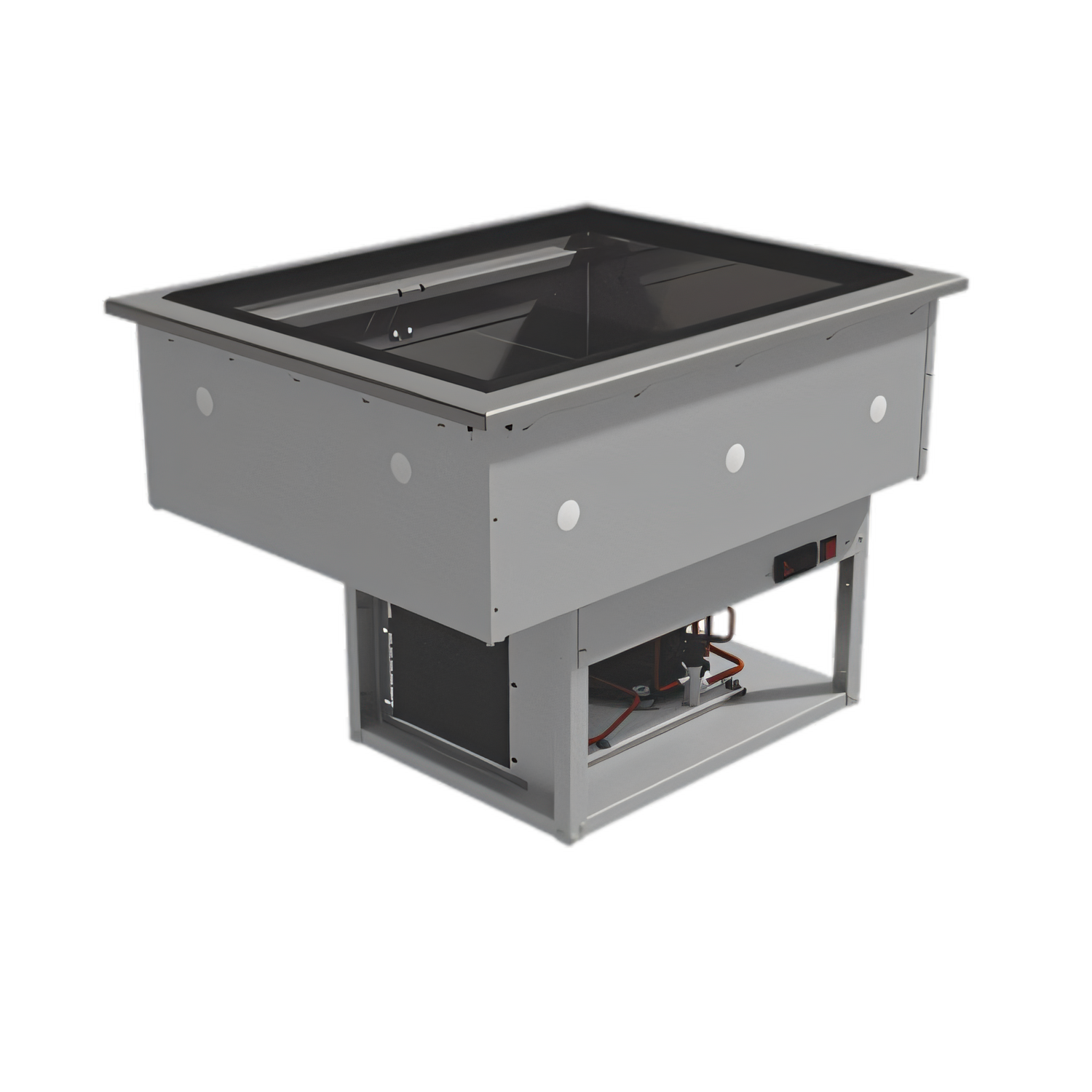

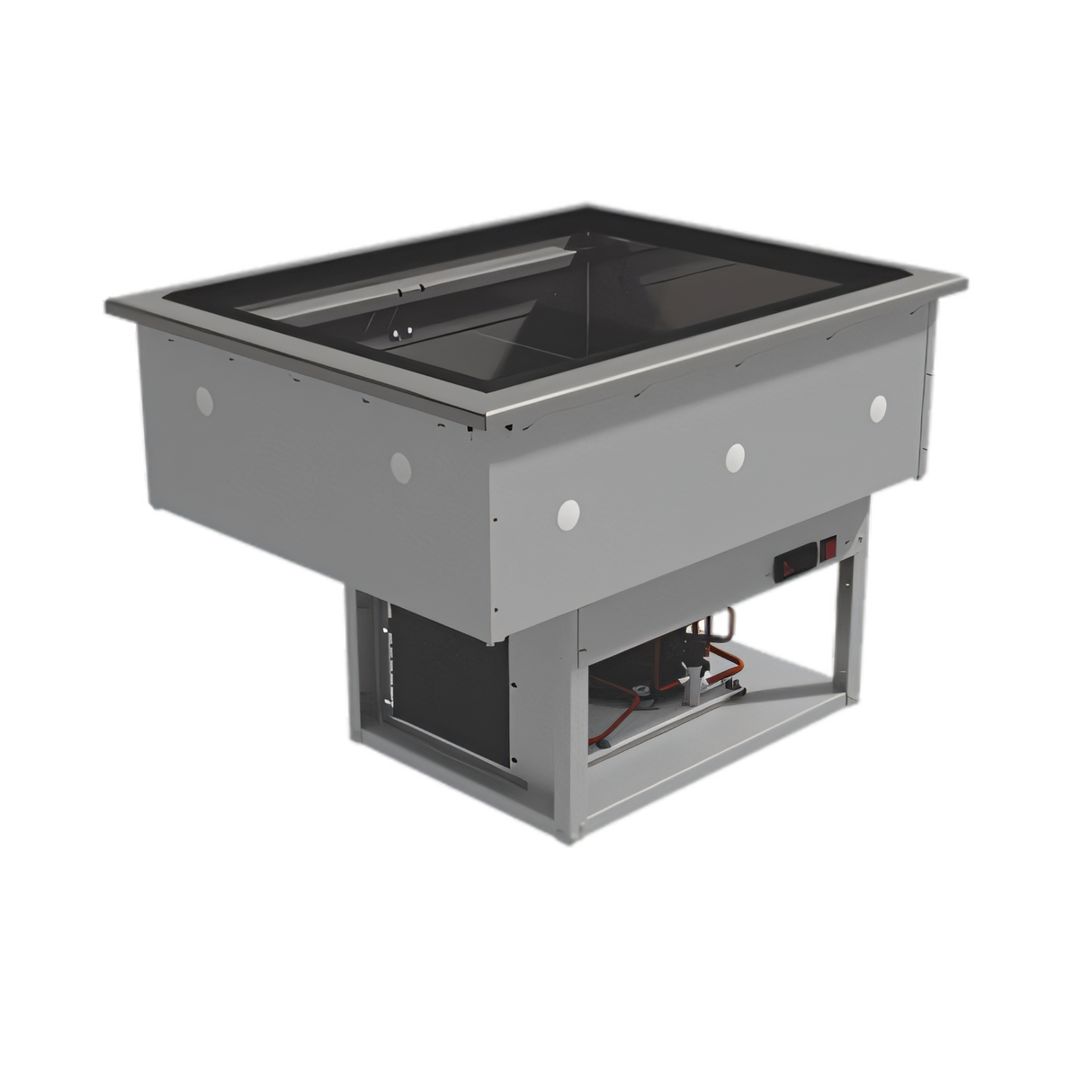

Advance Tabco DIRCP-2 Drop-In Refrigerated Cold Pan

2-Well | 25-1/2" x 32-1/8" cut-out | Self-Contained | R404-A

Give your salad bar, beverage station, or grab-and-go counter consistent, food-safe chilling with the DIRCP-2. This 2-well, fully self-contained cold pan drops neatly into a 25-1/2" x 32-1/8" cut-out, keeping two standard 12" x 20" pans (up to 6-1/4" deep) ice-cold while freeing up valuable countertop space.

Why You’ll Love It

  • High nominal cooling capacity for steady 33-41°F holding temperatures*
  • Aluminum-encased copper tube evaporator panels maximize contact area for faster heat removal
  • 18 ga. #304 stainless steel top with extruded black polyethylene marine edge helps contain spills
  • One-piece, 18 ga. #304 stainless steel liner—3" recessed with 1/4" radius coved corners & pitched to a 1" IPS drain
  • Foamed-in-place polyurethane insulation (1-1/4" sides, 2" bottom) plus 22 ga. galvanized outer jacket
  • Digital, programmable thermostat with on/off switch for precise temperature control and easy monitoring
  • Expansion valve, filter drier, sight glass & liquid receiver for efficient, reliable refrigeration
  • Ships fully charged with eco-friendly R404-A refrigerant & ready-to-plug 8' cord (NEMA 5-15P)
  • Includes adapter rails/bars for quick configuration of 12" x 20" pans or fractional inserts

*Unit is intended to maintain temperatures of pre-chilled product and is not designed to cool warm food.

Specifications

Model DIRCP-2
Number of Wells 2
Pan Capacity (2) 12" x 20" full-size pans (up to 6-1/4" deep)
Cut-Out Size 25-1/2" W x 32-1/8" L
Overall Length 33-1/2"
Overall Width 26-3/4"
Overall Depth (below counter) 13-1/4"
Compressor / HP Hermetically sealed, 1/5 HP
Electrical 115 V / 8 A / 60 Hz / 1-ph
Plug Type NEMA 5-15P (8' cord included)
Refrigerant R404-A
Shipping Weight 205 lb
IMPORTANT – Ventilation Required:
For installations inside closed cabinets, provide a minimum 200 in² unobstructed air intake and a separate 200 in² exhaust opening to ensure proper compressor cooling. Failure to supply adequate airflow will void warranty coverage.
  • ETL Listed (US & Sanitation)
  • NSF/ANSI-7 compliant holding performance
  • California Prop 65 compliant

Features & Specs

Manufacturer

Advance Tabco

Certifications

ETLus, ETL-Sanitation

Height

24.13in

Width

33.5in

Depth

26.75in

Shipping Weight

205.0lbs

Finish

stainless steel top & inner liner, galvanized outer liner

Style

self-contained refrigeration

Pan Qty

2-pan

Pan Size

full-size (12" x 20")

Width (side - side)

31 - 36 inches

Insulation

insulated

Layout

straight

Specifications

Refrigerated Cold Pan, Drop-in, 25-1/2" x 32-1/8" cut out, holds (2) 12" x 20" pans (accommodates pan inserts up to 6-1/4" deep, with additional space below for cold air circulation), stainless steel top, fully self contained condensing unit, digital programmable thermostat, aluminum encased copper tube evaporator panels, expansion valve, R290 refrigerant, ETLus, ETL-Sanitation
