Advance Tabco DICP-6 Triumph (Supreme) Steam Tables & Food Wells
Description
Advance Tabco “Triumph (Supreme)” DICP-6 Drop-In Ice-Cooled Cold Food Well
87-1/2" wide • holds six full-size pans • NSF listedGive your buffet, cafeteria line, or salad bar the capacity it deserves with the Advance Tabco DICP-6 ice-cooled well. Built to drop flush into an existing counter run, this rugged unit keeps pre-chilled foods safely cold without electricity—perfect for greens, deli proteins, bottled drinks, or grab-and-go condiments.
Why You’ll Love It
- Massive 6-pan capacity fits (6) 12" × 20" full-size food pans up to 6-1/4" deep.
- 9" deep, insulated ice bin holds up to 304 lb. of ice for all-day service.
- Drop-in, self-rimmed top sits flush with your counter for a seamless, professional look.
- Ice-cooled design requires no power, no refrigeration system, no maintenance contracts.
- Quick-drain 1" IPS outlet speeds melt-water removal between service periods.
- NSF listed construction meets strict sanitation codes nationwide.
Heavy-Duty Construction
- 18-gauge 304 series stainless steel top resists rust, pitting, and corrosive food acids.
- 20-gauge 300 series stainless steel bin for long-term durability and easy wipe-down cleaning.
- 20-gauge galvanized steel exterior jacket adds structural rigidity during installation.
- Extruded black polyethylene thermal breaker stops cold-transfer to counter edges—no sweating or warping.
- Fiberglass side insulation + polyurethane foam bottom insulation maximize ice life.
Technical Specs
| Model | DICP-6 (Triumph/Supreme Series) |
|---|---|
| Overall Dimensions (W × D × H) | 87-1/2" × 26-3/4" × 12-15/16" |
| Required Cut-Out (W × D) | 86-1/8" × 25-1/2" |
| Usable Well Depth | 9" |
| Pan Capacity | (6) full-size 12" × 20" pans, up to 6-1/4" deep |
| Ice Capacity | 304 lb. |
| Drain Connection | 1" IPS |
| Top Material | 18-ga. 304 stainless steel, self-rimmed |
| Bin Material | 20-ga. 300 stainless steel |
| Exterior Jacket | 20-ga. galvanized steel |
| Insulation | Fiberglass (sides) & polyurethane foam (bottom) |
| Certifications | NSF |
| Shipping Weight | 268 lb. |
Optional Accessories (Sold Separately)

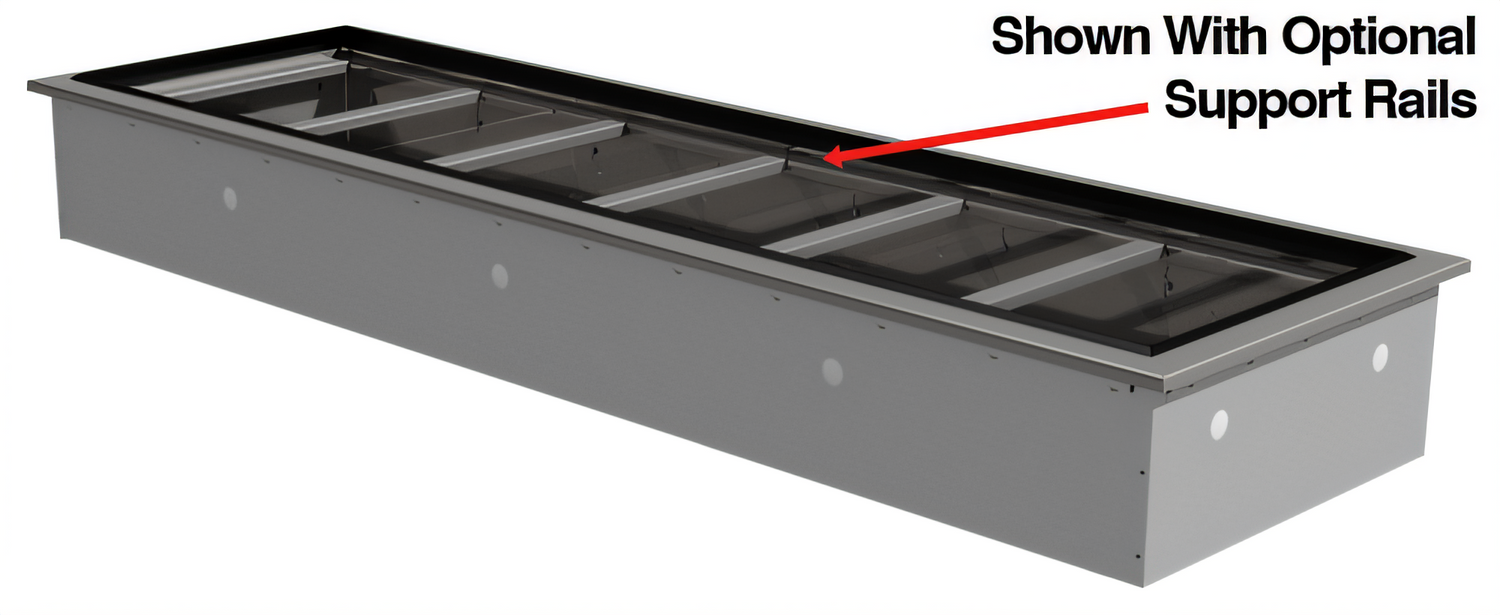

- SU-P-506 adapter rail kit – two left-to-right rails & seven front-to-back supports for fractional pan layouts.
- SU-45A horizontal adapter bars – 12" × 1" bars for smaller pans (requires rail kit above).
- Stainless steel flush-mount cover for overnight ice retention.
Advance Tabco continually improves products; dimensions & specifications are subject to change without notice.
