Advance Tabco Triumph Supreme DICP-5 Drop-In Ice-Cooled Cold Food Well, 5-Pan Capacity

74"W x 26-3/4"D Cutout, Fits Five 12" x 20" Pans

Keep chilled foods ready for service with an insulated drop-in ice well built for five full-size pans and durable stainless steel construction.

  • Drop-in design installs into existing countertops and buffet lines for cold self-service applications.
  • Holds five 12" x 20" pans up to 6-1/4" deep, with space below for ice.
  • 9" deep insulated ice bin helps maintain cold food temperatures without mechanical refrigeration.
  • 18 gauge #304 stainless steel self-rimmed top and 20 gauge #300 stainless steel bin for lasting durability.
  • 20 gauge galvanized steel exterior and black polyethylene thermal breaker add strength and help reduce heat transfer.
  • 1" I.P.S. drain supports easy drainage and cleanup.

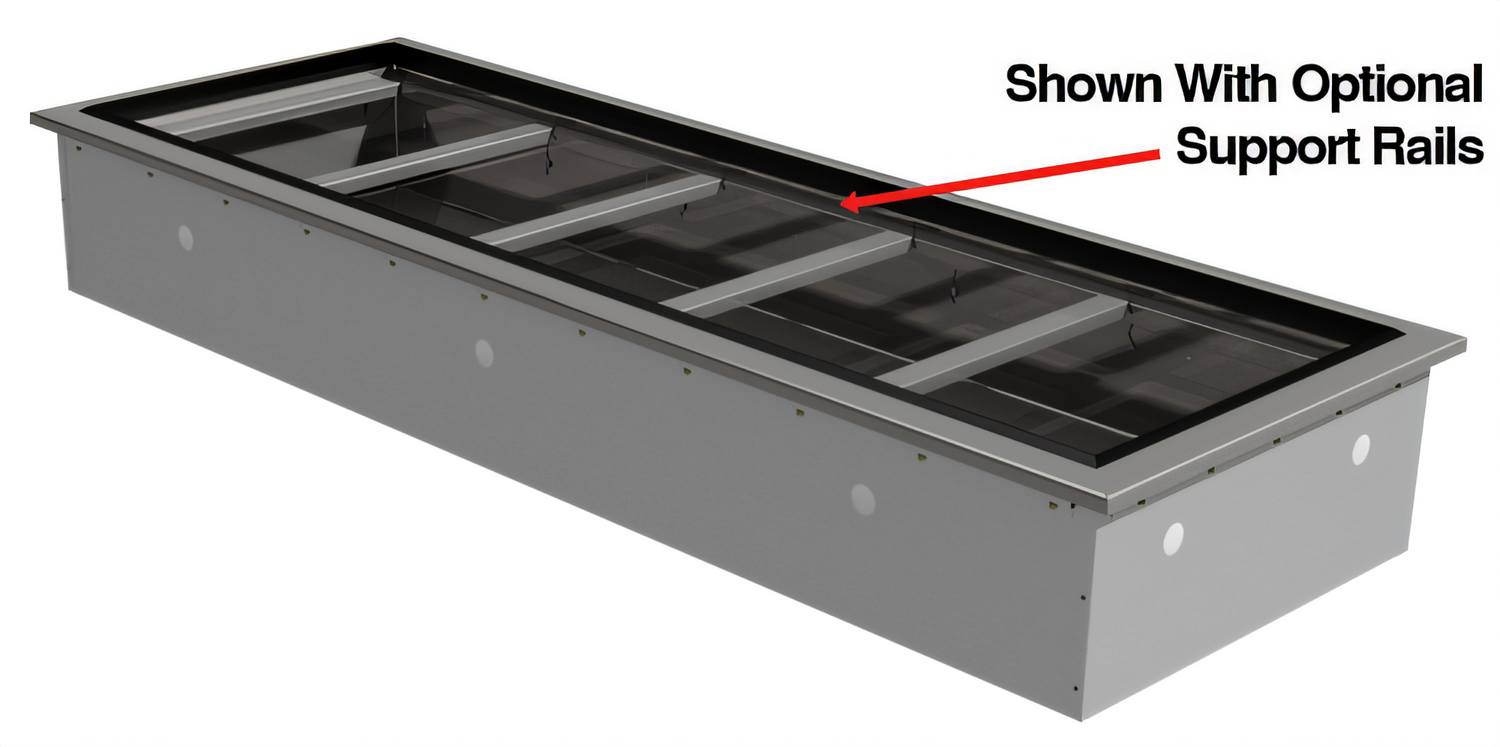

  • Optional SU-P-505 rail kit and SU-45A adapter bars are available for this model.

Overall Dimensions:

74.0"W x 26.75"D x 12.94"H

Product Weight:

240.0 lb

Drop-In Installation

Designed to fit into existing countertops and food bars for cold display service.

Five-Pan Capacity

Accommodates five 12" x 20" pans up to 6-1/4" deep, with additional space below for ice.

Insulated Ice Bin

9" deep bin includes fiberglass insulation, plus Styrofoam side insulation and polyurethane foam on the bottom.

Stainless Steel Food-Contact Surfaces

Features an 18 gauge #304 stainless steel self-rimmed top and a 20 gauge #300 stainless steel bin.

Galvanized Steel Jacket

20 gauge galvanized steel exterior provides a durable outer shell.

Thermal Breaker

Black polyethylene thermal breaker helps reduce heat transfer around the rim.

Drain Connection

1" I.P.S. drain simplifies drainage and maintenance.

Optional Accessories

SU-P-505 adapter rails fit DICP-5, and SU-45A horizontal adapter bars are available for small pan sizes.

Type Ice-Cooled Cold Food Well
Style Straight
Installation Type Drop-In
Pan Capacity 5 Pans
Pan Size 12 Inches x 20 Inches
Ice Capacity 254 Pounds
Cutout Width 72 5/8 Inches
Cutout Depth 25 1/2 Inches
Material Stainless Steel
Interior Finish Stainless Steel
Finish Galvanized Steel
Drain Connection Size 1 Inch I.P.S.
Drain Connection Required
Selling Unit Each
Units Per Case 1
Shipping Width 74 Inches
Shipping Depth 27 Inches
Shipping Height 13 Inches
Shipping Weight 240 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The required cutout size is 72-5/8" W x 25-1/2" D.
It accommodates five 12" x 20" pans up to 6-1/4" deep.
The unit uses a 1" I.P.S. drain.
It features an 18 gauge #304 stainless steel self-rimmed top, a 20 gauge #300 stainless steel bin, and a 20 gauge galvanized steel exterior.
Yes. The ice bin is insulated with fiberglass, Styrofoam on the sides, and polyurethane foam on the bottom.
The SU-P-505 adapter rail kit fits the DICP-5, and SU-45A horizontal adapter bars work with required rail kits.
