Advance Tabco  |  SKU: DI-2-1410  |  UPC: 747545117076

Advance Tabco DI-2-1410 Compartment Sinks

$1,314.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Template Installation manual Parts list
Related Searches
Compartment Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

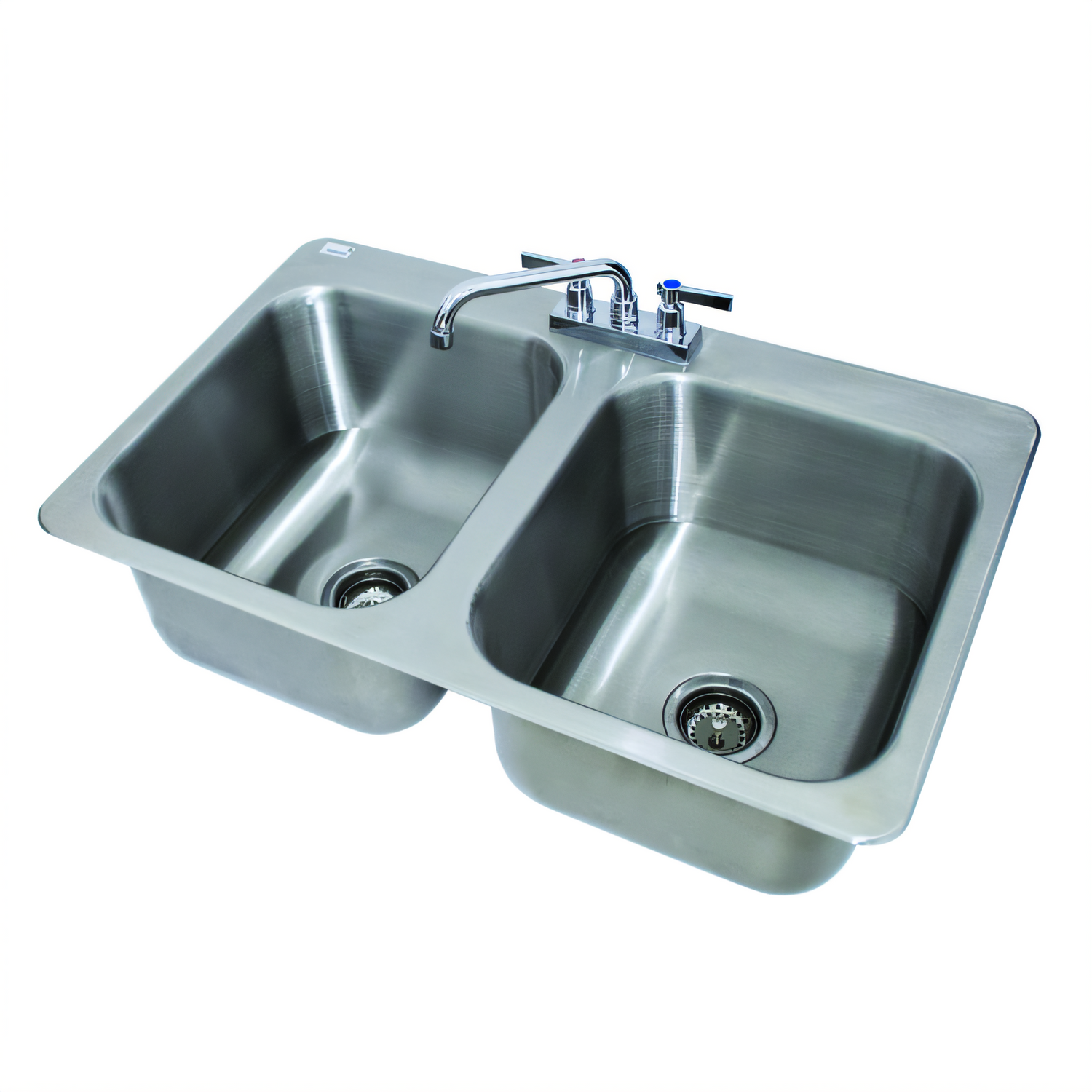

Advance Tabco DI-2-1410 2-Compartment Drop-In Sink

14" × 16" × 10" Bowls • 18-Gauge 304 Stainless Steel • 8" Swing Spout Faucet

Engineered for tight prep areas and mobile food operations, this Advance Tabco drop-in sink installs flush with your counter while delivering the rugged, easy-to-clean performance of genuine 18-gauge 304 stainless steel.

Key Features

  • Two seamless Deep Drawn bowls with generous 2" radiused corners for fast sanitizing
  • Roomy 14" W × 16" F/B × 10" D compartments handle stock pots, utensils, and small wares
  • Self-rim design sits on top of the counter; mounting clips fit 7/8"–2" thick countertops (clips included)
  • 18-gauge type 304 stainless steel with Advance Tabco Smart Finish™ resists corrosion & scratches
  • Deck-mounted K-50 faucet with 8" swing spout, 4" on-center inlets, and 1.0 GPM aerator (60 PSI)
  • Two stainless steel 1-1/2" IPS basket drains included—installation-ready right out of the box
  • Sound-deadened bowls reduce noise in busy kitchens and concession trailers
  • NSF listed when installed in mobile food carts and kiosks

Technical Specifications

Model DI-2-1410
Compartments 2
Bowl Size (each) 14" W × 16" F/B × 10" D (356 mm × 406 mm × 254 mm)
Overall Dimensions 33 1/2" L × 21" W (851 mm × 533 mm)
Counter Cut-Out 32 3/4" × 20 1/4" with 1 1/4" radius corners
Material 18-ga type 304 stainless steel
Faucet K-50, 8" swing spout, 4" O.C., 1/2" IPS male inlets, 1.0 GPM
Drain Opening 1-1/2" IPS basket drains (included)
Approx. Weight 35 lb (15.9 kg)
Mounting Hardware (4) standard clips (K-28) for 7/8"–2" thick countertops

Ideal Applications

  • Concession trailers & mobile food carts
  • Back-bar glass-washing stations
  • Cafes, coffee shops, & delis
  • Utility or prep sink in commercial kitchens

Need a different spout length or a low-flow aerator? Replacement parts are available from Advance Tabco.

California Proposition 65 Warning: This product can expose you to chemicals, including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Height

10.0in

Width

33.5in

Depth

21.0in

Shipping Weight

35.0lbs

Bowl Width (side - side)

14" width

Drainboards

without drainboards

Compartment(s)

(2) compartments

Bowl Depth (front - back)

16" depth

Bowl Deep (rim - drain)

10" deep

Specifications

Drop-In Sink, 2-compartment, 14" wide x 16" front-to-back x 10" deep each/bowl, 18 gauge 304 stainless steel, deck mounted 8" swing spout faucet, basket drain
