Advance Tabco  |  SKU: DI-1-10SP

Advance Tabco DI-1-10SP Compartment Sinks

$1,044.00
Delivered by , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list Template Installation manual
Related Searches
Compartment Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

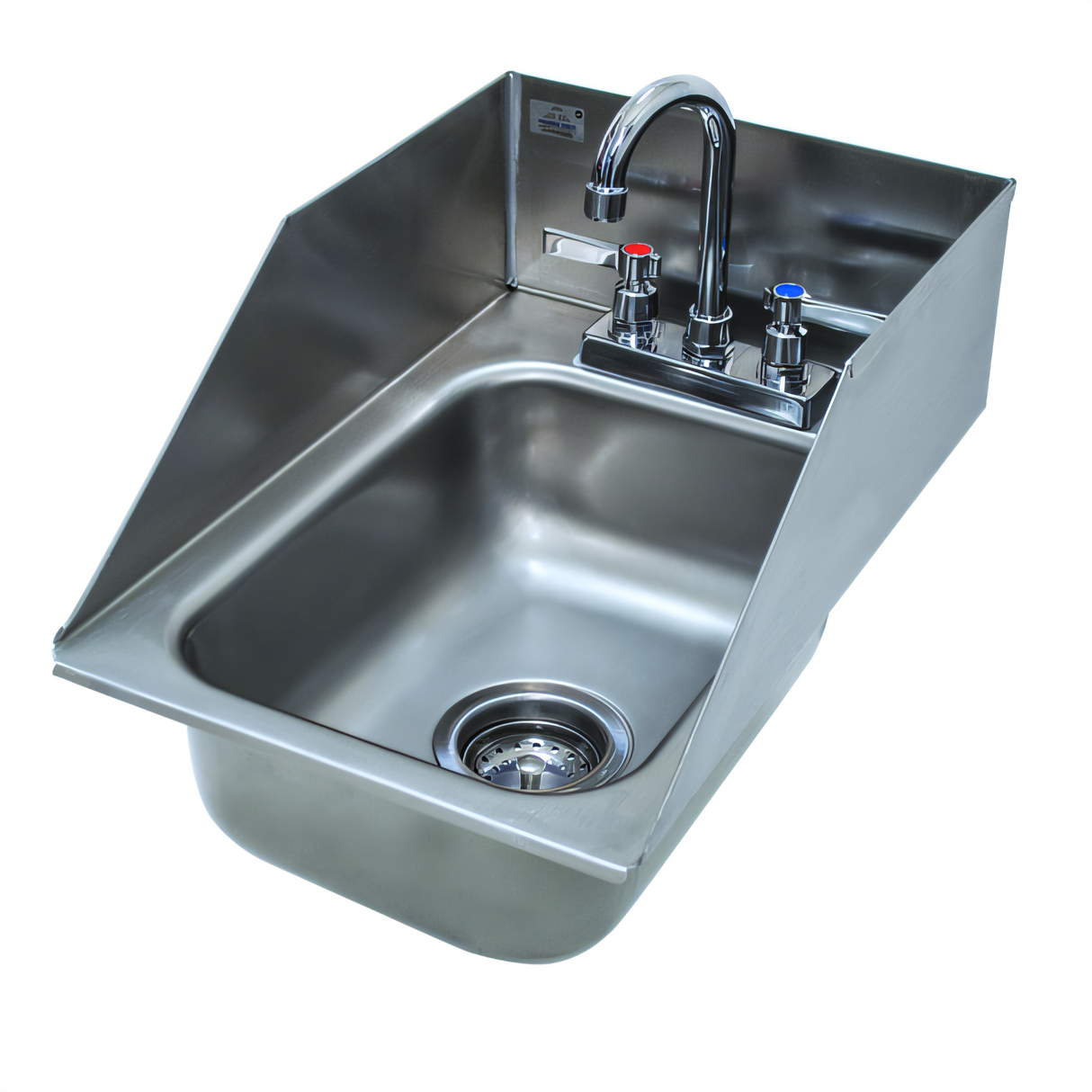

Advance Tabco 1-Compartment Drop-In Hand Sink – 12" x 18-1/2"

Model DI-Series | Includes Gooseneck Faucet & Drain

Engineered for quick drop-in installation and years of worry-free service, this NSF-listed hand sink brings Advance Tabco’s legendary build quality to any counter run. A seamless deep-drawn bowl, integral 6" splash guards, and full stainless steel construction make it the perfect solution for food-service kitchens, prep rooms, bars, labs, and anywhere compact hand-washing is required.

Key Features

  • One-piece 20 ga Type 304 stainless steel – corrosion-resistant & easy to sanitize
  • Seamless 10" deep bowl (10" W x 14" F-B) with generous 2" radius corners for effortless clean-up

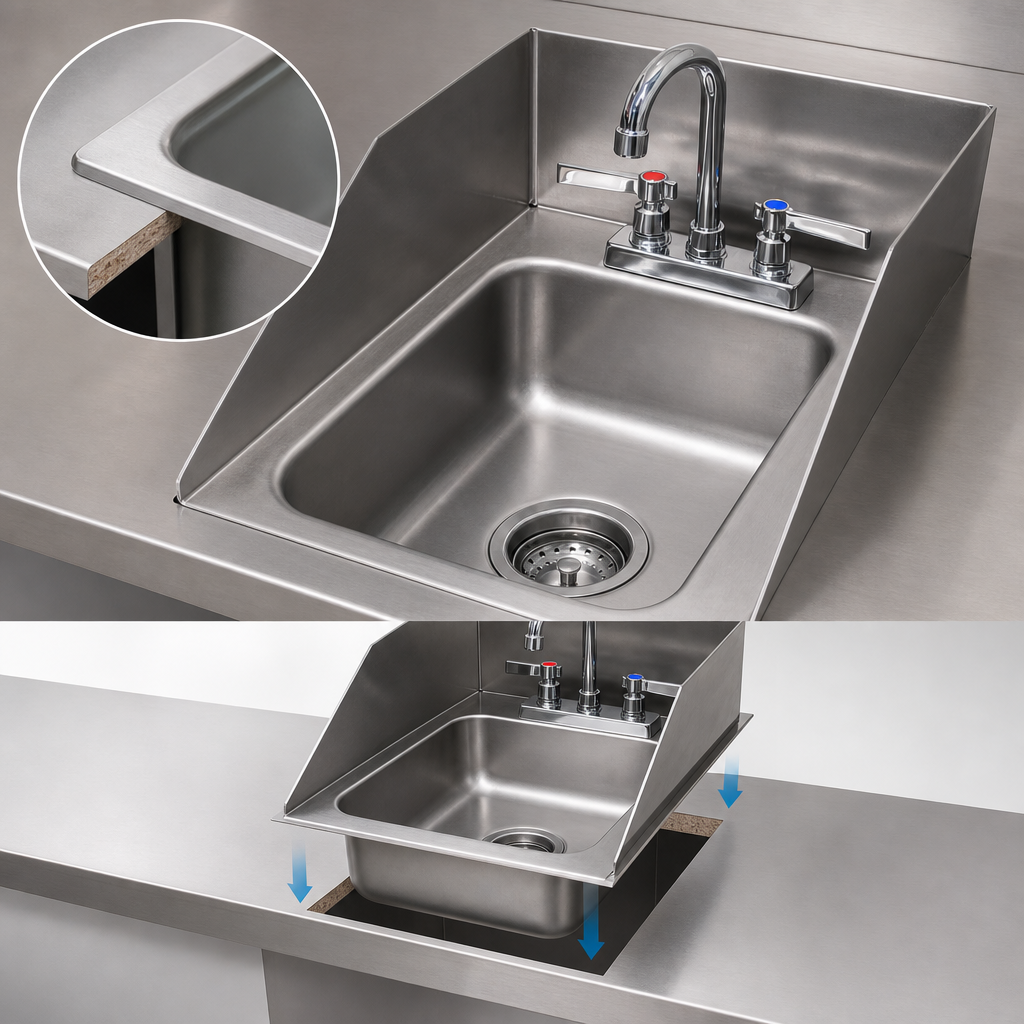

  • Self-rimming drop-in design with mounting clips & nuts (fits tops 7/8" – 2" thick)
  • Integral 6" rear backsplash plus 6" tapered side splashes contain water & protect walls
  • K-52 4" O.C. deck-mounted gooseneck faucet, swivel spout & built-in aerator (NSF 61/9 lead-free)
  • 3-1/2" stainless steel basket drain with 1-1/2" IPS outlet
  • Advance Tabco Smart Finish™ with sound-deadening undercoat for a quieter workspace
  • NSF certified for food-service hand-sink use

Specifications

Overall dimensions (O.A.) 12" W x 18-1/2" D
Bowl size (inside) 10" W x 14" F-B x 10" D
Back / side splashes 6" high rear, 6" tapered sides
Faucet Deck mounted gooseneck, 4" centers, 1/2" IPS inlets, swivel spout with aerator
Drain 3-1/2" stainless basket, 1-1/2" IPS outlet
Material & gauge 20 ga Type 304 stainless steel (sink); brass nickel-plated faucet
Finish Smart Finish™ satin polish, sound-deadened underside
Mounting hardware Stainless mounting clips & nuts included
Certifications NSF, NSF 61/9 (lead-free faucet)
Approx. weight ≈ 18 lb (shipping)

Ideal Applications

  • Restaurant, café & QSR hand-wash stations
  • Bar & beverage service areas
  • Food trucks and mobile concessions
  • Laboratories & healthcare prep rooms
  • Break-rooms & employee hand-wash points

Cut-out template available on request. Always have the sink on-site to verify measurements before cutting countertops.

California Prop 65 Warning: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

16.0in

Width

12.0in

Depth

18.5in

Shipping Weight

18.0lbs

Compartment(s)

(1) compartment

Bowl Deep (rim - drain)

10" deep

Drainboards

without drainboards

Bowl Width (side - side)

10" width

Bowl Depth (front - back)

14" depth

Specifications

Drop-In Sink, 1-compartment, 12"W x 18-1/2"D O.A., 10"W x 14"D front-to-back x 10" deep bowl, 6" backsplash, 6" tapered side splash, includes: gooseneck deck mounted faucet 4" O.C. & 3-1/2" stainless steel drain with basket, 20/304 stainless steel, NSF (mounting brackets & nuts included)
