Advance Tabco  |  SKU: DCM-18-96  |  UPC: 747545204790

Advance Tabco DCM-18-96 Stainless Steel Shelving

$3,332.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Restaurant Equipment Restaurant Equipment Parts Work Table Parts & Accessories

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

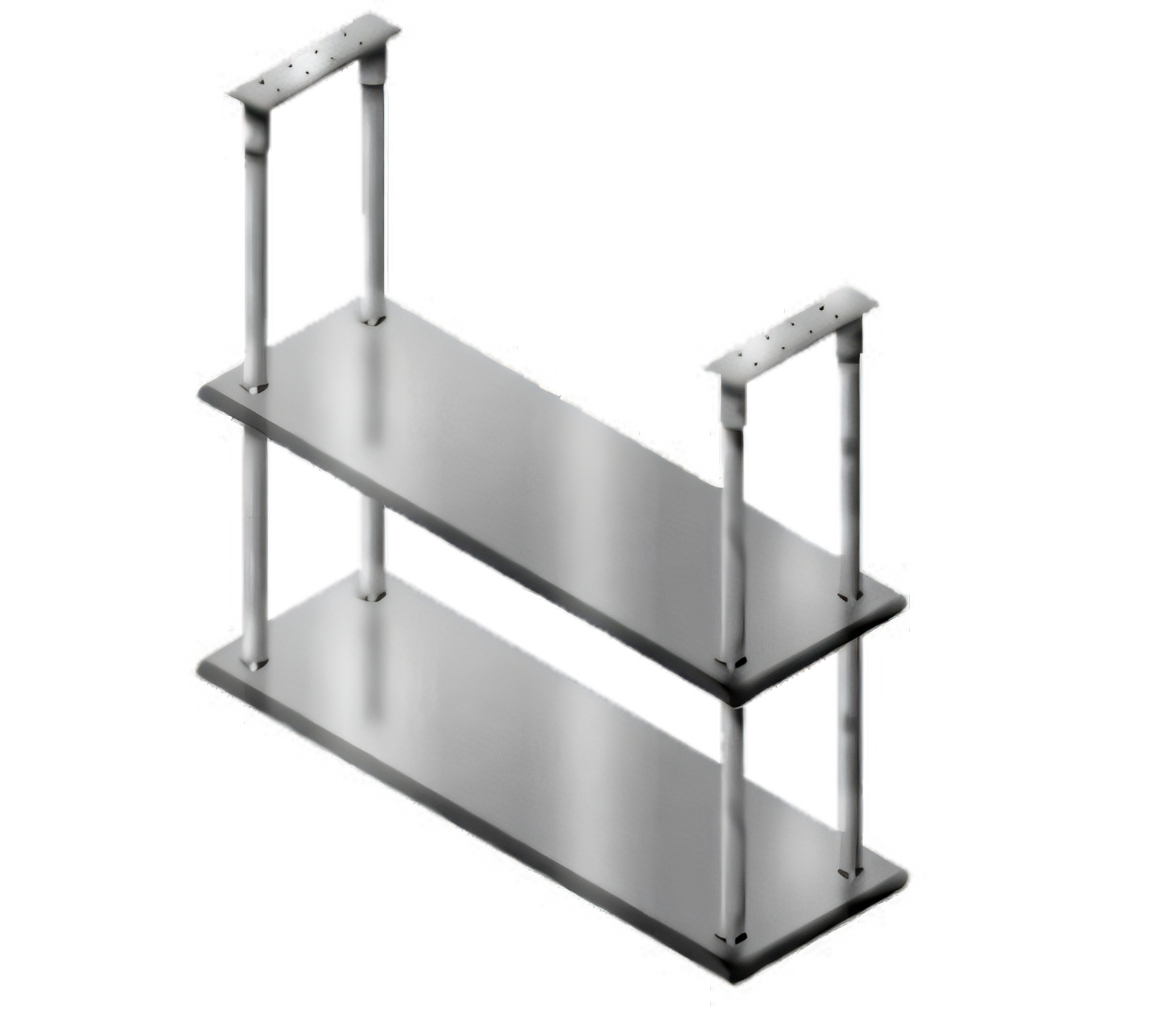

Double-Deck Ceiling-Mounted Shelf – 96″ W x 18″ D

Advance Tabco Model DCM-18-96

Maximize overhead storage without sacrificing valuable floor space. This 96-inch wide, two-tier ceiling-mounted shelf system is fabricated entirely from food-service-grade stainless steel and engineered for daily use in commercial kitchens, bars, and prep areas.

Why It Stands Out

  • Double-deck design instantly doubles cubic storage over workstations.
  • Top shelf is fully adjustable in height to accommodate tall mixers, smallwares, or bulk ingredients.
  • 18 ga. type 430 stainless steel shelves with a satin polish resist corrosion and wipe clean fast.
  • (3) 1 ⅝″ Ø stainless steel support posts run from counter to ceiling for rock-solid stability on 96″ units.
  • All-TIG-welded construction; ships knocked-down (KD) for easier freight and doorway clearance.
  • Rated at 5 lb. per sq. ft. of evenly distributed load—ideal for light equipment, dinnerware, or dry storage.

At-a-Glance Specs

Model DCM-18-96
Shelf Configuration Double deck (2 shelves)
Overall Width 96″ (2438 mm)
Overall Depth 18″ (457 mm)
Working Height * Customer specified
Ceiling Height * Customer specified
Shelf Material 18 ga. 430 stainless steel
Support Posts 1 ⅝″ Ø stainless steel tubing (3 posts on 96″ length)
Finish Satin polish on all exposed surfaces
Load Capacity 5 lb. per sq. ft. (evenly distributed)
Shipping Weight Approx. 84 lb.
Ships Knocked-down

Installation & Customization

  • Mount posts to a structural ceiling member (hardware not included).
  • Adjust top shelf height via set screws and support channels.
  • Can be cut or fabricated to non-standard lengths/depths through Advance Tabco’s Smart Fabrication™ service.
Important: To ensure proper fit, please provide both your desired working height and actual ceiling height at checkout or before production begins.

Looking for a different size? Ask about custom widths, depths, and single-shelf configurations.

Features & Specs

Manufacturer

Advance Tabco

Height

14.0in

Width

96.0in

Depth

18.0in

Shipping Weight

84.0lbs

Construction

stainless steel

Width (side - side)

85" - 96"

Shelves

double

Depth (front - back)

18"

Specifications

Shelf, ceiling mounted, double-deck, 96"W x 18"D, 1-5/8" posts run to the ceiling, adjustable top shelf, stainless steel, load capacity 5 lb. per sq. ft. (evenly distributed), specify working height & ceiling height
