Advance Tabco DBS-63C Bar King (Supreme) Bar Equipment
Description

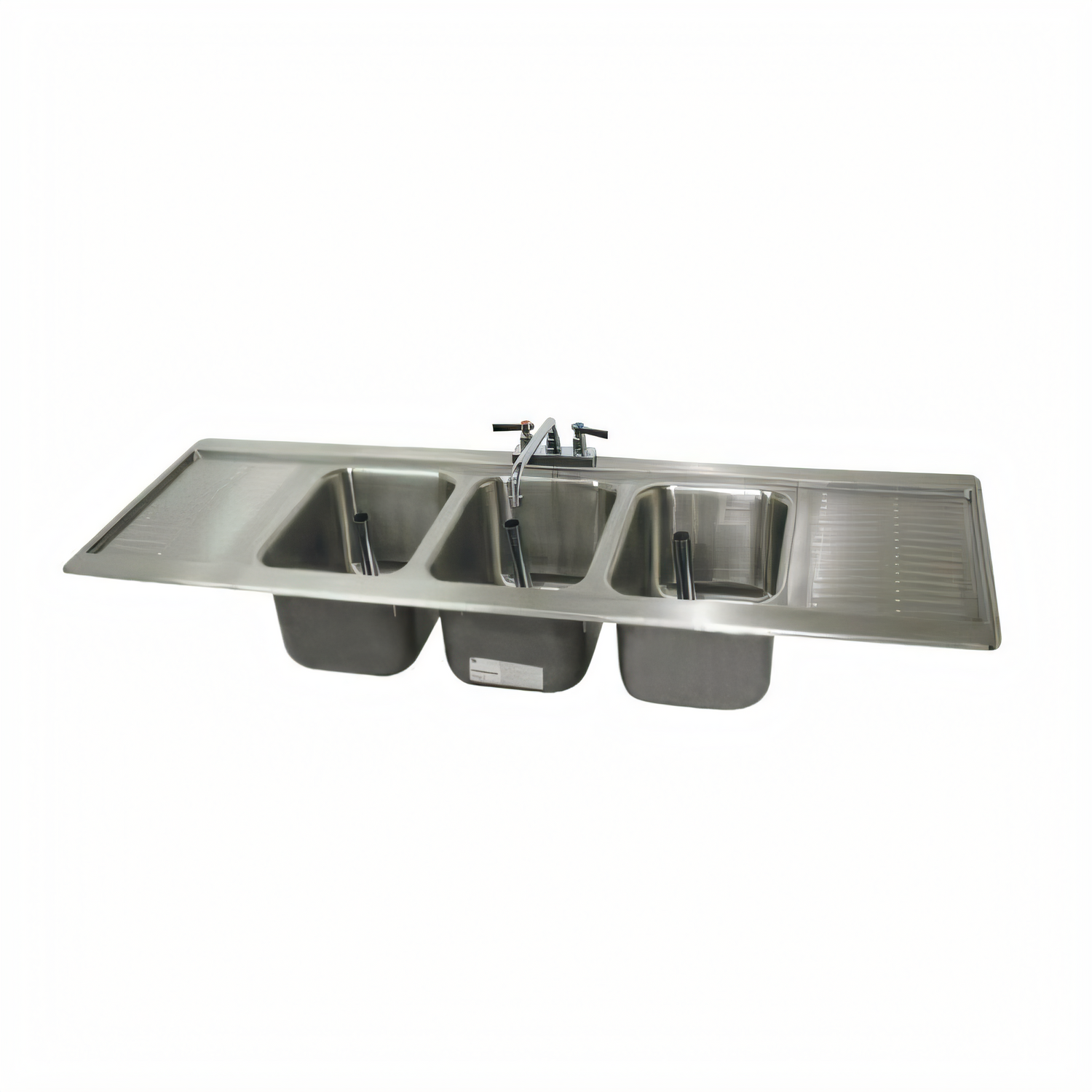

Advance Tabco “Bar King (Supreme)” Drop-In Bar Sink
DBS-63C • 3-Compartment • Dual 18" Drainboards • 72-5/16" WDesigned for high-volume bars that refuse to compromise on speed, sanitation, or style, the Bar King (Supreme) combines three seamless deep-drawn bowls with extra-large drainboards on both sides. Crafted from 20-gauge, 300-series stainless steel and supplied complete with a lead-free faucet and overflow standpipes, it drops into your counter cut-out for a clean, flush look that’s easy to install and even easier to keep spotless.
Why You’ll Love It

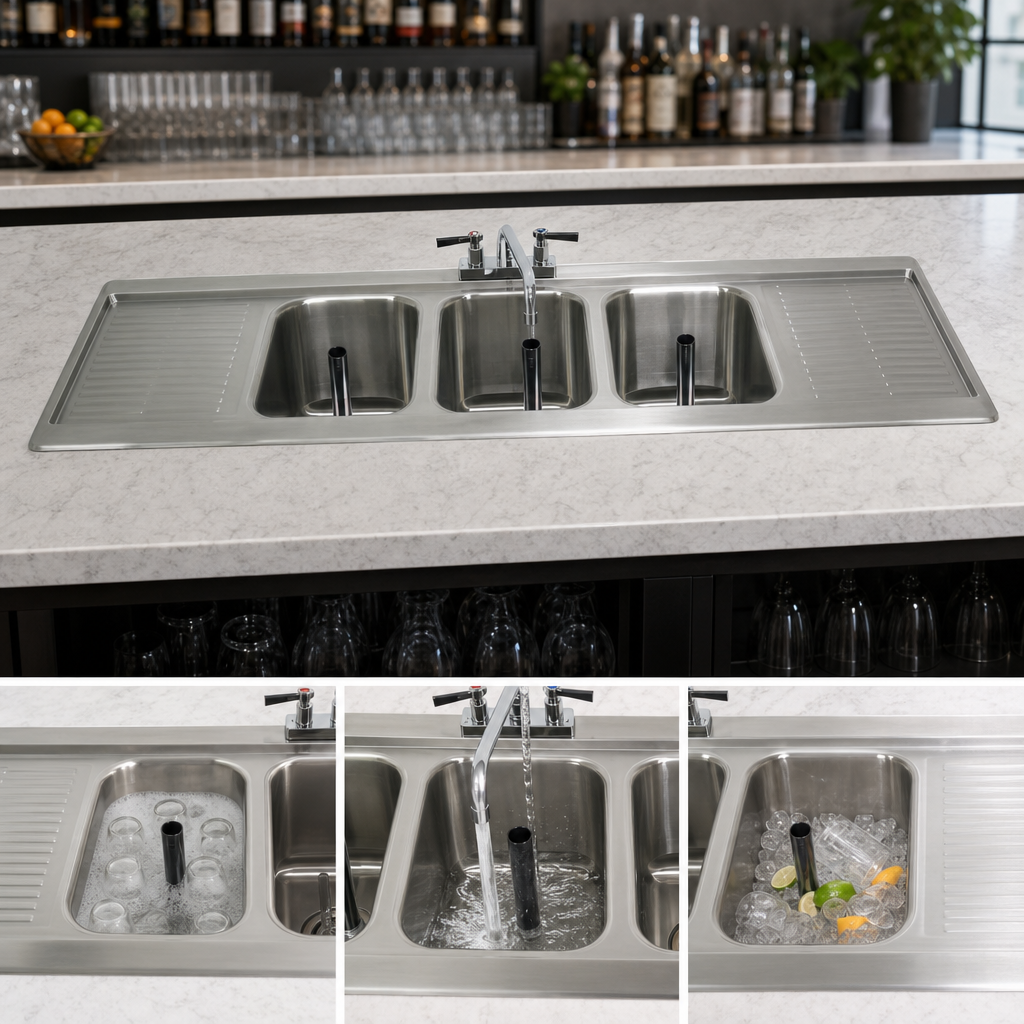

- Three 10" × 14" × 10" deep seamless bowls—perfect for a sanitation cycle of wash, rinse & sanitize.

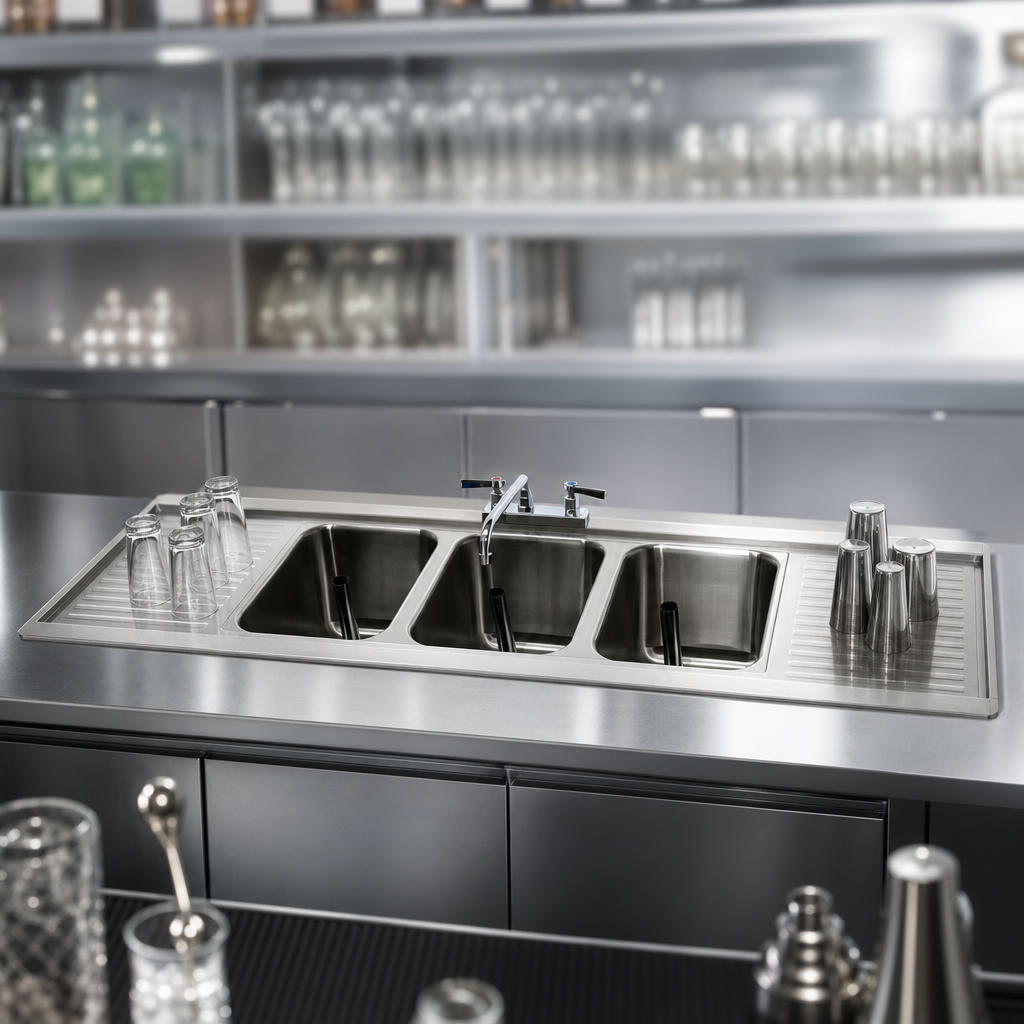

- Left & right 18" embossed drainboards hold full-size bus tubs or stacks of glassware.
- One-piece 20-ga type 300 stainless construction stands up to everyday bar abuse.
- 4" on-center deck-mount faucet with 12" swing spout included—ready to plumb and pour.
- 1 ½" IPS drains with 9" overflow pipes keep your team in compliance with health codes.
- Conforms to NSF and NSF/ANSI 61 & 9 lead-free requirements for peace of mind behind the bar.
- Drop-in design installs fast; 1¼" radius corner cut-out template provided.
At-a-Glance Specs
| Model | DBS-63C (“Bar King Supreme”) |
|---|---|
| Overall size (W × D × H) | 72-5/16" × 21-1/8" × 11-8/10" |
| Cut-out size | 17" × 71" • 1¼" radius corners |
| Compartments | 3 deep-drawn bowls |
| Bowl interior (each) | 10" W × 14" D × 10" H |
| Drainboards | 2 @ 18" (left & right) |
| Faucet (included) | 4" O.C. deck mount • 12" swing spout • lead-free |
| Drain connection | 1 ½" IPS |
| Overflow pipes | 3 @ 9" high |
| Material & finish | 20 ga 300-series stainless steel, satin finish |
| Certifications | NSF, NSF/ANSI 61 & 9 lead-free |
| Approx. ship weight | 110 lb |
What’s in the Box
- (1) Drop-in sink assembly with dual drainboards
- (1) 4" O.C. deck-mount faucet with 12" spout
- (3) 9" stainless steel overflow standpipes
- Cut-out template & mounting hardware
Popular Add-Ons (sold separately)
- A-1 perforated bowl cover – turns a bowl into extra drainboard space.
- A-16 perforated basket – catches fruit rinds & debris before they hit the drain.
- K-316-LU wrist blade handles – swap in for sanitary, elbow-friendly operation.
