Advance Tabco DBS-53C Bar King (Supreme) Bar Equipment
Description

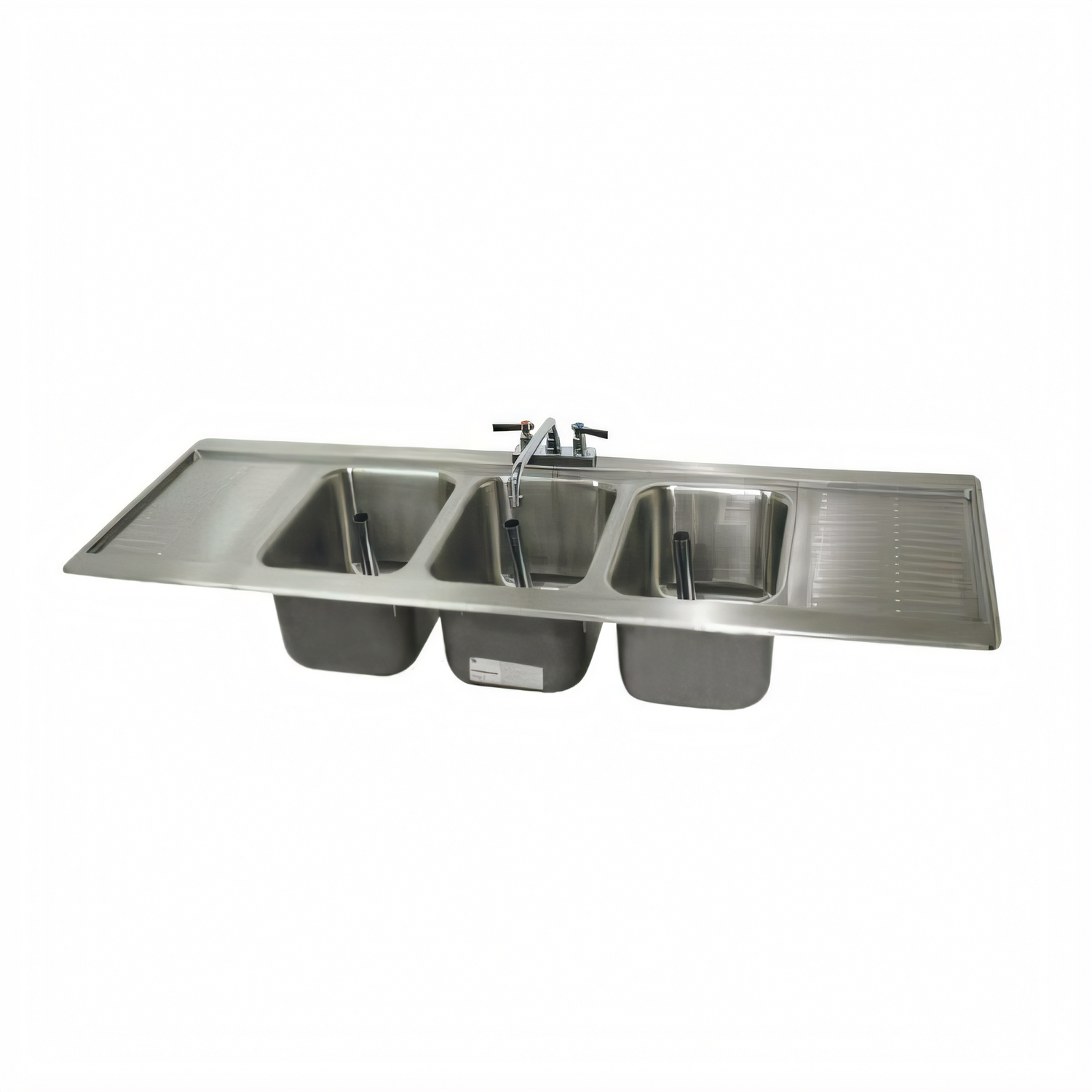

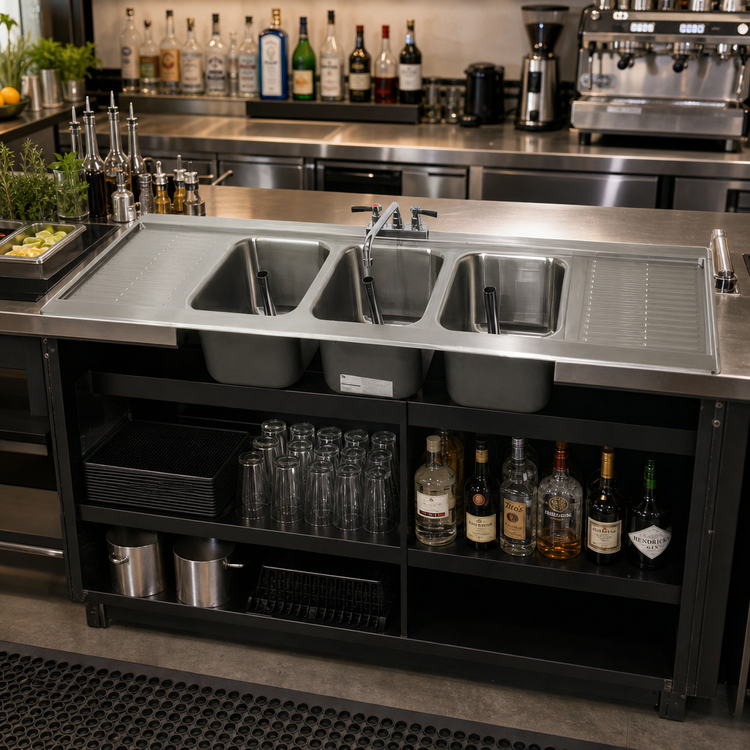

Bar King™ Supreme Drop-In 3-Compartment Bar Sink with Dual Drainboards – 60-5/16″
Advance Tabco Model DBS-53COutfit your bar for non-stop service with the Bar King™ Supreme. Three seamless deep-drawn bowls, integrated left & right drainboards, and an NSF-listed faucet arrive pre-assembled—drop it in, hook it up, and start pouring.
Why You’ll Love It

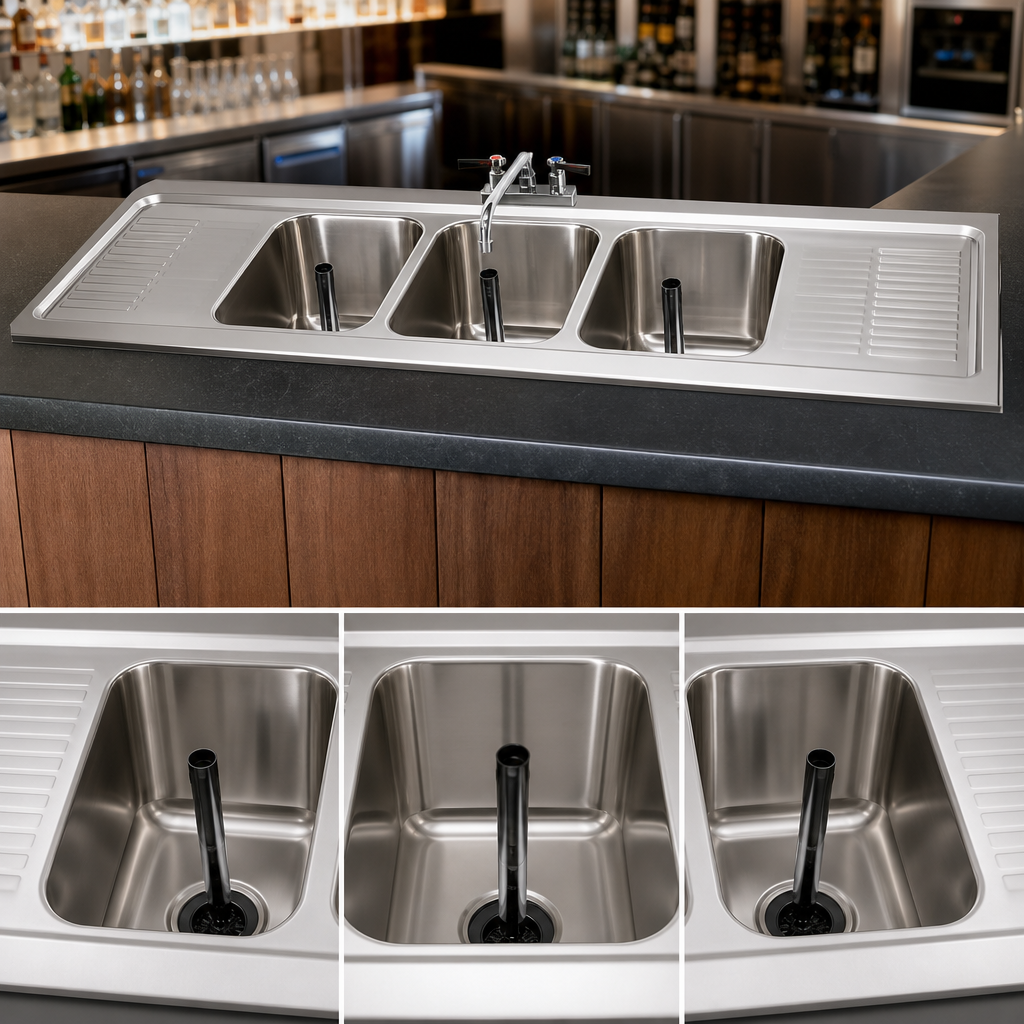

- Three 10″ × 14″ × 10″ bowls keep glassware, fruit, and bar tools separate for faster workflow.
- Deep-drawn, one-piece construction eliminates weld seams that can harbor bacteria.

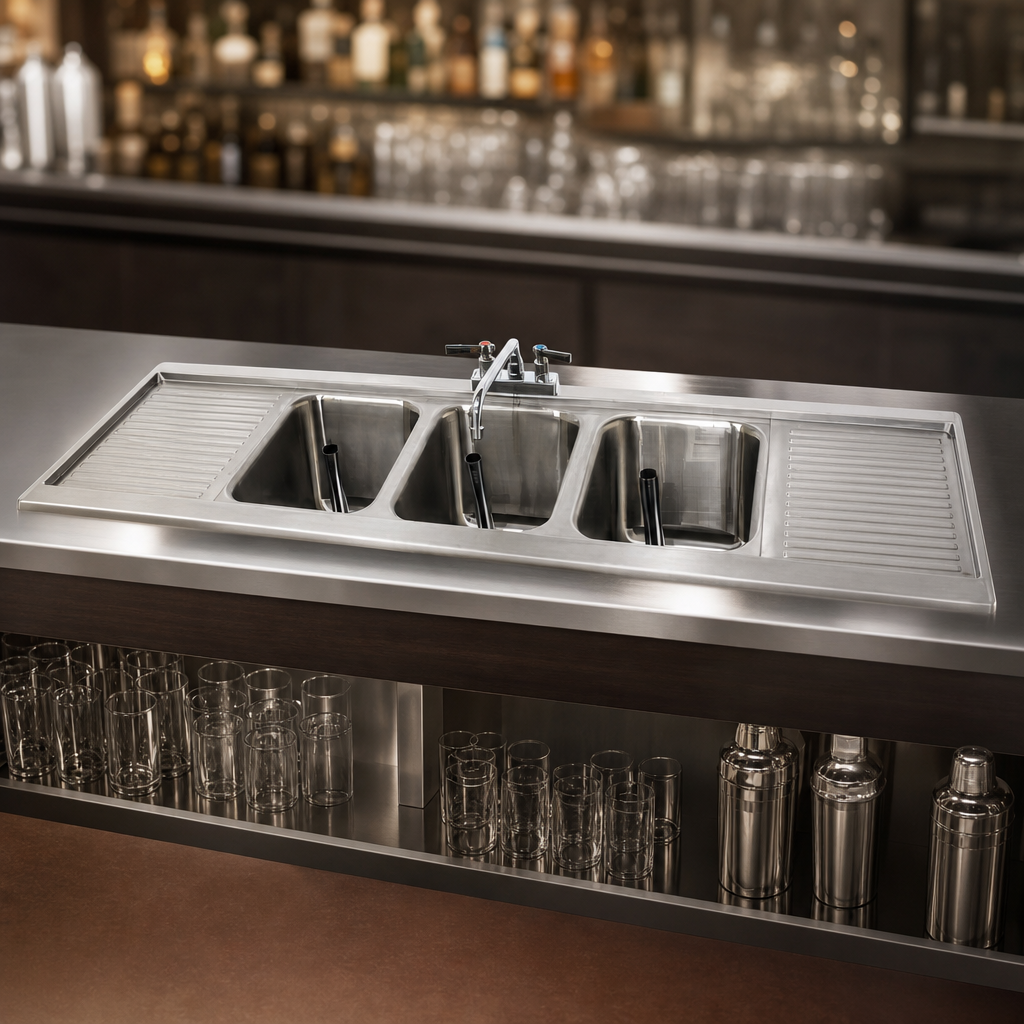

- Dual 12″ drainboards provide ample landing space on both sides of the sink.
- 20-gauge 300 series stainless steel resists corrosion, dents, and harsh cleaning chemicals.
- Included 4″-on-center deck-mount faucet with 12″ swing spout meets federal lead-free standards.
- 9″ removable overflow pipes help maintain water level and speed up draining between rushes.
- NSF & NSF/ANSI 61/9 certified for food-contact safety.
- Simple drop-in installation—factory-rolled rim and 17″ × 59″ cutout template included.
In the Box
- (1) Drop-in bar sink with integrated left & right drainboards
- (1) 4″ C.C. deck-mount faucet with 12″ swing spout
- (3) 9″ stainless steel overflow pipes
- (3) 1-1/2″ IPS basket drains
Technical Specs
| Overall Dimensions | 60-5/16″ W × 21-1/8″ D × 11-13/16″ H |
|---|---|
| Cutout Size | 59″ W × 17″ D (1-1/4″ radius corners) |
| Bowl Count / Size | 3 bowls, each 10″ W × 14″ D × 10″ deep |
| Drainboard Size | 12″ left & 12″ right |
| Drain Connection | 1-1/2″ IPS per bowl |
| Overflow Pipes | (3) 9″ high, removable |
| Faucet Centers | 4″ on-center |
| Faucet Spout Length | 12″ swing spout |
| Material | 20-gauge, 300 series stainless steel |
| Certifications | NSF, NSF/ANSI 61/9 (lead-free) |
| Approx. Shipping Weight | 100 lb |
| Approx. Shipping Volume | 21 cu ft |
Optional Accessories
- A-1 perforated bowl cover
- A-16 perforated bowl basket
- K-316-LU wrist blade handles (swap-in for standard faucet handles)
Complies with federal lead-free legislation and NSF standards for food-service equipment.
Verify dimensions on site before cutting countertops. A full-scale cutout template is included.
