Advance Tabco  |  Bar King (Supreme)  |  SKU: DBS-43R  |  UPC: 747545182180

Advance Tabco DBS-43R Bar King (Supreme) Bar Equipment

$1,238.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Template
Related Searches
Advance Tabco Bar Equipment Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment Restaurant Equipment Underbar Equipment Underbar Hand & Dump Sinks

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

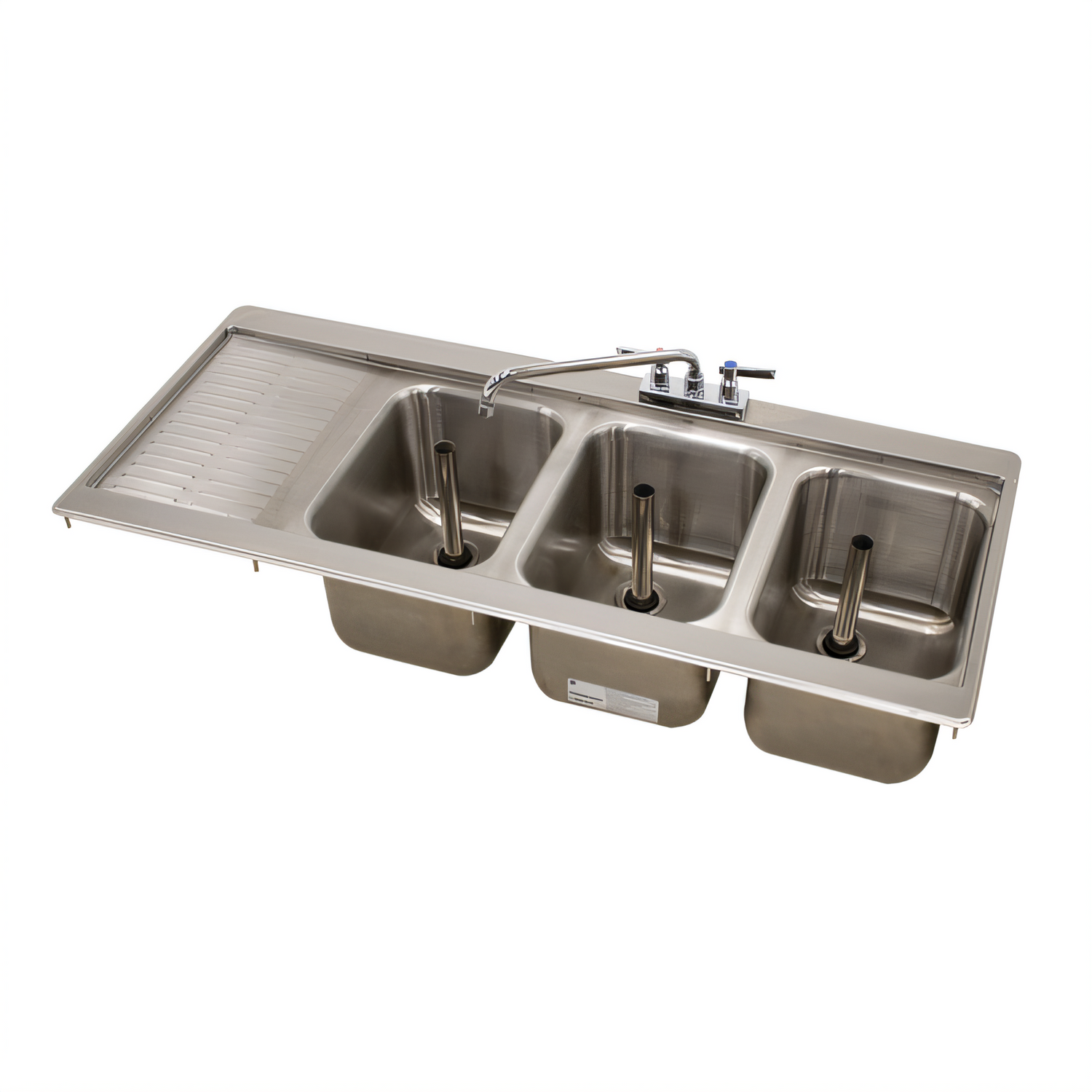

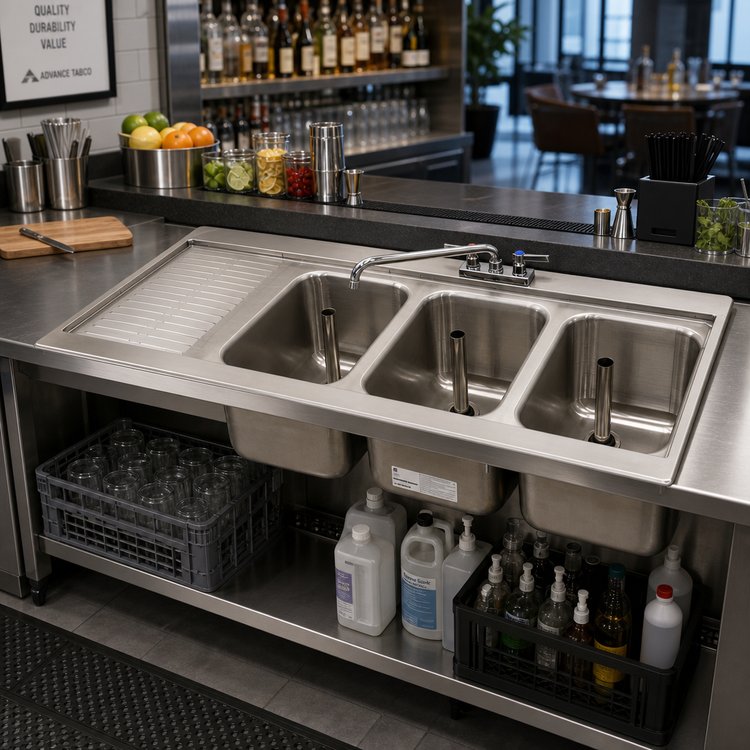

Bar King (Supreme) 3-Compartment Drop-In Bar Sink – 48 in. with Left Drainboard

Advance Tabco Model DBS-43R

Give your bar the royalty treatment. The Bar King (Supreme) combines three extra-deep seamless bowls, a convenient 12 inch drainboard, and a lead-free swing-spout faucet in one easy-to-install, NSF-listed drop-in unit.

Key Features

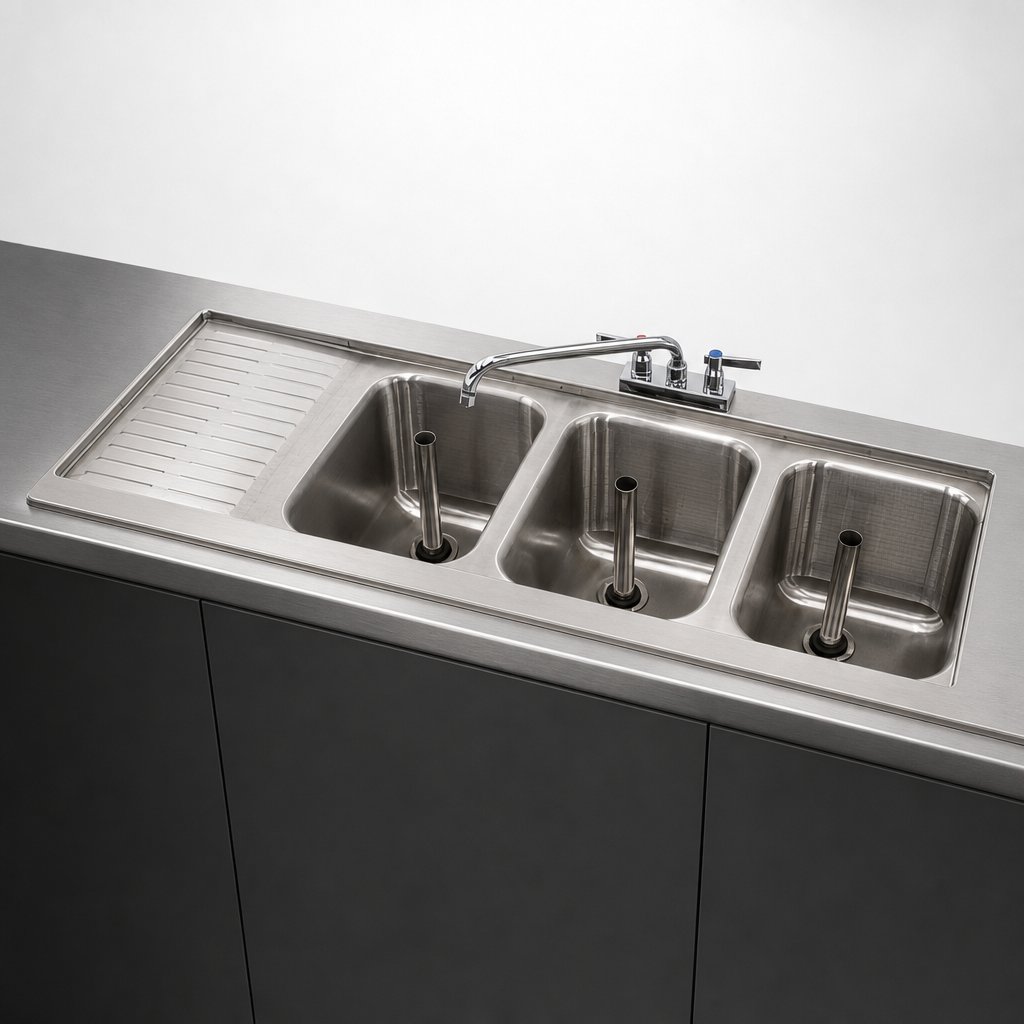

  • (3) 10 in. × 14 in. × 10 in. deep-drawn bowls for dedicated wash, rinse & sanitize stations.

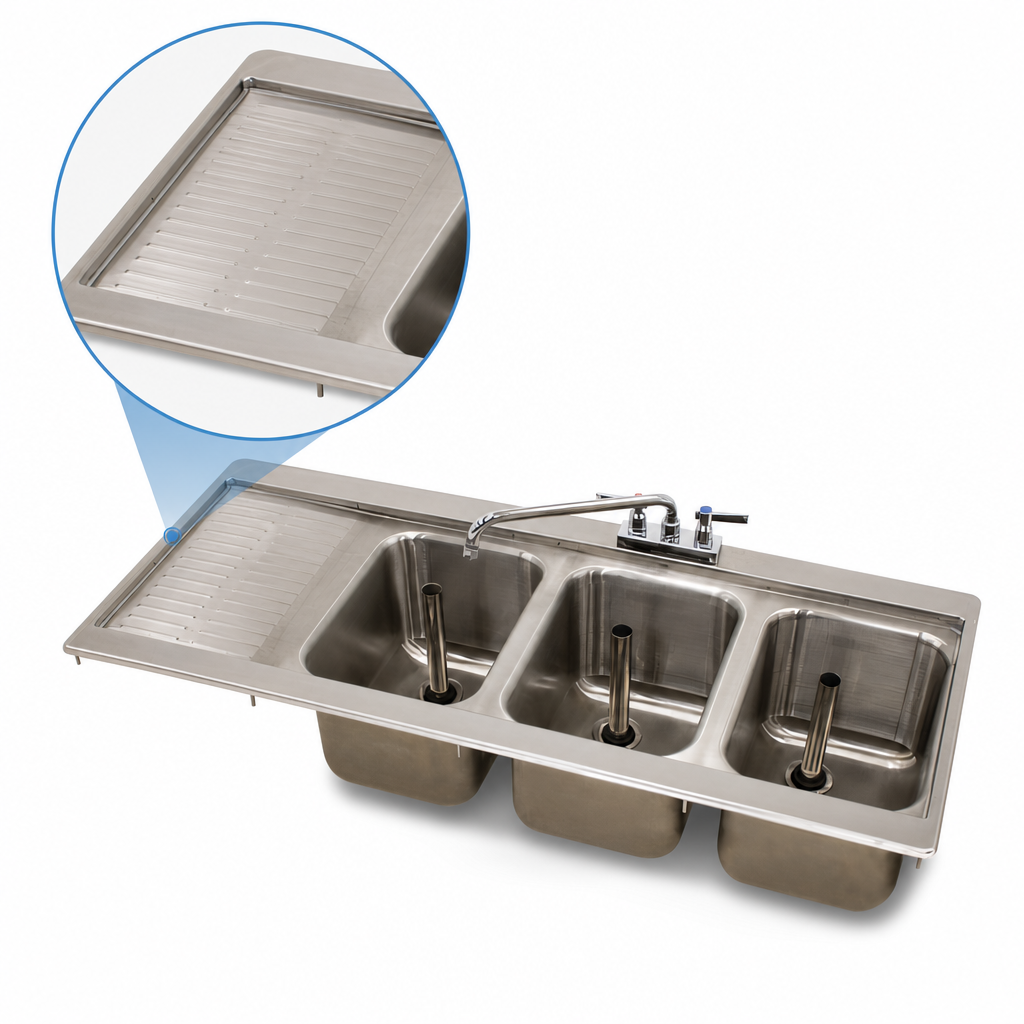

  • Integrated 12 in. left-hand drainboard with embossed pitch for fast drying.
  • 4 in. center deck-mount faucet with 12 in. swing spout reaches every compartment.
  • (3) 9 in. stainless overflow pipes keep water level code-compliant.
  • 20-gauge, 300-series stainless steel—rust-resistant, easy to clean, built for heavy service.
  • Drop-in style; requires only a 17 in. × 47 in. countertop cut-out.
  • NSF/ANSI 61 & 372 certified lead-free construction.

Built for Busy Bars

  • Seamless deep-drawn bowls eliminate weld seams and hard-to-reach corners.
  • Compact 48-5/16 in. width maximizes valuable back-bar real estate.
  • Ready for accessories—add perforated covers, baskets, or wrist-blade handles anytime.
  • Ships fully assembled for drop-and-go installation.

Specifications

Overall Dimensions (W × D × H) 48-5/16 in. × 21-1/8 in. × 11-13/16 in.
Cut-Out Size 17 in. × 47 in. (1-1/2 in. radius corners)
Sink Compartments (3) 10 in. W × 14 in. D × 10 in. H
Drainboard 12 in., left side, embossed & seamless
Drain Size 1-1/2 in. I.P.S. (one per bowl)
Overflow Pipes (3) 9 in. stainless steel (included)
Faucet 4 in. O.C. deck mount, 12 in. swing spout, lead-free
Material & Gauge 20-ga. 300-series stainless steel
Certifications NSF, NSF/ANSI 61 & 372 (lead-free)
Approx. Shipping Weight 88 lb

Optional accessories (sold separately): A-1 perforated covers, A-16 perforated baskets, K-316-LU wrist-blade handles.

California Prop 65 Notice: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer, birth defects, or other reproductive harm.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Bar King (Supreme)

Certifications

NSF

Height

11.8in

Width

48.31in

Depth

21.13in

Shipping Weight

88.0lbs

Sink Compartments

(3)

Depth (front - back) OA

21"

Drainboards

drainboard on left

Width (side - side) OA

43" - 48"

Bowl Size

10" x 14" front-to-back

Specifications

Bar Sink, drop-in, 48-5/16"W x 21-1/8"D x 11-8/10"H (overall), (3) 10"W x 14"D x 10" deep sink bowls with 1-1/2" I.P.S. drains, (1) 12" left-side drainboard, includes: (1) 4" deck mount faucet with 12" spout & (3) 9" overflow pipes, 20 gauge 300 series stainless steel, NSF (cutout size 17" x 47")
