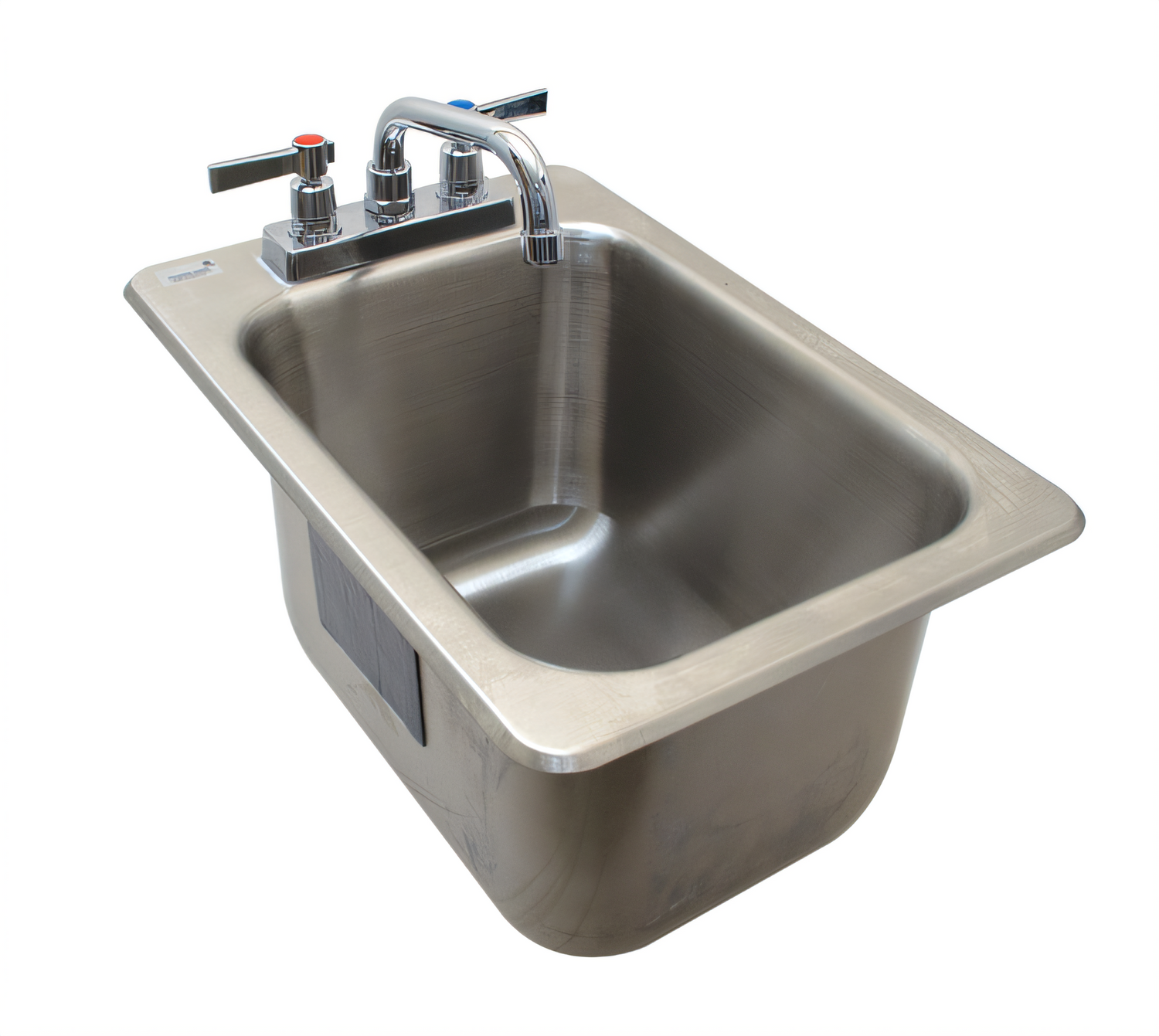

Advance Tabco Bar King (Supreme) Drop-In Stainless Steel Bar Sink with Faucet and Overflow Pipe

SKU: DBS-1
GTIN: 747545182128
$599.00
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Advance Tabco Bar Equipment Best Sellers Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment New Arrivals Restaurant Equipment Underbar Equipment Underbar Hand & Dump Sinks

Advance Tabco Bar King (Supreme) Drop-In Stainless Steel Bar Sink with Faucet and Overflow Pipe

13 in. W x 19 in. D Overall; 10 in. Deep Bowl; 20 Gauge 300 Series Stainless Steel

A compact drop-in bar sink package with faucet and overflow pipe, ready for efficient underbar cleanup.

  • Drop-in bar sink designed for compact underbar beverage stations.
  • Single 10" W x 14" D x 10" deep bowl supports bar service and dump tasks.
  • 20-gauge 300 series stainless steel construction for commercial durability.
  • Includes a 4" deck-mount faucet with 6" spout and 9" overflow pipe.
  • Requires a 12-1/2" x 18-1/2" cutout with 1-1/2" radius corners.
  • 1-1/2" I.P.S. drain connection simplifies plumbing hookup.

Overall Dimensions:

13.0"W x 19.0"D x 10.0"H

Product Weight:

15.0 lb
Standard Faucet Note: Conforms to NSF 61/9 lead free requirements. Notice for use in California: Proposition 65 - This faucet may expose you to chemicals, including lead, that are known to the State of California to cause cancer, or birth defects or other reproductive harm. For more information visit www.p65Warnings.ca.gov (nc)

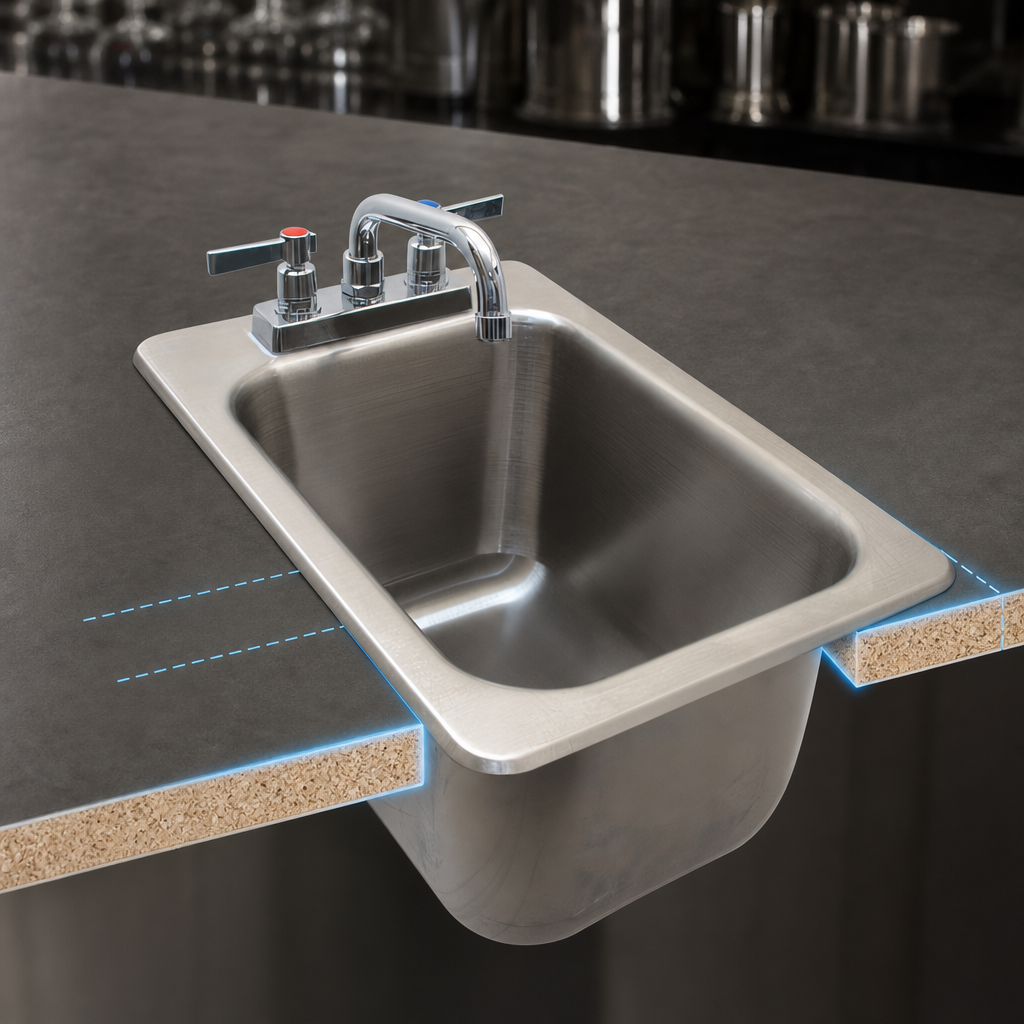

Drop-In Design

Designed for installation into a compatible countertop cutout.

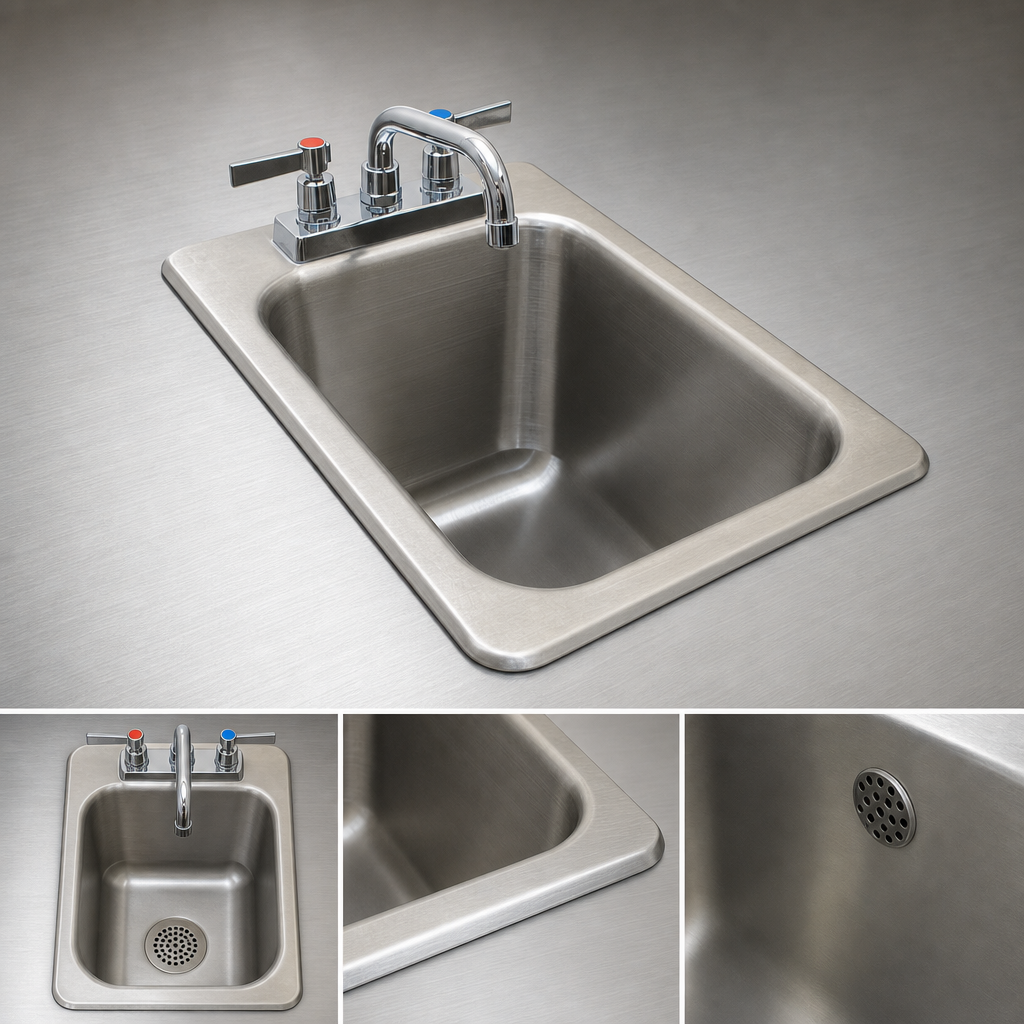

Single Bowl Layout

One 10" W x 14" D x 10" deep sink bowl provides a compact work area.

Stainless Steel Construction

Built from 20-gauge 300 series stainless steel for commercial durability.

Faucet Included

Includes a 4" deck-mount faucet with a 6" spout for immediate water access.

Overflow Pipe Included

Includes a 9" overflow pipe to help manage bowl water level.

Cutout Template Guidance

Template specifies a 12-1/2" x 18-1/2" cutout with 1-1/2" radius corners; confirm dimensions before cutting.

Standard Drain Connection

Uses a 1-1/2" I.P.S. drain connection for standard plumbing tie-in.

Type Bar Sink
Style Single Bowl
Installation Type Drop-In
Material 300 Series Stainless Steel
Gauge 20 Gauge
Compartments 1
Bowl Size 10 Inches W x 14 Inches D
Bowl Depth 10 Inches
Drain Connection Size 1-1/2 Inches I.P.S.
Drainboards Without Drainboards
Selling Unit Each
Units Per Case 1
Shipping Width 13 Inches
Shipping Depth 19 Inches
Shipping Height 10 Inches
Shipping Weight 15 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Template PDF Download

Frequently Asked Questions

Yes, it is designed for drop-in installation.
The template calls for a 12-1/2" x 18-1/2" cutout with 1-1/2" radius corners, and it recommends confirming the size after printing before cutting the countertop.
It includes a 4" deck-mount faucet with a 6" spout and a 9" overflow pipe.
The sink has one bowl measuring 10" W x 14" D x 10" deep.
It is made from 20-gauge 300 series stainless steel.
It uses a 1-1/2" I.P.S. drain connection.
