Advance Tabco  |  Special Value Series  |  SKU: D-24-WSIBL2-X  |  UPC: 747545196804

Advance Tabco D-24-WSIBL2-X Special Value Series Ice & Water Dispensers

$998.55
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list
Related Searches
Ice & Water Dispensers

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

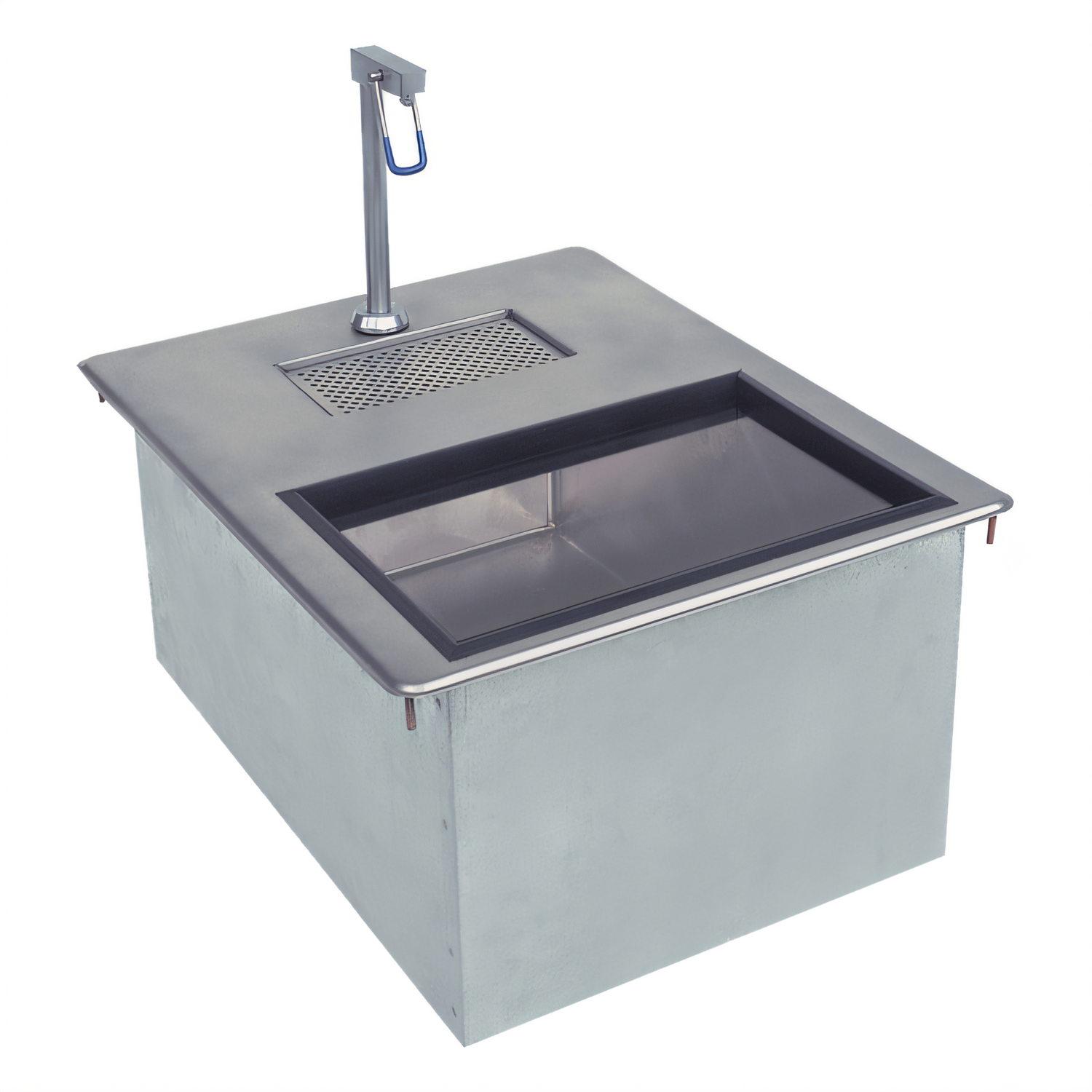

Advance Tabco “Special Value” Drop-In Ice & Water Station

Model D-24-WSIBL2 • 18 “ W × 21 “ D • 50-lb Ice Capacity

Serve bulk ice and chilled drinking water from a single, space-saving well. Engineered for cafeterias, cafés, nurse stations, and self-service beverage islands, the D-24-WSIBL2 installs flush into a 15 ¼ “ × 20 ⅝ “ counter cut-out and arrives fully assembled with a lead-free filler faucet and sliding stainless-steel cover.

Top Features
  • 50 lb insulated ice bin (18 “ L × 13.5 “ W × 12 “ D) fabricated from 20-gauge 300-series stainless steel
  • NSF/ANSI 61 Section 9 lead-free K-54 filler faucet – 1/2 “ IPS cold-water inlet, adjustable 0.5 – 2.3 GPM flow
  • Separate 1 “ IPS gravity drains for ice bin and drip pan simplify plumbing
  • Stainless-steel sliding cover protects ice when not in use and removes for cleaning
  • Foam-in-place 2 lb/ft3 insulation maintains ice integrity during peak service
  • Rubber marine-edge thermal breaker virtually eliminates exterior condensation
  • Removable perforated grate keeps cups clear of standing water in the drip pan
  • 20-gauge galvanized steel outer jacket adds strength and corrosion resistance
  • NSF listed for safe food-contact operation
Specifications
Overall Dimensions (W × D) 18 “ × 21 “
Counter Cut-Out 15 ¼ “ × 20 ⅝ “
Ice Bin Interior 18 “ × 13.5 “ × 12 “
Ice Capacity 50 lb  / 22.7 kg
Drains (2) 1 “ IPS – one ice bin, one drip pan
Water Inlet 1/2 “ IPS (cold only)
Included Faucet Advance Tabco K-54 push-lever filler faucet
Materials Ice bin & cover: 300 SS, 20 ga
Jacket: 20 ga galvanized steel
Molding: Black polyethylene marine edge
Insulation Foamed-in-place polyurethane, 2 lb density
Certifications NSF, Lead-Free (faucet)
What’s Included
  • Drop-in ice & water station (D-24-WSIBL2)
  • Stainless-steel sliding cover
  • K-54 filler faucet with mounting hardware
  • Removable drip-pan grate
  • Owner’s / installation manual
California Prop 65 Notice: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information visit p65warnings.ca.gov.

Advance Tabco continually improves products. Specifications are subject to change without notice.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Special Value Series

Certifications

NSF

Height

22.75in

Width

18.0in

Depth

21.0in

Shipping Weight

47.0lbs

Service

single service

Capacity

50 - 59 lbs

Base Finish

galvanized & stainless steel

Specifications

Special Value Ice & Water Unit, drop-in, single service, 18” x 21” overall (ice bin 18” x 13.5” x 12”), 1" diameter drain, stainless steel sliding removable cover, includes filler faucet, drip pan drain 1" dia., water cold 1/2" I.P.S., cut out size 15-1/4" x 20-5/8", 50-lb ice capacity, NSF
