Description

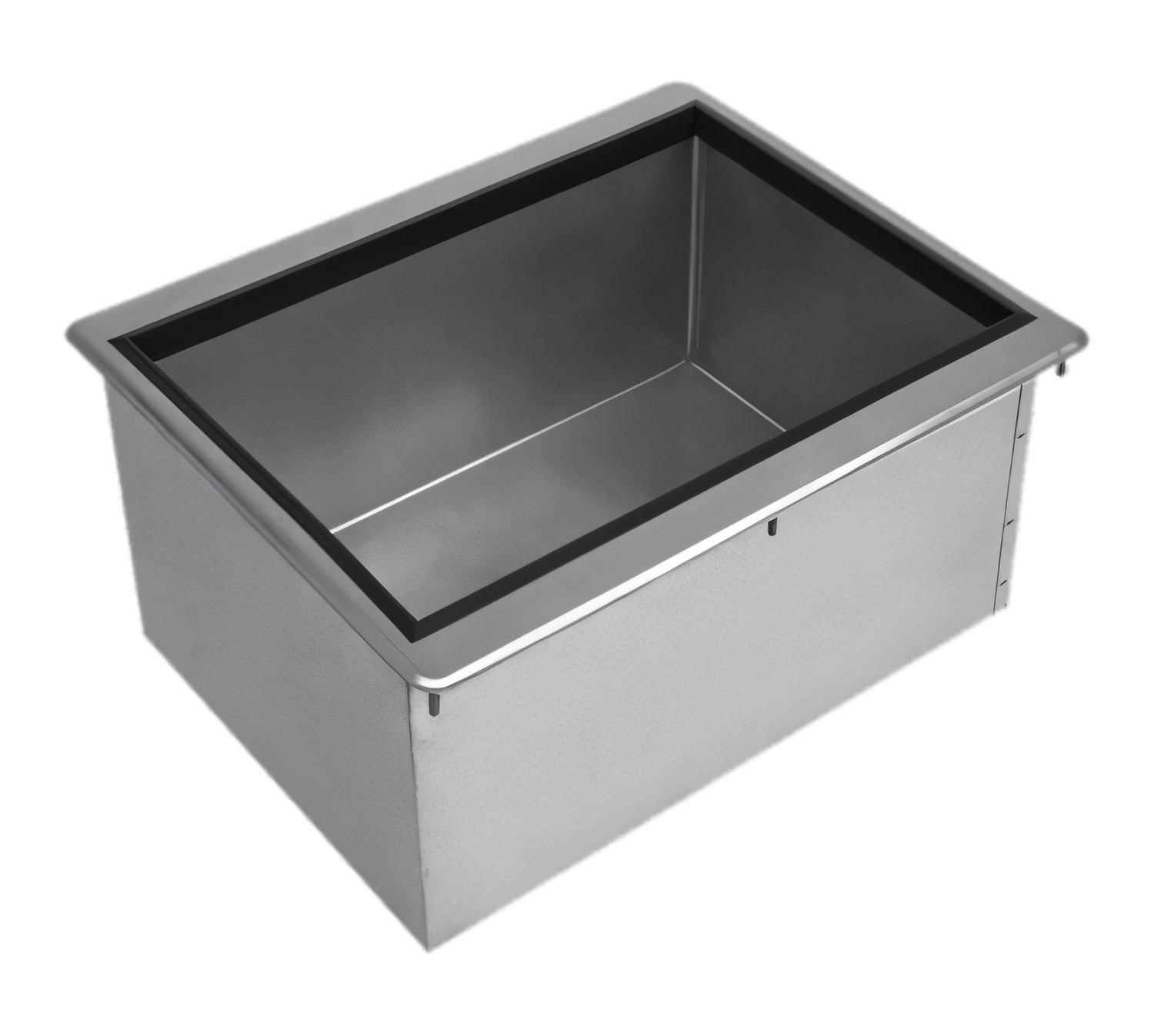

Bar King (Supreme) Drop-In Ice Bin with 7-Circuit Cold Plate – 50 lb
Advance Tabco | Model D-24-IBL-7Engineered for high-volume beverage service, the Bar King (Supreme) keeps ice rock-solid while chilling up to seven beverage lines—perfect for craft cocktail programs, hotel bars, and busy nightclubs.
Key Features

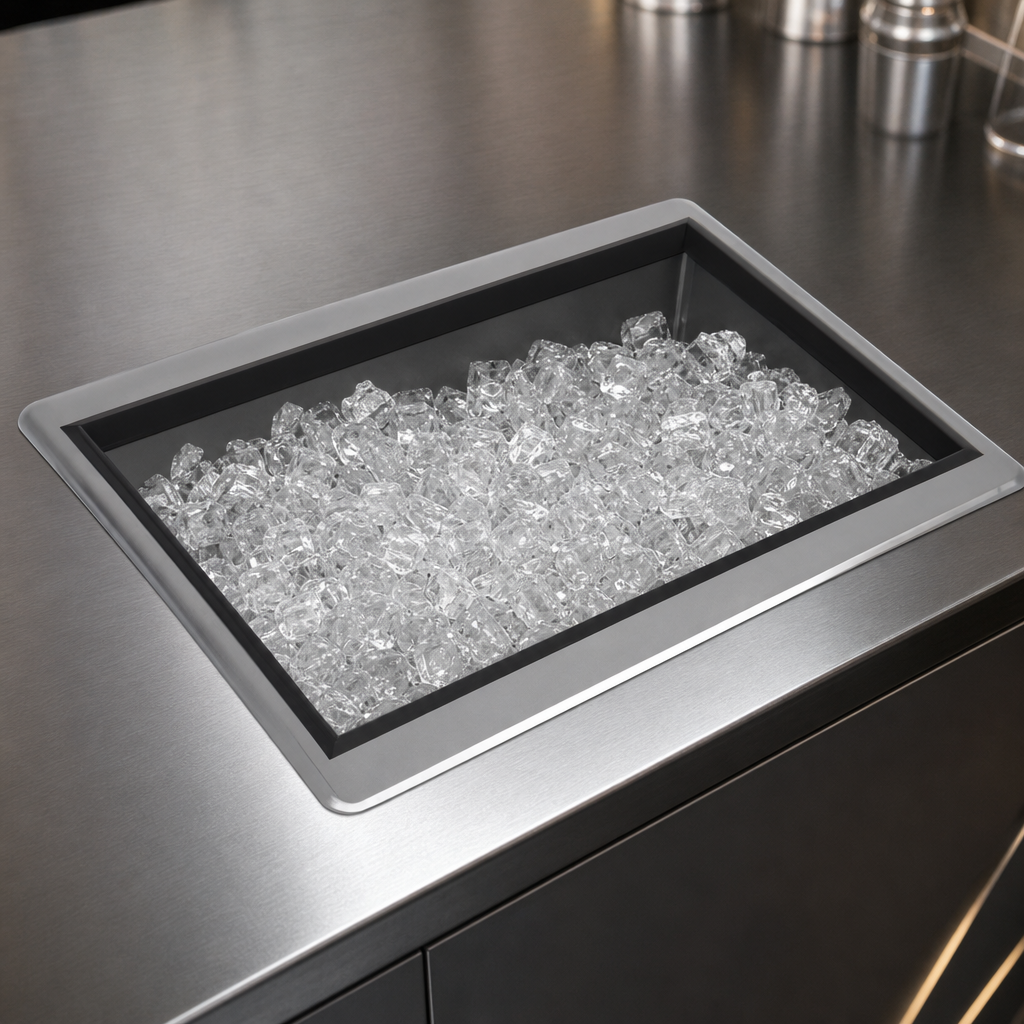

- Roomy 50 lb (22.7 kg) ice capacity.

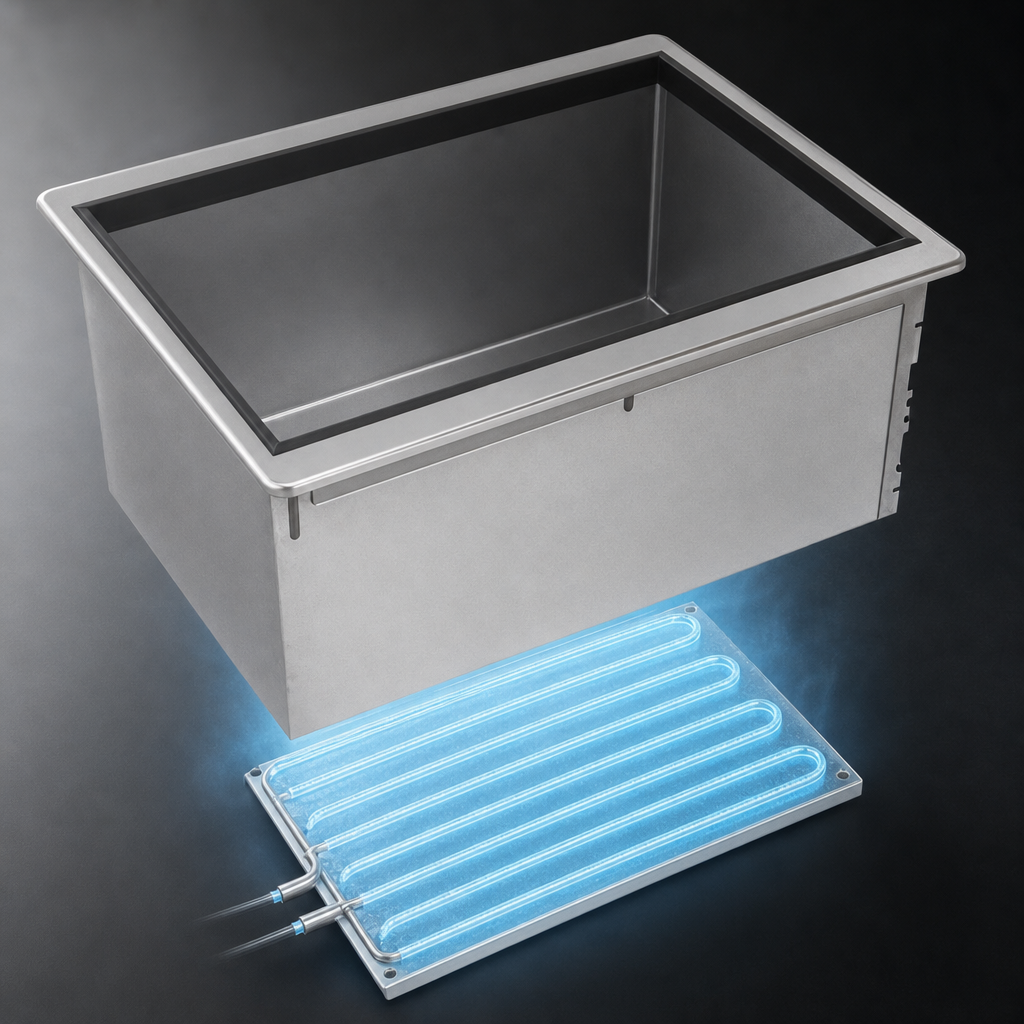

- Built-in 7-circuit cast aluminum cold plate for direct-draw soda or liquor systems.
- 20 ga. 300-series stainless steel bin—corrosion-resistant and easy to sanitize.
- Foam-insulated jacket with extruded polyethylene marine edge to reduce condensation.
- Removable sliding stainless steel cover protects ice from airborne contaminants.
- 1/2" IPS drain connection simplifies plumbing for cold-plate units.
- NSF-listed for food-safe operation.
Specifications
| Ice Capacity | 50 lb (22.7 kg) |
|---|---|
| Overall Dimensions (W × D × H) | 21" × 18" × 14" (533 × 457 × 356 mm) |
| Interior Bin Size | 18" × 13 1/2" × 11" deep |
| Countertop Cutout | 15 1/4" × 20 3/8" |
| Cold Plate | Cast aluminum, 7 beverage circuits |
| Drain | 1/2" IPS |
| Construction | 20 ga. stainless bin & cover, galvanized exterior jacket, foam insulation |
| Approx. Weight | 84 lb (38 kg) |
| Certifications | NSF |
Perfect For
- Full-service bars & nightclubs
- Hotel banquet or poolside service stations
- Outdoor bar islands (under cover)
- Craft cocktail or tiki bars with multiple chilled lines
Installation Tip: Verify the field cutout against the actual unit before cutting
the countertop. Mounting stud holes must be drilled on site.
Need an extra or replacement cover? Order model D-24.
Features & Specs
Features & Specs
Manufacturer
Advance Tabco
Brand_name
Bar King (Supreme)
Certifications
NSF
Height
14.0in
Width
21.0in
Depth
18.0in
Shipping Weight
84.0lbs
Capacity
31 - 50 lbs
Material
stainless steel
Cover
sliding cover
Type
with cold plate
Specifications
Ice Bin, drop-in, 50-lb ice capacity, 21”W x 18”D x 14" deep overall (bin size 18"W x 13-1/2"D x 11" deep), built-in 7-circuit cold plate, removable stainless steel sliding cover, insulated, 1/2" diameter drain, NSF (cutout size 15-1/4" x 20-3/8")
