Advance Tabco  |  SKU: CU-24-96-2  |  UPC: 747545175519

Advance Tabco CU-24-96-2 Stainless Steel Shelving

$2,535.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Restaurant Equipment Restaurant Equipment Parts Work Table Parts & Accessories Work Table Shelves

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Advance Tabco CU-24-96-2 Double-Tier Overshelf

96" W x 24" D • 18 ga type 430 stainless steel • NSF listed

Instantly double the usable storage above your existing equipment line with this rugged, two-tier overshelf from Advance Tabco. Engineered for 96" runs, it provides a clean, organized landing for pans, smallwares, spices, and countertop appliances while keeping valuable workspace clear.

Key benefits at a glance

  • Heavy-duty double shelf adds 16 ft² of vertical storage without expanding your footprint.
  • Fabricated from 18 gauge, type 430 stainless steel for long-lasting corrosion resistance.
  • Fully TIG-welded frame with exposed surfaces polished to a professional satin finish.
  • Includes stainless steel posts (specify 1" or 1 5⁄8" O.D.) and three support sets for rock-solid stability on 96" & larger units.

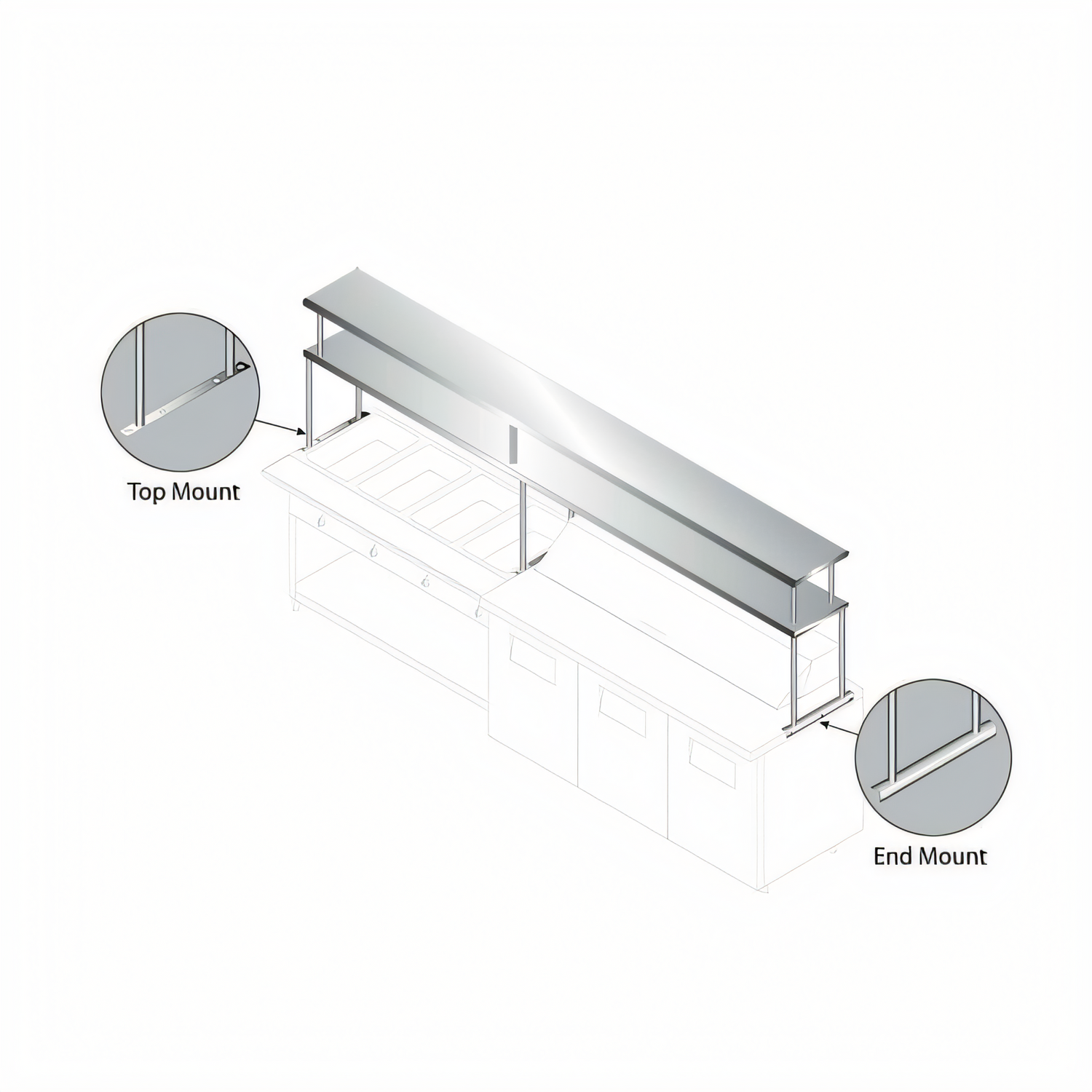

  • Choice of Surface-Mount (bolts through table top) or Edge-Mount (clamps to table rim) brackets.
  • NSF certified—approved for food-zone installation.

Technical specifications

Manufacturer / Model # Advance Tabco CU-24-96-2
Overall length 96" (2438 mm)
Overall depth 24" (610 mm)
Shelf tiers 2 (upper & lower)
Material 18 ga type 430 stainless steel shelves & stainless posts
Finish Satin polish
Unit weight ≈ 207 lb / 94 kg
Supports supplied 3 sets (center & ends) for spans ≥ 96"
Certification NSF

Ordering & customization

  • Mounting style: choose Surface-Mount or Edge-Mount when ordering.
  • Shelf height: specify the desired lower-shelf height (H) to ensure proper clearance for the equipment beneath.
  • Post diameter: 1" or 1 5⁄8" tubing available.
  • Optional modifications: special sizing (TA-60), 24" × 24" microwave extension (TA-102), or lengths over 12' (TA-104).
Important: This overshelf is designed to span over existing equipment supplied by others. Please provide the exact make & model numbers of the equipment it will mount over, along with a dimensional print, so we can fabricate the correct bracket clearances and shelf height.

Need help sizing or have a custom request? Contact our team at 1-800-645-3166 or email customer@advancetabco.com.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Width

96.0in

Depth

24.0in

Shipping Weight

207.0lbs

Construction

stainless steel

Depth (front - back)

24"

Width (side - side)

85" - 96"

Shelves

double

Gauge

18 gauge

Specifications

Overshelf, double, 96"W x 24"D, 18/430 stainless steel, to span over existing equipment (supplied by others), NSF (must provide equipment model numbers that shelf is going over to clarify mounting provision)
