Advance Tabco CU-24-84-2 Stainless Steel Shelving
$2,446.00
Unit price
/
Unavailable
Description
Advance Tabco 84" x 24" Double Overshelf
Model CU-24-84-2 | NSF ListedAdd a second story of storage above your existing cookline, prep table, or worktop refrigerator. Built to Advance Tabco’s exacting standards, this custom-fabricated, double-tier overshelf arrives ready to mount directly to the equipment you already own—no extra stands or wall brackets required.
Why You’ll Love It
- Two full-length shelves (24" deep) maximize vertical space without increasing your footprint.
- 18 gauge type 430 stainless steel resists corrosion and wipes clean fast.
- All TIG-welded construction with a satin polish delivers lasting strength and a professional finish.

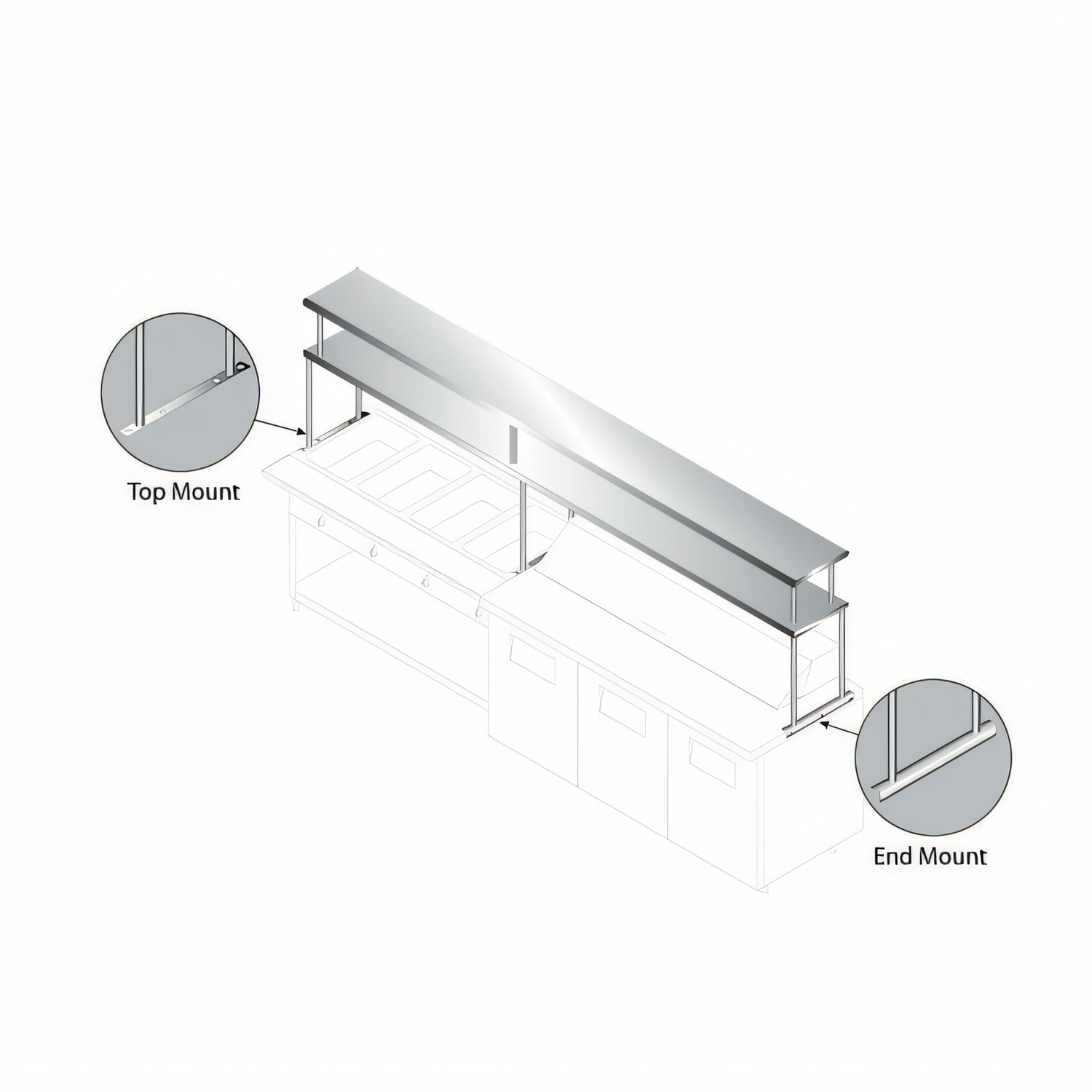

- Choose Surface-Mount or Edge-Mount brackets to match the equipment top you’re spanning.
- Heavy-duty stainless-steel posts (select 1" or 1 ⅝" O.D.) keep shelves rock solid under load.
- NSF certification meets the strictest health-department codes.
Technical Specs
| Overall width (L) | 84" (2134 mm) |
|---|---|
| Shelf depth (W) | 24" (610 mm) |
| Number of tiers | 2 |
| Material / finish | 18 ga. type 430 stainless steel, satin polish |
| Mounting options | Surface-Mount or Edge-Mount brackets (specify) |
| Post diameter | 1" or 1 ⅝" (specify) |
| Approx. shipping weight | 176 lb (79.8 kg) |
| Supports supplied | 2 sets (3 sets furnished on 96" & longer units) |
| Certifications | NSF |
Popular Factory Modifications
- TA-60 – Special shelf sizing
- TA-102 – 24" × 24" microwave extension
- TA-104 – Additional length beyond 12'
Contact our team for pricing and lead-time on any modification.
Important: This overshelf is custom-fabricated to the exact footprint of the equipment it
spans. To guarantee proper fit and NSF compliance, please provide the make & model numbers—or a
dimensional drawing—of the equipment during checkout. Orders cannot be released to production
without this information.
Ideal Applications
- Ranges, griddles & fry stations
- Prep tables & chef bases
- Worktop refrigerators & freezers
- Dish areas requiring extra drying space
Features & Specs
Features & Specs
Manufacturer
Advance Tabco
Certifications
NSF
Width
84.0in
Depth
24.0in
Shipping Weight
176.0lbs
Depth (front - back)
24"
Construction
stainless steel
Shelves
double
Width (side - side)
73" - 84"
Gauge
18 gauge
Specifications
Overshelf, double, 84"W x 24"D, 18/430 stainless steel, to span over existing equipment (supplied by others), NSF (must provide equipment model numbers that shelf is going over to clarify mounting provision)
