Advance Tabco  |  SKU: CU-24-144  |  UPC: 747545175571

Advance Tabco CU-24-144 Stainless Steel Shelving

$2,227.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Restaurant Equipment Restaurant Equipment Parts Work Table Parts & Accessories Work Table Shelves

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Advance Tabco CU-24-144 | 144" × 24" Single-Tier Stainless Steel Overshelf

18 ga. Type 430 stainless  •  TIG-welded  •  NSF

Add a full 12 feet of rugged, easy-to-clean storage above your existing cookline or prep tables without expanding your footprint. The Advance Tabco CU-24-144 overshelf mounts directly onto your equipment bank, keeping pans, ingredients, and smallwares within arm’s reach while maintaining a spotless, professional look.

Key Features

  • 144" (365.8 cm) length  |  24" (61 cm) depth – perfect for continuous ranges, fryer batteries, make lines, or dish areas.
  • 18 ga. Type 430 stainless steel shelf with satin-polished exposed surfaces.
  • All TIG-welded construction for superior rigidity and long-term durability.
  • (3) Sets of stainless steel support posts included (required on shelves ≥ 96") for rock-solid stability across the span.
  • Posts available in 1" or 1 5⁄8" diameter tubing (specify).

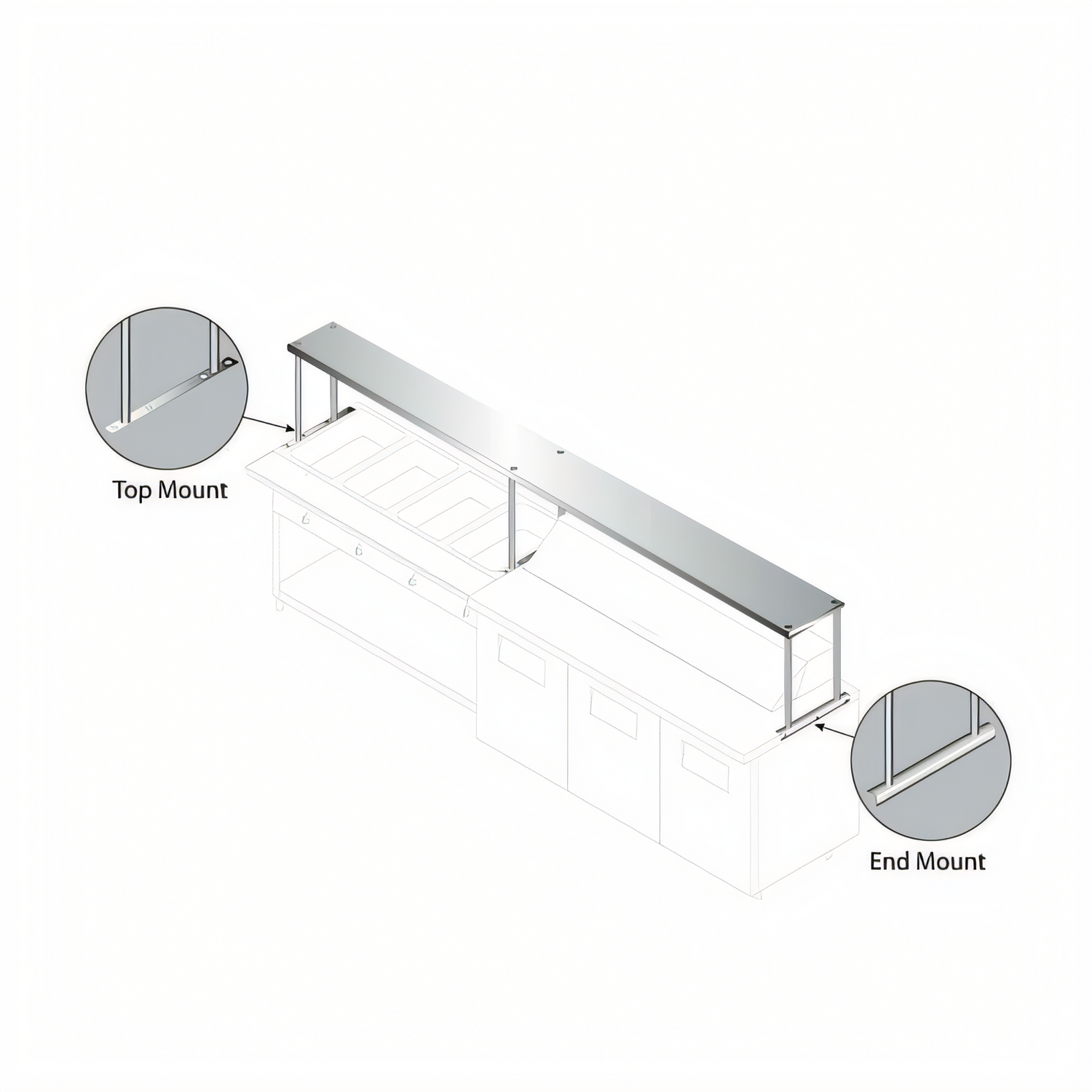

  • Choose Surface-Mount or Edge-Mount brackets to match the top configuration of your equipment.
  • NSF listed – approved for open-kitchen and food-contact zones.

Specifications

Manufacturer / Model Advance Tabco CU-24-144
Shelf Style Single-tier, table-mounted overshelf
Overall Length 144" (12 ft)
Overall Depth 24"
Material 18 ga. Type 430 stainless steel
Finish Satin (polished welds)
Support Posts (3) Sets – 1" or 1 5⁄8" Ø (specify)
Mounting Brackets Surface-Mount or Edge-Mount (specify)
Shipping Weight ≈ 146 lb (66.2 kg)
Certifications NSF

Typical Applications

  • Spanning a full cookline of ranges, charbroilers, and fryers.
  • Back-bar glassware or garnish storage above undercounter refrigeration.
  • Ingredient staging shelf over prep tables and make lines.

Factory Modifications (quoted on request)

  • Special shelf sizing (TA-60)
  • 24" × 24" microwave extension shelf (TA-102)
  • Length over 12' (TA-104)
Important Ordering Notes
  • Provide the make & model numbers of all equipment the shelf will span. This ensures correct bracket style, post height, and clearance.
  • Specify mounting type (Surface or Edge), post diameter, and required shelf height (H) above the work surface.
  • A dimensioned approval drawing will be supplied and must be signed before fabrication begins.
  • Equipment shown in reference images is not included.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Width

144.0in

Depth

24.0in

Shipping Weight

146.0lbs

Depth (front - back)

24"

Shelves

single

Gauge

18 gauge

Construction

stainless steel

Width (side - side)

133" - 144"

Specifications

Overshelf, single, 144"W x 24"D, 18/430 stainless steel, to span over existing equipment (supplied by others), NSF (must provide equipment model numbers that shelf is going over to clarify mounting provision)
