Advance Tabco  |  SKU: CU-24-144-2  |  UPC: 747545175588

Advance Tabco CU-24-144-2 Stainless Steel Shelving

$2,812.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Restaurant Equipment Restaurant Equipment Parts Work Table Parts & Accessories Work Table Shelves

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Advance Tabco CU-24-144-2 Double-Tier Overshelf – 144" W x 24" D

Heavy-duty stainless storage for the full 12 ft cookline

Reclaim vertical space and keep high-use items within arm’s reach. This NSF-listed, two-level overshelf spans an entire 144" run of equipment, turning under-utilized airspace into an organized, easy-to-sanitize storage solution.

Key features

  • Two full-length 24" deep shelves for pans, ingredients, smallwares and countertop equipment.
  • All TIG-welded 18 ga. type 430 stainless steel with a professional satin finish.
  • 1 ⅝" O.D. stainless posts — three support sets included for rock-solid rigidity on spans 96" and longer.

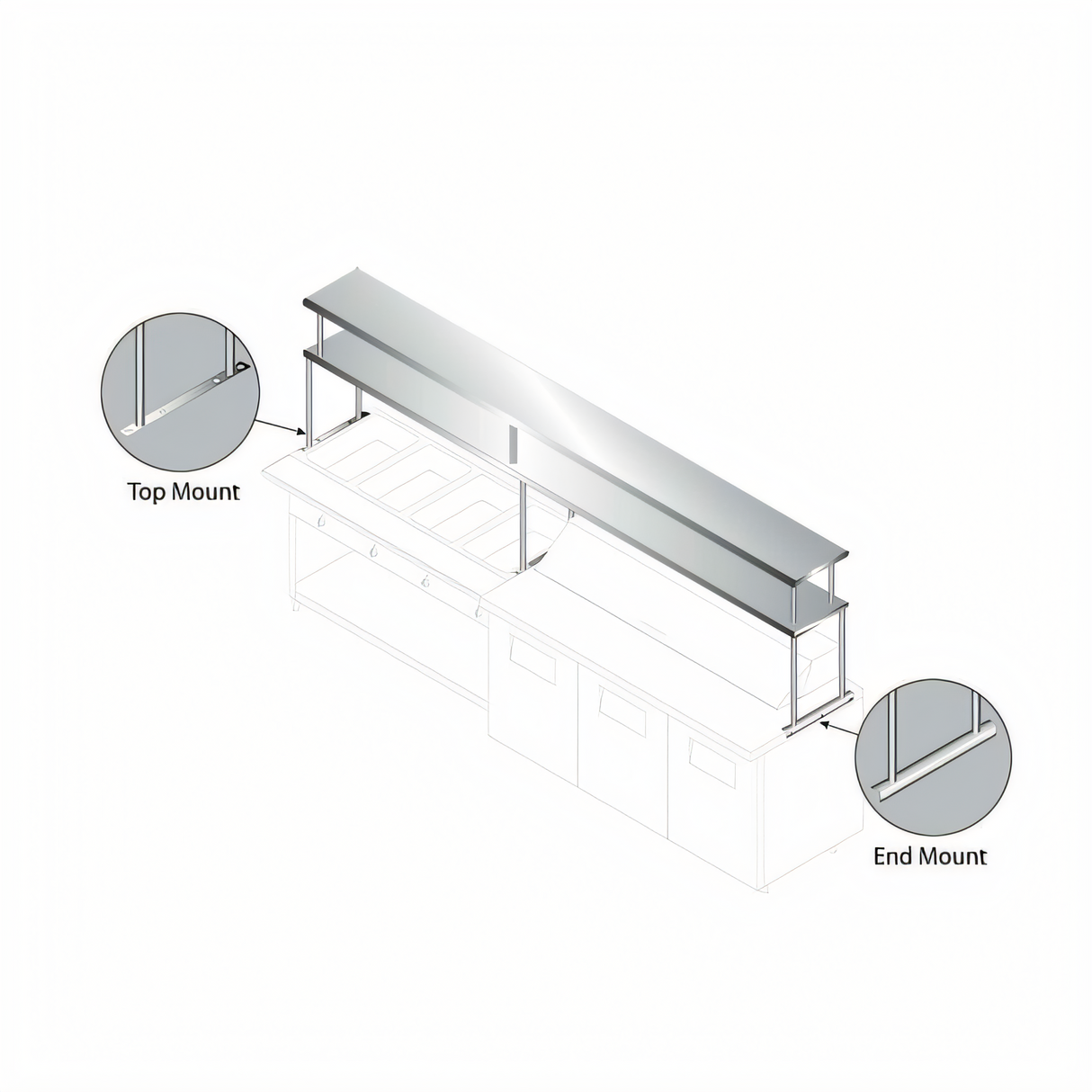

  • Choice of surface-mount or edge-mount brackets to match the host table, counter or equipment top.
  • NSF certified for food-contact zones and open-kitchen compliance.

Specifications

Model CU-24-144-2
Shelf tiers Double
Overall width 144" (365.8 cm)
Overall depth 24" (61 cm)
Material 18 ga. type 430 stainless steel
Posts 1 ⅝" O.D. stainless  |  (3) support sets
Finish Satin polish
Approx. ship weight 387 lb
Certifications NSF

Ordering & installation notes

Important: This overshelf is custom-fabricated to mount over specific equipment. Submit the exact make & model numbers of every unit the shelf will span before ordering so bracket style, clearances and post locations can be engineered correctly.
  • Specify desired lower-shelf height (H) on your approval drawing.
  • Sections longer than 12' may ship in multiple pieces; field joints align with supplied hardware.
  • Optional Smart Fabrication™ modifications — special sizes, 24" × 24" microwave extensions, or lengths beyond 12' — are available on request.

Have questions or need help with drawings? Call 1-800-645-3166 (8:30 am – 7 pm EST) or email customer@advancetabco.com.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Width

144.0in

Depth

24.0in

Shipping Weight

387.0lbs

Width (side - side)

133" - 144"

Depth (front - back)

24"

Construction

stainless steel

Gauge

18 gauge

Shelves

double

Specifications

Overshelf, double, 144"W x 24"D, 18/430 stainless steel, to span over existing equipment (supplied by others), NSF (must provide equipment model numbers that shelf is going over to clarify mounting provision)
