Advance Tabco  |  SKU: CU-24-120-2  |  UPC: 747545175540

Advance Tabco CU-24-120-2 Stainless Steel Shelving

$2,610.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Restaurant Equipment Restaurant Equipment Parts Work Table Parts & Accessories Work Table Shelves

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

120" × 24" Double-Tier Stainless Steel Overshelf

Advance Tabco CU-24-120-2 — NSF Listed

Expand your storage capacity without expanding your footprint. This heavy-duty, table-mounted overshelf spans a full 10 ft run of existing equipment, giving you two levels of easy-reach storage for pans, ingredients and small appliances while keeping valuable countertop space free for prep and production.

Key Features

  • 18 ga. type 430 stainless steel shelves resist corrosion and daily wear.
  • Generous 24" shelf depth fits full-size hotel pans front-to-back.
  • Double-tier design doubles your usable storage on the same footprint.
  • 120" length includes three sets of stainless steel posts for extra rigidity.
  • All TIG-welded construction; exposed surfaces polished to a sanitary satin finish.

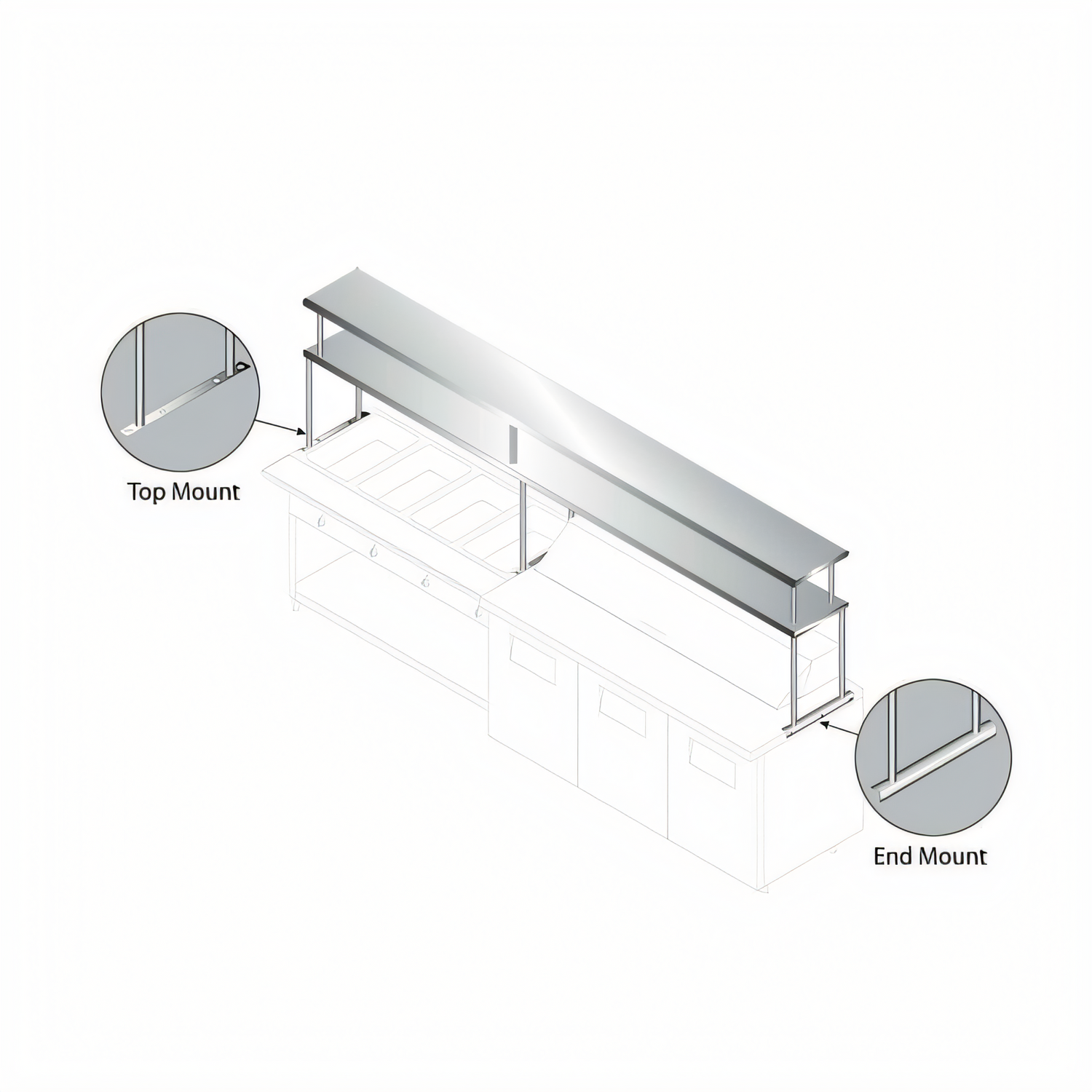

  • Choose surface-mount or edge-mount brackets to match your table style.
  • Posts available in 1" or 1 5/8" Ø tubing—specify when ordering.
  • NSF listed for worry-free code compliance in any commercial kitchen.

Specifications

Model # CU-24-120-2
Overall length 120" (3048 mm)
Shelf depth 24" (610 mm)
No. of shelves 2 (double tier)
Shelf material & gauge 18 ga. 430 series stainless steel
Post material Stainless steel, TIG-welded
Support sets 3 (left / center / right)
Mounting options Surface-mount or edge-mount brackets (hardware included)
Approx. shipping weight 283 lb (128 kg)
Certifications NSF

Popular Factory Modifications

  • TA-60  | Special shelf sizing
  • TA-102 | 24" × 24" microwave shelf extension
  • TA-104 | Additional length over 12’
Mounting requirement: Please provide the make & model numbers of every piece of equipment the shelf will span. A scaled drawing (print) is required to locate posts and brackets precisely. Fabrication will not begin until this information is received.

Questions or need a custom quote? Call our Smart Fabrication™ team at 1-800-645-3166 (8:30 am – 7:00 pm EST) or email smartfab@advancetabco.com.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Width

120.0in

Depth

24.0in

Shipping Weight

283.0lbs

Depth (front - back)

24"

Construction

stainless steel

Shelves

double

Width (side - side)

109" - 120"

Gauge

18 gauge

Specifications

Overshelf, double, 120"W x 24"D, 18/430 stainless steel, to span over existing equipment (supplied by others), NSF (must provide equipment model numbers that shelf is going over to clarify mounting provision)
