Advance Tabco CU-24-108 Stainless Steel Shelving
Description
Advance Tabco CU-24-108 Single-Tier Overshelf – 108" L x 24" D
18 ga. Type 430 Stainless • NSF Listed • Custom-fit for Existing EquipmentInstantly reclaim valuable vertical space along your cookline, prep table or dish station with this heavy-duty, 108 inch single-tier overshelf from Advance Tabco. Engineered to span your current equipment run, it ships ready for either surface-mount or edge-mount installation and includes stainless steel support posts for a rock-solid, long-term solution.
Key Benefits
- Precision formed from 18 gauge, type 430 stainless steel for everyday corrosion resistance.
- All TIG-welded construction with exposed surfaces polished to a sanitary satin finish.
- Three (3) sets of supports furnished—required on shelves 96" and longer for maximum rigidity.

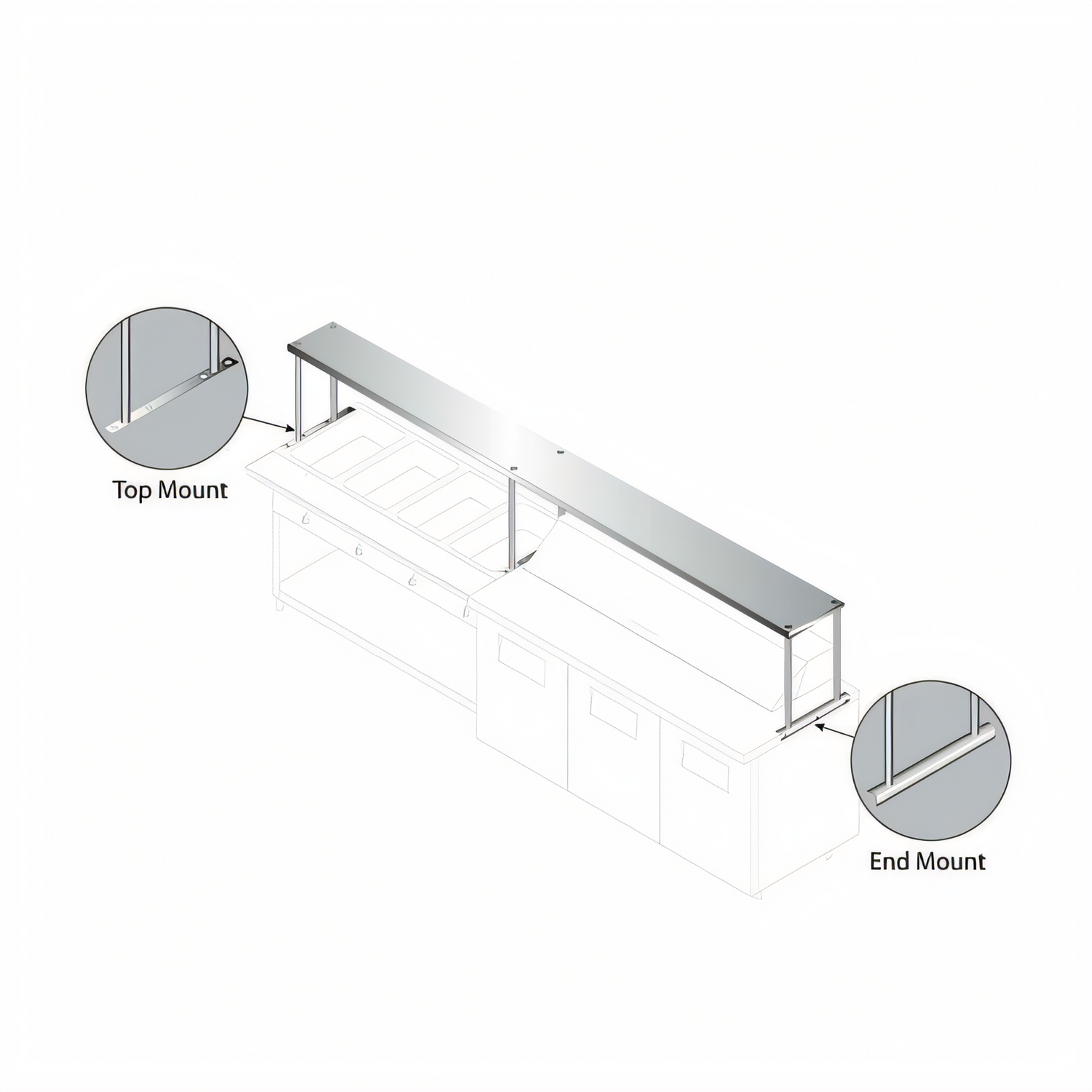

- Choice of surface-mount or edge-mount brackets (select at order).
- Posts available in 1" or 1 5/8" outside diameter to match surrounding fixtures.
- NSF listed for direct food-service applications.
Specifications
| Model | CU-24-108 (single tier) |
|---|---|
| Overall length | 108" (2743 mm) |
| Overall depth | 24" (610 mm) |
| Material | 18 ga. type 430 stainless steel shelf & posts |
| Mounting style | Surface-mount or edge-mount (field selectable) |
| Support posts | Stainless steel, 1" or 1 5/8" O.D. |
| Bracket clearance | 19 1/2" (edge or surface mount, 24" shelf width) |
| Weight | 104 lbs. (47 kg) |
| Compliance | NSF |
Popular Factory Modifications
- Special shelf sizing (TA-60)
- 24" x 24" microwave extension shelf (TA-102)
- Continuous runs over 12 ft (TA-104)
Shelf only. Undercounter equipment shown in images is not included.
