Advance Tabco CU-18-96 Table-Mounted Single Overshelf — 96" W x 18" D
18-gauge 430 stainless steel | NSF Listed | Custom-fit over existing equipmentInstantly add a full 8 feet of food-safe, eye-level storage without giving up a single inch of floor space. The CU-18-96 single-tier overshelf from Advance Tabco mounts directly to your cookline or prep table, creating a strong and sanitary staging area for pans, smallwares, spices and countertop equipment.
Key Benefits
- Single-tier design maximizes vertical storage while maintaining an open workspace below.
- 18-gauge, type 430 stainless steel construction offers durable, corrosion-resistant performance.
- All TIG-welded with satin-polished exposed surfaces for a sleek, easy-to-clean finish.
- (3) sets of heavy-duty stainless steel support posts stabilize the extra-long 96" span.

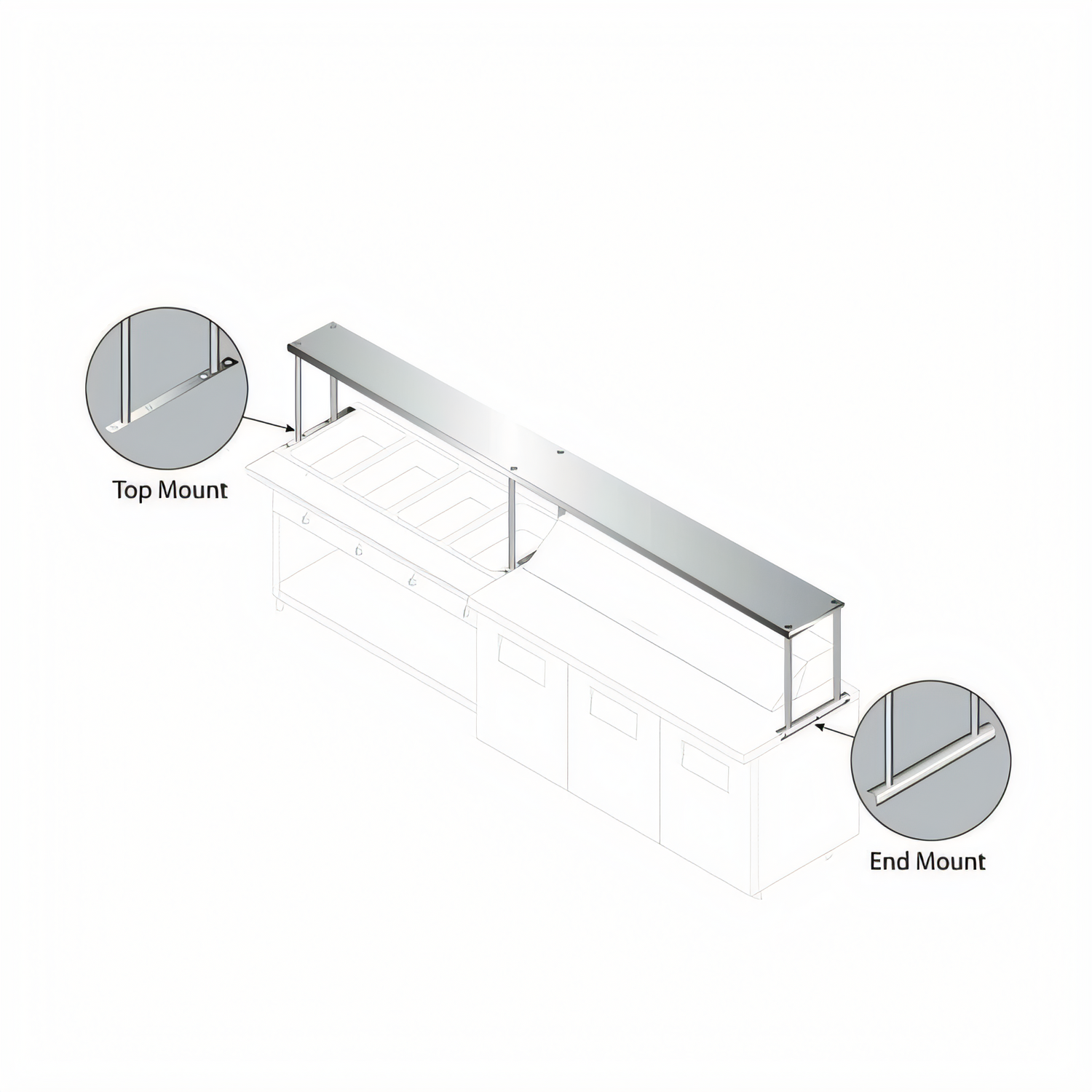

- Choose Surface-Mount or Edge-Mount brackets to suit your specific equipment line-up.
- Supports either 1" or 1 5/8" diameter posts (select during ordering).
- NSF certified for open food-contact environments.
- Made in the USA and backed by Advance Tabco’s Smart Fabrication™ expertise.
At-a-Glance Specs
| Model | CU-18-96 (single tier) |
|---|---|
| Shelf length | 96" / 2438 mm |
| Shelf depth | 18" / 457 mm |
| Material | 18-gauge type 430 stainless steel |
| Support posts | (3) sets, heavy-duty stainless steel |
| Mounting style | Surface-Mount or Edge-Mount (field selected) |
| Tubing Ø options | 1" or 1 5/8" |
| Approx. shipping weight | 89 lb / 40.4 kg |
| Certifications | NSF |
Popular Applications
- Spanning a continuous line of griddles, charbroilers and fryers.
- Positioning above refrigerated prep tables for fast garnish & ingredient access.
- Creating pass-through shelving over dish tables or pot sinks.
- Holding countertop appliances such as toasters, scales or small microwaves.
IMPORTANT: For precise bracket placement, please provide the make & model numbers of the equipment this shelf will mount over.
A dimensioned drawing will be issued for your approval before fabrication begins.
Need a Custom Tweak?
Special sizing, microwave extensions or lengths beyond 12' are available through Advance Tabco’s Smart Fabrication™ department. Contact us for a fast quote and lead-time.
$1,269.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Advance Tabco CU-18-96 stainless steel 96"W x 18"D overshelf—durable 18/430 SS, NSF certified, mounts over equipment (provide model numbers).
Manufacturer
Advance Tabco
Certifications
NSF
Width
96.0in
Depth
18.0in
Shipping Weight
89.0lbs
Width (side - side)
85" - 96"
Shelves
single
Gauge
18 gauge
Construction
stainless steel
Depth (front - back)
18"
Specifications
Overshelf, single, 96"W x 18"D, 18/430 stainless steel, to span over existing equipment (supplied by others), NSF (must provide equipment model numbers that shelf is going over to clarify mounting provision)
Contact Us
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
