Advance Tabco CU-18-96-2 Double-Tier Stainless Steel Overshelf – 96" W x 18" D
NSF listed overshelf engineered to mount over existing cooking & prep equipmentInstantly add two full-length storage levels to your cookline without giving up a single square foot of floor space. Crafted from heavy-duty 18 gauge type 430 stainless steel and reinforced with three sets of stainless posts, this 96" overshelf is purpose-built to span directly over the equipment you already own.
Key Features
- Double-tier design delivers twice the storage capacity in the same footprint.
- 18" deep shelves fabricated from 18-ga type 430 stainless steel for lasting corrosion resistance.
- All TIG-welded construction with a factory-polished satin finish.
- Three sets of heavy-duty stainless steel support posts supplied for superior rigidity on 96" runs.

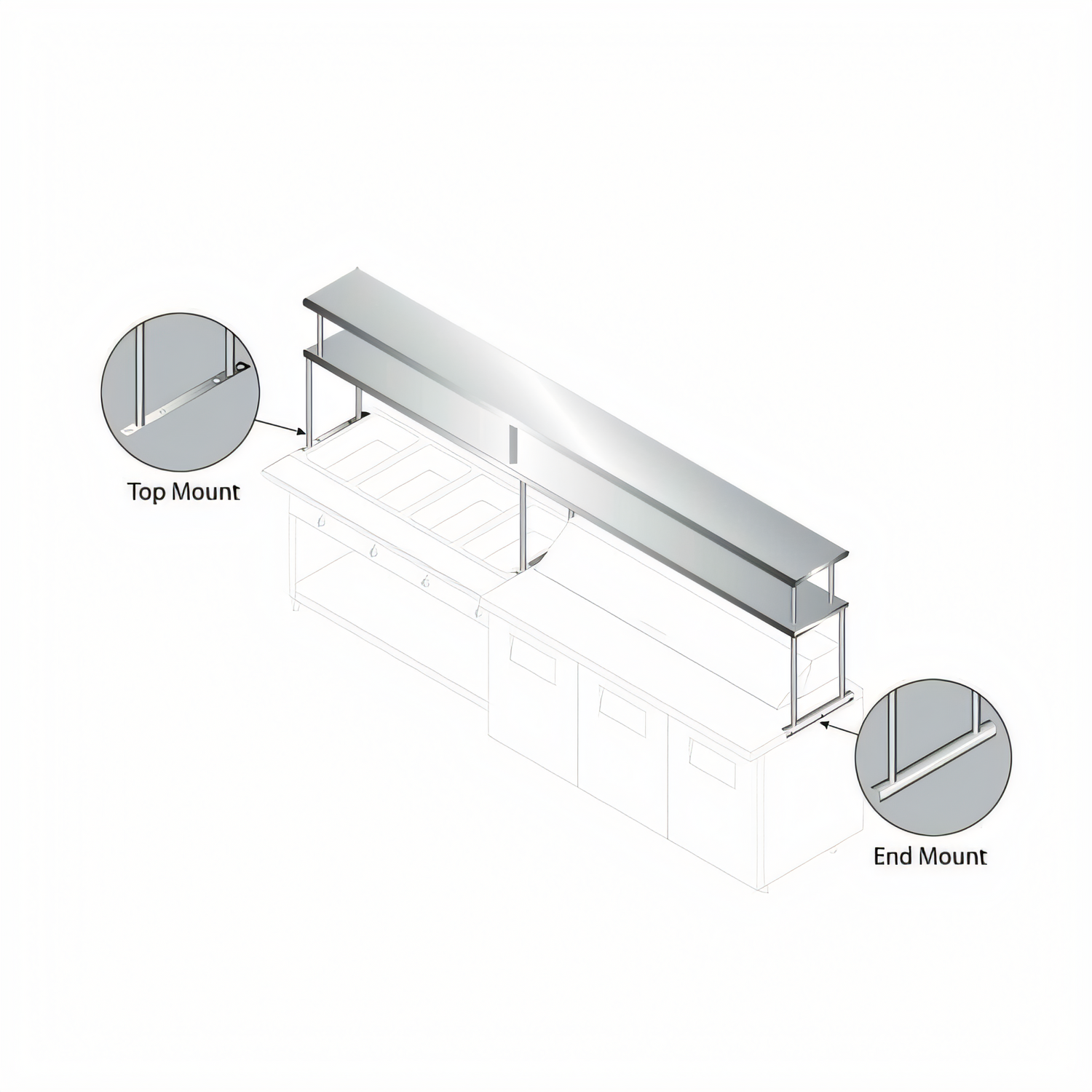

- Choose Surface-Mount or Edge-Mount brackets to align with your specific table or equipment top.
- NSF certified for use in open food-zone applications.
Specification Highlights
| Manufacturer | Advance Tabco |
|---|---|
| Model / Part # | CU-18-96-2 |
| Shelf Style | Double-tier, table-mounted |
| Overall Length | 96" (2438 mm) |
| Overall Shelf Depth | 18" (457 mm) |
| Material | 18-ga type 430 stainless steel |
| Posts | Stainless steel – select 1" or 1 5⁄8" Ø tubing |
| Supports Supplied | 3 sets (center & both ends) |
| Finish | Satin polish |
| Mounting Options | Surface-Mount or Edge-Mount brackets |
| Approx. Shipping Weight | 160 lb / 72.6 kg |
| Certifications | NSF |
Ideal Applications
- Range, griddle, fryer or charbroiler lines
- Steam tables & hot food wells
- Prep tables, sandwich & salad stations
- Commissaries & bakeries needing on-line ingredient storage
Important: This overshelf is built to order.
Please supply the make & model numbers of the equipment the shelf will span so our engineers can fabricate the correct mounting brackets and clearances. Production cannot begin until this information is received.
Please supply the make & model numbers of the equipment the shelf will span so our engineers can fabricate the correct mounting brackets and clearances. Production cannot begin until this information is received.
Factory Modifications (quoted separately)
- Special shelf sizing (TA-60)
- 24" x 24" microwave shelf extension (TA-102)
- Lengths over 12' (TA-104)
Need help configuring your overshelf? Call our Advance Tabco specialists at 1-800-645-3166 (M-F 8:30 am – 7:00 pm EST) – we’re happy to assist!
$2,305.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Advance Tabco double stainless steel overshelf 96"W x 18"D (18/430). NSF-rated, mounts over existing equipment—specify models for proper installation.
Manufacturer
Advance Tabco
Certifications
NSF
Width
96.0in
Depth
18.0in
Shipping Weight
160.0lbs
Construction
stainless steel
Width (side - side)
85" - 96"
Shelves
double
Gauge
18 gauge
Depth (front - back)
18"
Specifications
Overshelf, double, 96"W x 18"D, 18/430 stainless steel, to span over existing equipment (supplied by others), NSF (must provide equipment model numbers that shelf is going over to clarify mounting provision)
