Advance Tabco Double Overshelf – 84 “W × 18 “D
Model CU-18-84-2 | 18 ga 430 SS | NSFConvert unused vertical space into organized, easy-to-clean storage with this heavy-duty, two-tier overshelf engineered to mount directly over your existing table, refrigeration, or cookline equipment.
Key Benefits
- Two full-length shelves keep smallwares, spices, and pans within arm’s reach while freeing up valuable countertop space.
- 18 gauge, type 430 stainless steel shelves and posts stand up to daily commercial kitchen abuse and wipe down fast.
- All TIG-welded seams with a satin polish deliver a clean, professional appearance.
- Stainless steel heavy-duty posts for rock-solid support (1 in Ø standard, 1 5⁄8 in optional).

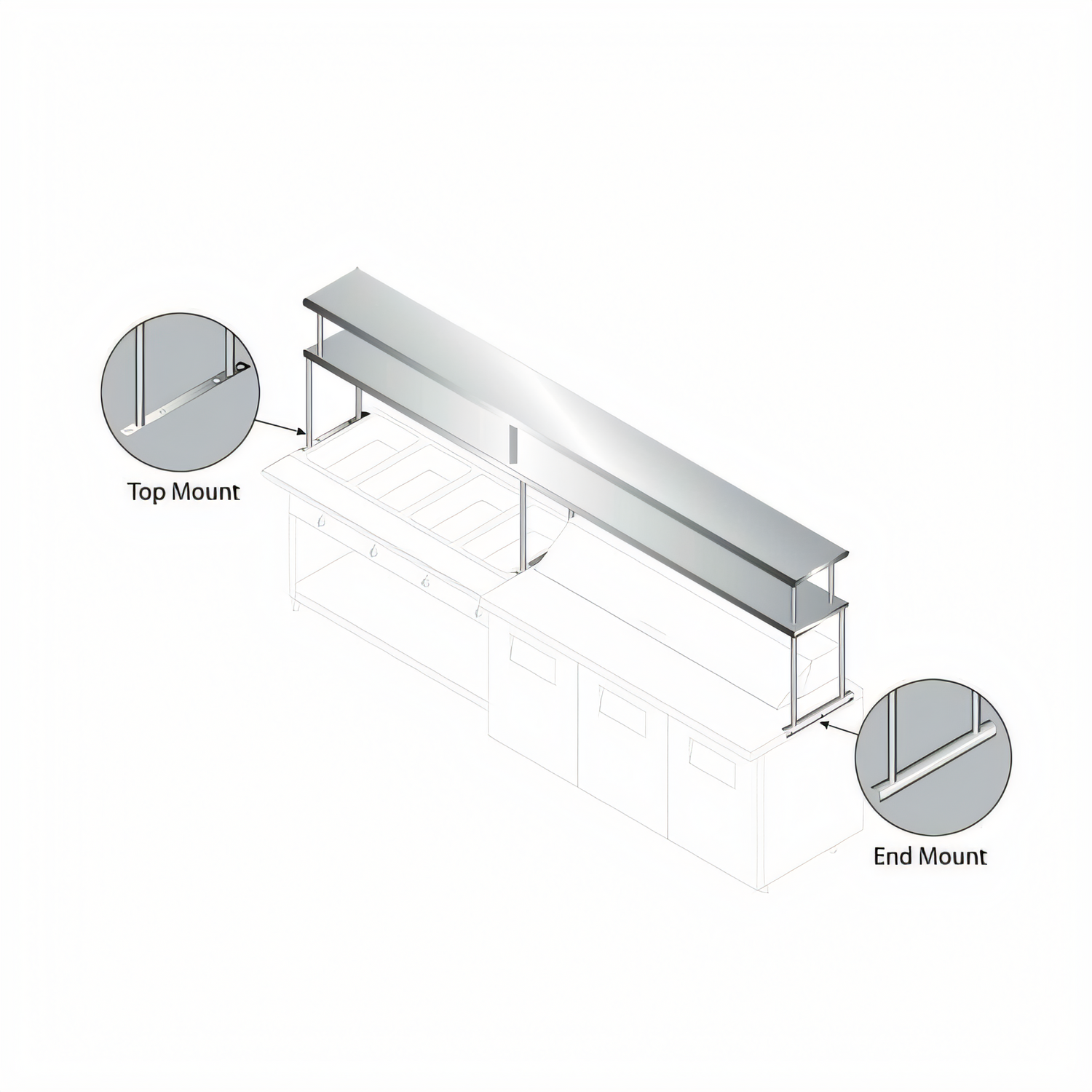

- Choose Surface-Mount or Edge-Mount brackets to match your equipment and workflow.
- NSF listed—approved for use in food-zone environments.
Specifications
| Overall width | 84 in / 2134 mm |
|---|---|
| Shelf depth | 18 in / 457 mm |
| Number of tiers | 2 (double) |
| Material & gauge | 18 ga type 430 stainless steel |
| Finish | Satin polish |
| Approx. weight | 135 lb / 61 kg* |
| Posts | Stainless steel, 1 in Ø (1 5⁄8 in optional) |
| Mounting style | Surface-Mount or Edge-Mount (select when ordering) |
| Supports | 2 sets (3 sets furnished only on 96 in + units) |
| Certification | NSF |
*Shipping weight provided by manufacturer.
Ordering & Configuration Notes
- This overshelf is fabricated to span specific third-party equipment—provide the make & model numbers of every unit it will cover so mounting brackets can be positioned correctly.
- Specify the required clearance and the height (H) of the lower shelf at time of order.
- A shop drawing will be supplied for approval before fabrication begins.
- Optional modifications: special shelf sizing (TA-60), 24 × 24 in microwave shelf extension (TA-102), additional length over 12 ft (TA-104).
Important: Because this unit is custom-built to your equipment layout, it is non-returnable once in production. Double-check all dimensions, shelf heights, and mounting selections before approving the drawing.
$2,222.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Advance Tabco CU-18-84-2 double 84" x 18" 18/430 stainless overshelf for spanning equipment; NSF certified, durable, easy-to-mount with model details.
Manufacturer
Advance Tabco
Certifications
NSF
Width
84.0in
Depth
18.0in
Shipping Weight
135.0lbs
Width (side - side)
73" - 84"
Depth (front - back)
18"
Construction
stainless steel
Gauge
18 gauge
Shelves
double
Specifications
Overshelf, double, 84"W x 18"D, 18/430 stainless steel, to span over existing equipment (supplied by others), NSF (must provide equipment model numbers that shelf is going over to clarify mounting provision)
Contact Us
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
