Advance Tabco  |  SKU: CU-18-72  |  UPC: 747545116475

Advance Tabco CU-18-72 Stainless Steel Shelving

$1,040.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Stainless Steel Shelving Storage & Shelving

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Advance Tabco CU-18-72 Single-Tier Overshelf – 72" x 18"

18 ga type 430 stainless steel | NSF | Surface or Edge Mount

Instantly add a clean, convenient storage level above your cookline or prep table. The Advance Tabco CU-18-72 stainless steel overshelf spans 6 ft of existing equipment, keeping pans, ingredients, and smallwares right where you need them—without giving up a single inch of valuable counter space.

Key benefits

  • Single-tier 72" L x 18" D shelf easily holds full-size sheet pans front-to-back.
  • 18-gauge, type 430 stainless steel deck with all TIG-welded seams for uncompromising strength.
  • Satin-polished exposed surfaces resist corrosion and wipe clean in seconds.
  • Heavy-duty stainless steel posts (choose 1" or 1 5/8" O.D.) with welded support brackets.
  • Configurable Surface Mount or Edge Mount brackets bolt directly to your table or equipment top.
  • NSF listed for safe use in open-food environments.
  • Ships fully welded—no field assembly required.

Ideal for

  • 48"–72" charbroilers, griddles, or ranges
  • Steam tables and refrigerated chef bases
  • Prep tables, worktables, and dish tables

Specifications

Model CU-18-72
Shelf style Single tier
Overall length 72" (1829 mm)
Overall depth 18" (457 mm)
Usable shelf height Field specified – please indicate required clearance
Material 18 ga type 430 stainless steel shelf, stainless steel tubular posts
Finish Satin polish
Weight 64 lb (29 kg)

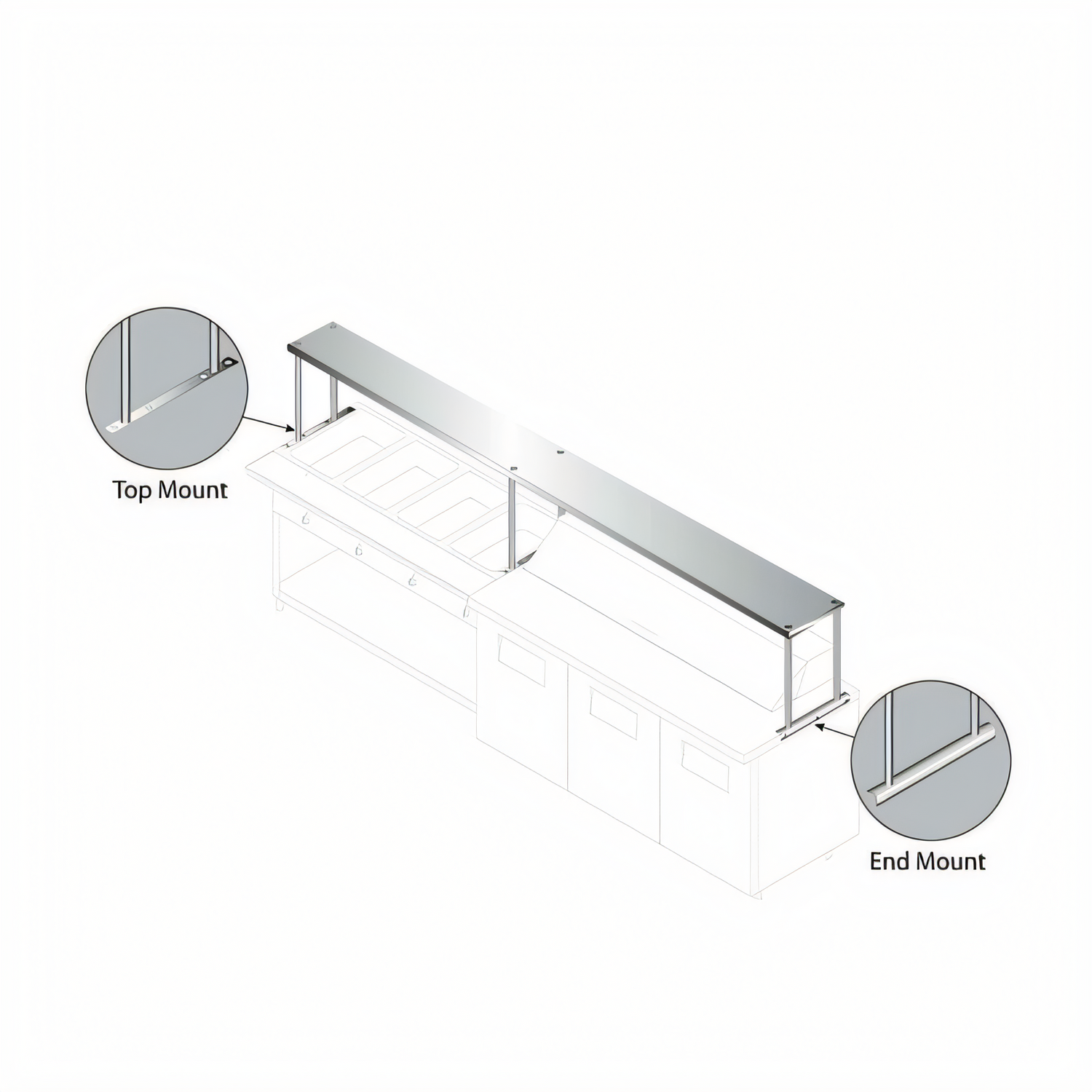

Mounting options Surface Mount or Edge Mount (select before ordering)
Supports supplied (2) sets of posts & brackets
Certifications NSF

Optional modifications

  • TA-60: Custom shelf sizing
  • TA-102: 24" x 24" microwave shelf extension
  • TA-104: Additional length beyond 12'
Important installation note: This overshelf is engineered to span specific equipment supplied by others. Please provide the exact make & model numbers of the equipment the shelf will cover. A dimensional print may be required to confirm mounting clearance and shelf height.

Need assistance? Call Advance Tabco Smart Fabrication at 1-800-645-3166 (8:30 a.m.–7:00 p.m. EST) or email smartfab@advancetabco.com.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Width

72.0in

Depth

18.0in

Shipping Weight

64.0lbs

Depth (front - back)

18"

Shelves

single

Gauge

18 gauge

Construction

stainless steel

Width (side - side)

61" - 72"

Specifications

Overshelf, single, 72"W x 18"D, 18/430 stainless steel, to span over existing equipment (supplied by others), NSF (must provide equipment model numbers that shelf is going over to clarify mounting provision)
