Advance Tabco CU-18-48-2 Double Overshelf
48" L x 18" D | Table-Mounted | 18 ga. 430 SS | NSFInstantly create two tiers of sanitary, heavy-duty storage above an existing 48" equipment line. The CU-18-48-2 overshelf is engineered by Advance Tabco to bolt directly to your work table or cook line, keeping smallwares, spices and plating essentials right where you need them—without giving up a single inch of valuable counter space.
Top Features
- Double-tier design maximizes vertical storage while maintaining a 12" clearance between shelves.
- 18 gauge, type 430 stainless steel shelves – durable, corrosion-resistant and easy to clean.
- All TIG-welded construction with exposed surfaces polished to a professional satin finish.
- Supplied with heavy-duty stainless steel posts (choose 1" or 1 5/8" diameter).

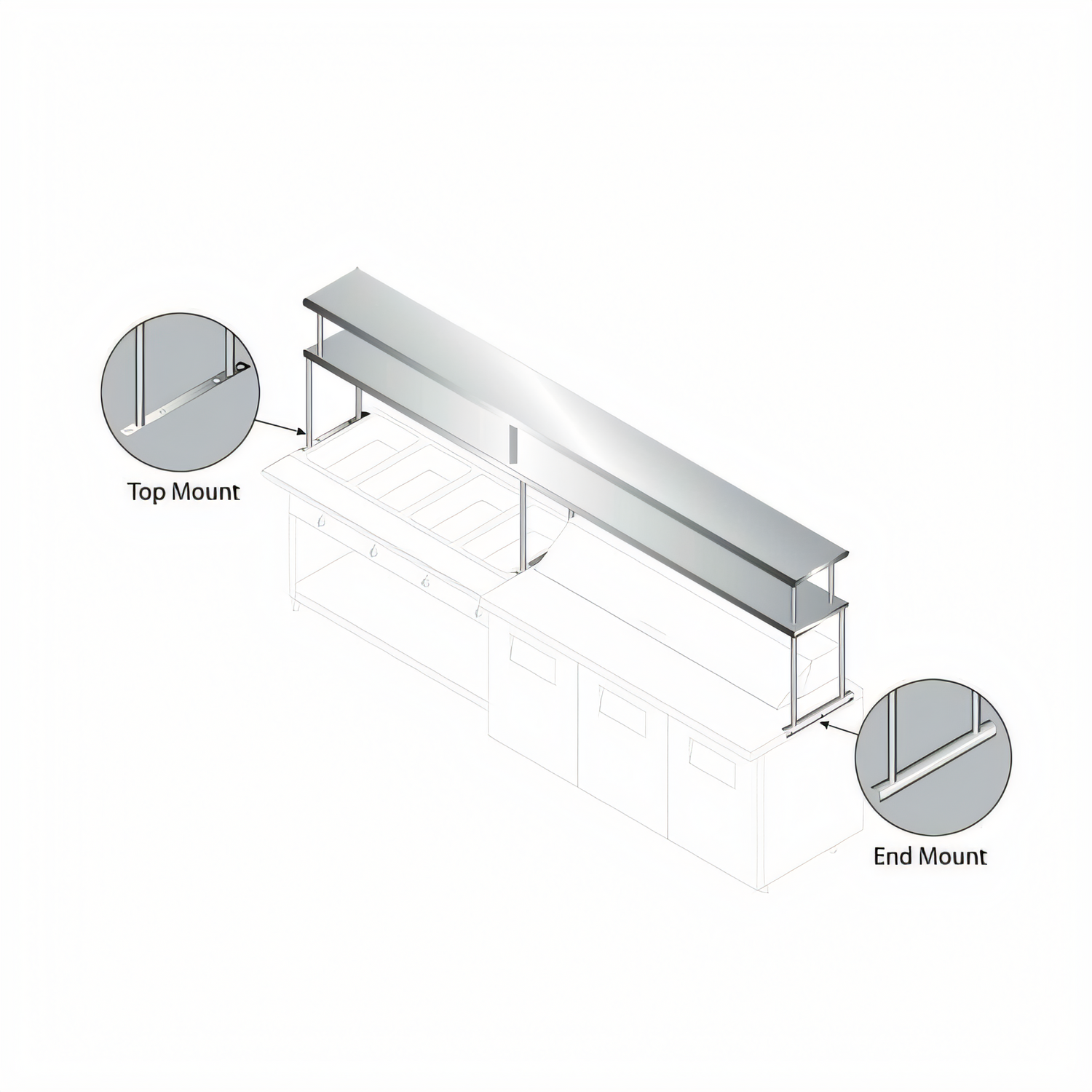

- Edge-mount or surface-mount brackets ship with each unit for flexible installation.
- Factory welded supports guarantee rock-solid rigidity; no field assembly of shelf frames.
- NSF listed for food-zone use.
Built to Handle the Rush
- Shelves: 18 ga. (0.048") stainless steel with hemmed front & rear edges.
- Posts & brackets: stainless steel, fully welded to shelf frame.
- Satin polish finish hides scratches and matches most prep tables & equipment lines.
- Weight capacity: engineered for commercial kitchen load requirements (see spec table).
Mounting & Clearance
- Designed to span over existing equipment such as worktables, ranges, steam tables and refrigerated bases.
- Surface-mount: brackets bolt to the table top.
- Edge-mount: brackets clamp to the table edge or equipment curb for a flush fit.
- 18" wide shelves use 13 1/2" mounting brackets for maximum stability.
Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model No. | CU-18-48-2 |
| Shelf Style | Double tier, table mounted |
| Overall Length | 48 in. (1219 mm) |
| Overall Depth | 18 in. (457 mm) |
| Material | 18 ga. type 430 stainless steel |
| Finish | Satin polish |
| Post Diameter | 1" standard (1 5/8" optional) |
| Shipping Weight | 76 lb (34 kg) |
| Certifications | NSF |
Factory Options (quoted separately)
- TA-60 – Custom shelf sizing / unique footprints.
- TA-102 – 24" × 24" microwave shelf extension.
- TA-104 – Additional length for runs over 12 ft.
Important: To ensure a perfect fit, please supply the exact model numbers and overall dimensions of the equipment the shelf will span.
A dimensional drawing (print) is required before fabrication can begin.
Have questions or need a custom layout? Call our commercial kitchen specialists at 1-800-645-3166 (8:30 am – 7 pm EST).
$1,869.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Advance Tabco CU-18-48-2 double overshelf 48" x 18" 18/430 stainless steel. NSF-rated; spans existing equipment—provide model numbers for mounting.
Manufacturer
Advance Tabco
Certifications
NSF
Width
48.0in
Depth
18.0in
Shipping Weight
76.0lbs
Construction
stainless steel
Width (side - side)
37" - 48"
Gauge
18 gauge
Shelves
double
Depth (front - back)
18"
Specifications
Overshelf, double, 48"W x 18"D, 18/430 stainless steel, to span over existing equipment (supplied by others), NSF (must provide equipment model numbers that shelf is going over to clarify mounting provision)
