Advance Tabco  |  SKU: CU-18-132

Advance Tabco CU-18-132 Stainless Steel Shelving

$1,528.00
Delivered by , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Stainless Steel Shelving Storage & Shelving

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Advance Tabco CU-18-132 Single-Tier Overshelf

132" W x 18" D | 18 ga. Type 430 Stainless Steel | NSF

Add a full 11 feet of durable, easy-clean storage above your cookline, dish line, or prep suite without replacing existing equipment. The Advance Tabco CU-18-132 single-tier overshelf spans multiple units in one sleek run, giving you extra merchandising or mise-en-place space while keeping critical counter real estate clear.

Key Features

  • 132 in. long x 18 in. deep single shelf – ideal for continuous runs of equipment.
  • 18 gauge, type 430 stainless steel shelf with satin polish finish cleans quickly and resists corrosion.
  • Fully TIG-welded construction for maximum rigidity; exposed welds blended for a professional look.
  • (3) sets of heavy-duty stainless steel posts included (required on all 96" & longer models).

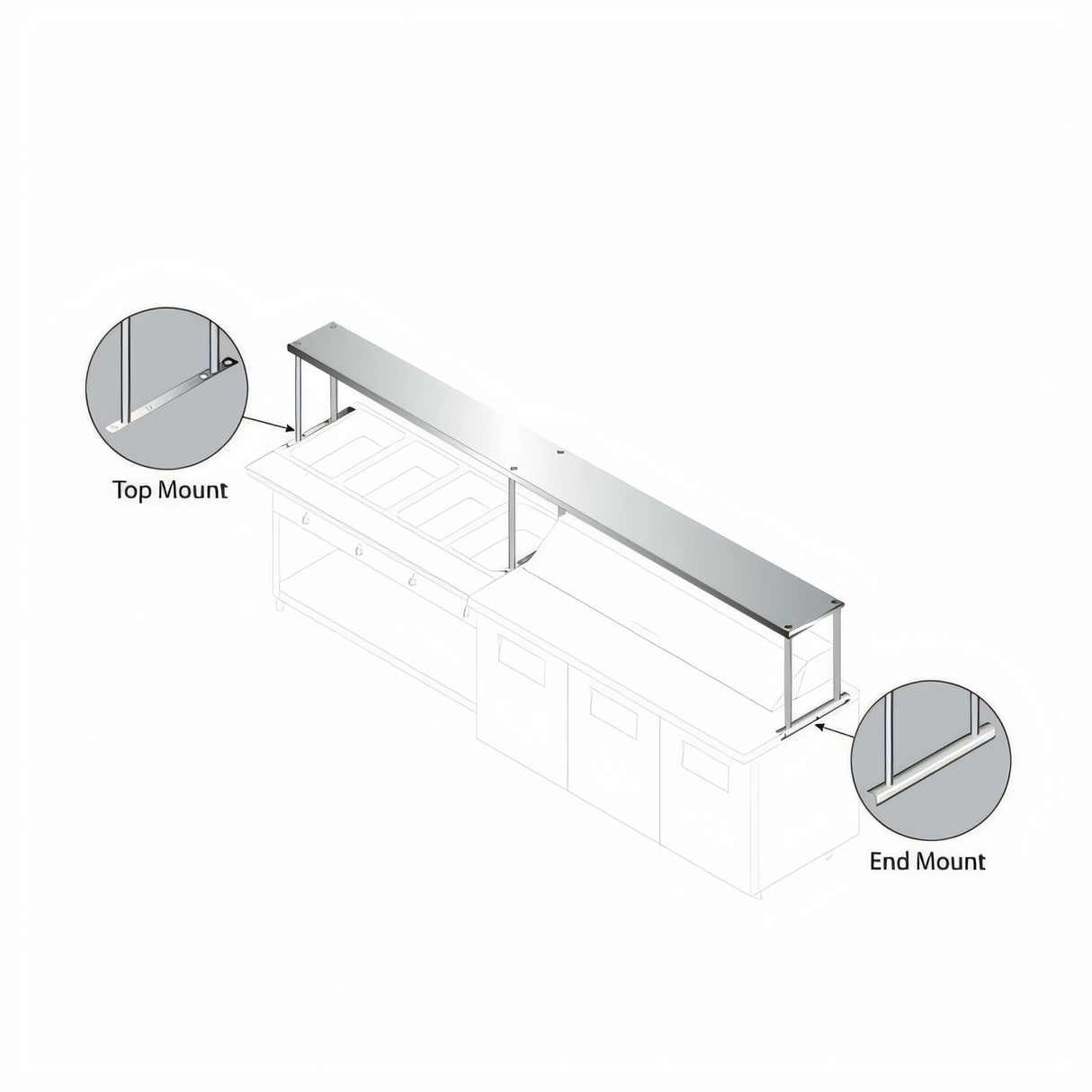

  • Choose Surface-Mount or Edge-Mount brackets to match the equipment below.
  • Posts available in 1" or 1 5⁄8" OD tubing to suit load and design preferences.
  • NSF certified for open-kitchen and back-of-house use.

Specifications

Model No. CU-18-132
Shelf Style Single tier
Overall Length 132 in. (335 cm)
Overall Depth 18 in. (46 cm)
Weight Approx. 118 lb. (54 kg)
Shelf Material / Gauge 18 ga. Type 430 stainless steel
Finish Satin polish
Mounting Options Surface-mount or Edge-mount brackets (18" shelves = 13 ½" bracket width)
Number of Support Post Sets 3 (center & both ends)
Post Diameter 1" or 1 5⁄8" (specify)
Certification NSF

Mounting & Sizing Info

  • The CU-18-132 is engineered to span over existing equipment supplied by others.
  • Customer must specify the exact equipment models below the shelf so mounting brackets can be located correctly.
  • For perfect fit, also provide desired shelf height (H) and clearance requirements.
  • A dimensional print will be supplied for approval prior to fabrication.
Important: Orders cannot be released to production until the equipment model numbers and desired shelf height are confirmed.

Need a different length, an extra tier, or microwave extension? Ask about Advance Tabco Smart Fabrication™ custom options.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Width

132.0in

Depth

18.0in

Shipping Weight

118.0lbs

Construction

stainless steel

Width (side - side)

121" - 132"

Shelves

single

Depth (front - back)

18"

Gauge

18 gauge

Specifications

Overshelf, single, 132"W x 18"D, 18/430 stainless steel, to span over existing equipment (supplied by others), NSF (must provide equipment model numbers that shelf is going over to clarify mounting provision)
