Advance Tabco CU-18-120 Stainless Steel Shelving
Advance Tabco CU-18-120 Stainless Steel Shelving is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description
Advance Tabco 120" x 18" Single-Tier Stainless Steel Overshelf
Model CU-18-120 | NSF ListedUnlock the unused vertical space above your 10-ft cookline, prep table, or refrigerated base. This heavy-duty Advance Tabco overshelf mounts directly to your existing equipment, providing a sanitary, easy-to-reach storage level that is built to thrive in demanding commercial kitchens.
Key Features
- Generous 120" L x 18" D single shelf spans an entire cookline or extra-long work table.
- 18-gauge type 430 stainless steel with a food-safe satin polish for effortless cleanup.
- All TIG-welded construction delivers rock-solid rigidity and long service life.
- Includes heavy-duty stainless posts – choose 1" or 1 5⁄8" O.D.

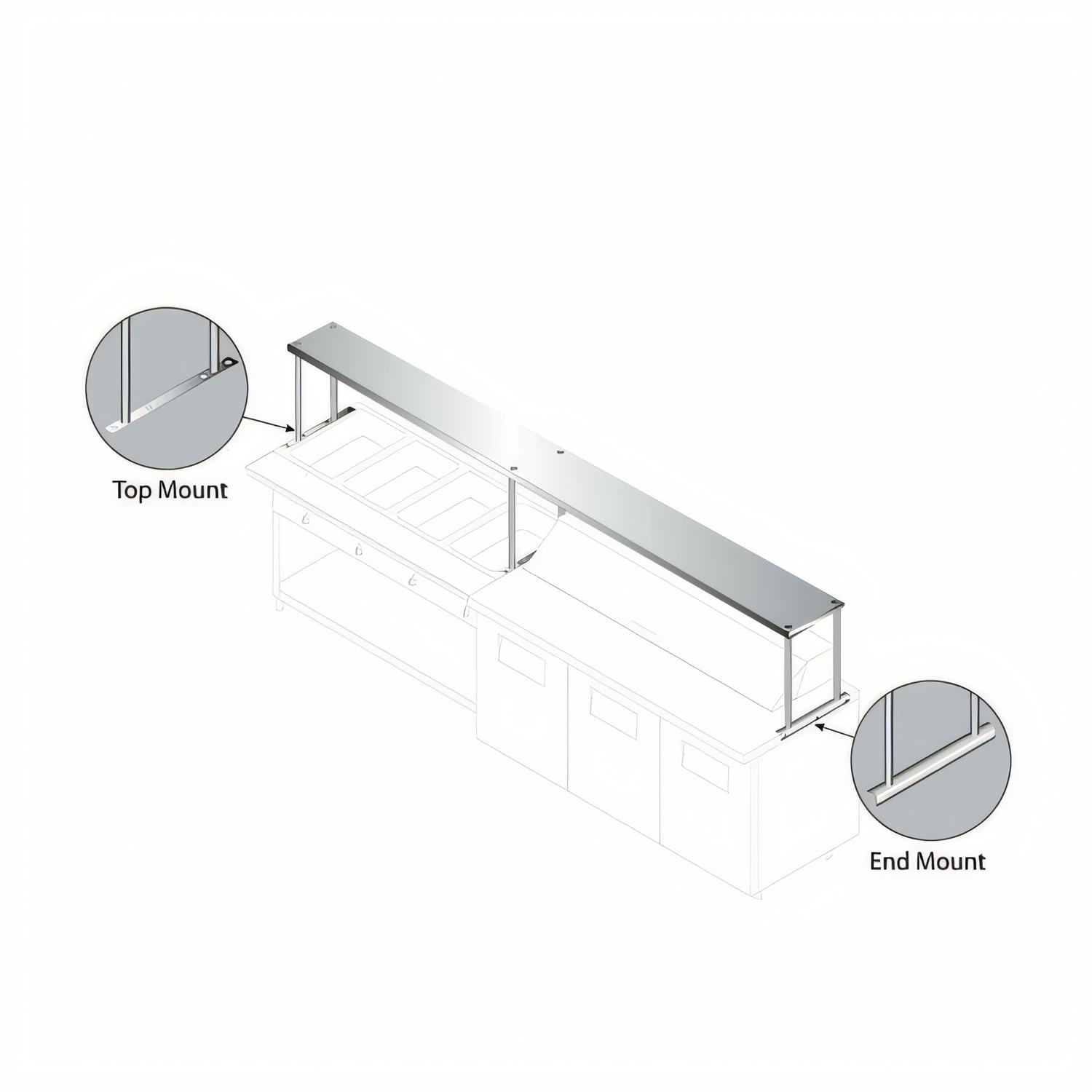

- Select Surface-Mount or Edge-Mount brackets to match your table or curb profile.
- Three (3) intermediate support sets supplied on units 96" and longer to prevent sag.
- NSF listed for use in food-zone applications.
Specifications
Model | CU-18-120 (Single Tier) |
---|---|
Overall length | 120" (3048 mm) |
Shelf depth | 18" (457 mm) |
Shelf height | 12" standard clearance from equipment top (custom heights available) |
Material / gauge | 18-ga. type 430 stainless steel |
Finish | Satin polish on all exposed surfaces |
Mounting | Surface-Mount or Edge-Mount brackets (factory located) |
Support posts | Stainless steel, 1" or 1 5⁄8" O.D. |
Supports | 3 sets of intermediate supports |
Approx. shipping weight | 105 lbs (48 kg) |
Certifications | NSF |
Ordering & Installation Notes
- A dimensioned drawing or CAD file is required for fabrication; please email with your PO.
- List the make & model numbers of every piece of equipment the shelf will span so mounting holes and clearances can be factory-engineered.
- Units longer than 12' require TA-104 extended-length modification – contact us for a quote.
- Optional add-ons: special shelf sizing (TA-60) or 24" × 24" microwave extension (TA-102).
