Advance Tabco Double-Tier Overshelf – 120" W x 18" D
Custom stainless steel shelving for existing equipmentCreate an organized, highly efficient prep line with this NSF-listed, double-tier overshelf engineered to span a full 10 ft. of equipment. Fabricated from durable 18 ga type 430 stainless steel, it delivers the strength and cleanability professional kitchens require.
Key Features
- Two full-length shelves, each 18" deep, maximize vertical storage without adding footprint.
- 18 ga type 430 stainless steel with a satin finish stands up to heavy use and wipes clean fast.
- All TIG-welded construction; exposed welds are ground & polished for a seamless look.
- Heavy-duty stainless steel posts—three support sets included on 120" units for extra rigidity.

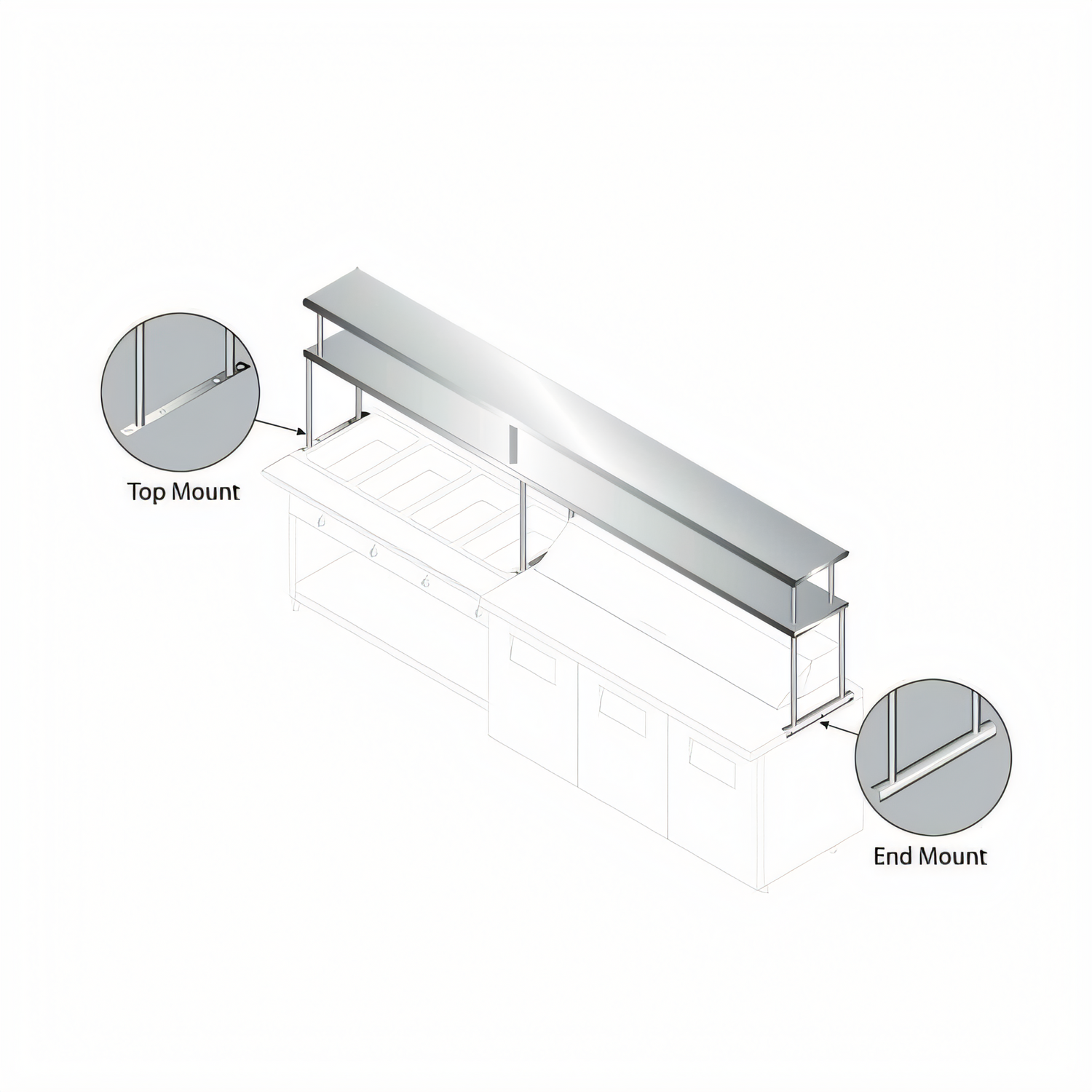

- Choose surface-mount or edge-mount brackets to match your equipment top.
- Select post diameter: 1" or 1 5/8" tubing (customer choice).
- NSF certified for safe installation in food-handling zones.
Mounting & Ordering Details
This shelf is built to fit your cookline. To ensure proper bracket placement and clearance, please supply the make & model numbers of the equipment beneath the shelf. A shop drawing will be provided for approval prior to fabrication.
- Compatible with ranges, fryers, chef bases, refrigerated tables, and work tables up to 120" wide.
- Lower-shelf height (H) fabricated to your specified dimension.
- Ships fully welded—no on-site assembly required.
Specifications
| Model | CU-18-120-2 |
|---|---|
| Overall width | 120" (3048 mm) |
| Shelf depth | 18" (457 mm) |
| Shelf tiers | 2 |
| Material | 18 ga type 430 stainless steel |
| Finish | Satin, polished exposed surfaces |
| Approx. weight | 218 lb (99 kg) |
| Support posts | (3) sets supplied (required on 96" & longer units) |
| Mounting options | Surface-mount or edge-mount brackets |
| Certification | NSF |
Popular Modifications
- Special shelf sizing (TA-60)
- 24" x 24" microwave extension shelf (TA-102)
- Length extension beyond 12 ft. (TA-104)
Advance Tabco continually refines product designs; specifications are subject to change without notice.
