Advance Tabco  |  Underbar Basics™  |  SKU: CRU-60R  |  UPC: 747545181763

Advance Tabco CRU-60R Underbar Basics™ Bar Equipment

$2,283.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list
Related Searches
Advance Tabco Bar Equipment Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment Restaurant Equipment Underbar Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

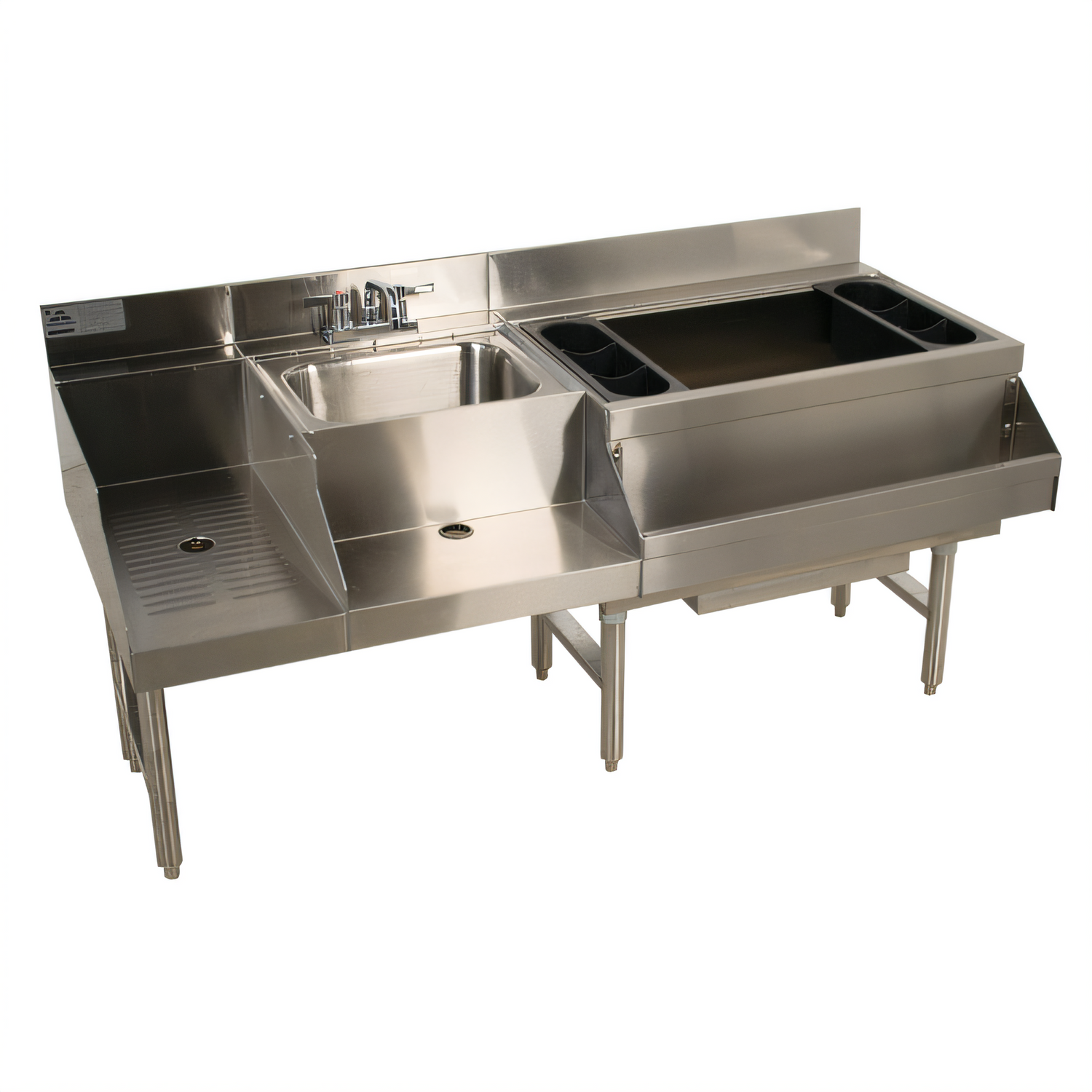

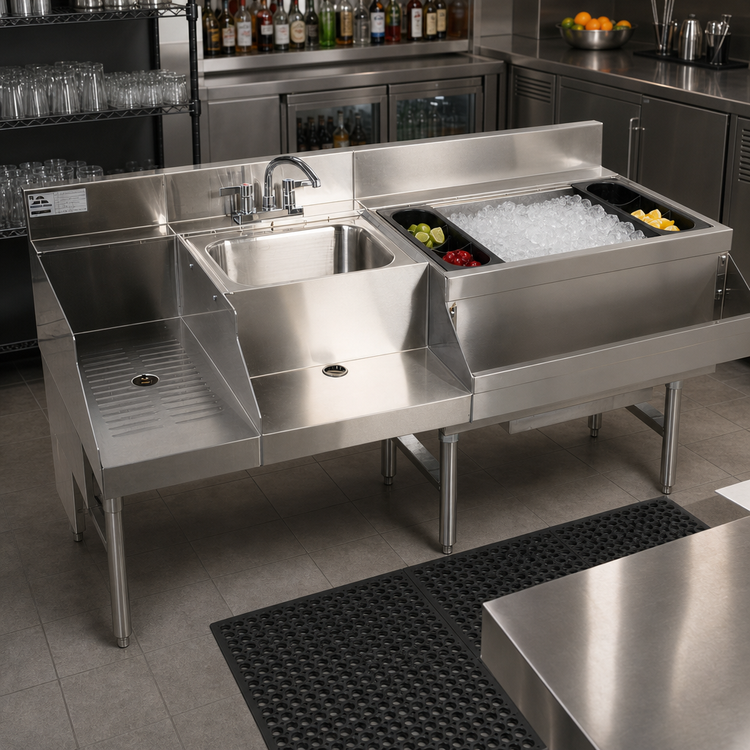

Underbar Basics™ Uni-Serv Speed Bar – 60"

Compact 60 × 21 × 33 in. service station with right-hand ice bin

Combine ice service, dumping, glass staging and blender power in one rugged NSF-approved unit. The Advance Tabco Underbar Basics™ Uni-Serv Speed Bar helps bartenders move faster, stay organized and serve more guests in less space.

Key Features & Benefits

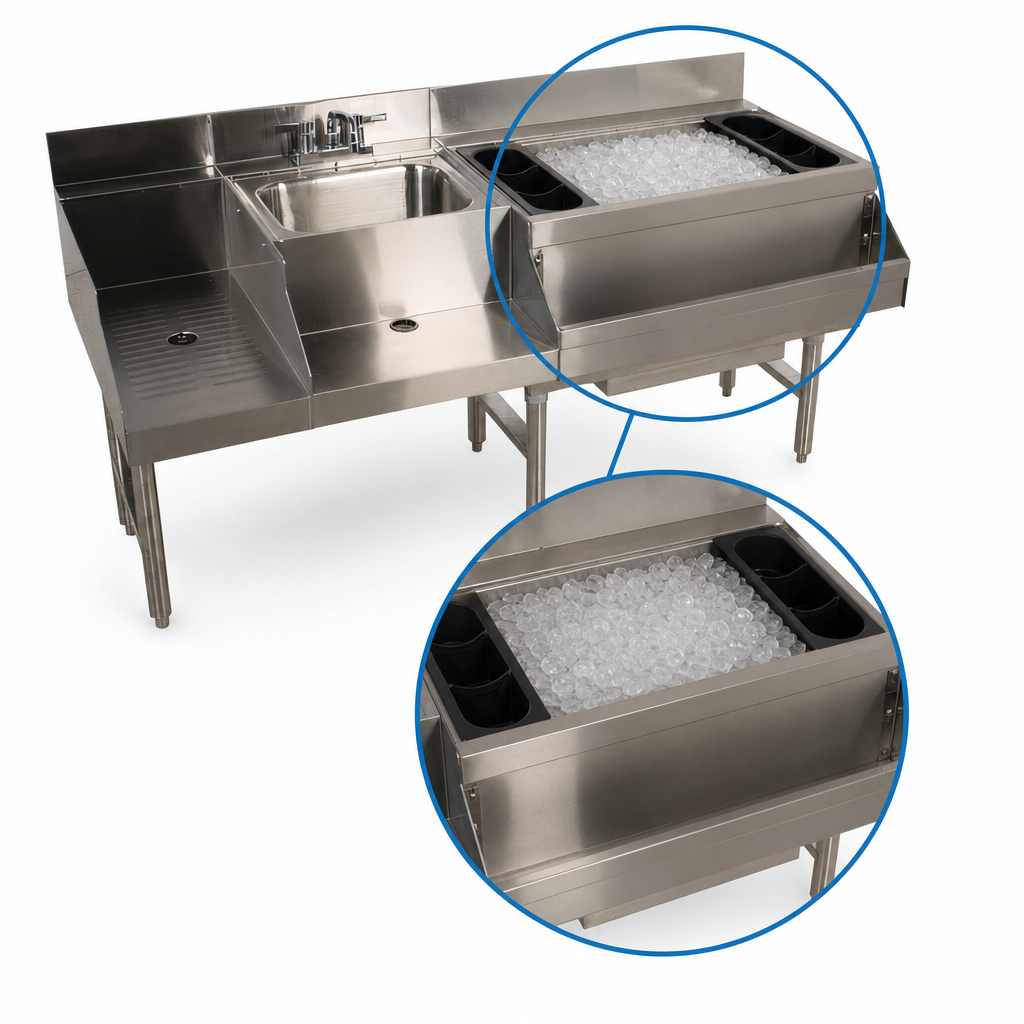

  • 30 × 15 × 12 in. insulated ice bin (98 lb capacity) on the right side.
  • (2) removable plastic bottle racks keep juices and mixers upright & chilled.
  • Recessed drainboard doubles as a glassware landing zone.

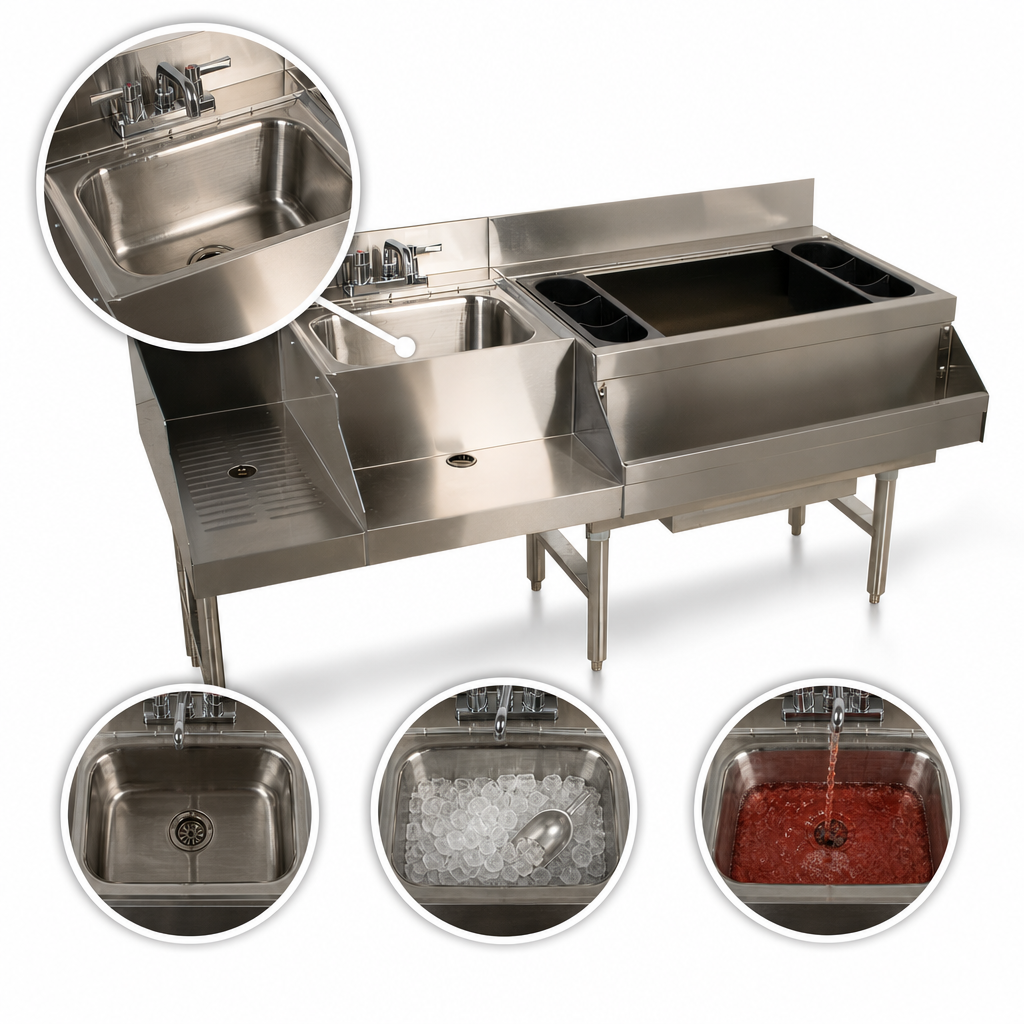

  • 10 × 14 × 7 in. dump sink with deck-mount gooseneck faucet (lead-free K-52).
  • Dedicated recessed blender shelf with a 15 A / 120 V GFI duplex outlet hidden beneath—no cord clutter.
  • 4 in. backsplash controls splashes and provides a chase for optional soda lines.
  • NSF/ANSI Standard 2 & 61 certified for food-contact and low-lead compliance.

Built to Last

  • 22 ga. type 300 stainless steel body resists corrosion and daily bar abuse.
  • 20 ga. stainless dump-sink bowl withstands constant glass rinsing.
  • 2 lb-density styrofoam insulation keeps ice solid for hours.
  • 1 ⅝ in. O.D. galvanized steel legs with adjustable plastic bullet feet.
  • 11 ga. electro-galvaneal leg channel & side cross-bracing add rock-solid rigidity.

Utility Connections

  • 1 in. IPS gravity drains on ice bin, dump sink & drainboard.
  • 15 A / 120 V GFI duplex receptacle (pre-installed, field-wired).

Specifications

Overall width 60 in. (1524 mm)
Overall depth 21 in. (533 mm)
Working height 33 in. (838 mm)
Backsplash height 4 in. (102 mm)
Ice bin capacity 98 lb – 30 × 15 × 12 in.
Dump sink size 10 × 14 × 7 in.
Material thickness 22 ga. body / 20 ga. sink bowl
Power (1) 15 A, 120 V GFI duplex outlet
Drain size (3) 1 in. IPS
Approx. ship weight 110 lb (50 kg)

Options & Accessories (sold separately)

  • 7-circuit cast-aluminum cold plate (5 syrup / 2 water lines) factory-sealed into ice bin.
  • K-316-LU 4 in. wrist-blade faucet handles.
  • SU-10C 14 in. or SU-10A 18 in. stainless leg upgrade with cross-bracing.
California Prop 65 Warning: This equipment, including its faucet, can expose you to chemicals such as lead, known to the State of California to cause cancer or birth defects. For more information visit p65warnings.ca.gov.

Advance Tabco reserves the right to improve products and change specifications without notice. Photos may show optional accessories.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Underbar Basics™

Certifications

NSF

Height

33.0in

Width

59.0in

Depth

21.0in

Shipping Weight

110.0lbs

Working Height

29" working height

Width (side - side) OA

55" - 60"

Splash

4" splash

Cold Plate

without cold plate

Ice Bin Location

ice bin - right side

Ice Capacity

98 lbs.

Depth (front - back) OA

21"

Blender Unit Type

with sink

Construction

stainless steel & galvanized

Specifications

Underbar Basics™ Uni-Serv Speed Bar, 60"W x 21"D x 33"H, 4" backsplash, includes: 12" deep ice bin with 98 lbs. capacity with (2) removable plastic bottle racks on right, dump sink, recessed, NSF
