Advance Tabco  |  Underbar Basics™  |  SKU: CRU-60L-7  |  UPC: 747545181756

Advance Tabco CRU-60L-7 Underbar Basics™ Bar Equipment

$3,200.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list
Related Searches
Bar Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

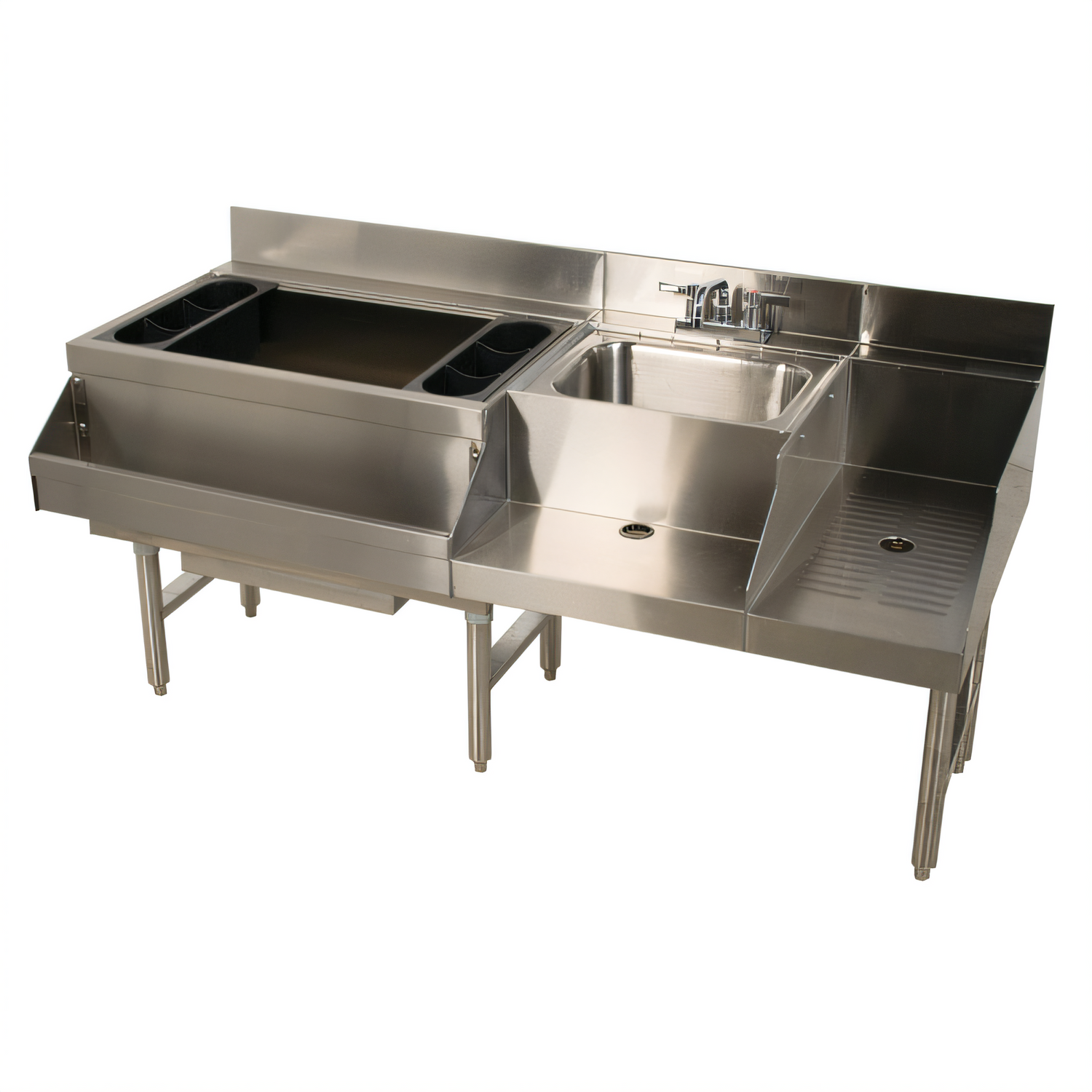

Underbar Basics™ 60" Uni-Serv Speed Bar w/ 7-Circuit Cold Plate

Model CRU-60L-7 | Ice Bin Left | Advance Tabco NSF

Give bartenders everything they need, right where they need it. The Underbar Basics™ Uni-Serv Speed Bar combines a high-capacity cold-plate ice bin, dump sink, recessed drainboard, and dual blender shelf into one 60" stainless-steel station that drops seamlessly into any bar lineup.

Why You’ll Love It

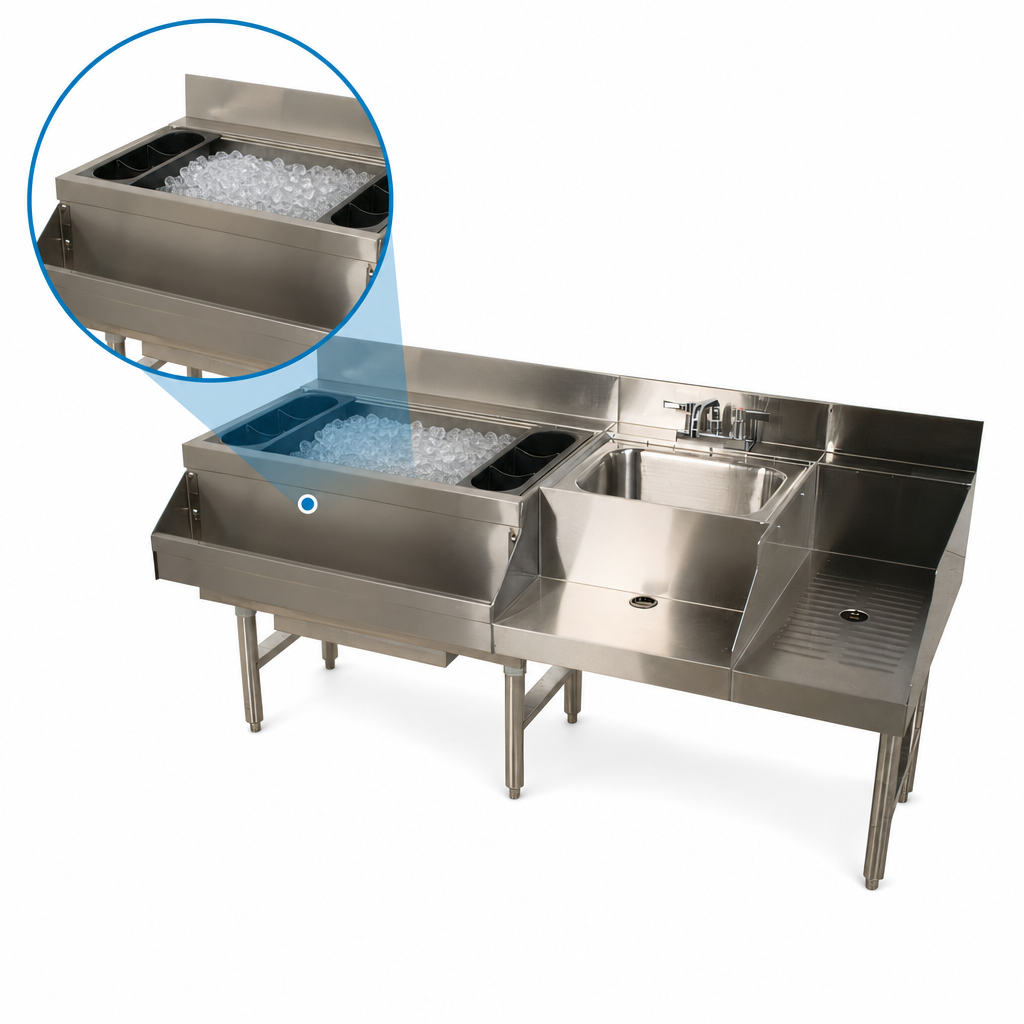

  • 30" × 15" × 12" insulated ice bin holds 98 lb of ice

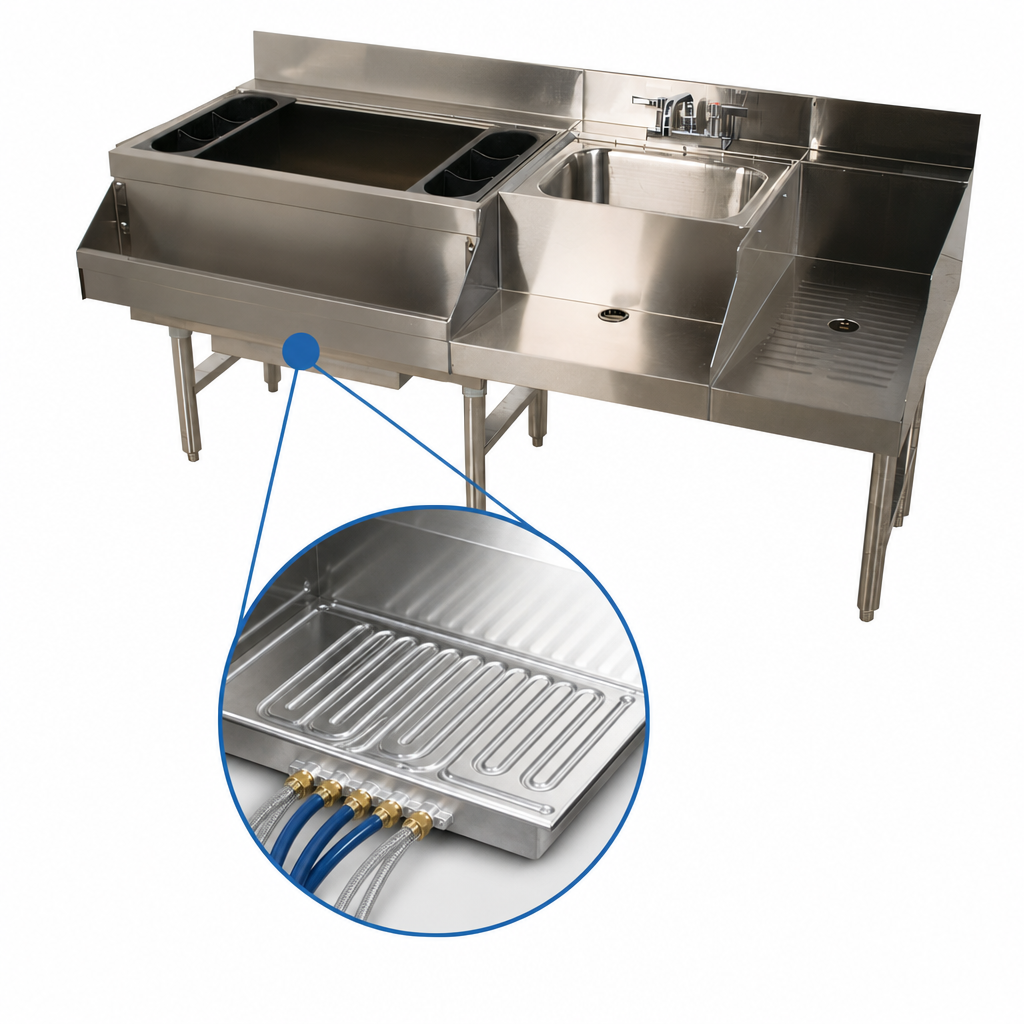

  • Integrated 7-circuit cast-aluminum cold plate (5 syrup + 2 water lines)
  • (2) removable plastic bottle racks keep mixes at arm’s reach
  • 10" W × 14" L × 7" D dump sink with K-52 deck-mount gooseneck faucet
  • Recessed drainboard for fast glassware turnover
  • Dual blender/mixer shelf with 15 A / 120 V GFI duplex receptacle hidden below
  • 4" backsplash with soda-line chases on both ends for clean routing
  • 22 ga 300-series stainless body & 20 ga bowl for lasting corrosion resistance
  • 1-5/8" O.D. galvanized legs, side cross-bracing & adjustable bullet feet
  • NSF, NSF 61/9 lead-free faucet compliance

Specifications

Overall dimensions 60" W × 21" D × 33" H (37" H to top of 4" backsplash)
Ice bin capacity 98 lb | 30" L × 15" W × 12" D
Cold plate Cast aluminum, 7 circuits (5 syrup / 2 water) with 5/16" S/S tube ends
Dump sink bowl 10" W × 14" L × 7" D, 20 ga 300-series stainless
Faucet K-52 deck-mount gooseneck spout, lead-free
Electrical 15 A, 120 V GFI duplex receptacle (UL Listed)
Drains 1" IPS (sink, drainboard, ice bin) • ½" IPS (cold-plate meltwater)
Construction 22 ga 300 S/S body • Foam-in-place bin insulation • Galvaneal understructure
Weight Approx. 193 lb shipping

Installation Notes

  • Ship-knocked down for lower freight costs; minimal assembly required on site
  • Provide hot/cold water, 120 V outlet & 1" IPS drain connection
  • Optional K-316-LU wrist-action faucet handles & stainless-steel leg upgrades available

Conforms to NSF, NSF 61/9 lead-free and California AB1953 requirements.

California Prop 65 Warning: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Underbar Basics™

Certifications

NSF

Height

33.0in

Width

59.0in

Depth

21.0in

Shipping Weight

193.0lbs

Working Height

29" working height

Width (side - side) OA

55" - 60"

Depth (front - back) OA

21"

Ice Capacity

98 lbs.

Cold Plate

(7) circuit

Blender Unit Type

with sink

Construction

stainless steel & galvanized

Ice Bin Location

ice bin - left side

Splash

4" splash

Specifications

Underbar Basics™ Uni-Serv Speed Bar, 60"W x 21"D x 33"H, 4" backsplash, includes: 12" deep ice bin with 98 lbs. capacity with (2) removable plastic bottle racks on left & 7 circuit cold plate, dump sink, NSF
