Description

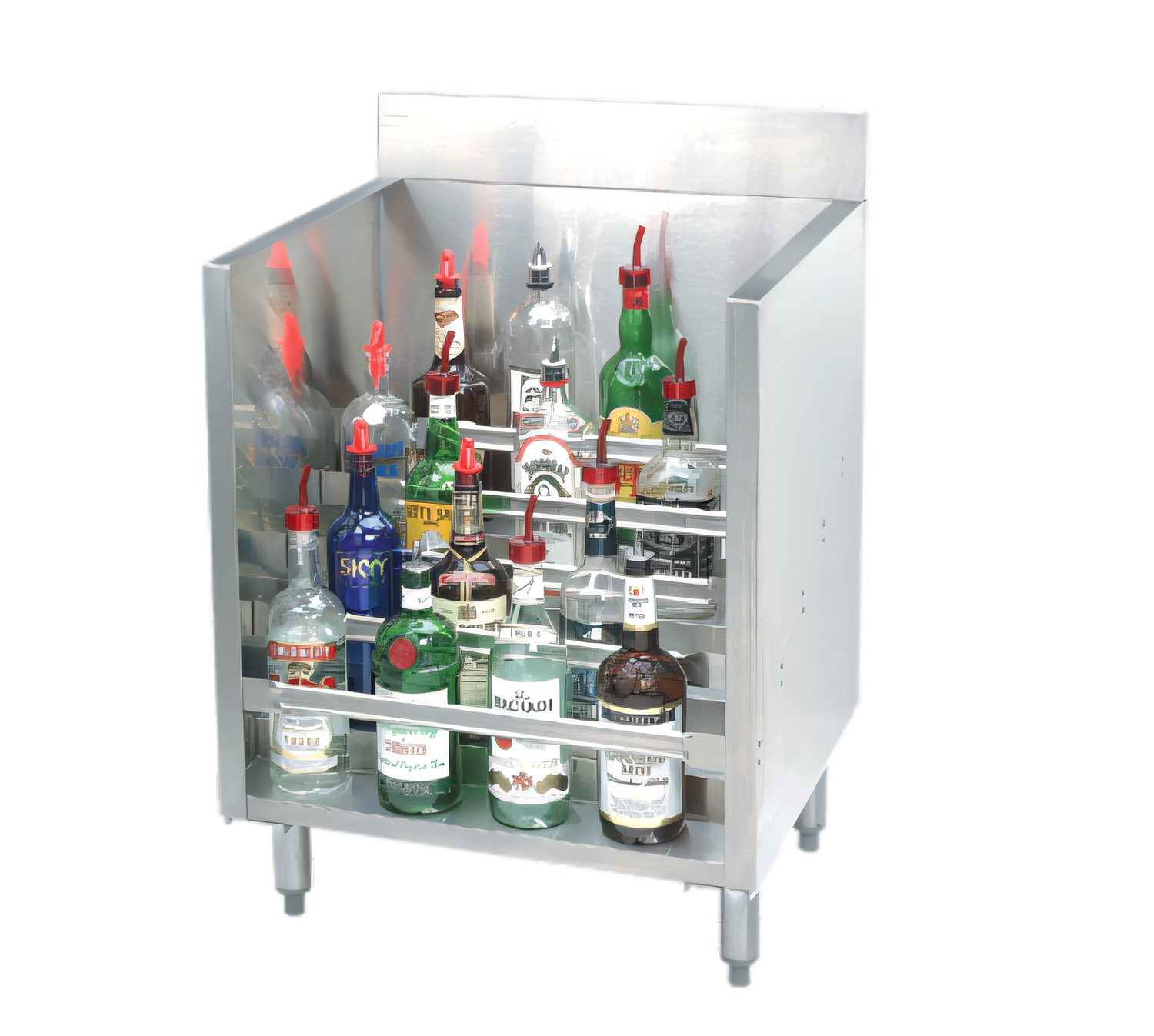

Underbar Basics™ Stainless Steel Liquor Bottle Display – 24" Wide

Advance Tabco | Model CRLR-24

Showcase up to 30 liquor bottles in eye-catching, tiered style while keeping valuable back-bar space free for service. Built entirely from food-service grade stainless steel, the Underbar Basics™ display cabinet is engineered for the daily demands of busy bars, restaurants, taprooms and tasting rooms.

Key Features

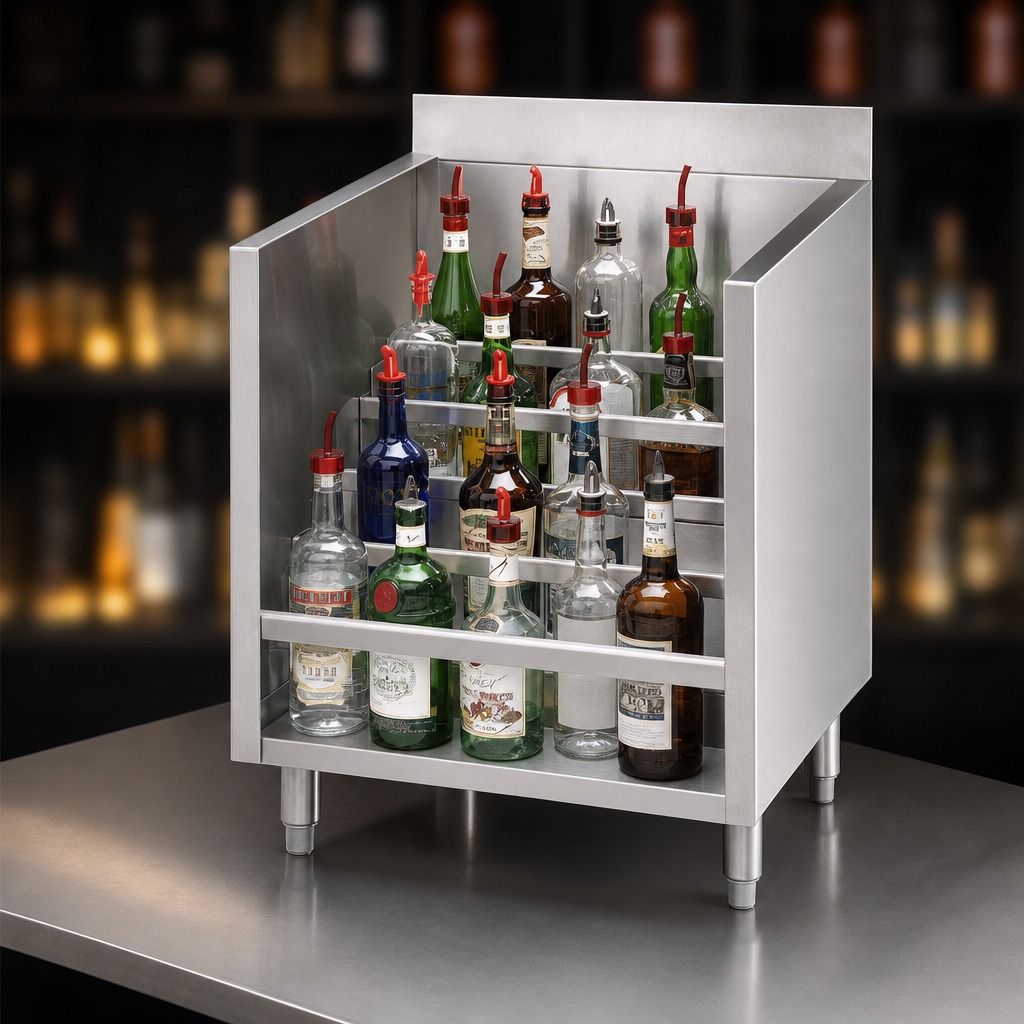

  • Five tiered steps let bartenders read every label at a glance for faster service.

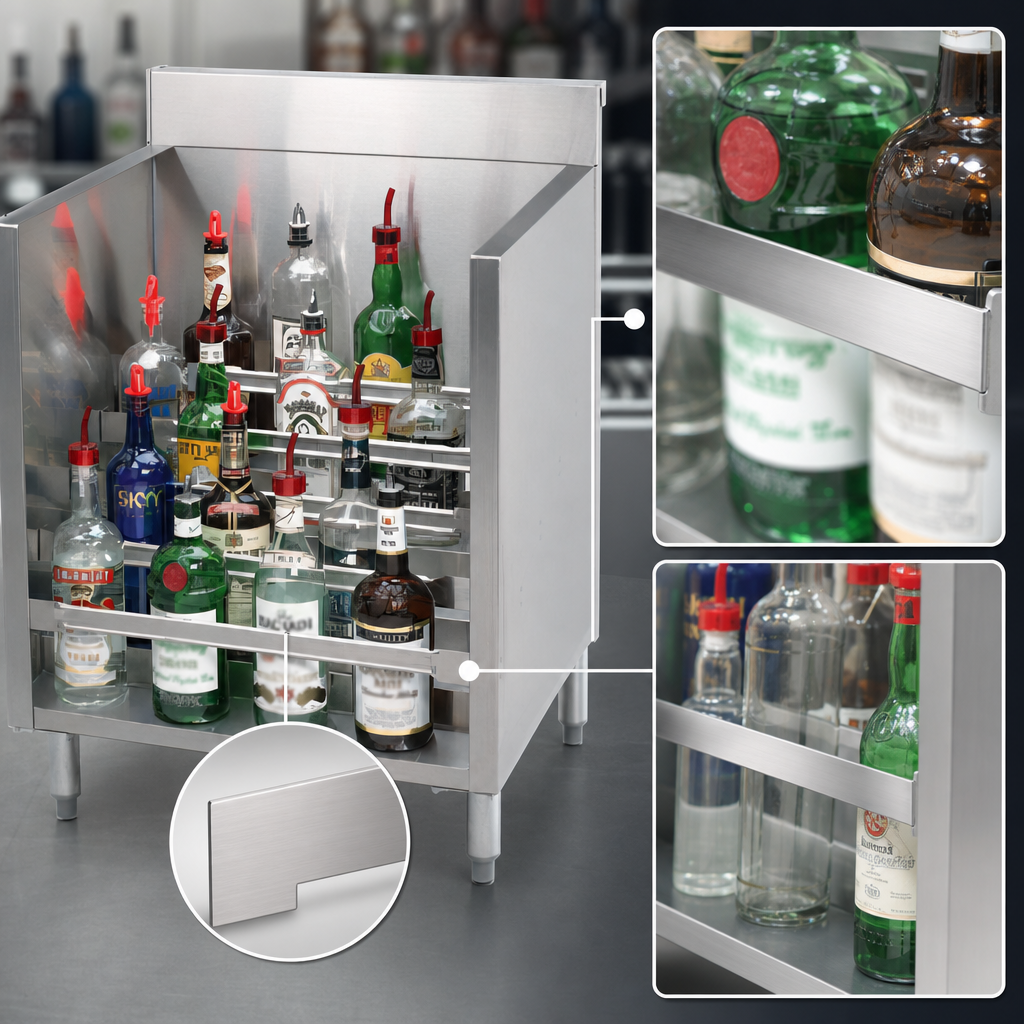

  • Heavy-duty stainless steel straps keep bottles securely in place on each step.
  • 4" integral backsplash protects surrounding walls and counters from drips and splashes.
  • All-stainless construction (300 series) resists rust, corrosion and harsh bar chemicals.
  • 1 5⁄8" O.D. stainless legs with 1" adjustable plastic bullet feet ensure stable, level placement.
  • NSF listed for open food zones—ideal for front-of-house or back-bar installation.
  • Compact 24" footprint fits seamlessly into standard underbar layouts.

Specifications

Overall width 24" (610 mm)
Overall depth 20 3⁄4" (527 mm)
Overall height 33" (838 mm)
Tiered steps 5
Approx. bottle capacity 30 standard 750 mL bottles
Backsplash height 4"
Material thickness 20 ga interior & sides, 18 ga straps, 22 ga backsplash
Legs / feet 16 ga stainless legs, 1" adjustable plastic bullet feet
Approx. weight 42 lb (19 kg)
Certifications NSF

Optional Security Cover

Need after-hours protection for high-value inventory? Pair this unit with the matching LC-24 stainless steel locking cover (sold separately). Each cover ships with a padlock and two keys for quick, no-tools installation and secure storage.

Bottles shown are for illustration only and are not included.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Underbar Basics™

Certifications

NSF

Height

33.0in

Width

23.0in

Depth

20.75in

Shipping Weight

52.0lbs

Construction

stainless steel

Depth (front - back) OA

18" - 19"

Type

free standing

Steps

(5)

Width (side - side) OA

19" - 24"

Specifications

Underbar Basics™ Liquor Bottle Display Unit, (5) steps, 24"W x 20-3/4"D x 33"H, approximately (30) bottle capacity, 4"backsplash, stainless steel construction, stainless steel legs with adjustable plastic bullet feet, NSF
