Advance Tabco  |  Underbar Basics™  |  SKU: CRI-16-36-7  |  UPC: 747545181497

Advance Tabco CRI-16-36-7 Underbar Basics™ Bar Equipment

$2,216.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Advance Tabco Bar Equipment Bar Ice Bins Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment Restaurant Equipment Underbar Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

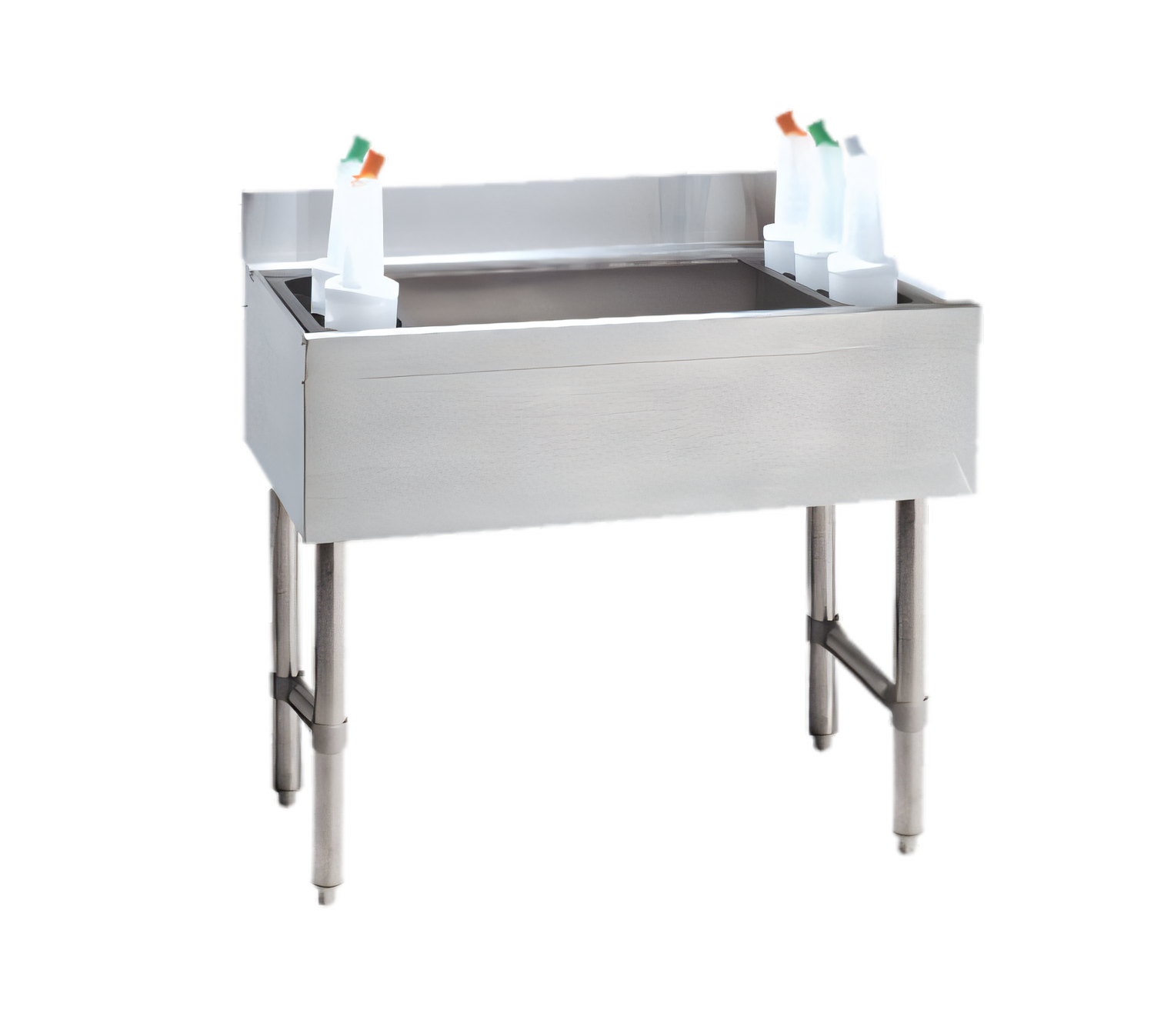

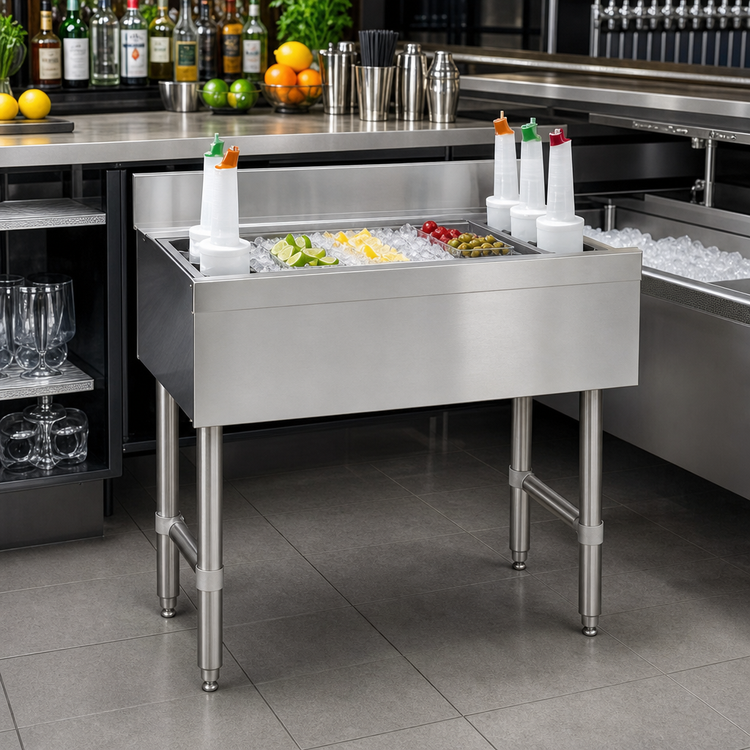

Advance Tabco Underbar Basics™ 36" Cocktail Ice Bin w/ 7-Circuit Cold Plate

Model CRI-16-36-7 | NSF Listed

Serve drinks faster and keep every pour ice-cold. This 36" wide Underbar Basics™ cocktail unit combines a high-capacity, foam-insulated ice chest with a built-in 7-circuit post-mix cold plate, giving bartenders everything they need for efficient, high-volume beverage service in one rugged stainless steel station.

Key Features

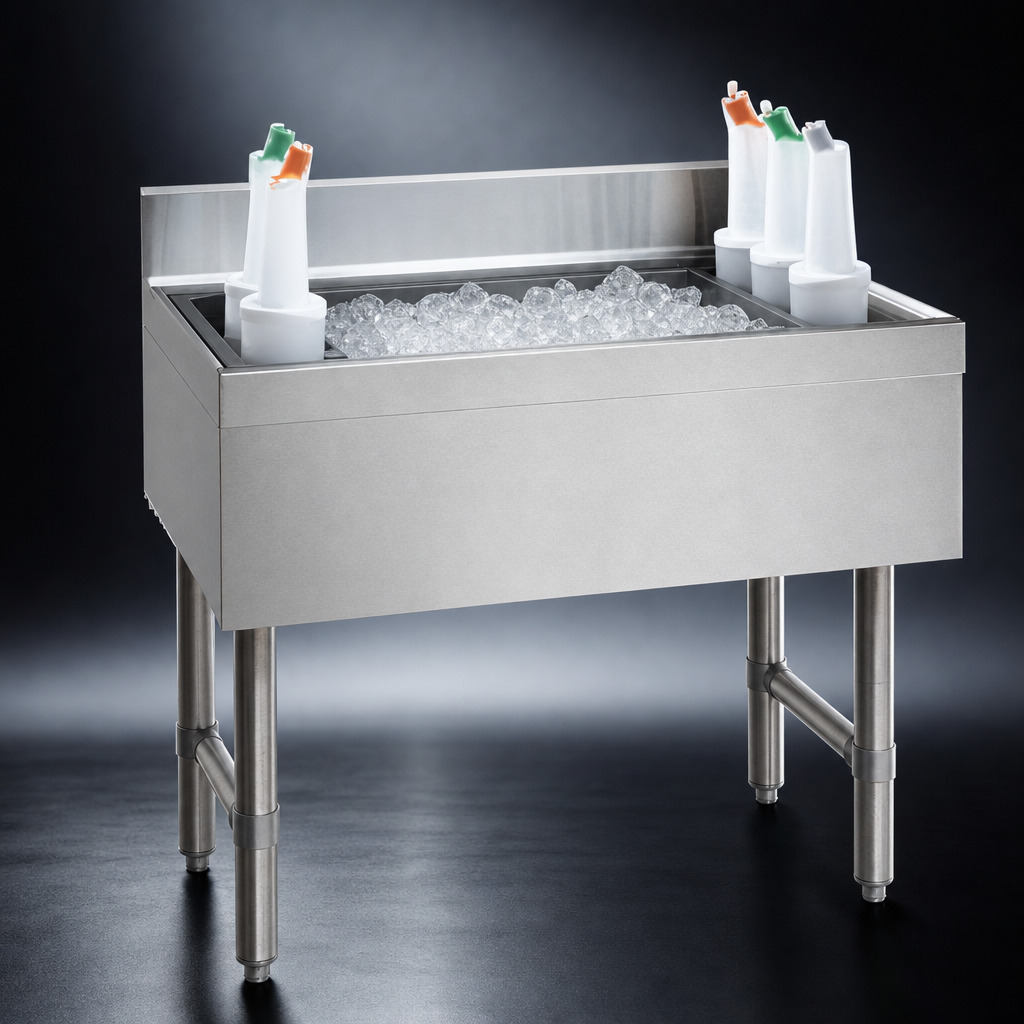

  • 16" deep insulated ice bin holds approx. 155 lb. of ice

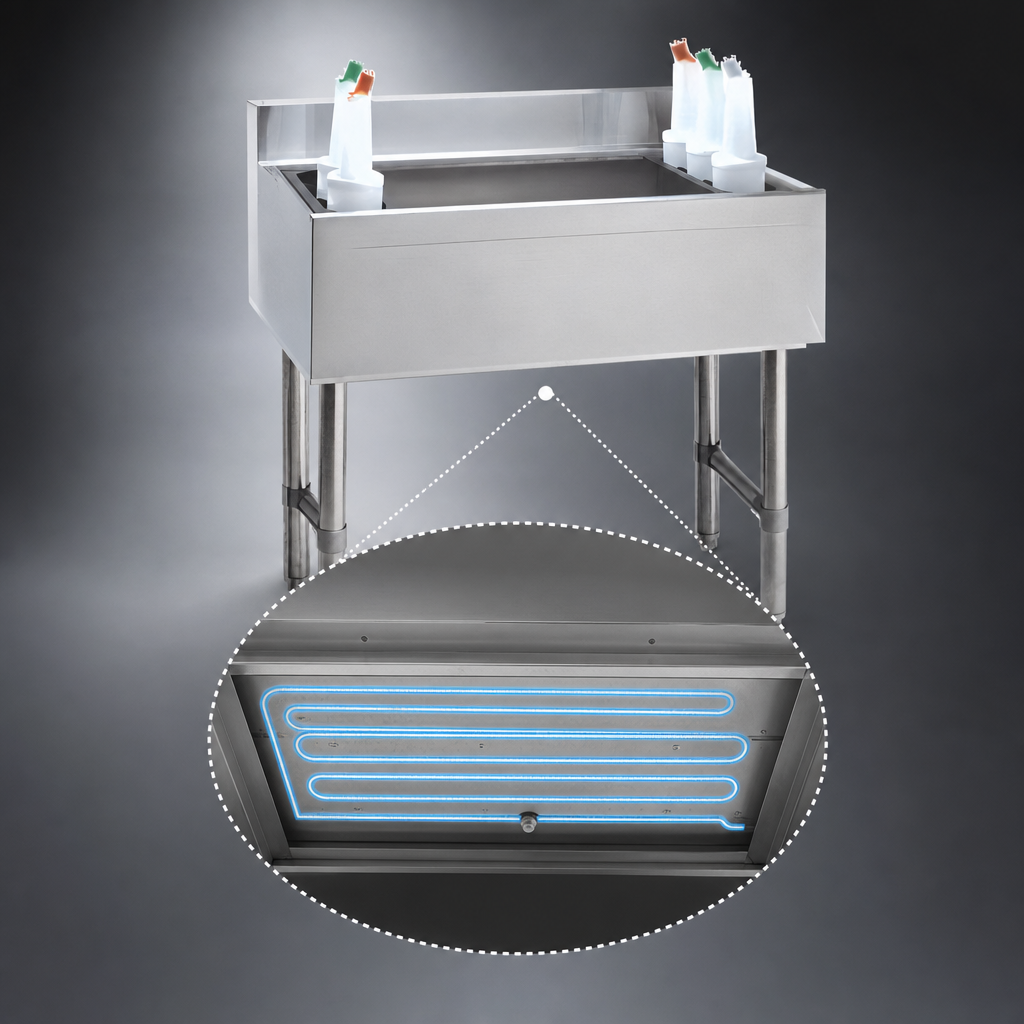

  • Cast-aluminum cold plate with 7 beverage circuits (5 syrup & 2 water lines) sealed into the bin floor
  • 22-ga Type 300 stainless steel front, apron & 4" backsplash resist corrosion and make cleanup easy
  • 20-ga Type 430 stainless steel side panels for added durability
  • (2) removable 3-pack plastic bottle racks keep mixers organized and within reach
  • 1/2" IPS drain for rapid melt-water removal
  • 1 5/8" O.D. galvanized legs with adjustable plastic bullet feet & side cross-bracing
  • Fully NSF compliant for open-food contact
Specifications
Overall width 36 in. (914 mm)
Overall depth 21 in. (533 mm)
Overall height 33 in. (838 mm) to rim
Backsplash height 4 in. (102 mm)
Ice bin depth 16 in. (406 mm)
Ice capacity Approx. 155 lb. (70 kg)
Cold plate 7 circuits – 5 syrup / 2 water
Drain connection 1/2" IPS
Main material 22-ga 300 SS (bin, apron, backsplash)
Side panels 20-ga 430 SS
Legs 18-ga galvanized steel, 1 5/8" O.D. w/ bullet feet
Approx. shipping weight 120 lb. (54 kg)
Certification NSF
Ideal For

Bars, restaurants, clubs, stadium suites, hotel lounges—any venue that demands quick, organized cocktail production without sacrificing valuable underbar space.

Optional Accessories
  • SSC-36 stainless steel sliding cover
  • Additional plastic bottle racks
Note: Bottle racks must be removed for NSF compliance when using an optional sliding cover.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Underbar Basics™

Certifications

NSF

Height

33.0in

Width

36.0in

Depth

21.0in

Shipping Weight

120.0lbs

Width (side - side) OA

31" - 36"

Cold Plate

(7) circuit

Construction

stainless steel & galvanized

Ice Capacity

150 - 199 lbs.

Splash

4"

Depth (front - back) OA

20" - 21"

Bin Depth

16" deep ice bin

Specifications

Underbar Basics™ Cocktail Unit, 16" deep chest with 7-circuit post mix cold plate, 36"W x 21"D x 33"H, 4"H splash, approximately 155 lbs. ice capacity, (2) removable plastic bottle racks, stainless steel construction, galvanized legs with adjustable bullet feet, NSF
