Advance Tabco  |  Underbar Basics™  |  SKU: CRI-16-36-10  |  UPC: 747545181480

Advance Tabco CRI-16-36-10 Underbar Basics™ Bar Equipment

$2,858.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Bar Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

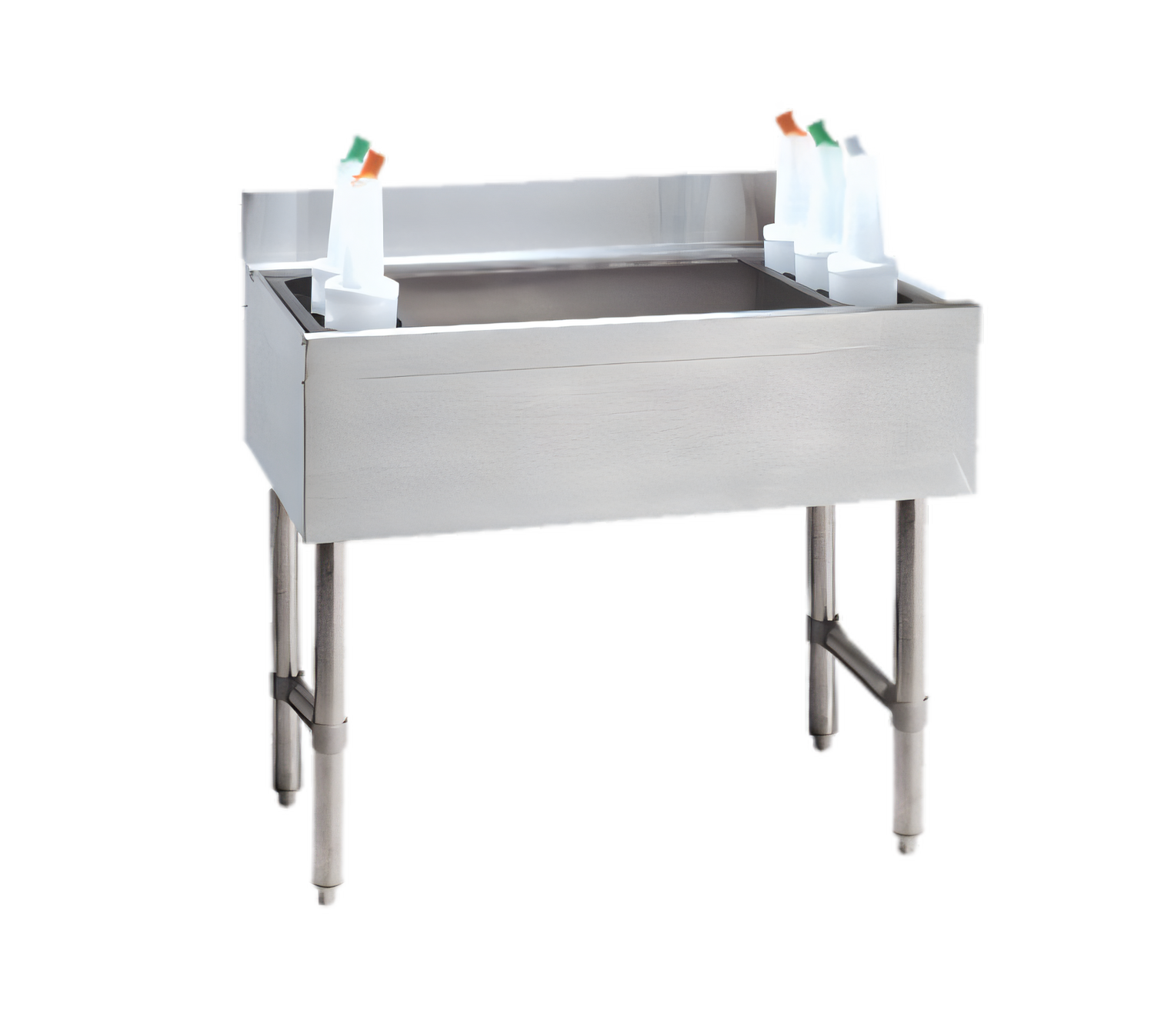

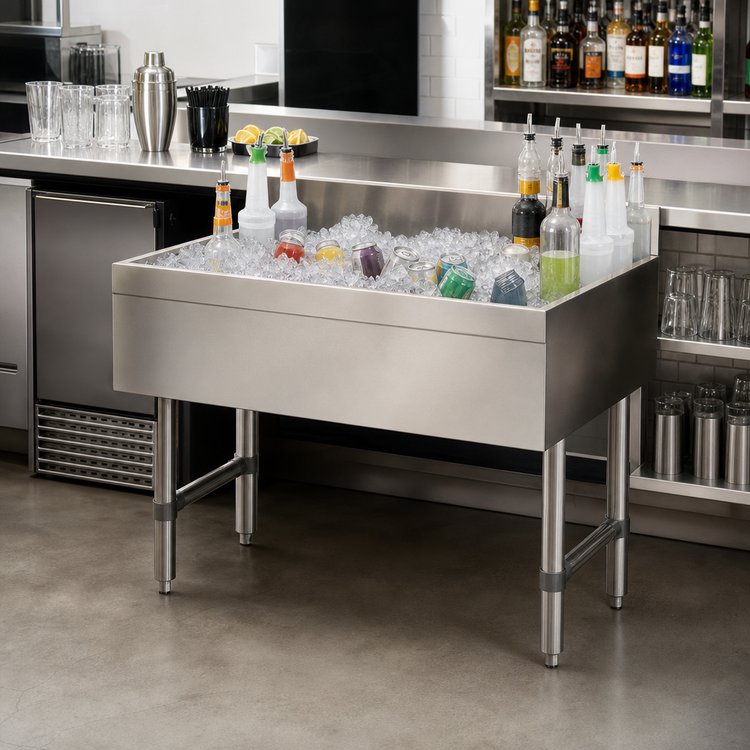

Advance Tabco Underbar Basics™ 36" Cocktail Ice Bin with 10-Circuit Cold Plate

Model CRI-16-36-10  •  NSF Listed

Serve perfectly chilled, great-tasting drinks shift after shift. This all-stainless Underbar Basics™ unit combines a high-capacity ice chest with a built-in 10-circuit post-mix cold plate—giving bartenders everything they need in one 36 inch footprint.

Key Features

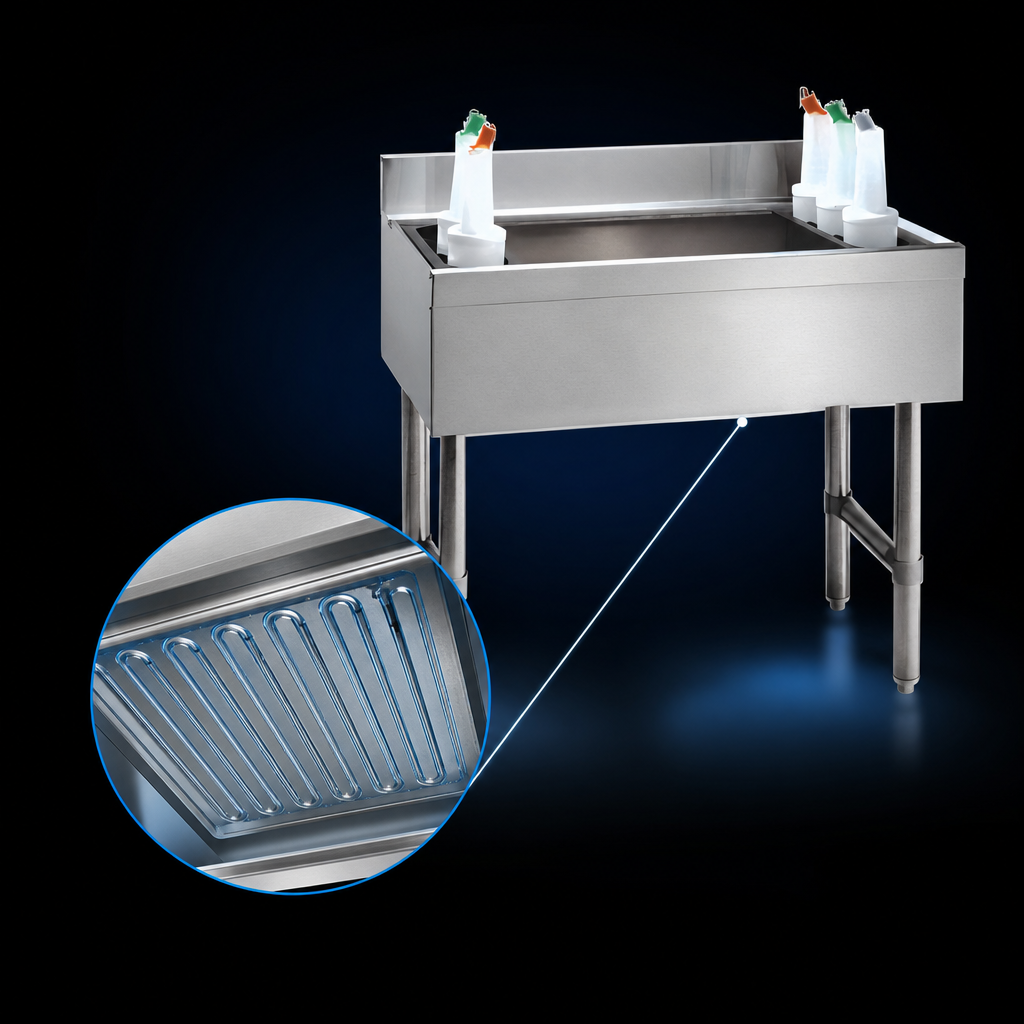

  • Integral 10-circuit cast-aluminum cold plate (8 syrup & 2 water lines) keeps beverages icy-cold without watering down the ice.

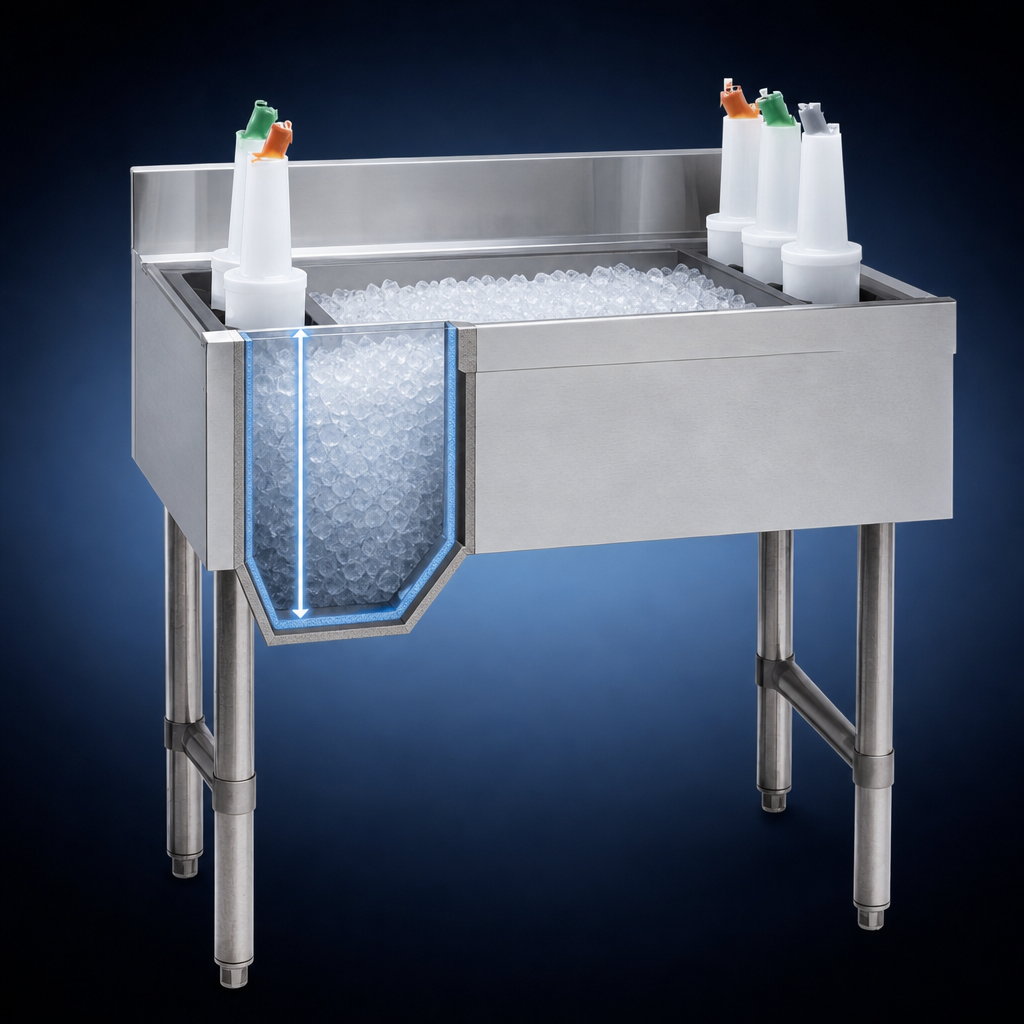

  • Foam-insulated, 16 in. deep ice bin holds approx. 155 lb of ice for all-night service.
  • 4 in. rear backsplash protects walls and contains splashes.
  • (2) removable 3-pack plastic bottle racks keep mixers organized and within reach.
  • 22 ga 300 series stainless steel bin, apron & backsplash resist corrosion and are easy to clean.
  • Heavy-duty galvanized understructure with 1 ⅝ in. Ø galvanized legs and adjustable bullet feet.
  • ½ in. IPS center drain for fast, positive drainage.
  • NSF certified for safe, sanitary bar operation.

Specifications

Overall dimensions 36 in. W × 21 in. D × 33 in. H (37 in. H to top of backsplash)
Ice chest depth 16 in.
Ice capacity Approx. 155 lb
Cold plate Cast aluminum, 10 circuits (post-mix)
Materials 22 ga 300 SS (bin/apron/backsplash)  •  20 ga 430 SS (sides)
Legs / feet 1 ⅝ in. Ø 18 ga galvanized legs with adjustable plastic bullet feet
Drain connection ½ in. IPS
Shipping weight Approx. 120 lb
Certifications NSF

Perfect For

  • High-volume cocktail bars
  • Restaurant service bars
  • Nightclubs & lounges
  • Event and banquet beverage stations
Note: Bottle racks must be removed for NSF compliance when using the optional sliding stainless steel cover (model SSC-36, sold separately).

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Underbar Basics™

Certifications

NSF

Height

33.0in

Width

36.0in

Depth

21.0in

Shipping Weight

120.0lbs

Cold Plate

(10) circuit

Construction

stainless steel & galvanized

Splash

4"

Width (side - side) OA

31" - 36"

Depth (front - back) OA

20" - 21"

Bin Depth

16" deep ice bin

Ice Capacity

150 - 199 lbs.

Specifications

Underbar Basics™ Cocktail Unit, 16" deep chest with 10-circuit post mix cold plate, 36"W x 21"D x 33"H, 4"H splash, approximately 155 lbs. ice capacity, (2) removable plastic bottle racks, stainless steel construction, galvanized legs with adjustable bullet feet, NSF
