Advance Tabco CRI-16-30-7 Underbar Basics™ Bar Equipment

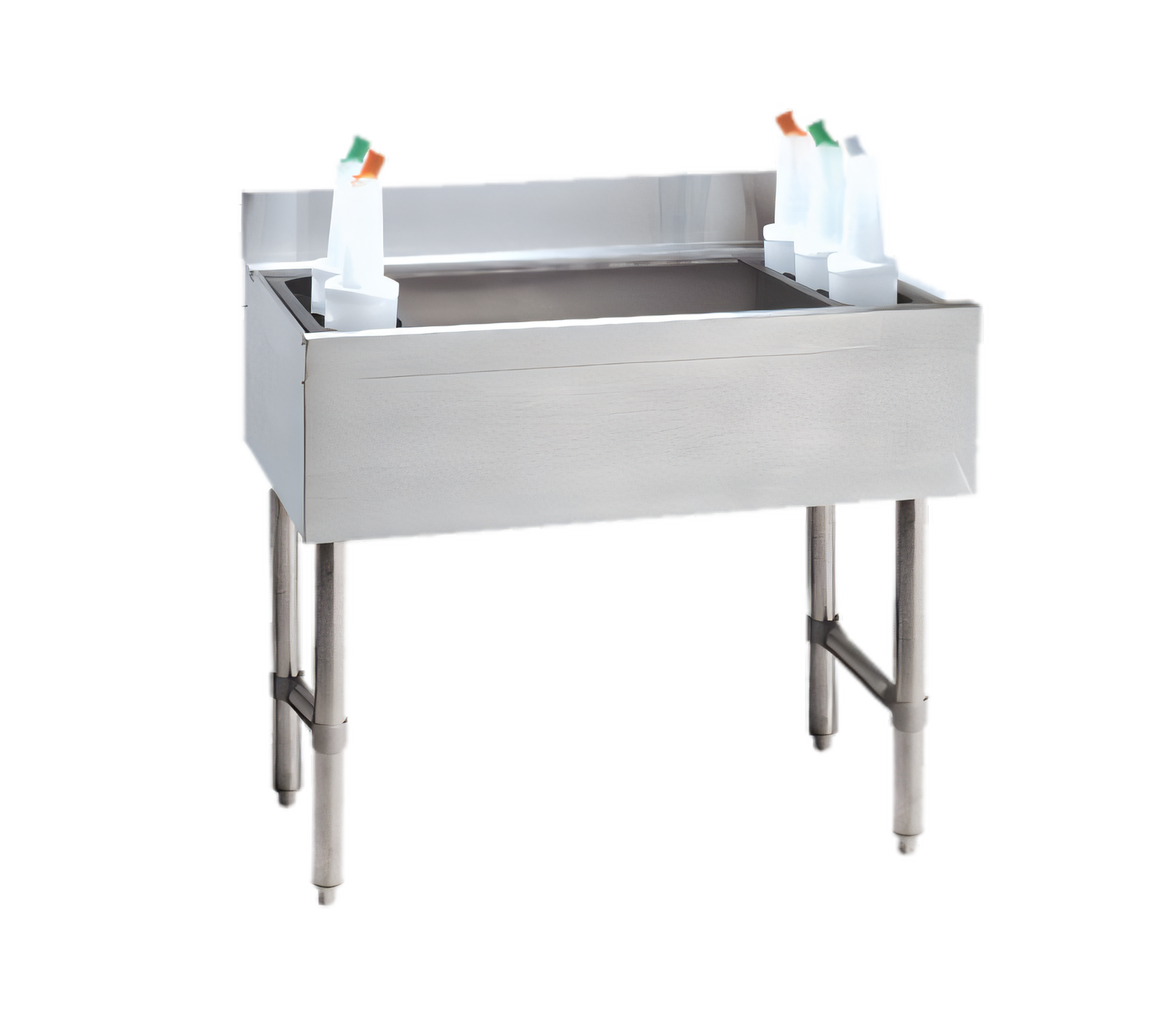

Underbar Basics™ 30" Cocktail Ice Bin w/ 7-Circuit Cold Plate

Keep cocktails flowing and guests happy with a purpose-built ice bin that chills product at the source. The Underbar Basics™ 30" cocktail unit pairs a foam-insulated, 16"-deep chest with an integrated 7-circuit cold plate—delivering ice-cold post-mix beverages service after service.

Key Features

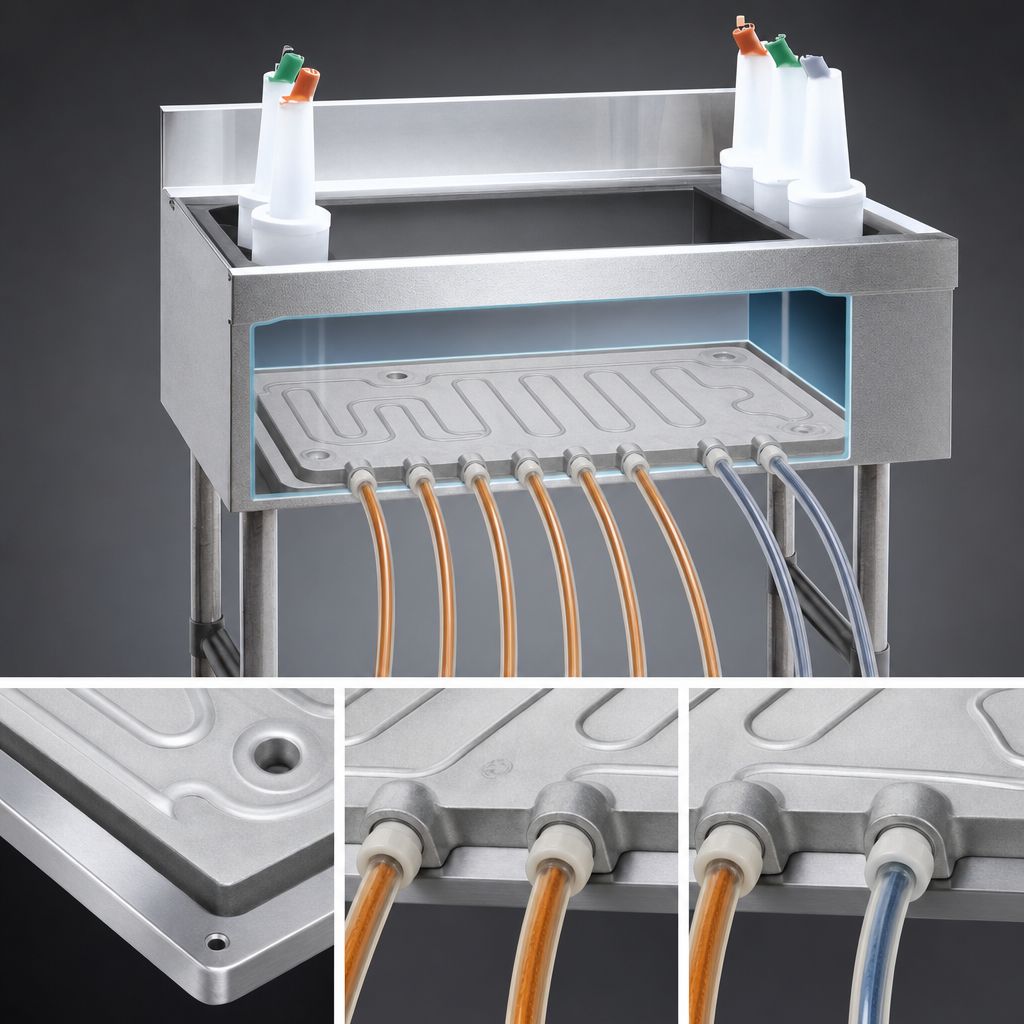

• Cast-aluminum 7-circuit post-mix cold plate (5 syrup / 2 water lines) sealed into the bin floor.

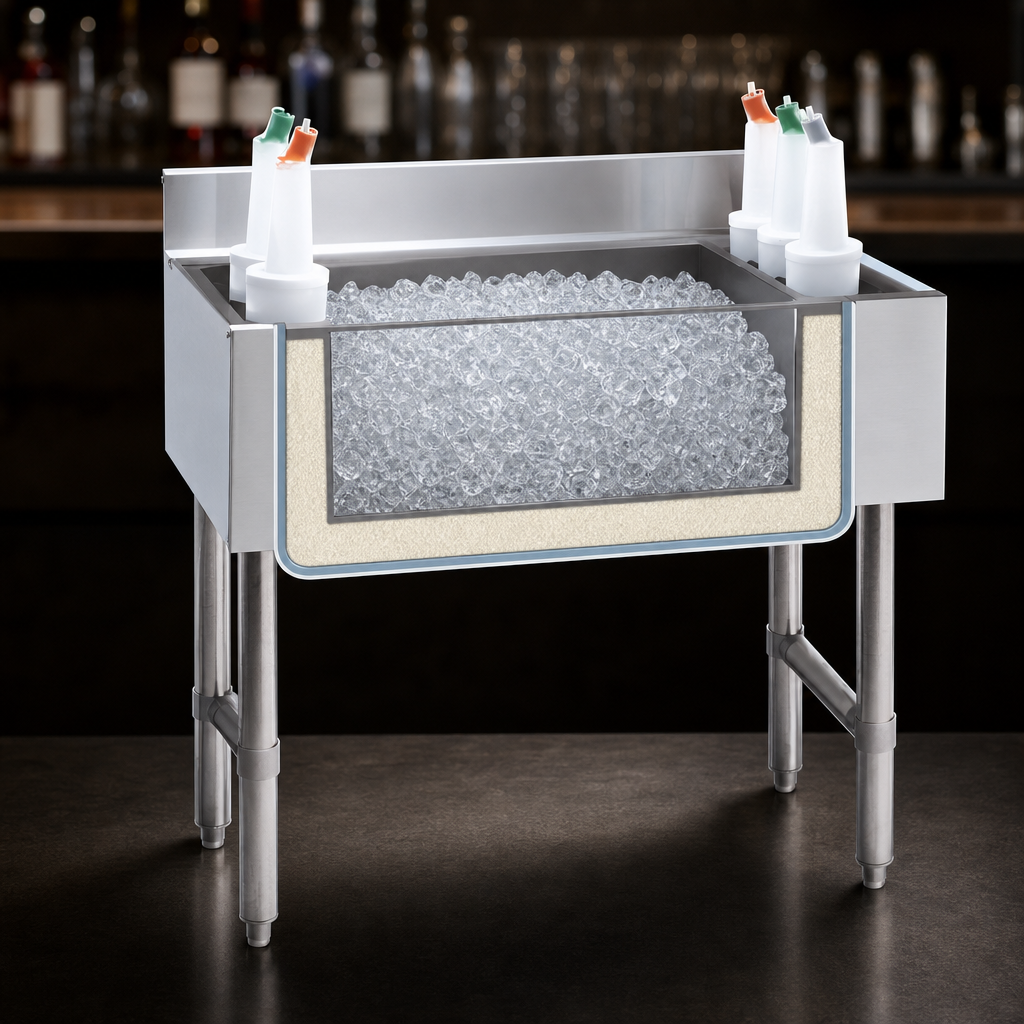

• 16" deep, foam-insulated ice chest holds approximately 127 lbs of ice.
• (2) removable 3-pack plastic bottle racks for organized speed rail storage.
• 4" backsplash contains splashes and protects adjacent surfaces.
• 22 ga 300-series stainless steel bin, apron & splash; 20 ga 430-series stainless sides.
• 1 5/8" O.D. galvanized legs with adjustable bullet feet and side cross-bracing.
• 1/2" IPS drain for quick, sanitary melt-water removal.
• NSF Listed for commercial food-service use.

Technical Specifications

Perfect For

• High-volume cocktail bars & nightclubs
• Restaurants looking to speed up bar service
• Event venues and banquet operations
• Concession stands using post-mix soda systems

Need additional protection? Match this unit with Advance Tabco’s optional sliding cover to keep ice sanitary during off-peak hours.
