Advance Tabco  |  Underbar Basics™  |  SKU: CRI-16-24  |  UPC: 747545181435

Advance Tabco CRI-16-24 Underbar Basics™ Bar Equipment

$1,116.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Advance Tabco Bar Equipment Bar Ice Bins Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment Restaurant Equipment Underbar Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

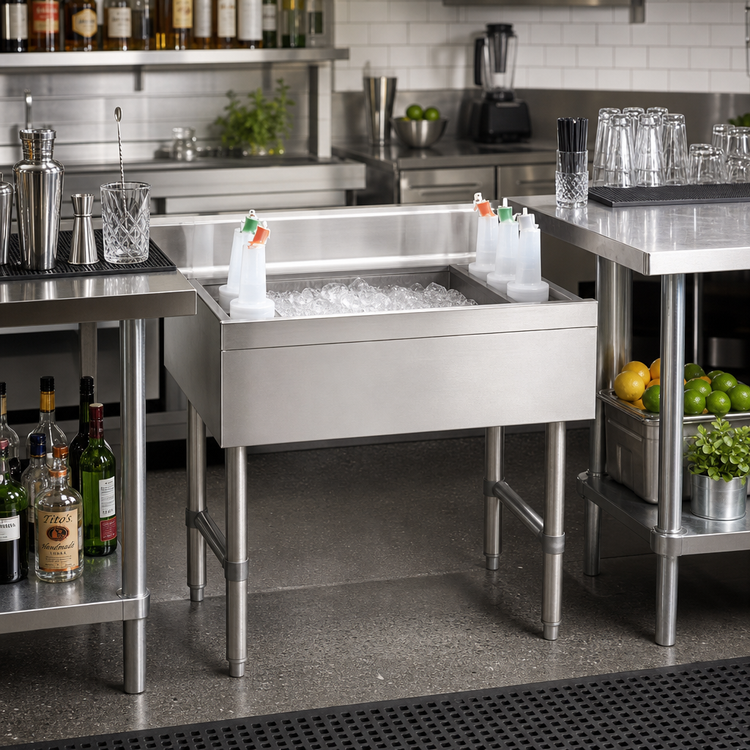

Underbar Basics™ 24" Cocktail Ice Bin – 16" Deep

Model CRI-16-24 | Advance Tabco | NSF Listed

Keep cocktails flowing and bartenders happy with Advance Tabco’s Underbar Basics™ cocktail unit. The 16" deep, foam-insulated chest stores up to 100 lbs. of ice while the included bottle racks keep your most-poured mixers right where you need them. Built from heavy-duty stainless steel and mounted on rock-solid galvanized legs, this workhorse is engineered to thrive in the toughest bar environments.

Why You’ll Love It

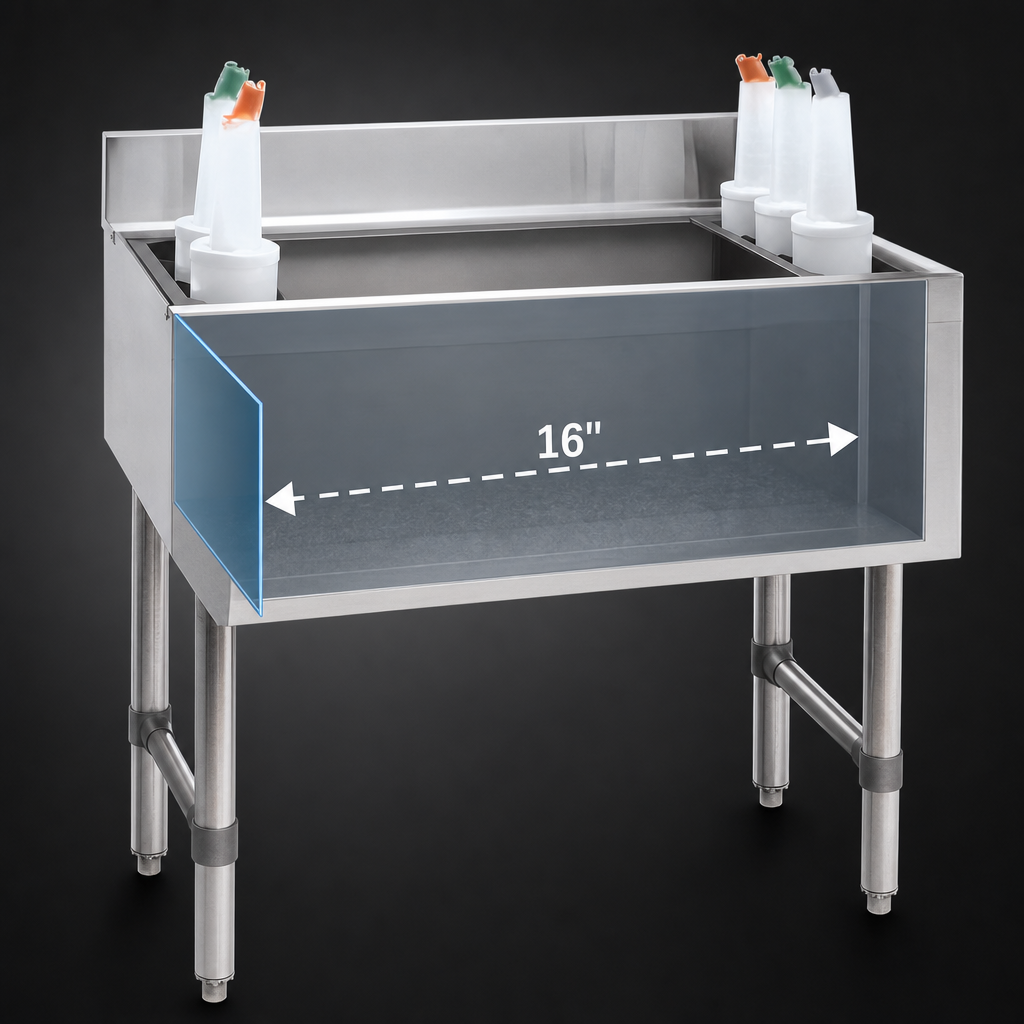

  • High-capacity 16" deep ice bin holds ≈ 100 lbs. of ice.
  • Stainless steel false bottom separates ice from meltwater for cleaner, longer-lasting ice.

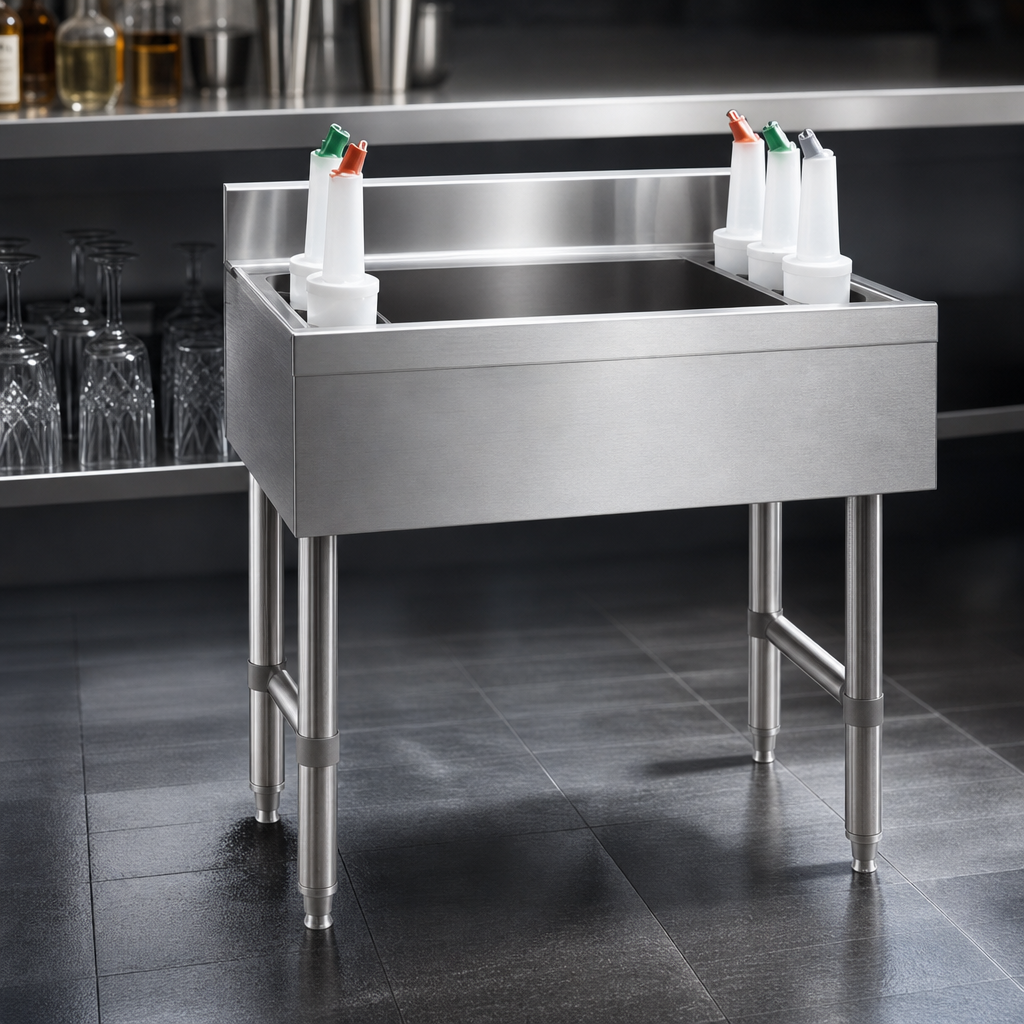

  • 22 ga 300-series stainless steel bin, apron & 4" backsplash resist corrosion and daily wear.
  • (2) removable 3-pack plastic bottle racks keep popular mixers at arm’s length.
  • 1 " IPS drain for quick, trouble-free plumbing connections.
  • 1 ⅝" O.D. galvanized legs with adjustable bullet feet level the unit on uneven floors.
  • Foam-insulated walls lock in the cold and reduce ice loss.
  • NSF Listed for safe, sanitary operation in any commercial bar.

At-a-Glance Specs

Overall Dimensions (W × D × H) 24" × 21" × 33"
Ice Bin Depth 16"
Splash Height 4"
Ice Capacity ≈ 100 lbs.
Unit Weight ≈ 75 lbs.
Drain Size / Type 1" IPS (centered)
Materials 22 ga 300-series stainless (bin, apron, backsplash)
20 ga 430-series stainless (sides)
Galvanized understructure & cross-bracing
18 ga galvanized steel legs
Included Accessories (2) removable plastic bottle racks, stainless steel false bottom
Compliance NSF Listed

Popular Factory Options

  • SU-10B — 10" stainless steel leg upgrade
  • SU-30 — Soda chase provision
  • SU-40 — Prep for speed-rail installation
  • SSC-24 — Sliding stainless steel cover (24" bin)
NSF Note: Bottle racks must be removed when an optional sliding cover is installed to maintain NSF compliance.

Advance Tabco continually improves products; specifications are subject to change without notice.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Underbar Basics™

Certifications

NSF

Height

33.0in

Width

24.0in

Depth

21.0in

Shipping Weight

75.0lbs

Ice Capacity

100 - 149 lbs.

Depth (front - back) OA

20" - 21"

Width (side - side) OA

19" - 24"

Splash

4"

Construction

stainless steel & galvanized

Cold Plate

without

Bin Depth

16" deep ice bin

Specifications

Underbar Basics™ Cocktail Unit, 16" deep chest with stainless steel false bottom, 24"W x 21"D x 33"H, 4"H splash, approximately 100 lbs. ice capacity, (2) removable plastic bottle racks, stainless steel construction, galvanized legs with adjustable bullet feet, NSF
