Description

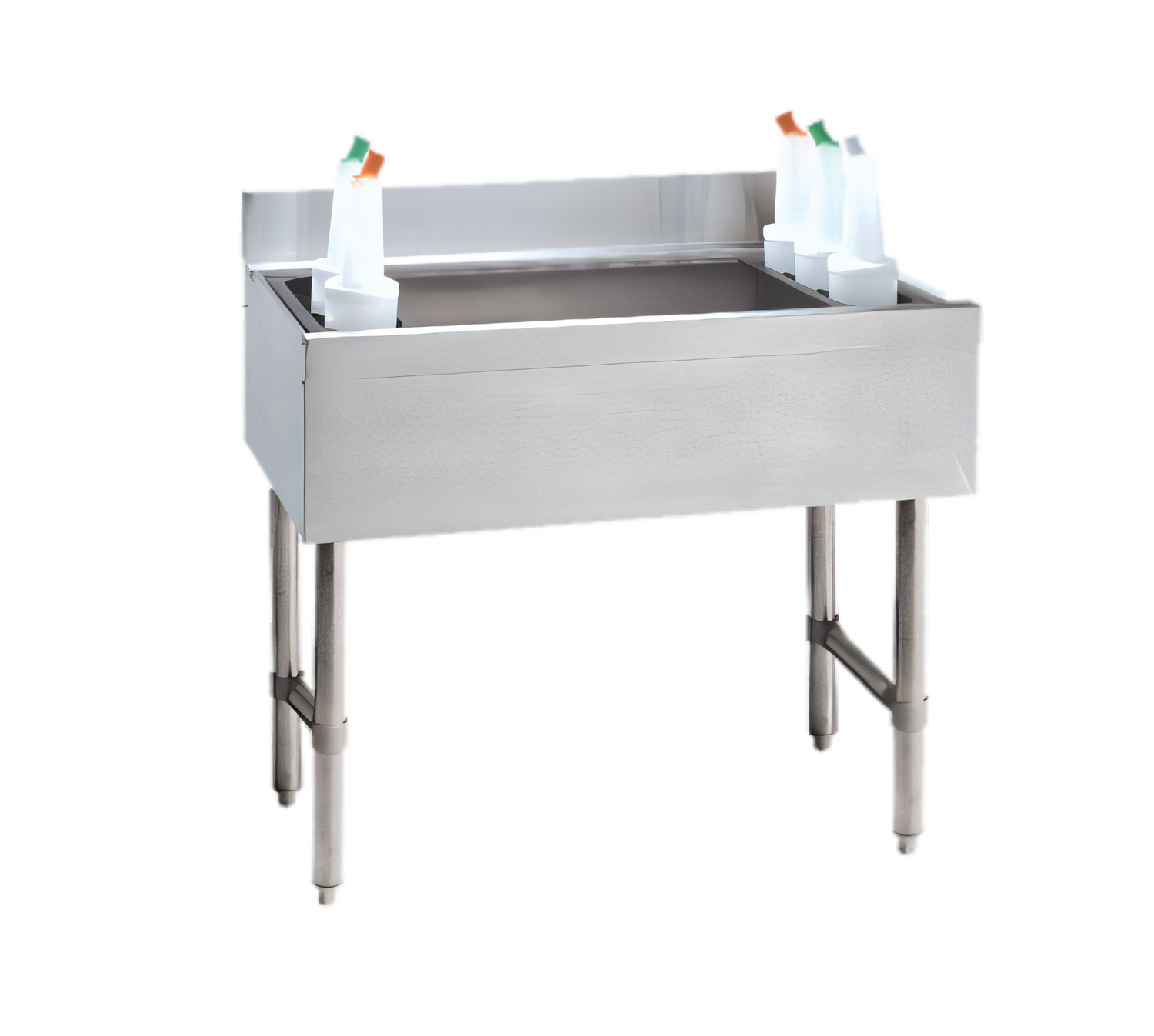

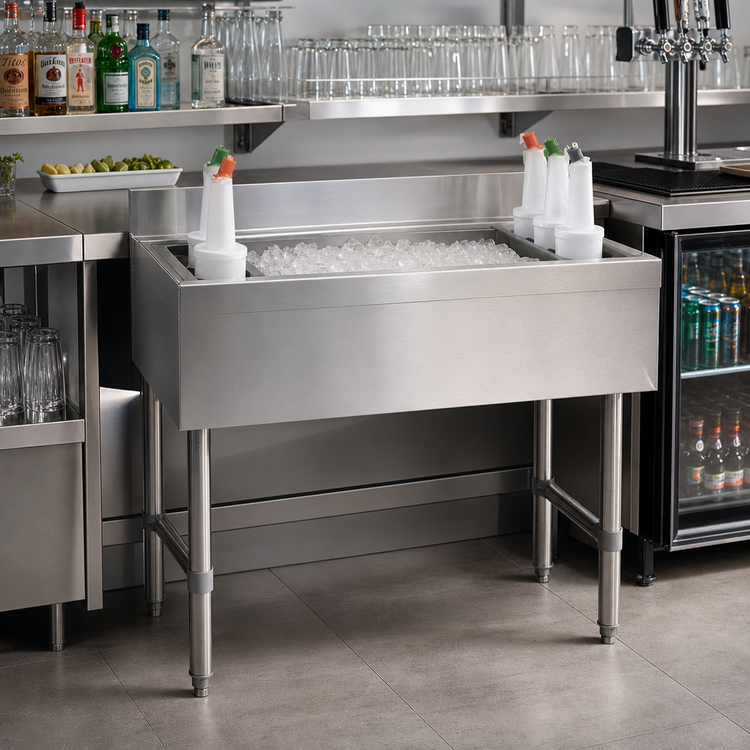

Advance Tabco Underbar Basics™ 48" Cocktail Ice Bin

Model CRI-12-48 • 161 lb ice capacity • NSF

Built for high-volume bars that refuse to compromise on durability or hygiene, the Underbar Basics™ 48" Cocktail Unit keeps up with every rush. Its deep, foam-insulated ice chest, rugged stainless construction, and bartender-friendly details help you serve perfectly chilled drinks—shift after shift.

Key Features

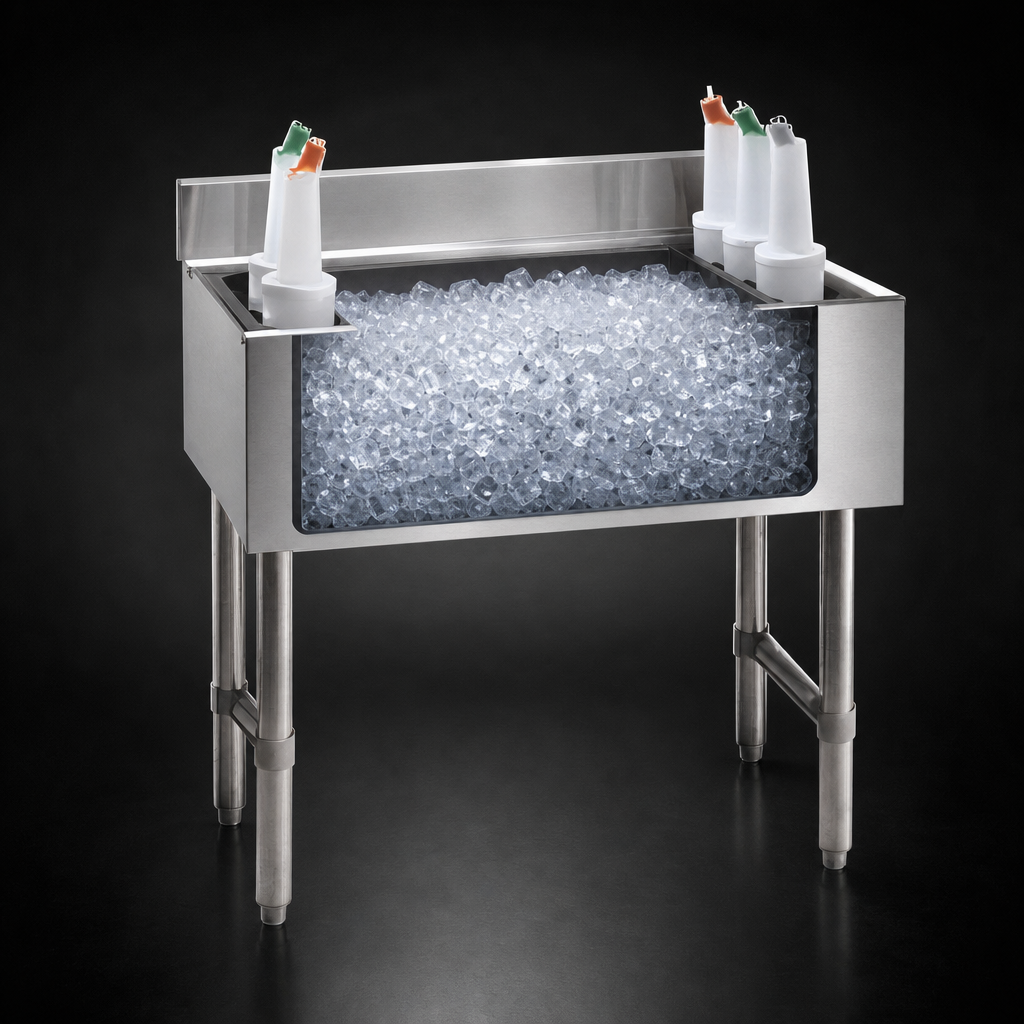

  • 161 lb ice capacity – 12" deep insulated chest holds ample ice for peak service.
  • All-stainless ice bin – 22 ga 300-series interior, front apron & 4" backsplash; 20 ga 430-series side panels.
  • Two removable 3-pack bottle racks for easy access to mixers and syrups.
  • 1" IPS drain speeds melt-water removal and sanitation.
  • Heavy-duty base – 1 ⅝" OD galvanized legs with 11 ga leg channel & adjustable bullet feet.
  • Foam insulation locks in chill and reduces ice melt.
  • Adjustable galvanized side cross-bracing adds lateral stability.
  • NSF listed for open-food zones.

Specifications

Overall width 48" / 1219 mm
Front-to-back depth 21" / 533 mm
Working height 33" / 838 mm (37" to top of backsplash)
Ice bin depth 12" / 305 mm
Ice capacity Approx. 161 lb / 73 kg
Drain connection 1" IPS
Construction Stainless ice bin & apron; galvanized understructure & legs
Included accessories (2) removable plastic bottle racks
Certifications NSF

Popular Factory Options (Sold separately – contact us to add)

  • Sliding stainless-steel cover (SSC-48)
  • Soda chase provision (SU-30)
  • Prep for speed-rail installation (SU-40)
  • Stainless-steel leg upgrades – 10" (SU-10B) or 14" (SU-10C)
NSF note: Bottle racks must be removed when using an optional sliding cover to maintain NSF compliance.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Underbar Basics™

Certifications

NSF

Height

33.0in

Width

48.0in

Depth

21.0in

Shipping Weight

96.0lbs

Splash

4"

Construction

stainless steel & galvanized

Ice Capacity

150 - 199 lbs.

Bin Depth

12" deep ice bin

Cold Plate

without

Width (side - side) OA

43" - 48"

Depth (front - back) OA

20" - 21"

Specifications

Underbar Basics™ Cocktail Unit, 12" deep chest, 48"W x 21"D x 33"H, 4"H splash, approximately 161 lbs. ice capacity, (2) removable plastic bottle racks, stainless steel construction, galvanized legs with adjustable bullet feet, NSF
