Description

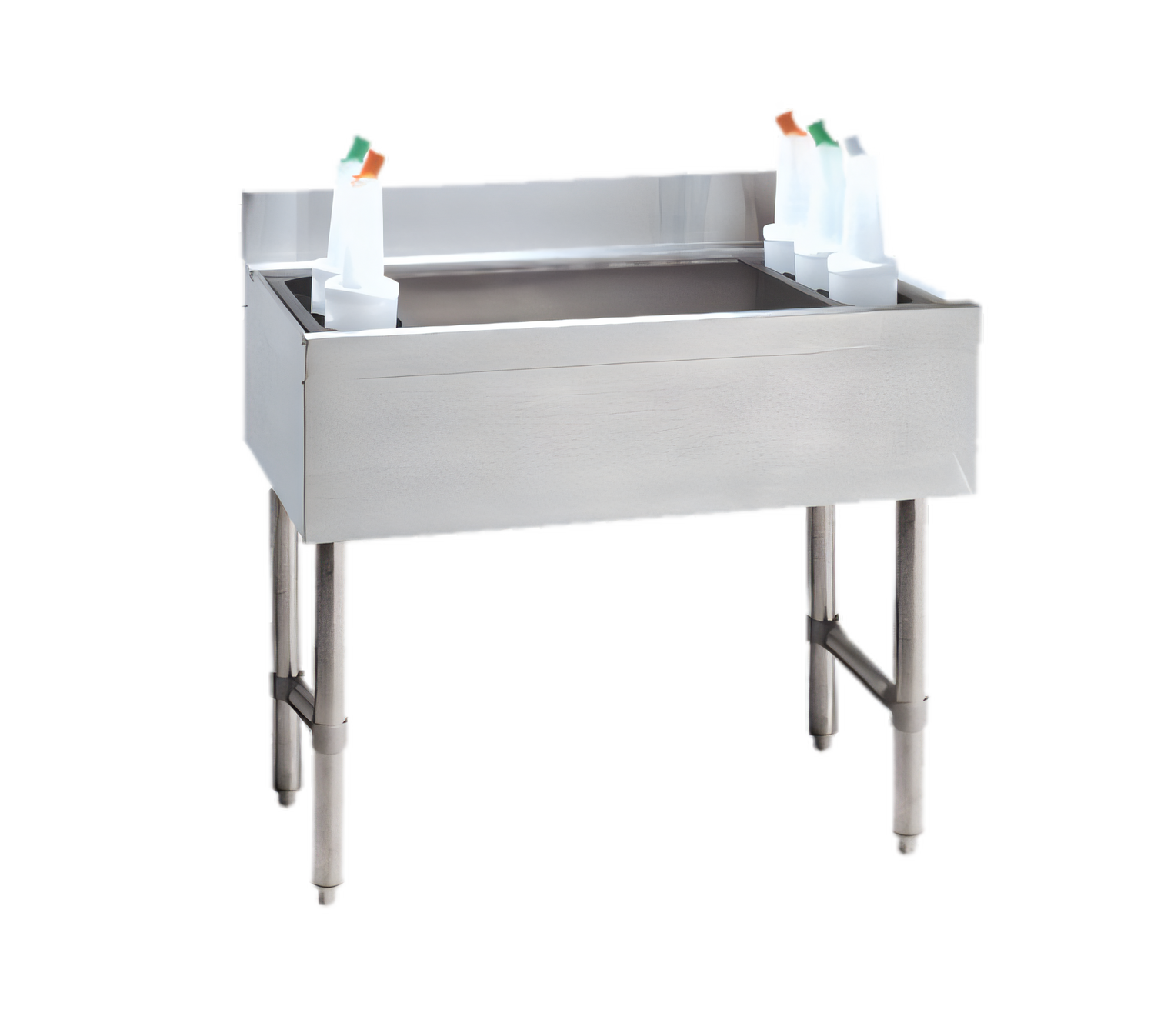

Advance Tabco Underbar Basics™ Cocktail Ice Bin – 48"W

Model CRI-12-48-7 | 7-Circuit Cold Plate | NSF Certified

Purpose-built for high-volume bars that never miss a pour, the Underbar Basics™ 48" cocktail unit combines a foam-insulated 12" deep ice chest with an integrated 7-circuit cold plate. Pour, chill and serve with maximum speed while keeping ice, syrups and water lines perfectly separated and sanitary.

Why You’ll Love It

  • 161 lb ice capacity – plenty for an entire service shift.

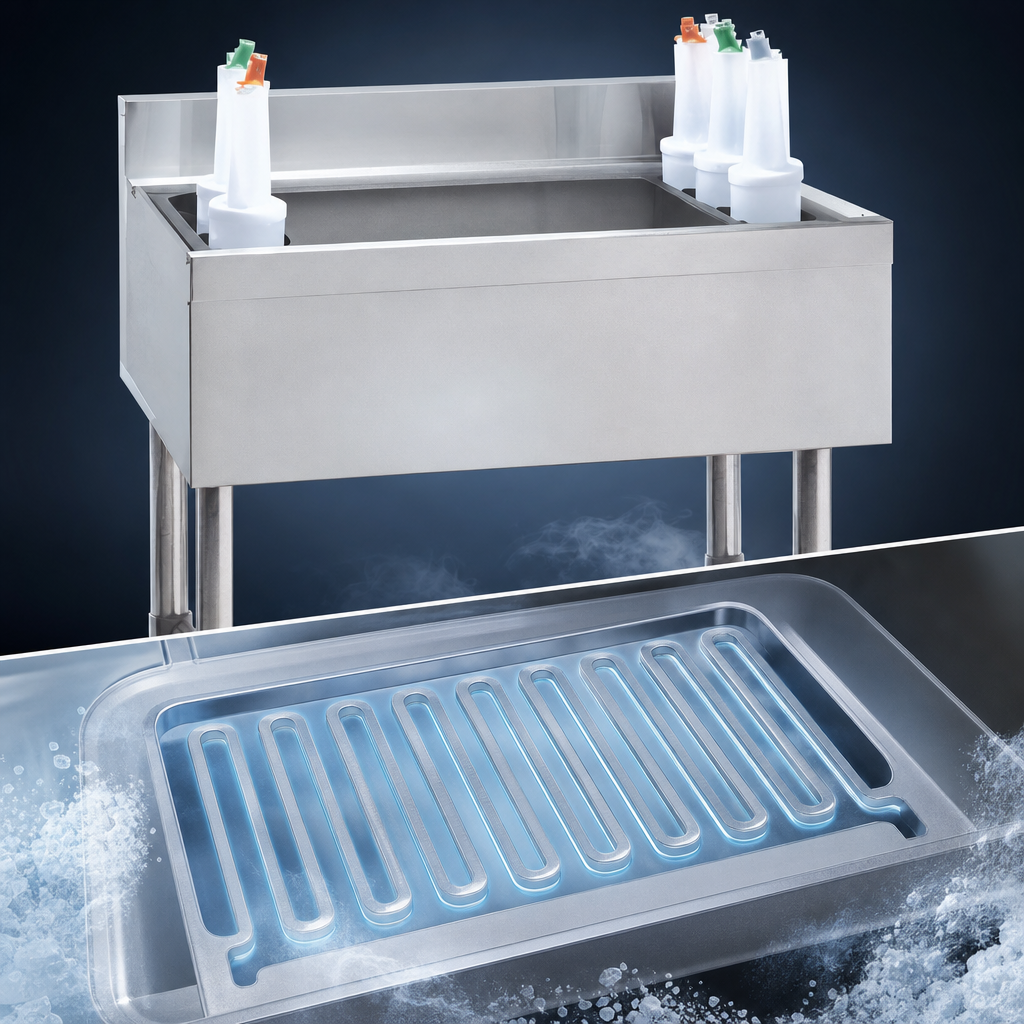

  • Cast-aluminum 7-circuit cold plate (5 syrup / 2 water) sealed into the bin floor for drip-free beverage lines.

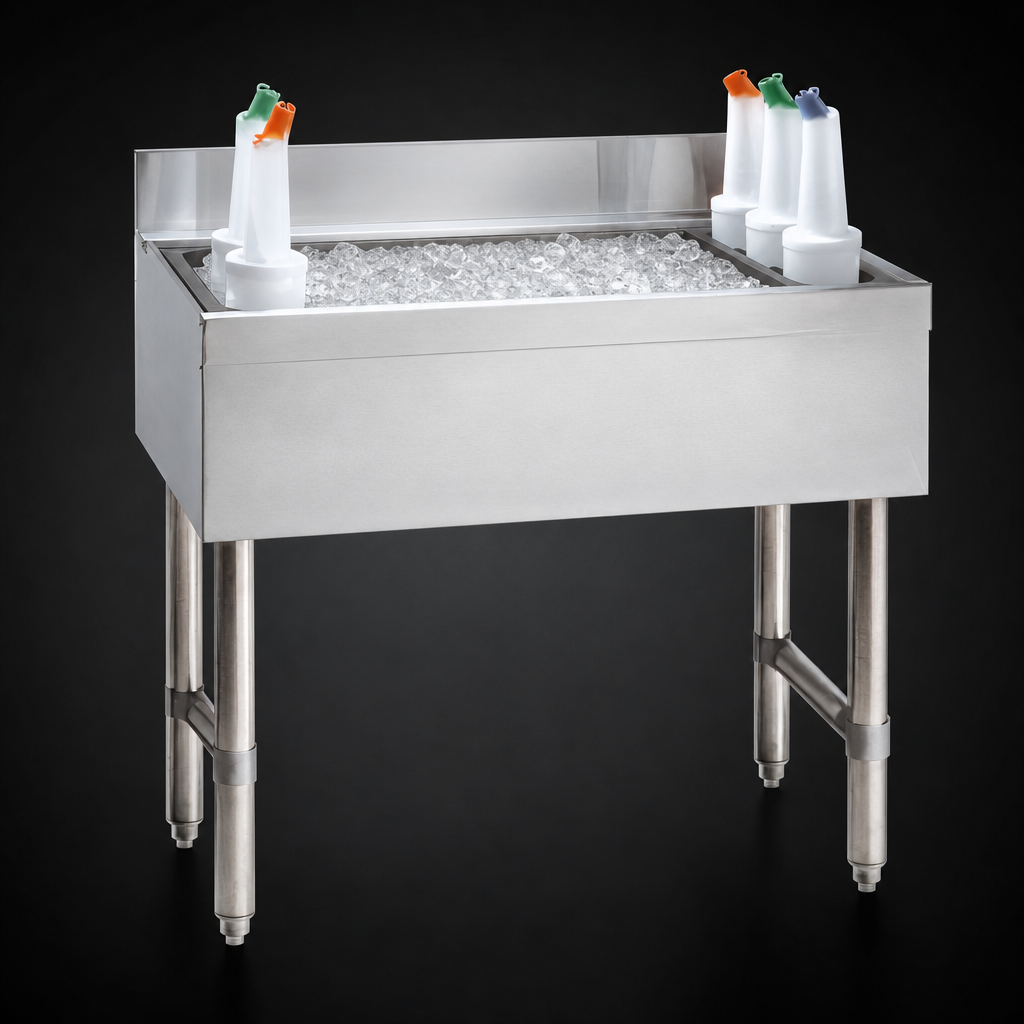

  • 12" deep, foam-insulated ice chest maintains rock-solid temperatures.
  • Rear deck provides convenient bottle or glass storage without sacrificing ice space.
  • Two removable 3-pack plastic bottle racks keep frequently used mixers organized; pop them out for quick cleaning.
  • Durable 22 ga 300-series stainless ice bin & apron with 20 ga 430-series stainless sides.
  • 4" high backsplash helps control spills and protects surrounding walls.
  • 1 5/8" Ø galvanized legs with adjustable plastic bullet feet and side cross-bracing for rock-steady support.
  • 1/2" IPS drain for fast, reliable melt-water removal.
  • NSF listed for open-food service when bottle racks are removed.

Technical Specs

Overall width (left ↔ right) 48" / 1219 mm
Overall depth (front ↔ back) 21" / 533 mm
Overall height 33" / 838 mm (includes 4" backsplash)
Ice-bin inside depth 12" / 305 mm
Ice capacity Approx. 161 lbs  / 73 kg
Cold plate Cast aluminum, 7 circuits (5 syrup, 2 water) with 5/16" stainless tubing & swedge ends
Drain connection 1/2" IPS
Shipping weight 119 lbs  / 54 kg
Construction 22 ga 300-series stainless bin, apron & backsplash; 20 ga 430-series stainless sides; galvanized understructure & legs
Legs / feet (4) 1 5/8" Ø, 18 ga galvanized legs with adjustable plastic bullet feet
Certifications NSF

Popular Add-Ons (Sold Separately)

  • SSC-48 sliding stainless steel cover – lock in ice temperature during off-hours.
  • Additional plastic bottle racks.
  • Advance Tabco underbar speed rails, sinks and drainboards to build a seamless cocktail station.

For NSF compliance and when using the optional sliding cover, bottle racks must be removed.

Remember: This unit requires a floor drain or suitable waste connection for the 1/2" IPS melt-water outlet.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Underbar Basics™

Certifications

NSF

Height

33.0in

Width

48.0in

Depth

21.0in

Shipping Weight

119.0lbs

Depth (front - back) OA

20" - 21"

Construction

stainless steel & galvanized

Cold Plate

(7) circuit

Width (side - side) OA

43" - 48"

Ice Capacity

150 - 199 lbs.

Bin Depth

12" deep ice bin

Splash

4"

Specifications

Underbar Basics™ Cocktail Unit, 12" deep chest with 7-circuit cold plate, 48"W x 21"D x 33"H, 4"H splash, approximately 161 lbs. ice capacity, (2) removable plastic bottle racks, stainless steel construction, galvanized legs with adjustable bullet feet, NSF
