Advance Tabco  |  Underbar Basics™  |  SKU: CRI-12-42-7  |  UPC: 747545181404

Advance Tabco CRI-12-42-7 Underbar Basics™ Bar Equipment

$1,942.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents
Related Searches

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

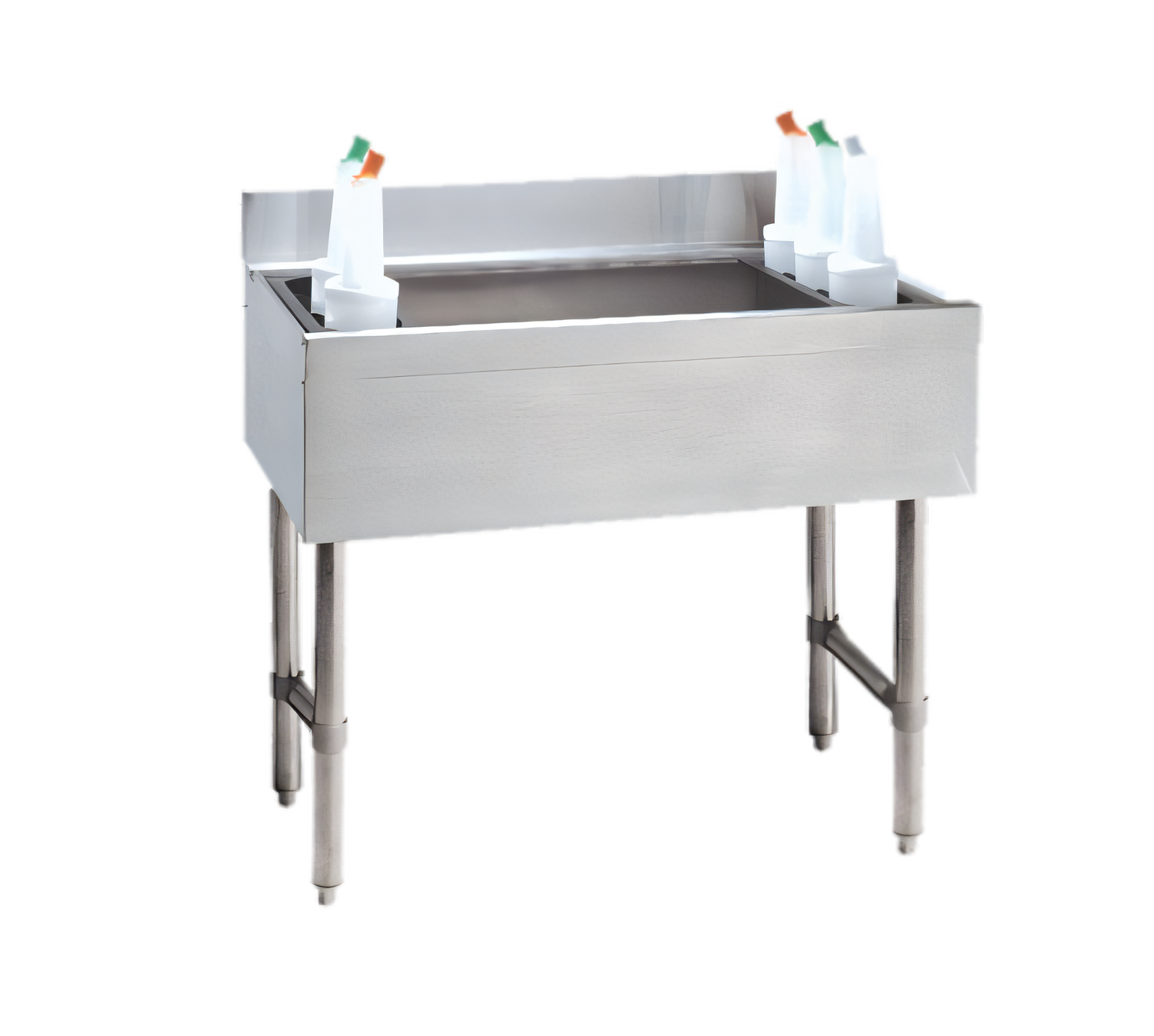

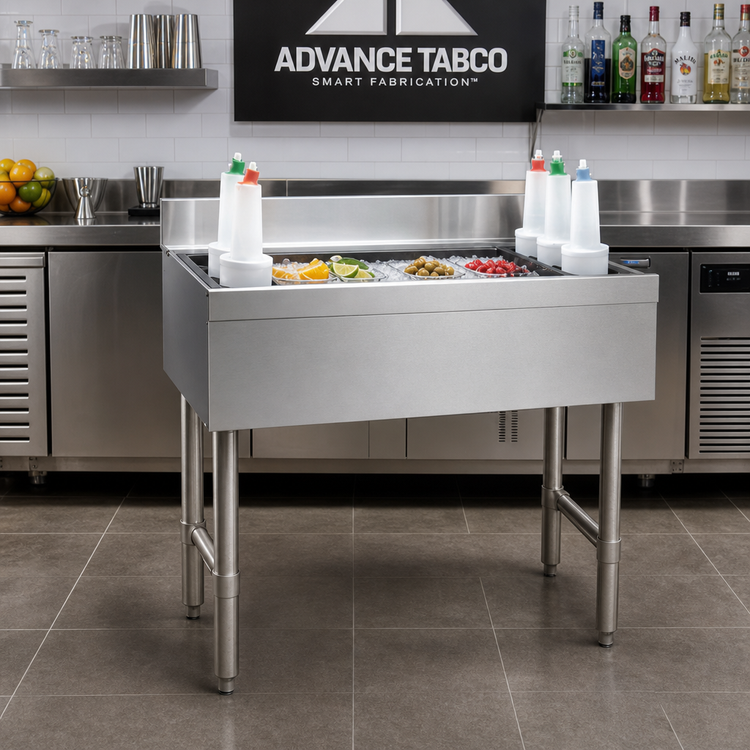

Underbar Basics™ Cocktail Ice Bin w/ 7-Circuit Cold Plate — 42"W x 21"D

Advance Tabco Model CRI-12-42-7 | NSF Listed

Engineered for busy cocktail stations, the 42 inch Underbar Basics™ ice bin combines a generous 140 lb ice chest with a built-in 7-circuit cold plate. Chill five soda syrups and two carbonated-water lines while keeping ice rock-solid — all in a single, compact, NSF-approved unit ready to drop into any underbar line-up.

Why You’ll Love It

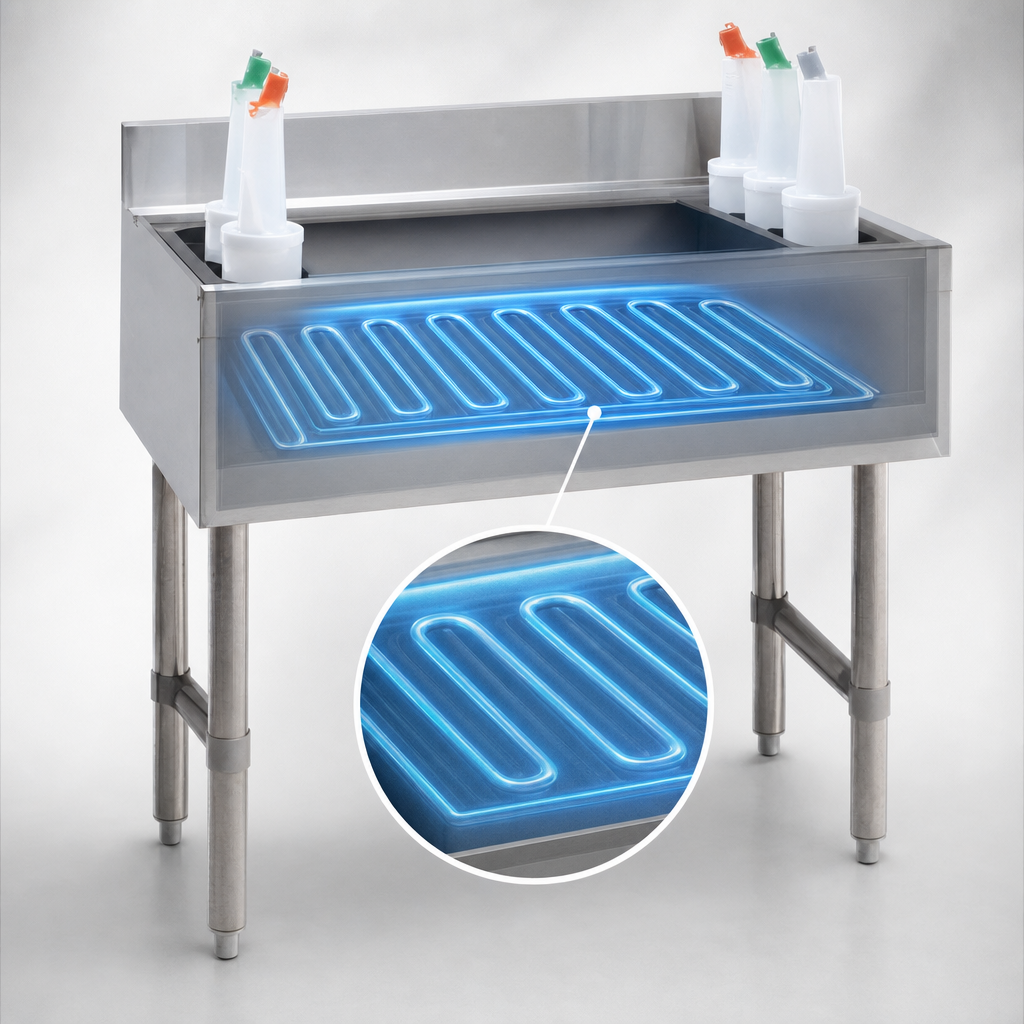

  • 7-Circuit Cast-Aluminum Cold Plate (5 syrup / 2 water) is sealed directly into the ice well for maximum beverage cooling.

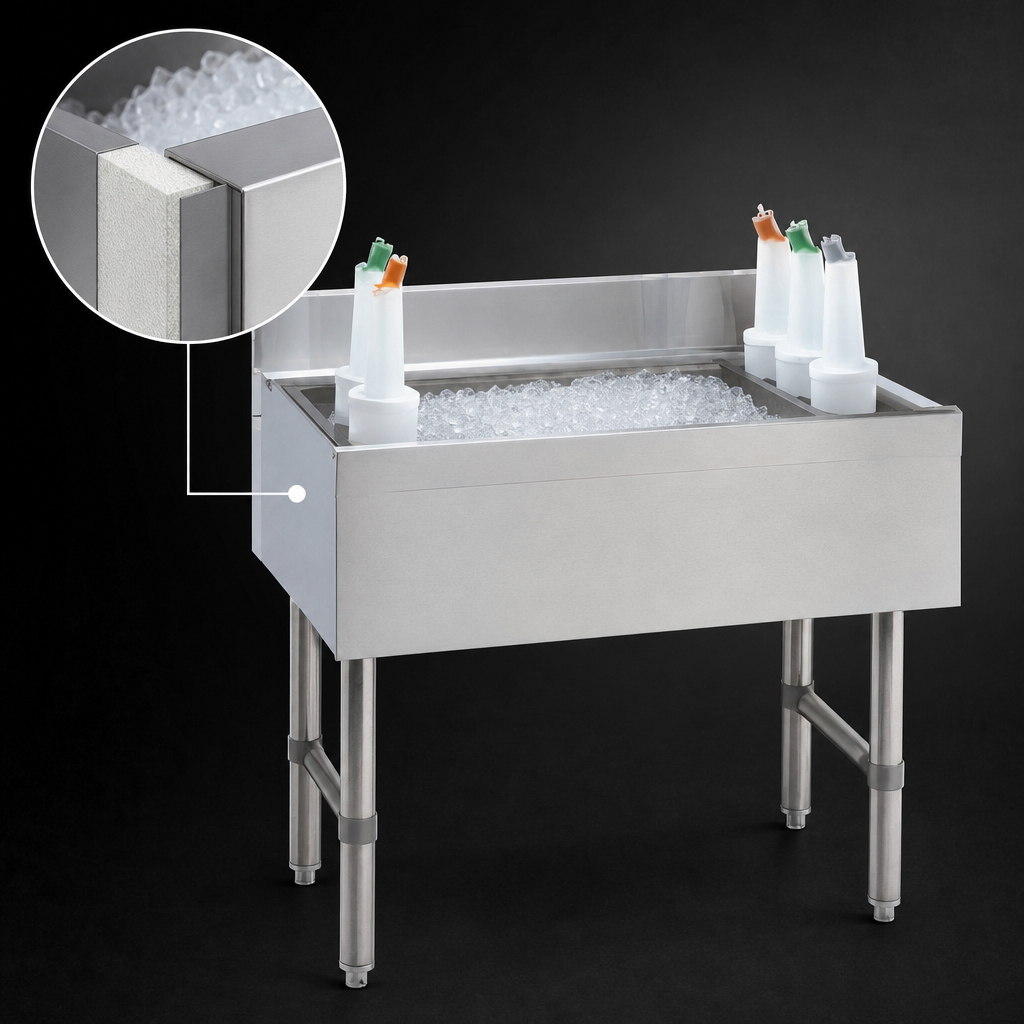

  • Foam-Insulated 12" Deep Chest holds up to 140 lbs of ice to power through the longest shifts.
  • 22 ga 300 Series Stainless Steel ice bin, apron and 4" backsplash resist corrosion and stay easy to wipe clean.
  • Two Removable 3-Pack Bottle Racks keep your most-used mixers right at hand — or pop them out instantly for speedy NSF sanitation.
  • Galvanized 1 5/8" Ø Legs with adjustable plastic bullet feet deliver rock-solid stability on uneven floors.
  • Rear Deck Storage (exclusive to CRI series) adds a handy landing zone for bar tools or glassware.
  • 1/2" IPS drain for quick, positive water removal.

Specifications

Overall Dimensions 42"W × 21"D × 33"H
Backsplash Height 4"
Ice Capacity Approx. 140 lbs
Ice Bin Depth 12" (foam-insulated)
Cold Plate Cast aluminum, 7 circuits | 5 syrup, 2 water lines
Drain Connection 1/2" IPS
Construction 22 ga 300 SS bin/backsplash; 20 ga 430 SS sides; galvanized legs & bracing
Legs / Feet 1 5/8" Ø 18 ga galvanized steel | adjustable plastic bullet feet
Included Accessories (2) removable plastic bottle racks
Certifications NSF
Approx. Shipping Weight 108 lbs

Popular Accessories (sold separately)

  • SSC-42 Sliding Stainless-Steel Cover — lock in cold and keep ice sanitary during off-hours.
  • Additional 3-Pack Bottle Racks for custom bottle layouts.

For NSF compliance and when using an optional sliding cover, bottle racks must be removed.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Underbar Basics™

Certifications

NSF

Height

33.0in

Width

42.0in

Depth

21.0in

Shipping Weight

108.0lbs

Ice Capacity

100 - 149 lbs.

Cold Plate

(7) circuit

Bin Depth

12" deep ice bin

Depth (front - back) OA

20" - 21"

Construction

stainless steel & galvanized

Splash

4"

Width (side - side) OA

37" - 42"

Specifications

Underbar Basics™ Cocktail Unit, 12" deep chest with 7-circuit cold plate, 42"W x 21"D x 33"H, 4"H splash, approximately 140 lbs. ice capacity, (2) removable plastic bottle racks, stainless steel construction, galvanized legs with adjustable bullet feet, NSF
