Advance Tabco CRI-12-42-10 Underbar Basics™ Bar Equipment
$2,444.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Advance Tabco CRI-12-42-10 Underbar Basics™ Bar Equipment is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Advance Tabco CRI-12-42-10 Underbar Basics™ Bar Equipment
$2,444.00
Unit price
/
Unavailable
Description

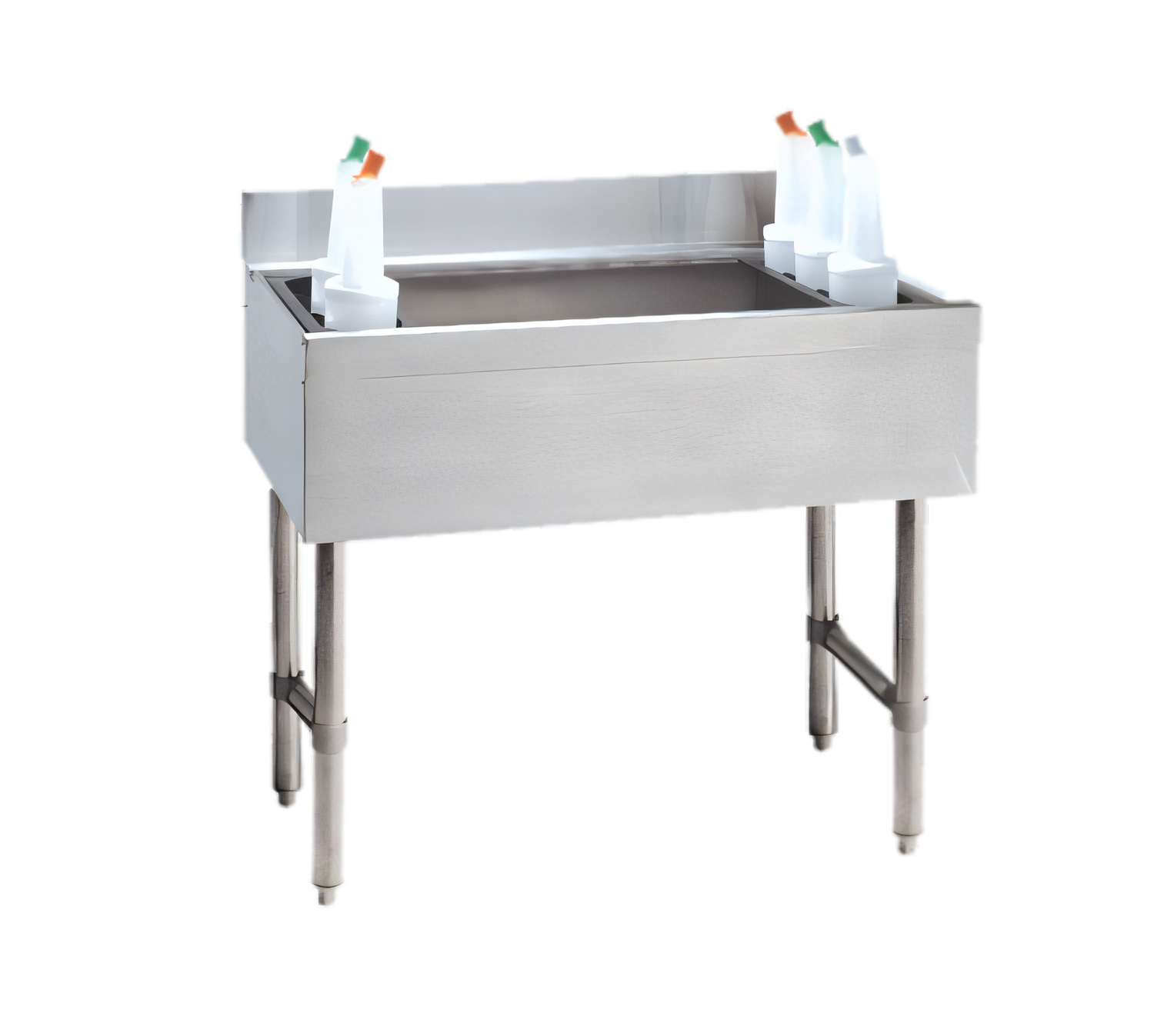

Underbar Basics™ 42" Cocktail Ice Bin with 10-Circuit Cold Plate
Model CRI-12-42-10 | Advance TabcoBuilt for high-volume bar programs, this NSF-listed unit marries a 140 lb insulated ice chest with a heavy-duty 10-circuit cold plate—so every pour, from soda gun to speed rail, stays refreshingly cold.
Why You’ll Love It

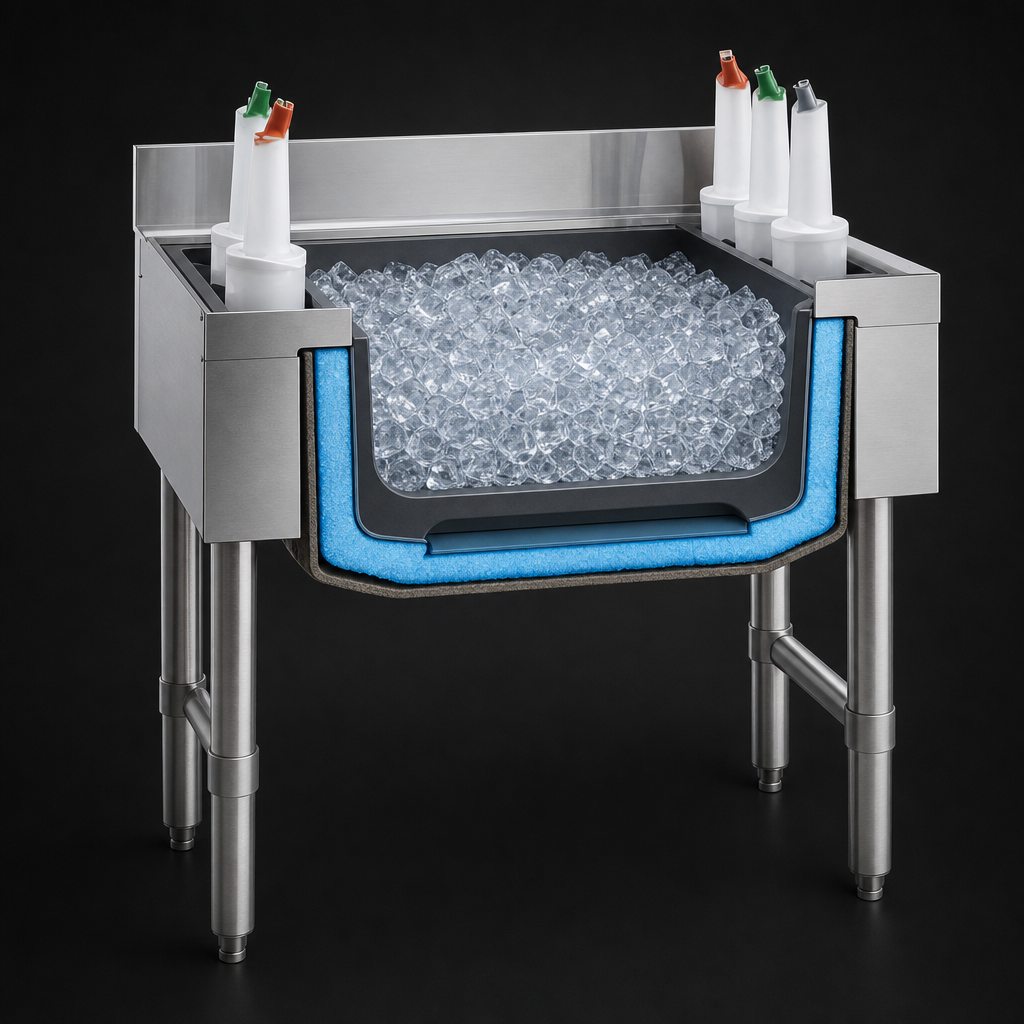

- 12" deep, foamed-in-place ice bin holds ≈140 lb of ice.

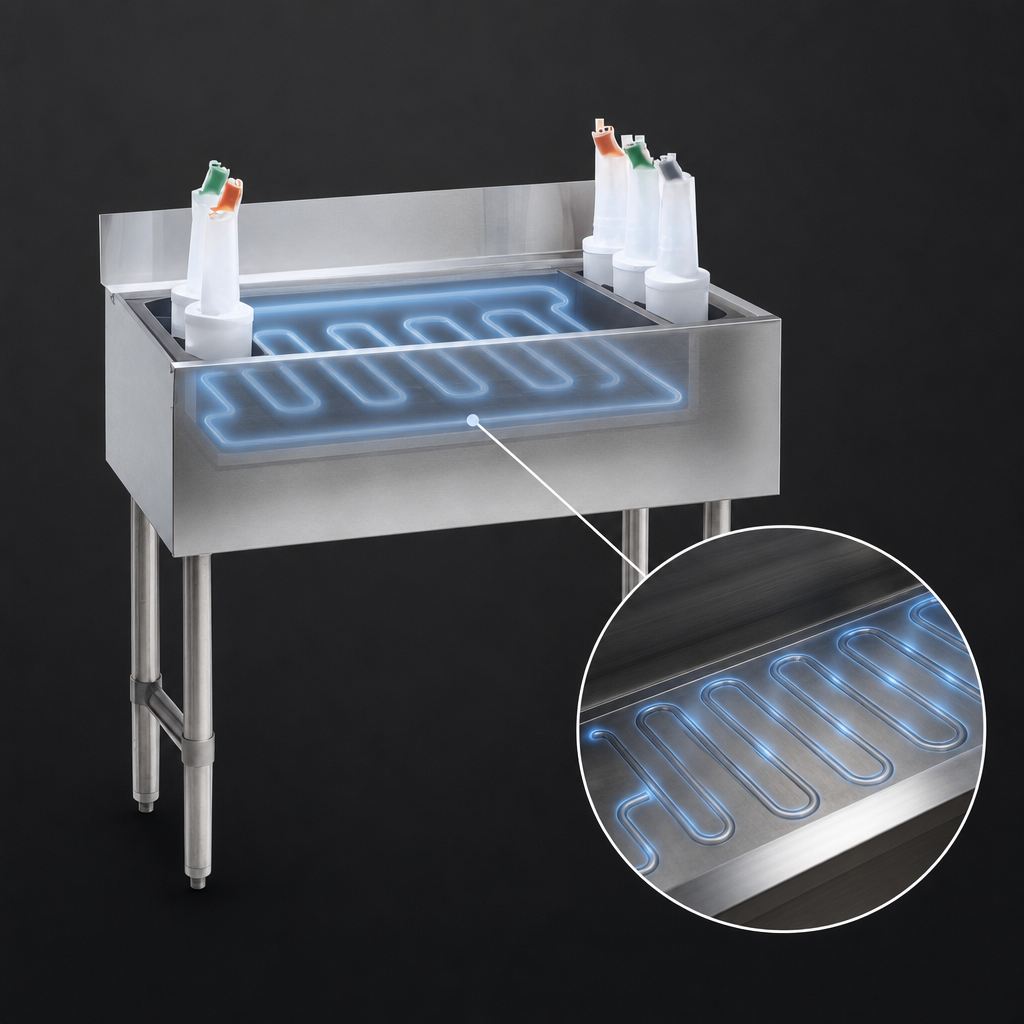

- Cast-aluminum 10-circuit cold plate (sealed into the bin) chills multiple soda & water lines at once.
- All stainless contact surfaces: 22-ga. 300 series ice bin, apron & 4" splash; 20-ga. 430 series sides.
- Rear deck adds extra space for glassware, garnishes, or POS equipment.
- (2) removable 3-pack bottle racks keep speed pourers organized and within reach.
- 1 ⅝" O.D. galvanized legs with adjustable bullet feet and side cross-bracing for rock-solid stability.
- 1/2" IPS drain speeds clean-up at shift’s end.
- NSF listed for open-food contact.
Key Specifications
| Overall dimensions | 42" W × 21" D × 33" H |
|---|---|
| Backsplash height | 4" |
| Ice capacity | ≈140 lb |
| Bin depth | 12" |
| Cold-plate circuits | 10 (cast aluminum, factory-sealed) |
| Drain connection | 1/2" IPS |
| Construction | Stainless ice bin/apron/splash; galvanized understructure & legs |
| Unit weight | ≈153 lb |
| Certifications | NSF |
Popular Accessories (Sold Separately)
- SSC-42 sliding stainless-steel cover—keeps ice sanitary during off-hours.
- Extra plastic bottle racks for customized speed-rail setups.
For NSF compliance and when using the optional sliding cover, bottle racks must be removed during operation.
Features & Specs
Features & Specs
Manufacturer
Advance Tabco
Brand_name
Underbar Basics™
Certifications
NSF
Height
33.0in
Width
42.0in
Depth
21.0in
Shipping Weight
153.0lbs
Depth (front - back) OA
20" - 21"
Bin Depth
12" deep ice bin
Splash
4"
Ice Capacity
100 - 149 lbs.
Cold Plate
(10) circuit
Construction
stainless steel & galvanized
Width (side - side) OA
37" - 42"
Specifications
Underbar Basics™ Cocktail Unit, 12" deep chest with 10-circuit cold plate, 42"W x 21"D x 33"H, 4"H splash, approximately 140 lbs. ice capacity, (2) removable plastic bottle racks, stainless steel construction, galvanized legs with adjustable bullet feet, NSF
